| thickness of raw material | 0.3-0.8mm | |

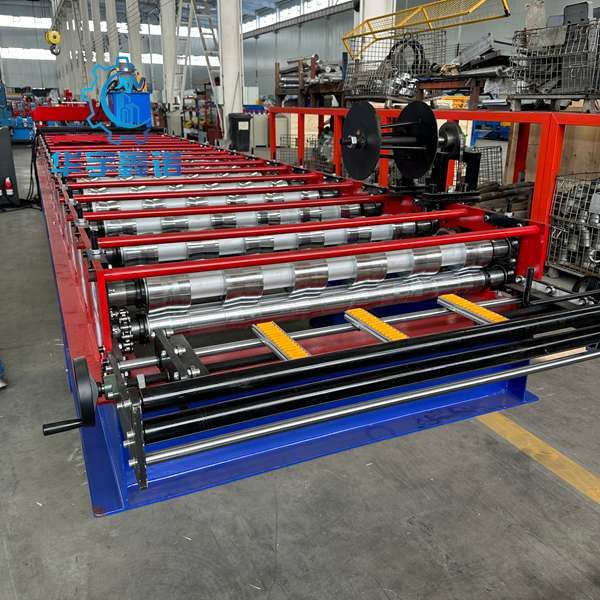

| Row number | 16 | |

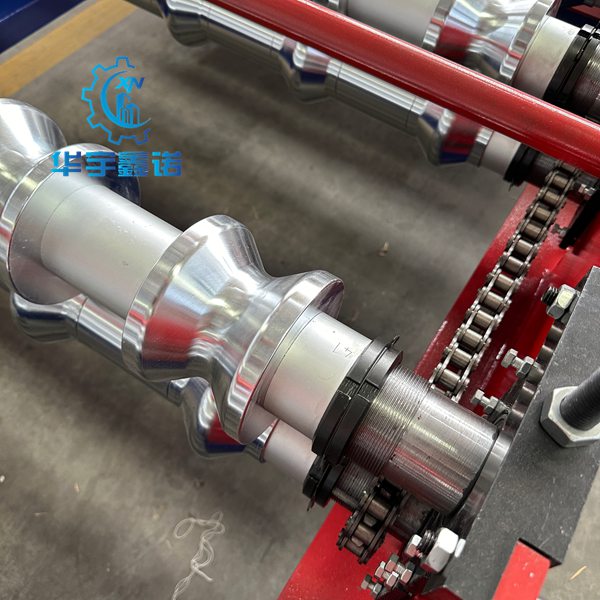

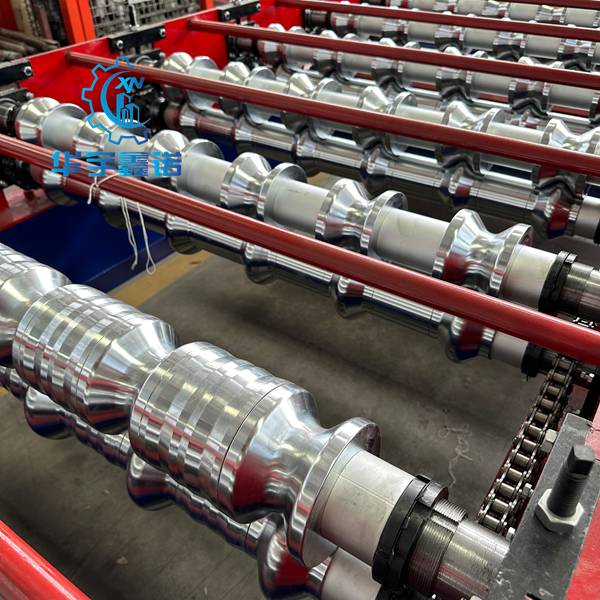

| Roller material | 45# steel | |

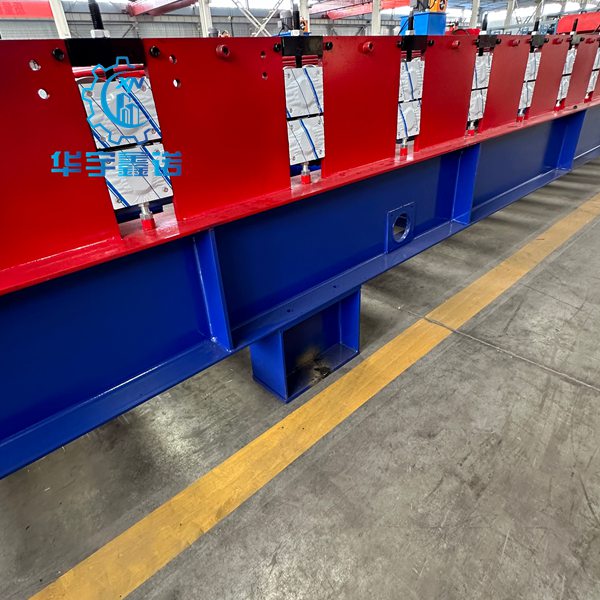

| Under frame | 350mm H Steel | |
| Shaft diameter | 80mm solid shaft | |
| The material of the shaft | 45# steel | |
| Structure | 16mm Steel Plate | |
| Transfer method | 1.0 double chain drive | |
| Main motor power | 7.5KW servo motor | |
| Cutter motor power | 4 KW | |
| Cutter type | hydraulic cutting | |

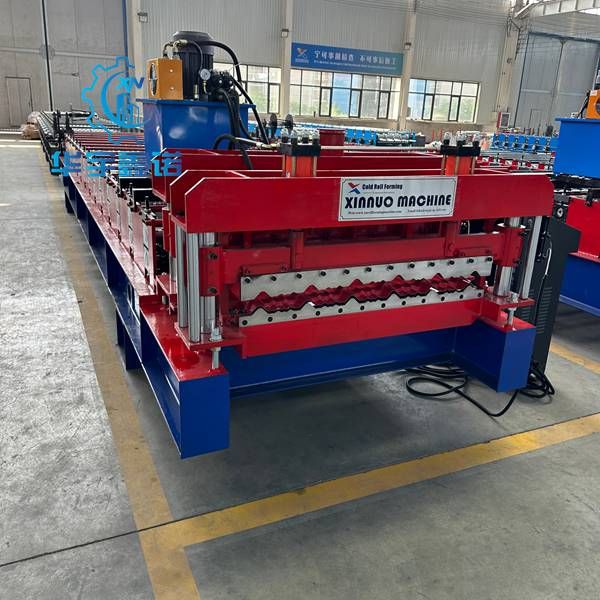

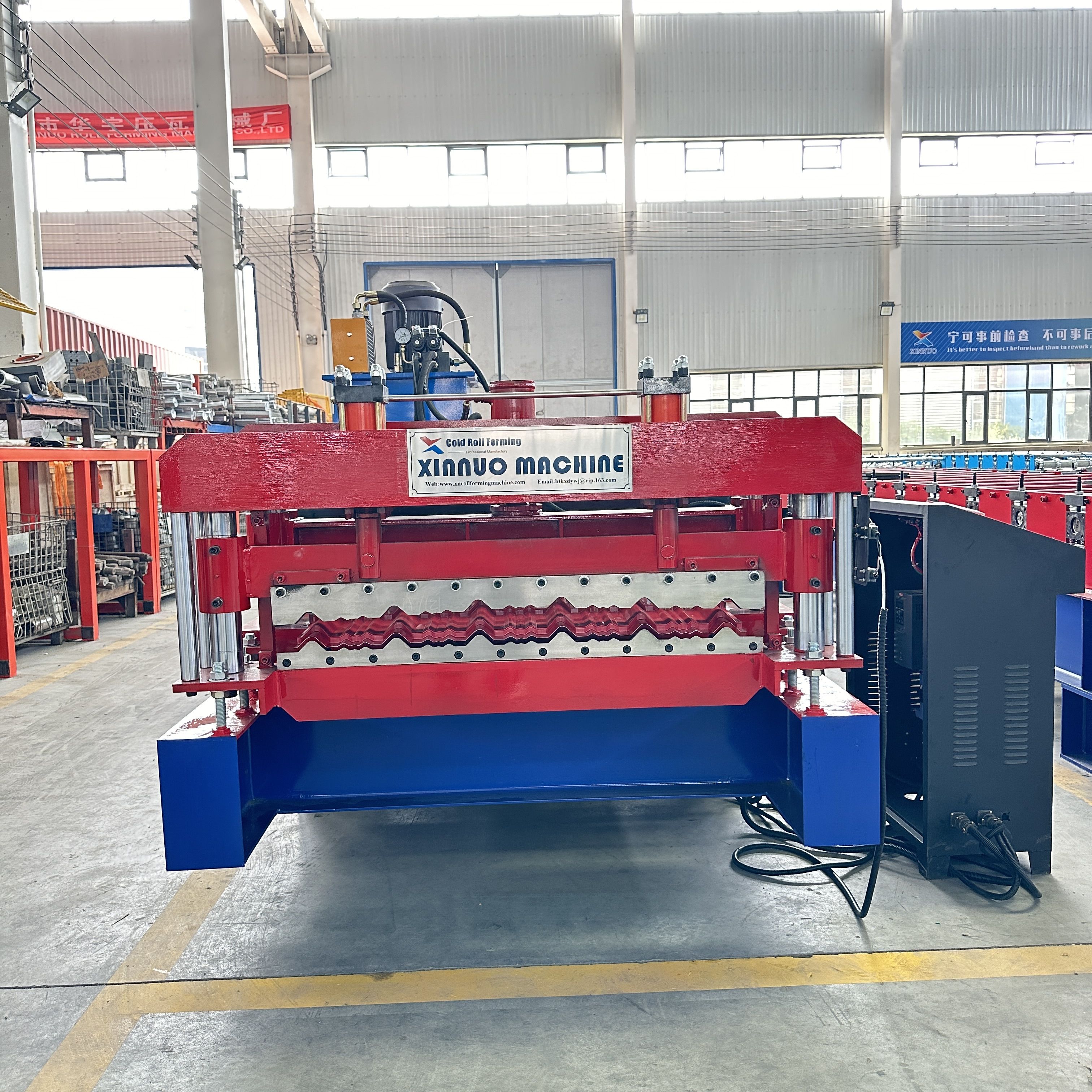

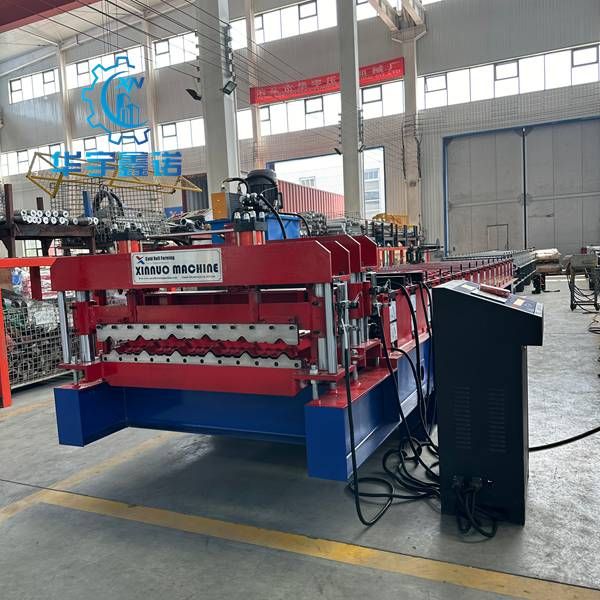

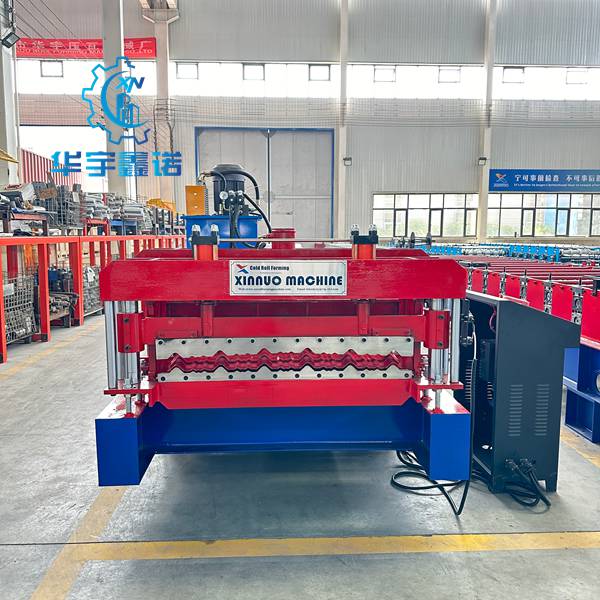

At XINNUO Roll Forming Machine, customer needs always come first. As a trusted manufacturer with strong production capacity and advanced facilities, we deliver machines that combine precision, durability, and efficiency — especially our stepped tile roll forming machine, which is designed for stable and accurate roof tile production.
Every process — from raw material processing to assembly and testing — is handled in-house under strict quality standards to ensure that each stepped tile roll forming machine meets global performance expectations. Beyond manufacturing, we provide tailored solutions, hands-on technical training, and responsive after-sales service to help customers operate their stepped tile roll forming machine with maximum productivity and long-term value.
Chosen by clients across the world, XINNUO is your reliable partner for professional metal forming machinery and high-quality stepped tile roll forming machine solutions.
