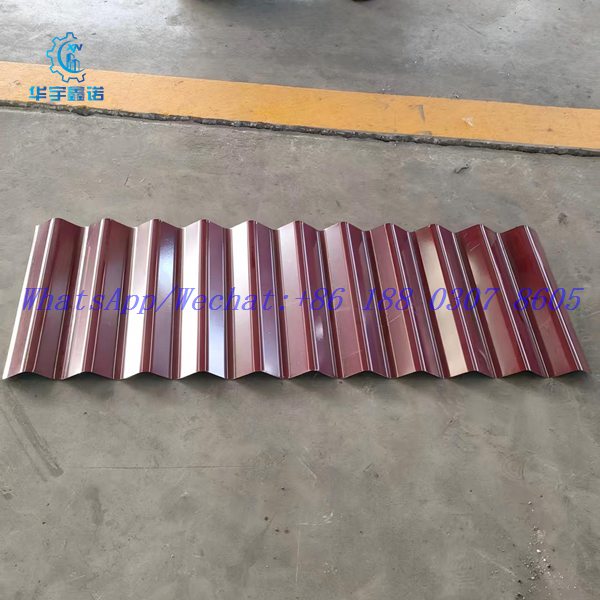

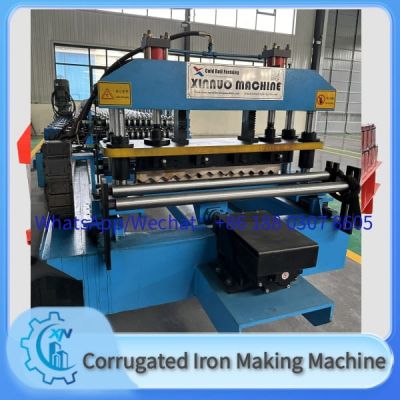

Corrugated sheet machine delivers excellent forming quality for roofing sheets, ensuring uniform profiles and consistent results.
| Item | Specification |
|---|---|
| Machine Type | Curved Corrugated Sheet Forming Machine |
| Applicable Material | Galvanized steel / Pre-painted steel (GI / PPGI) |
| Material Thickness | 0.3 – 0.8 mm (customizable) |
| Yield Strength Range | G300 – G550 |
| Forming Speed | 8 – 15 m/min (depending on material) |
| Roller Stations | 13 – 18 stations |
| Roller Material | 45# steel, heat-treated and quenched |
| Shaft Diameter | 70 mm / 75 mm (optional) |
| Arc Radius | Adjustable / Fixed radius (optional) |
| Cutting System | Hydraulic cutting |
| Cutter Material | Cr12 with heat treatment |
| Main Motor Power | 5.5 – 7.5 kW |
| Hydraulic Power | 4.0 – 5.5 kW |
| Control System | PLC with touch screen |
| Feeding System | Infeed platform with leveling rollers |
| Spacer Treatment | Dacromet-coated spacers |
| Cooling System | Air-cooled hydraulic station |
| Machine Structure | Heavy-duty welded steel frame |
| Voltage | 380V / 50Hz / 3Phase (customizable) |

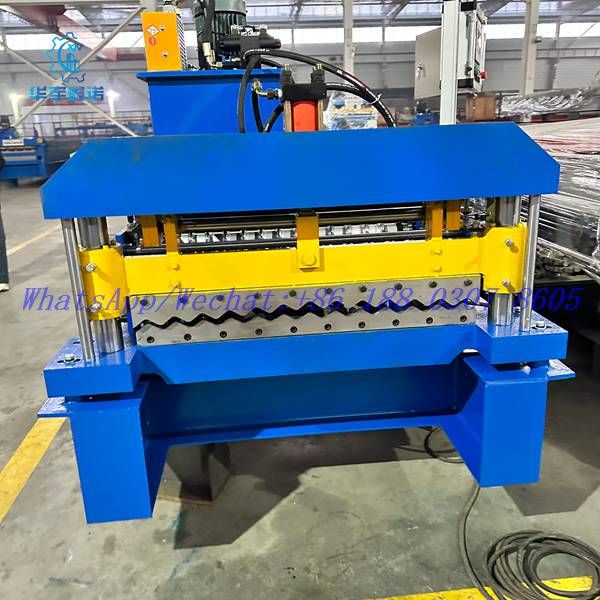

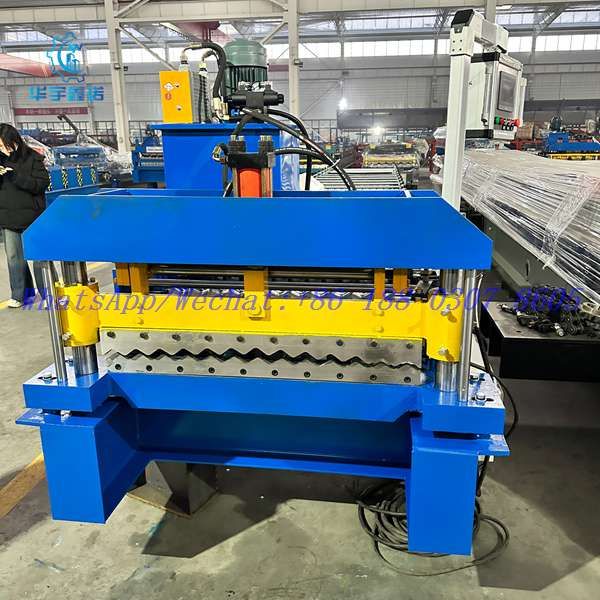

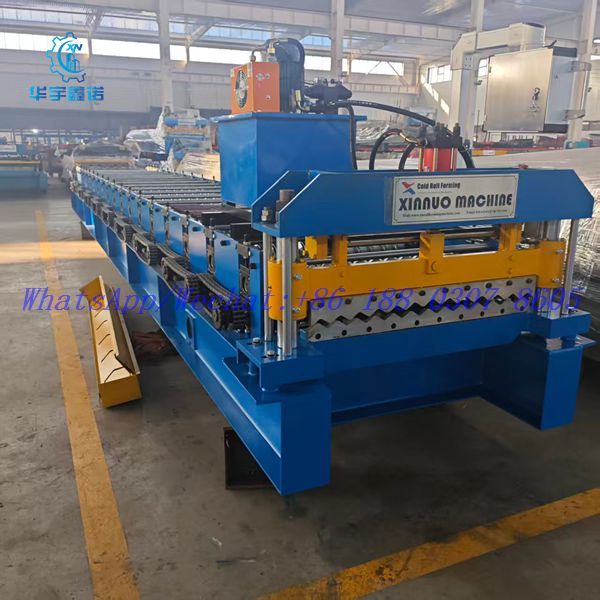

Corrugated sheet machine features a well-balanced overall structure with clean, streamlined lines, combining strength, stability and refined industrial design.

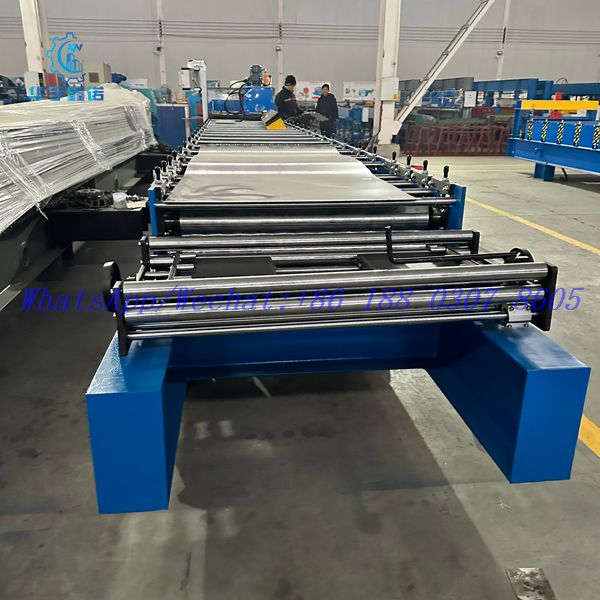

Corrugated sheet machine features an infeed platform with integrated leveling rollers, ensuring smooth and stable material feeding throughout the forming process.

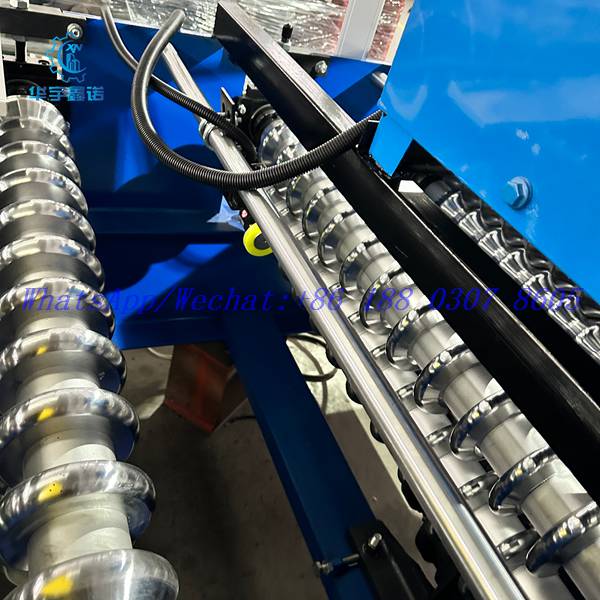

Corrugated sheet machine uses spacers treated with Dacromet coating, providing excellent corrosion resistance and long-term durability.

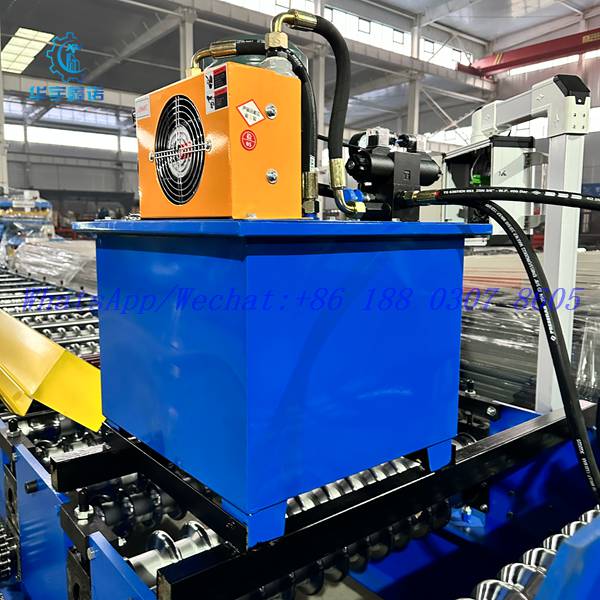

Corrugated sheet machine is equipped with an air-cooling fan on the hydraulic power station, enabling continuous operation in tropical climates or during hot seasons and meeting the demands of mass production.
