IBR Roll Forming Machine - IBR 686 Roof Sheeting Production Line

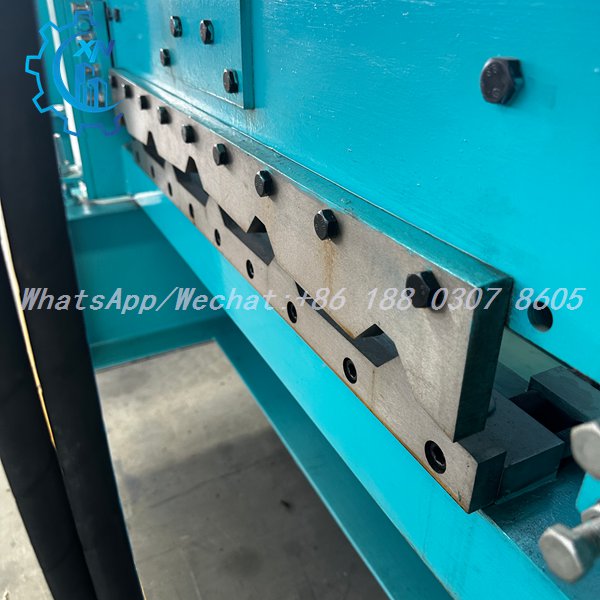

Low-angle view of the shear blade of the IBR roll forming machine: thick steel blade with repeating notched trapezoidal teeth matching the IBR profile, secured by hex bolts - clean roof sheet cutting.

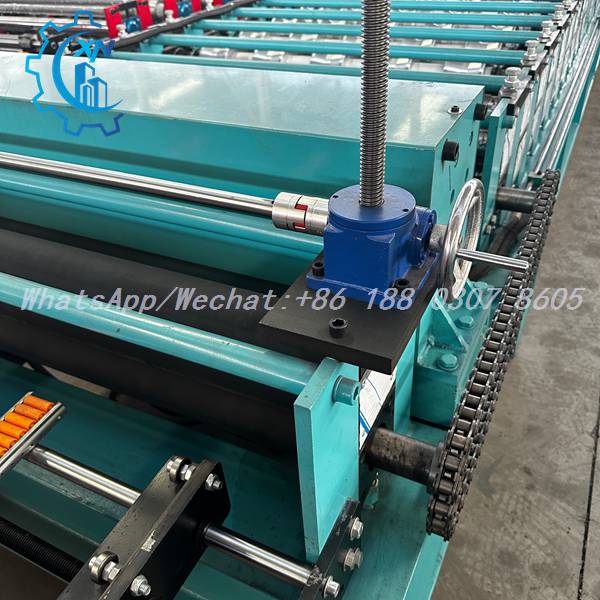

Close-up of the screw-jack assembly of the IBR roll forming machine: handwheel-driven threaded rod on a mounting plate, with orange guide rollers and heavy drive chain - manual tuning and synchronization.

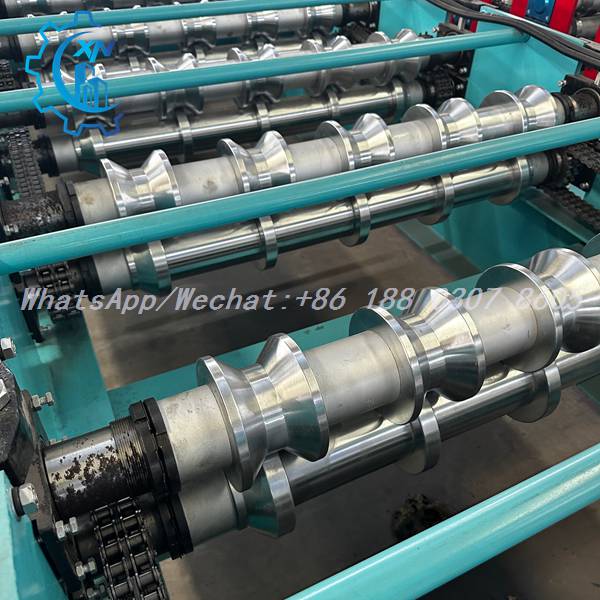

High-angle view of the forming mechanism of the IBR roll forming machine: cone and hourglass rollers on parallel shafts driven by side chains, with flat and grooved discs for progressive bending - core IBR forming tooling.

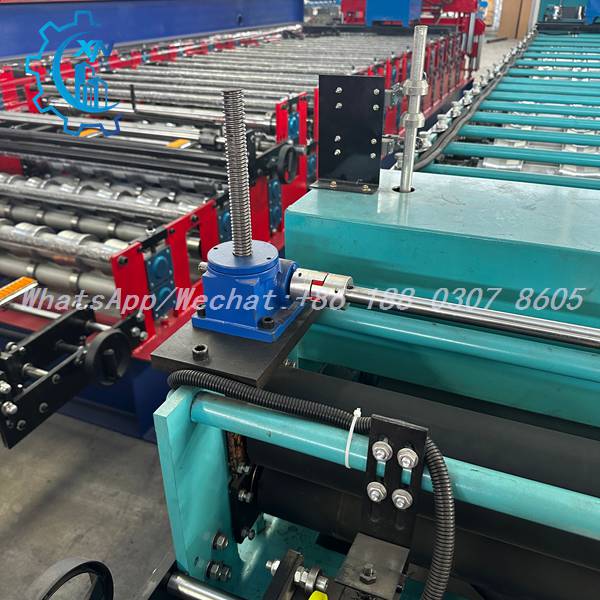

Close-up of the IBR roll forming machine: blue gearbox with lead screw and shaft coupling, long profile rollers on a red frame with chain drives and a manual handwheel - drive and forming in one unit.

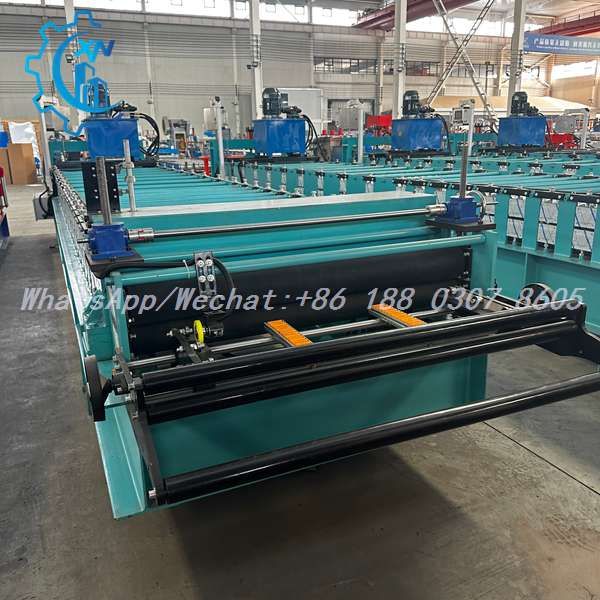

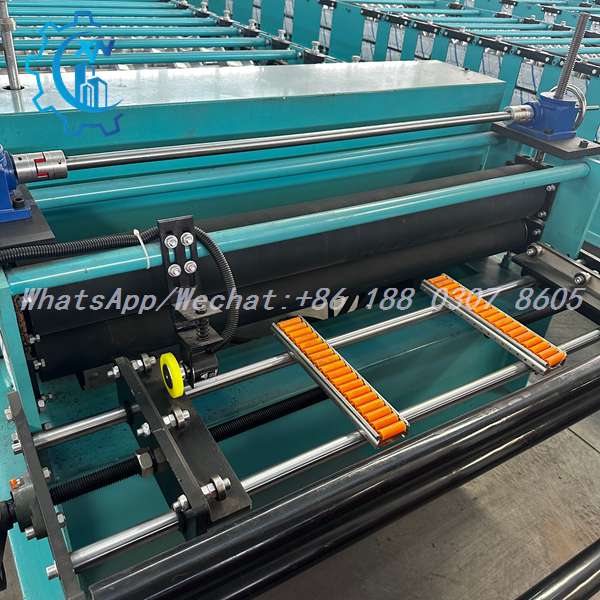

High-angle view of the IBR roll forming machine: two large black-coated rollers with sliding guide trays holding orange rollers and screw-positioned brackets - stable strip guiding.

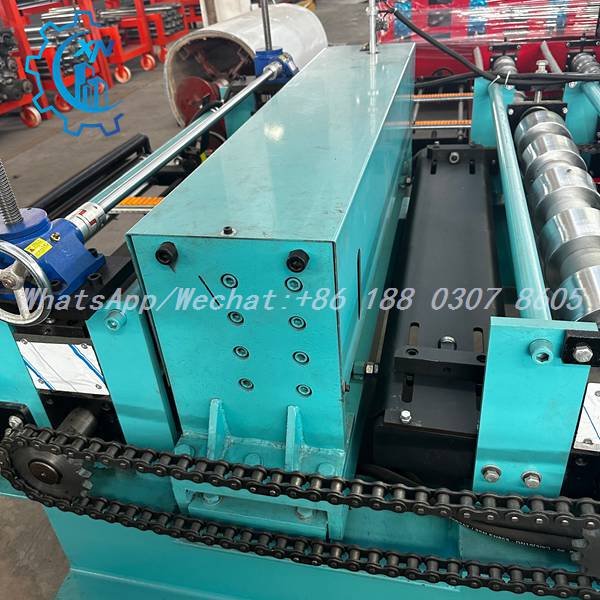

Rear section of the IBR roll forming machine: teal housing with bolted gussets, chain drive around a large sprocket, chrome forming rollers and a handwheel screw adjustment - heavy-duty line structure.

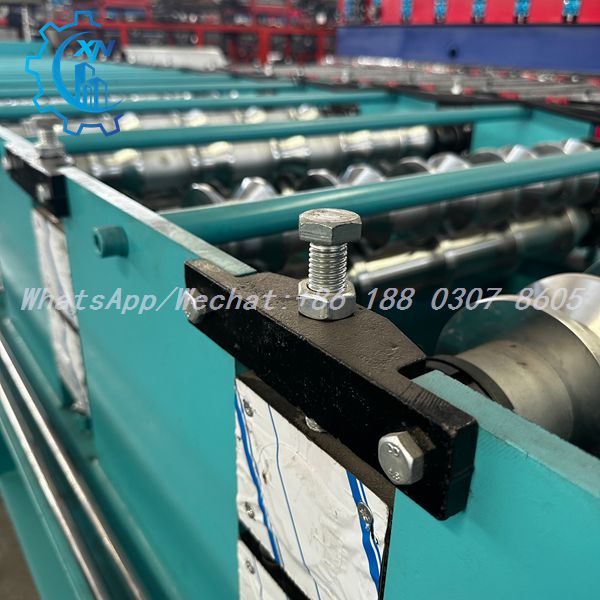

Close-up of the adjustment mechanism of the IBR roll forming machine: vertical bolt through a black bracket sets roller pressure, above contoured forming rollers on the teal frame - precise profile control.

IBR Roll Forming Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of IBR roll forming machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, IBR roll forming machines for IBR 686 roof sheeting production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support. Our IBR machines have been supplied across Southern Africa, from South Africa to Zimbabwe and Zambia.

Q1: What is an IBR roll forming machine?

A: It is a production line that forms steel coils into IBR (Inverted Box Rib) roof sheeting with 686mm coverage - the standard roofing profile for South Africa. The machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Why is IBR 686 the standard roof sheeting in South Africa?

A: IBR 686 offers excellent spanning capability, material efficiency and proven performance in South African conditions, including high wind and hail exposure; it is the most widely used roof sheeting profile in the country.

Q3: Which materials can the machine process?

A: The machine processes Chromadek, Zincalume and PPGI coated coils, as well as galvanized steel, with thickness ranges depending on the machine configuration.

Q4: How is the forming pressure adjusted?

A: Forming pressure is adjusted via handwheel-driven screw jacks and threaded bolts on each station, allowing fine tuning of roller gaps for consistent IBR profile dimensions.

Q5: Is the machine compatible with South African power supply?

A: Yes. The machine is available with 380V/50Hz electrical configuration, standard for South African factories, and can be adapted to local requirements.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every IBR roll forming machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
