IBR Machine - IBR 686 Roof Sheeting Production Line

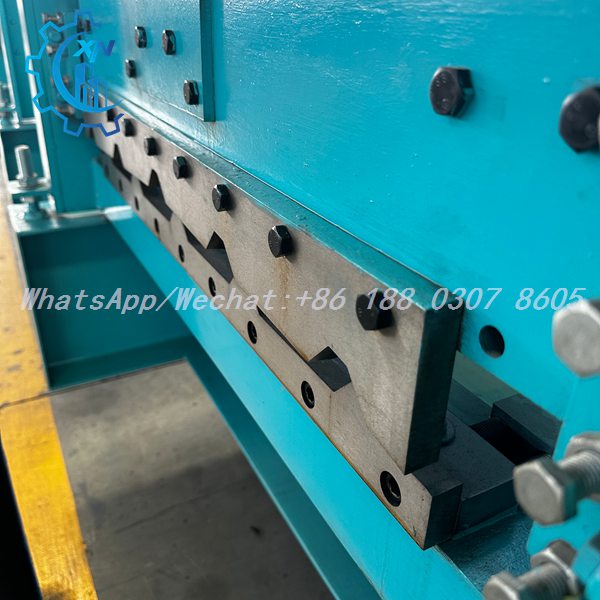

Close-up of the post-cutting hydraulic shear of the IBR machine: two-part die with notched teeth matching the IBR 686 profile for burr-free cuts, with yellow safety curb - precision cutting of roof sheeting.

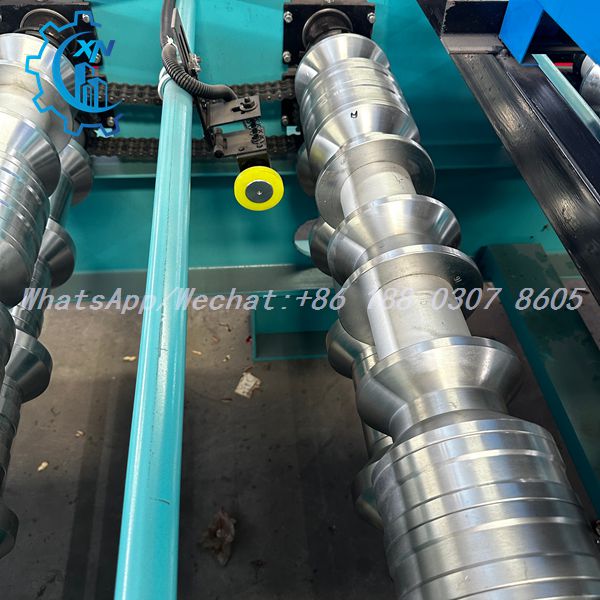

Top-down view of the forming station of the IBR machine: chrome multi-segment rollers with a yellow encoder wheel for sheet-length measurement and double-strand chain drive - accurate length control before cutting.

Three-quarter view of the discharge end of the IBR machine: hydraulic guillotine shear with chrome piston and synchronizing gear, backed by a red hydraulic pump station - reliable end-of-line cutting.

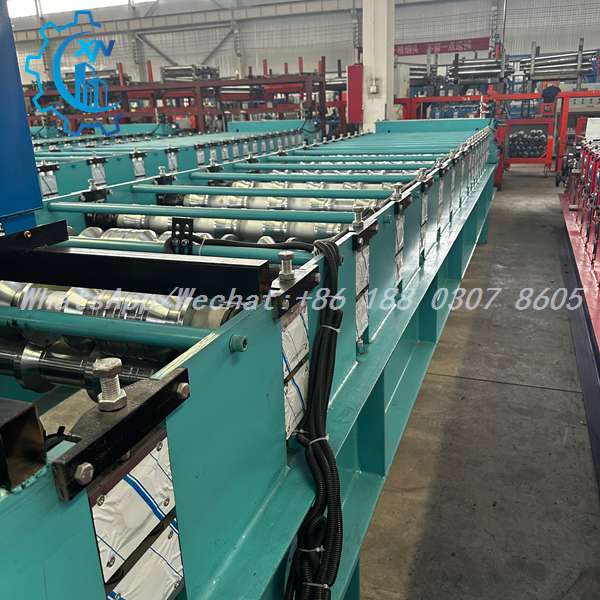

Full-length side view of the IBR machine: teal H-beam frame, repetitive chrome forming stages and side guards still covered with protective film - a brand-new IBR 686 line ready for commissioning.

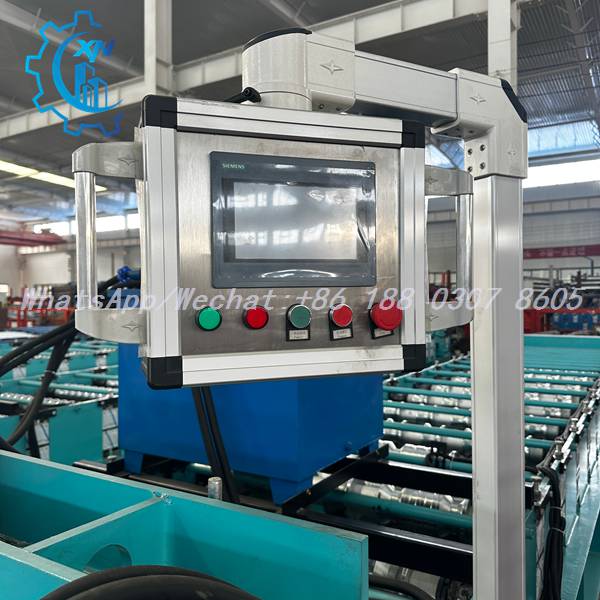

Close-up of the touchscreen control panel of the IBR machine on a swivel arm, with start and emergency-stop buttons - PLC-based operation with visible brand electronics.

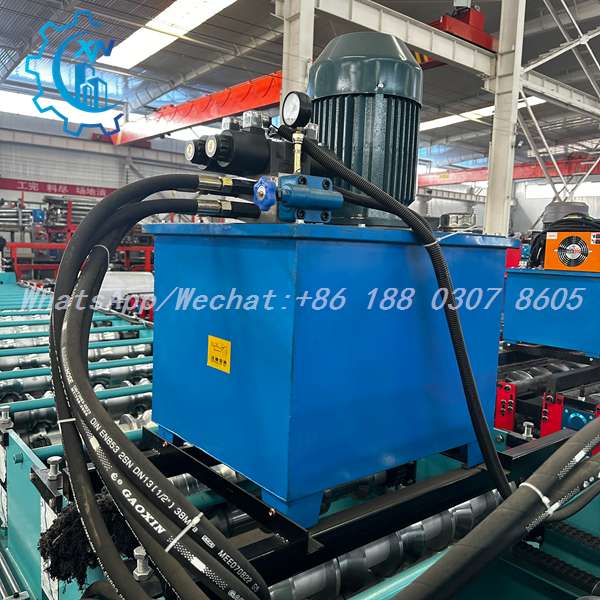

Close-up of the hydraulic power unit of the IBR machine: blue reservoir tank with pressure gauge and manifold, motor-driven pump and DIN-rated high-pressure hoses - stable hydraulic power for cutting.

Documentary view of the IBR machine being loaded into 40ft containers for export: double-layer forming line with orange guards, PLC cabinet and finished IBR sheet samples in red, blue, green and grey - factory-to-port logistics capability.

IBR Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of IBR machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, IBR machines for IBR 686 roof sheeting production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support. Our IBR machines have been supplied across Southern Africa, from South Africa to Zimbabwe and Zambia.

Q1: What is an IBR machine?

A: It is a production line that forms steel coils into IBR (Inverted Box Rib) roof sheeting with 686mm coverage - the standard roofing profile for South Africa. The IBR machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Why is IBR 686 the standard in South Africa?

A: IBR 686 offers excellent spanning capability, material efficiency and proven performance in South African conditions, including high wind and hail exposure; it is the most widely used roof sheeting profile in the country.

Q3: Which materials can the machine process?

A: The IBR machine processes Chromadek, Zincalume and PPGI coated coils, as well as galvanized steel, with thickness ranges depending on the machine configuration.

Q4: Is the machine compatible with South African power supply?

A: Yes. The machine is available with 380V/50Hz electrical configuration, standard for South African factories, and can be adapted to local requirements.

Q5: What material thickness can it process?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every IBR machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
