1.Precision Roof Panel Production
Accurate profile dimensions and clean sheet appearance.
2.Heavy-Duty Machine Structure
Built for continuous industrial production.
3.Long-Life Forming System
Premium rollers and reinforced frame design.
4. Mob / WhatsApp / WeChat: +86 188 0307 8605
5. Email: sara@xinnuomachine.com

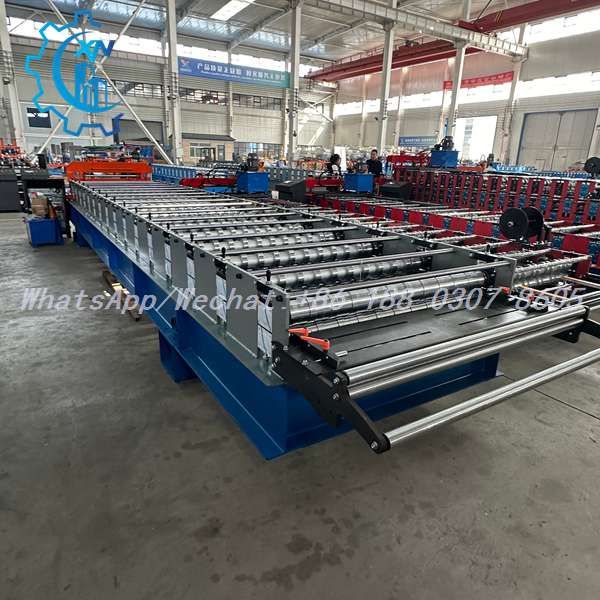

The machine integrates reinforced frame support and tie-rod strengthening technology, helping maintain long-term forming precision even after years of continuous operation.

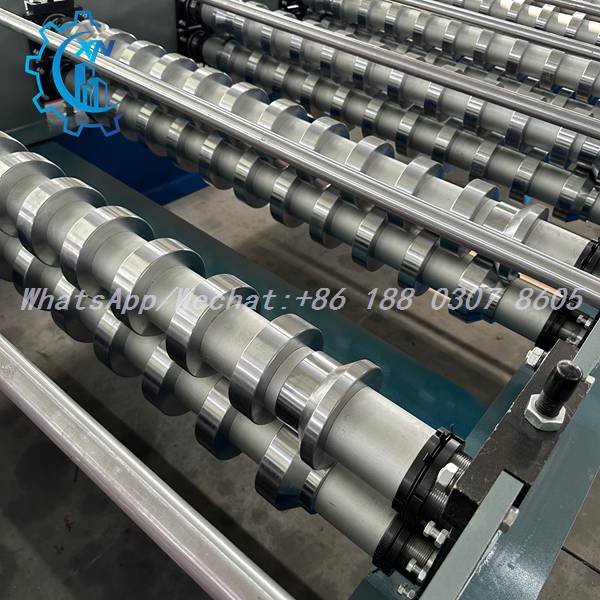

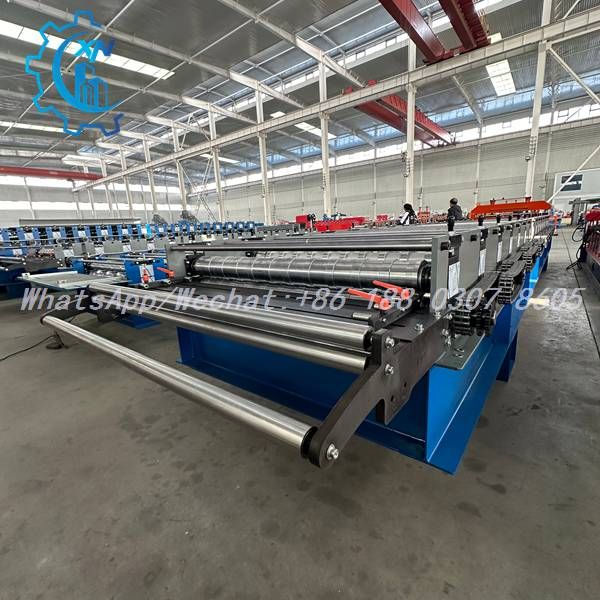

The forming system is engineered to maintain uniform rib height and panel geometry throughout large production batches, reducing material waste and improving installation efficiency.
Every critical component is selected to maximize equipment longevity, minimizing downtime and reducing ownership costs over the machine's service life.

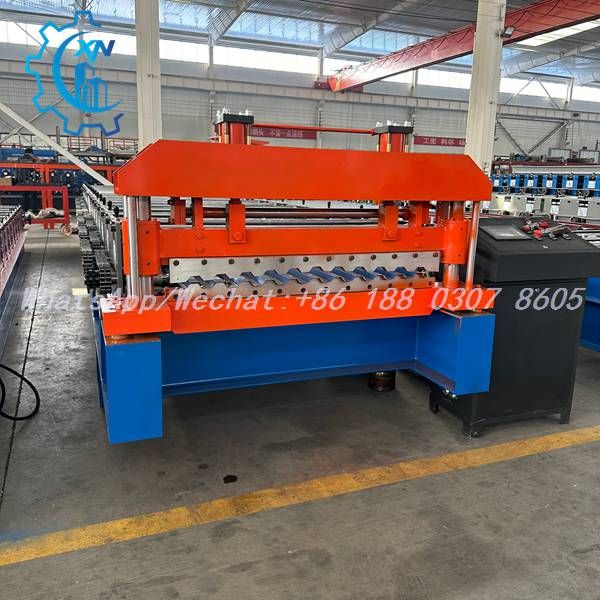

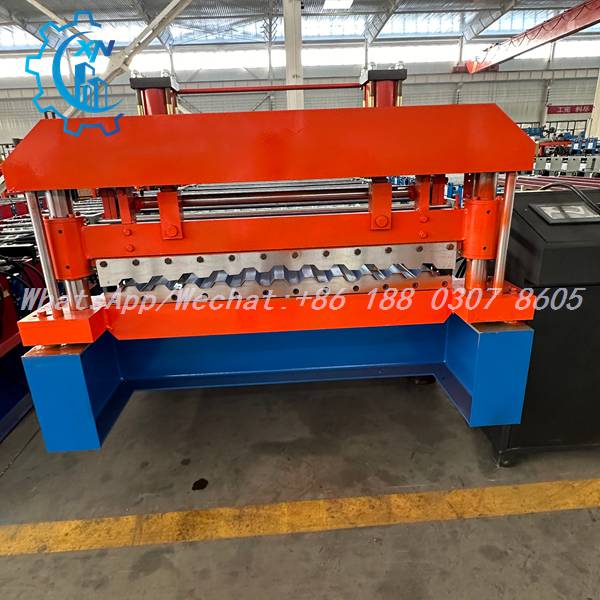

Trapezoidal roof panel roll forming machine uses premium Cr12MoV cutting blades and a dual-guide-column system, allowing precise vertical blade movement and delivering cleaner cuts, longer blade life and improved production reliability for every roof panel machine project.
| Item | Specification |
|---|---|
| Machine Name | Trapezoidal Roof Panel Roll Forming Machine |
| Material Thickness | 0.3-0.7 mm |
| Suitable Material | PPGI, GI, GL Steel Coil |
| Profile Type | Trapezoidal Roof Panel |
| Forming Speed | 15-25 m/min |
| Roller Material | Heat-Treated 45# Steel |
| Shaft Material | High-Grade 45# Steel |
| Shaft Diameter | 70-80 mm |
| Main Motor Power | 5.5-7.5 kW |
| Hydraulic Power | 4 kW |
| Blade Material | Cr12MoV |
| Cutting Type | Hydraulic Post Cutting |
| Control System | PLC Automatic Control |
| Frame Structure | Heavy-Duty Welded Frame |
| Transmission | Chain Drive |
| Voltage | Customized |

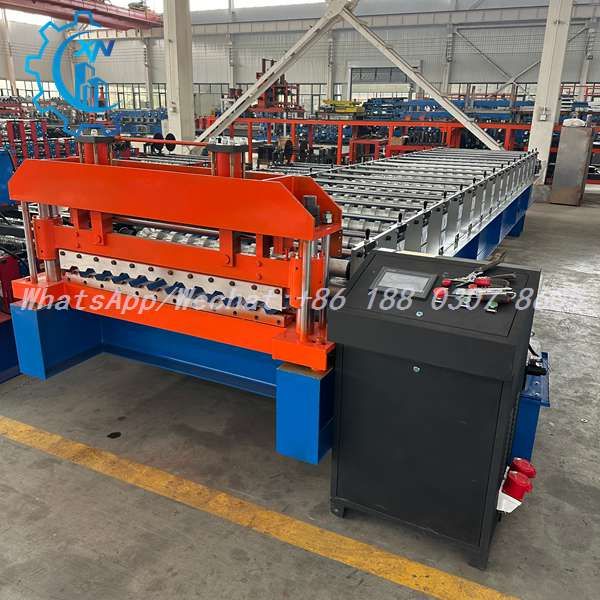

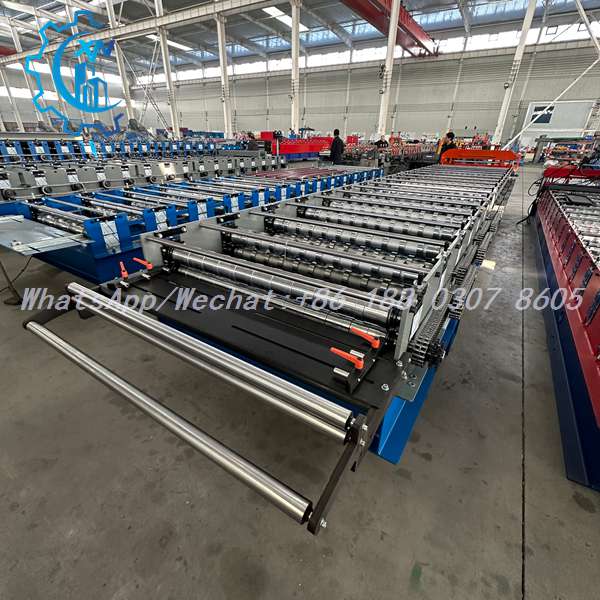

Trapezoidal roof panel roll forming machine demonstrates exceptional structural strength through its heavy-duty machine body, providing stable operation, reduced vibration and dependable production performance for professional roof panel machine manufacturers.

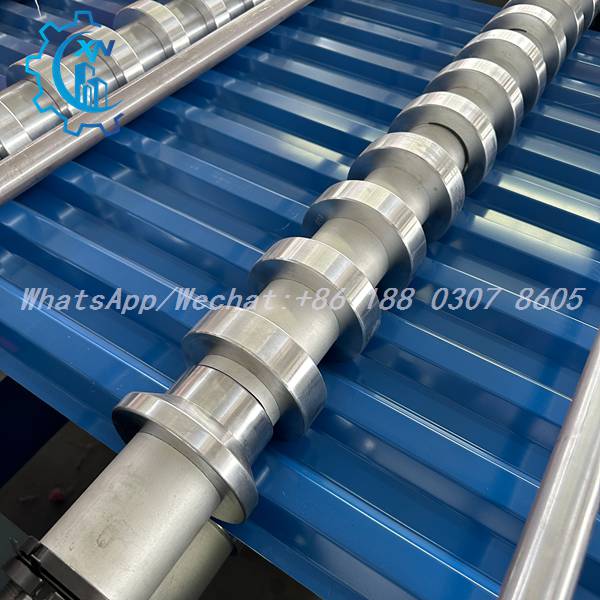

Trapezoidal roof panel roll forming machine utilizes heat-treated 45# steel rollers to improve wear resistance and maintain profile accuracy, ensuring long-term durability and stable output quality for roof panel machine production.
Trapezoidal roof panel roll forming machine combines premium roller materials with reinforced tie-rod support technology, helping preserve machine alignment and frame rigidity during long-term roof panel machine operation.

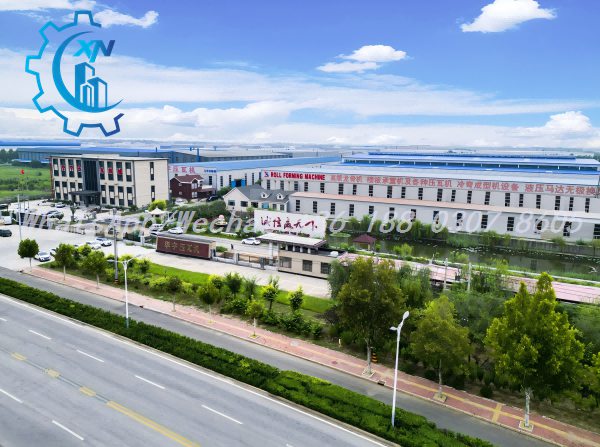

XINNUO Roll Forming Machine has specialized in cold roll forming technology for more than 30 years and has supplied equipment to customers in over 130 countries and regions worldwide.
As a professional manufacturer of roof panel machine solutions, XINNUO focuses on delivering customized production equipment that helps customers improve efficiency, reduce operating costs and achieve long-term manufacturing success.
Our engineering team continuously develops innovative roof panel machine technologies based on real market demands and practical production requirements. Every roof panel machine is carefully designed, manufactured and tested to ensure consistent performance and reliable operation.
Whether customers require standard roofing profiles or customized panel designs, XINNUO provides complete project support from profile development and machine manufacturing to installation guidance and after-sales service.
Customers choose XINNUO because our roof panel machine solutions combine durability, precision, flexibility and strong return on investment. Through decades of industry experience, we have become a trusted partner for roofing sheet manufacturers around the world.
A: This machine is specifically designed for producing trapezoidal roof panels with excellent dimensional accuracy and appearance quality.
A: Trapezoidal roofing sheets offer higher structural strength, excellent water drainage performance and wide acceptance in commercial, industrial and agricultural construction projects.
A: The machine is typically suitable for steel thicknesses ranging from 0.3mm to 0.8mm, depending on profile requirements.
A: Cr12MoV provides excellent wear resistance and cutting precision, helping extend blade service life while maintaining clean cutting performance.
A: It ensures stable blade movement and precise cutting alignment, reducing wear and improving long-term reliability.
A: Heat-treated 45# steel rollers improve hardness and durability, ensuring consistent profile quality over extended production periods.
A: The tie rods help reinforce the machine frame, maintain alignment between forming stations and support long-term structural stability.
A: Yes. XINNUO can customize profile design, voltage, control system configuration and production speed according to customer requirements.
A: Trapezoidal roofing sheets are widely used in warehouses, factories, workshops, agricultural buildings, commercial projects and residential construction.
A: With more than 30 years of manufacturing experience and exports to over 130 countries, XINNUO provides reliable equipment, flexible customization and professional technical support that help customers remain competitive in the roofing industry.
