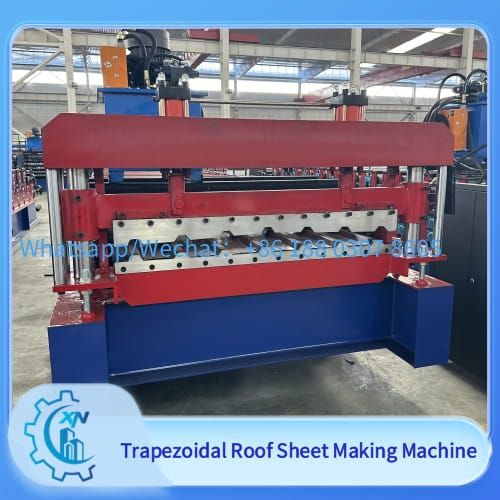

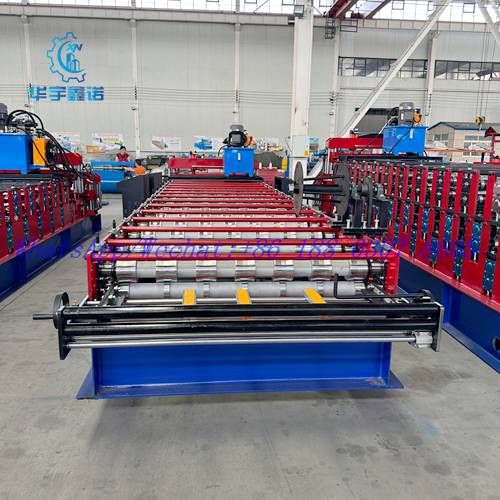

Trapezoidal Roofing Sheet Roll Forming Machine
The trapezoidal sheet roll forming machine is widely used for industrial and residential roofing projects. It can process steel coils with a thickness of 0.3–1.2 mm and coil widths such as 686 mm, 762 mm, or customized sizes. The machine operates at 8–25 m/min, with 12–20 forming stations and a shaft diameter of 60–80 mm. Featuring a robust frame, hydraulic cutting system, and PLC touch screen control, it delivers high efficiency and accurate cutting (±1 mm). With well-known electrical brands like Chint, Omron, or Delta, the machine guarantees durability, easy operation, and consistent quality for long-term production.

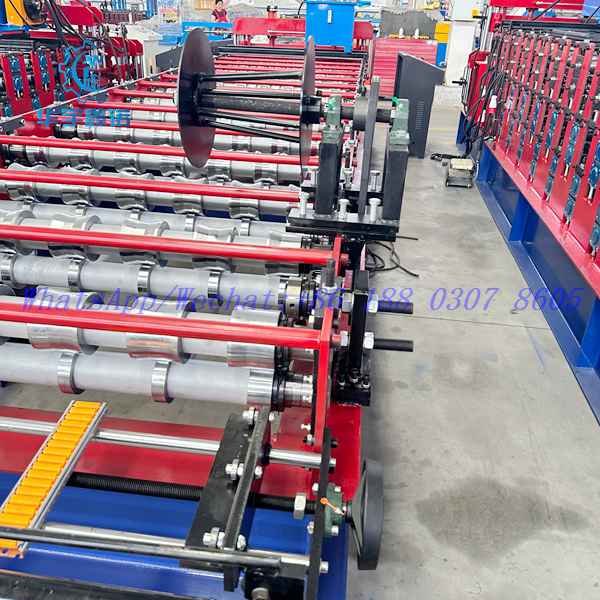

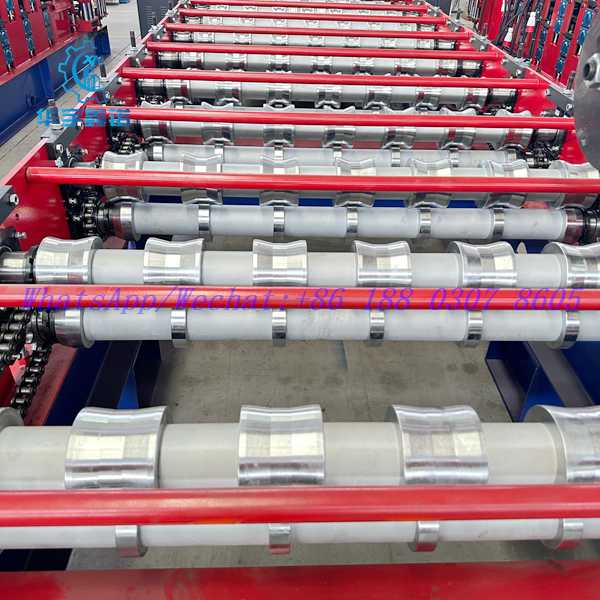

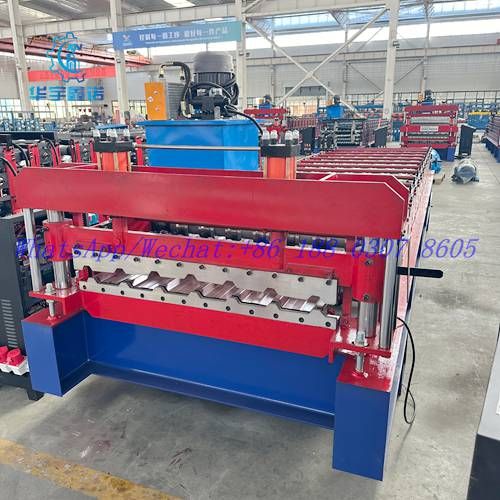

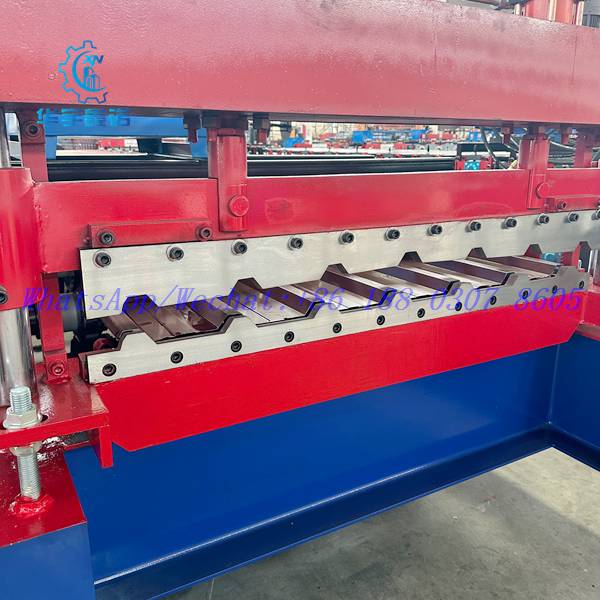

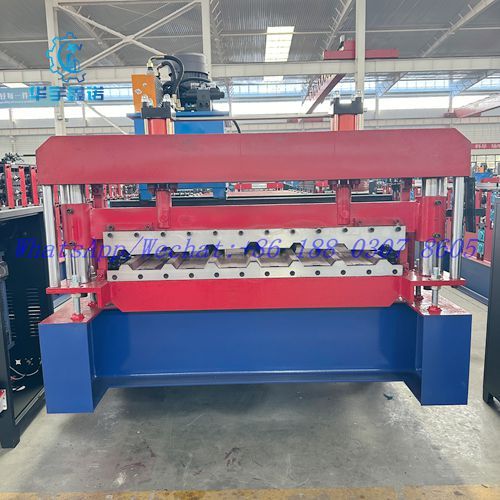

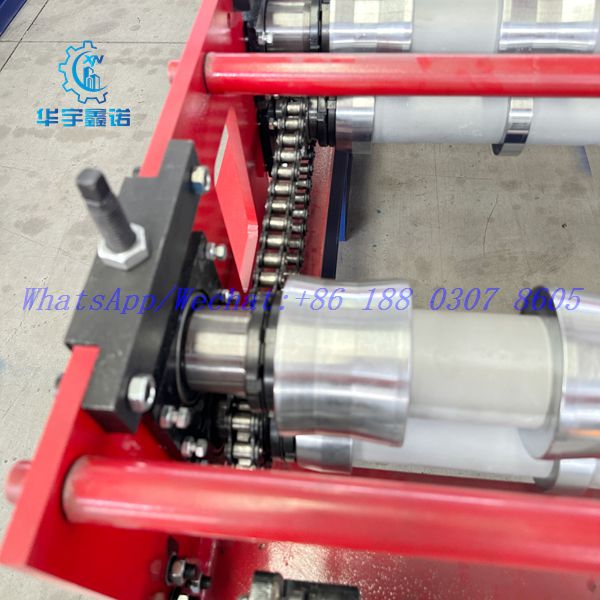

| Item | Specification / Range |
|---|---|
| Machine Type | Trapezoidal Sheet Roll Forming Machine |
| Raw Material | Galvanized Steel, Pre-painted Steel, Galvalume |
| Material Thickness | 0.3 – 1.2 mm |
| Material Width | 686 mm / 762 mm (customizable) |
| Forming Speed | 8 – 25 m/min (depending on material & profile) |
| Forming Stations (Rollers) | 12 – 20 stations |
| Roller Material | 45# Steel, Hard Chrome Plated |
| Shaft Diameter | 60 – 80 mm |
| Main Motor Power | 5.5 – 22 kW (depending on production capacity) |
| Hydraulic Station Power | 4 – 7.5 kW |
| Cutting System | Hydraulic or Flying Shear, Cutting Accuracy ±1 mm |
| Control System | PLC + Touch Screen (Omron / Delta / Siemens optional) |
| Transmission | Chain Drive or Gearbox Drive |
| Decoiler | Manual or Hydraulic, 5–10 Tons Capacity |
| Machine Frame | 12–18 mm Steel Plate Welded Structure |
| Electrical Components | Chint, Omron, Delta (or other well-known brands) |
| Machine Size (Approx.) | 6000–9000 × 1200 × 1400 mm |
| Machine Weight (Approx.) | 3 – 8 Tons |
| Optional Features | Servo Cutting, Automatic Feeding, Safety Cover, Anti-slip Platform |
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
