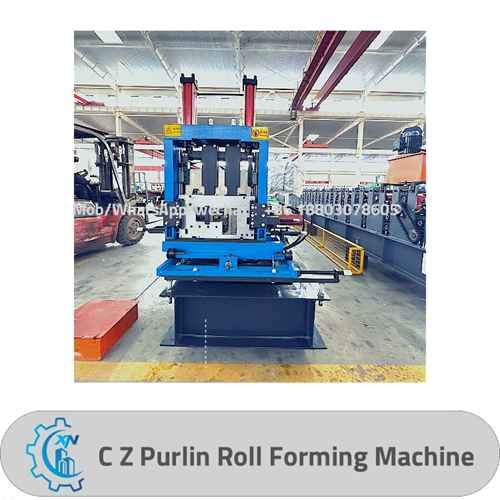

This CZ purlin roll forming machine is designed to produce C, Z, and U profiles with flexible adjustment, allowing manufacturers to expand product range without additional equipment investment.

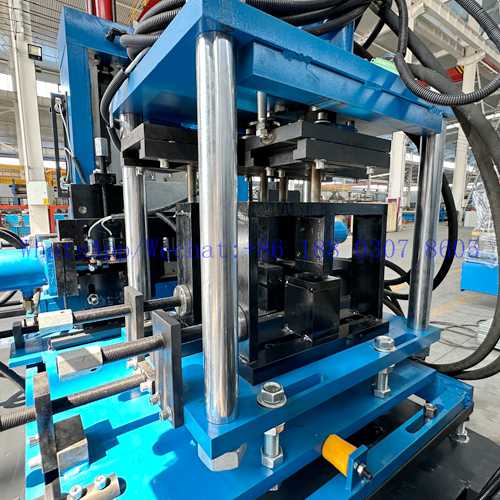

The CZ purlin roll forming machine combines punching and forming into one continuous process, improving production efficiency and ensuring accurate hole positioning.

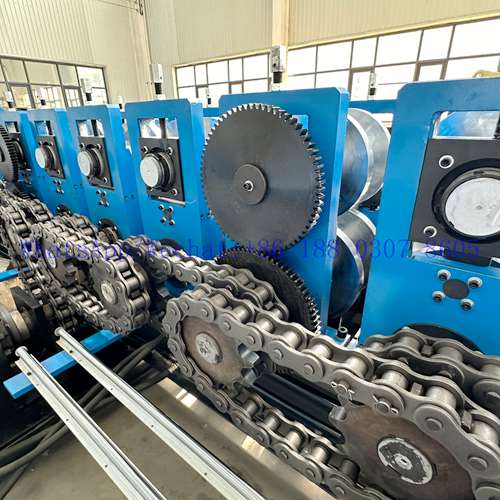

Designed with a heavy-duty chain drive, this CZ purlin roll forming machine ensures stable power transmission, even under long-hour continuous production.

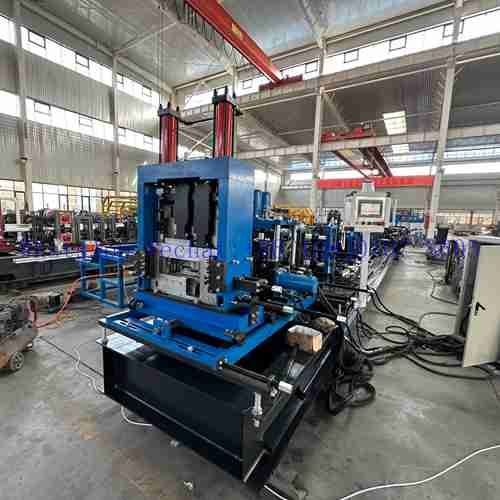

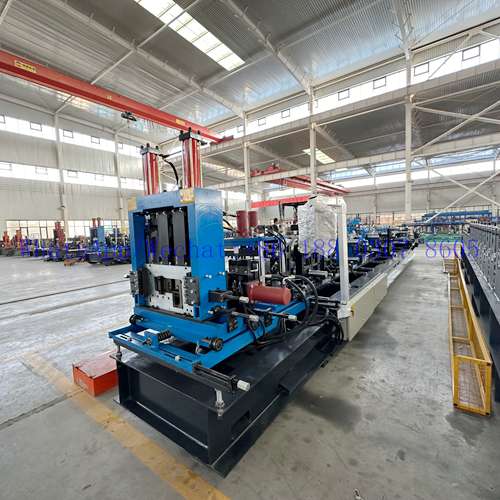

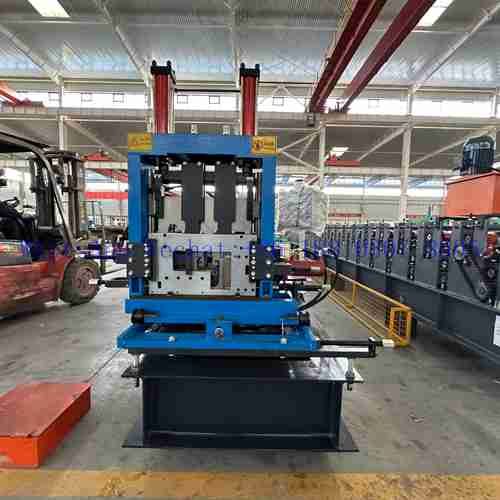

From the cutting section, this CZ purlin roll forming machine shows a well-aligned forming and cutting structure, ensuring precise length control and smooth end finishing.
| Item | Specification |
|---|---|
| Material Thickness | 1.5 – 3.0 mm |
| Forming Speed | 10–18 m/min |
| Roller Stations | 12–16 Stations |
| Roller Material | 45# Steel with Heat Treatment |
| Shaft Diameter | 70–80 mm |
| Punching System | Hydraulic Punching |
| Cutting System | Hydraulic Cutting |
| Control System | PLC Automatic Control |
| Drive System | Chain Transmission |
| Size Adjustment | Manual / Automatic Adjustable |
| Voltage | 380V / 50Hz / 3 Phase |

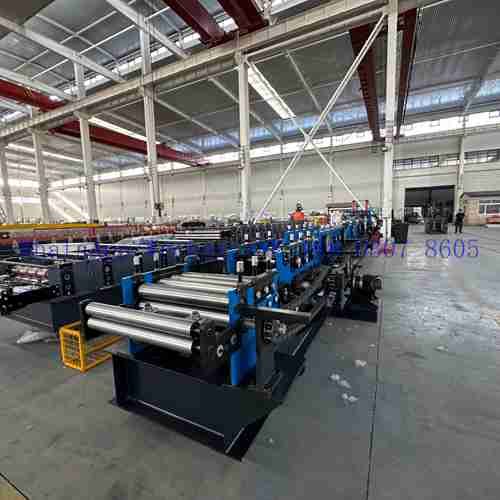

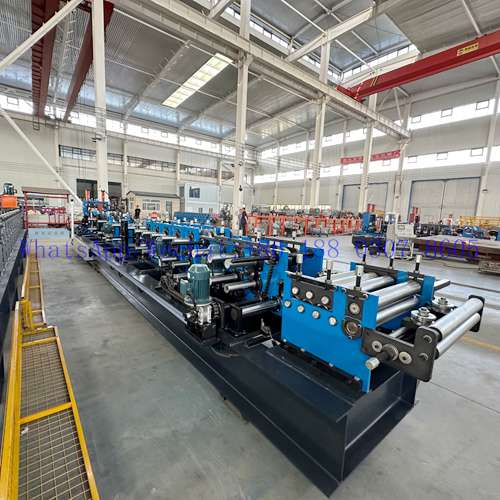

From the feeding side, the CZ purlin roll forming machine presents a streamlined layout that supports stable material entry and continuous production efficiency.
The chain transmission system in this CZ purlin roll forming machine is built for durability, providing consistent power delivery and reducing maintenance frequency.
The adjustable roller system of this CZ purlin roll forming machine supports flexible production of C, Z, and U profiles, making it a versatile solution for different project requirements.
XINNUO Roll Forming Machine
XINNUO Roll Forming Machine is a professional manufacturer specializing in CZ purlin roll forming machine solutions for global steel structure projects. We focus on delivering high-efficiency CZ purlin roll forming machine systems that combine flexibility, durability, and precision.
Our CZ purlin roll forming machine products are designed to meet the demands of modern construction, allowing manufacturers to produce both C and Z purlins with one machine. Each CZ purlin roll forming machine is engineered with advanced technology to ensure stable operation and accurate forming.
With continuous innovation, XINNUO Roll Forming Machine improves the performance of every CZ purlin roll forming machine, helping customers increase productivity while reducing downtime. Our CZ purlin roll forming machine solutions are widely recognized for their reliability and cost-effectiveness.
Choosing XINNUO Roll Forming Machine means choosing a trusted supplier of CZ purlin roll forming machine equipment worldwide.
Yes, the CZ purlin roll forming machine is designed for quick switching between C and Z purlins without changing rollers.
Yes, this CZ purlin roll forming machine includes an integrated hydraulic punching system for accurate hole positioning.
The CZ purlin roll forming machine supports manual or automatic size adjustment depending on configuration.
The reinforced chain transmission and stable structure make this CZ purlin roll forming machine ideal for continuous operation.
Yes, we provide customized CZ purlin roll forming machine solutions based on your profile size, thickness, and production requirements.
Q6: Can this machine produce U purlins as well?
Yes, this CZ purlin roll forming machine can also produce U profiles by adjusting the roller system, providing greater flexibility for different market demands.
