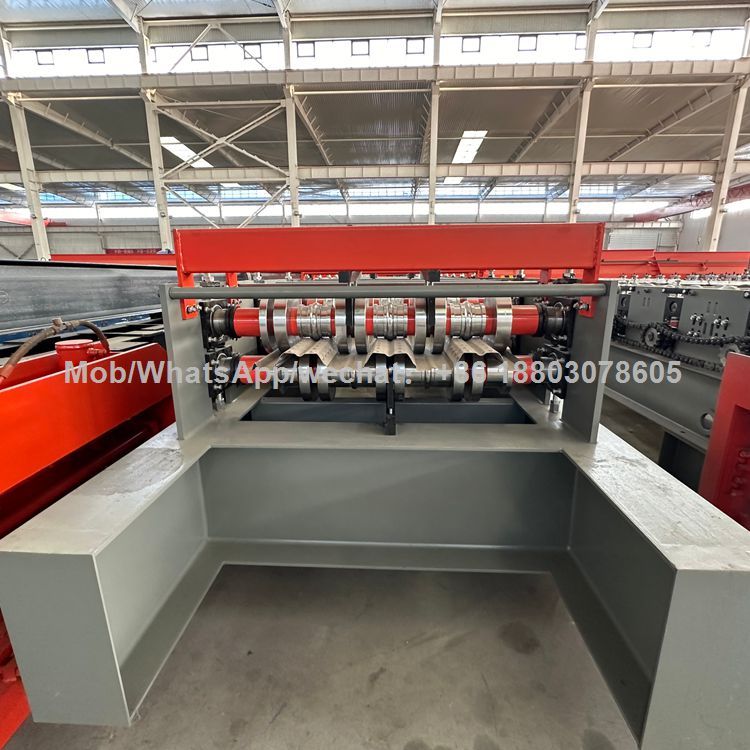

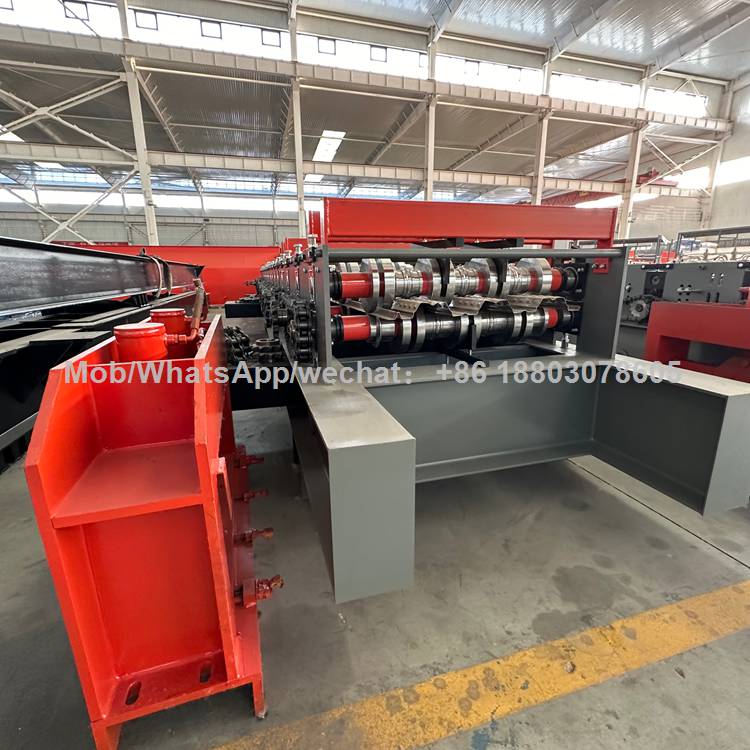

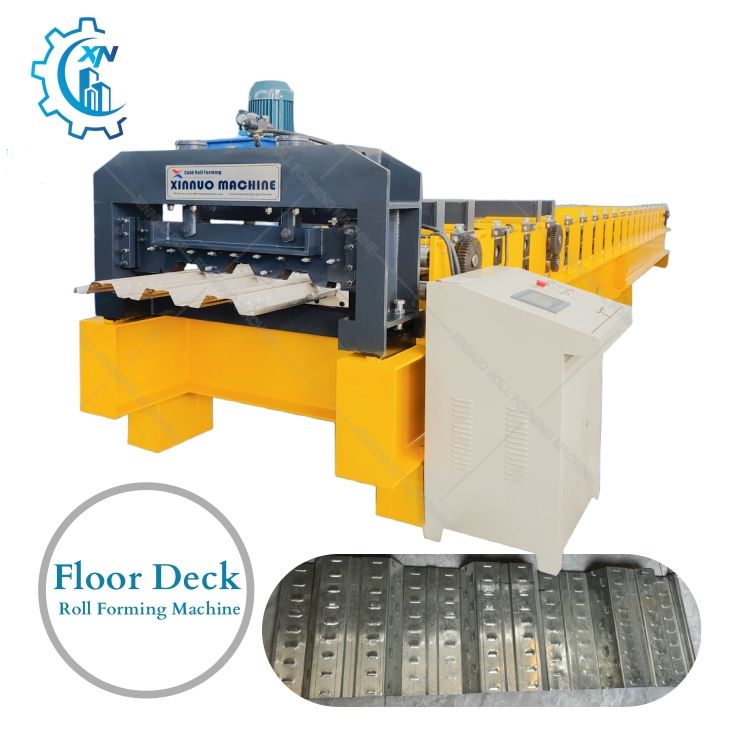

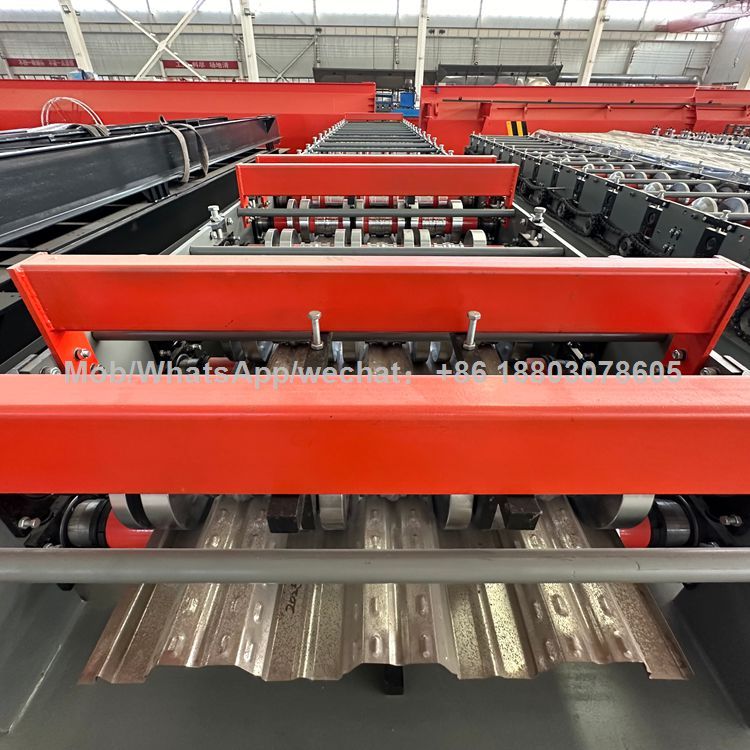

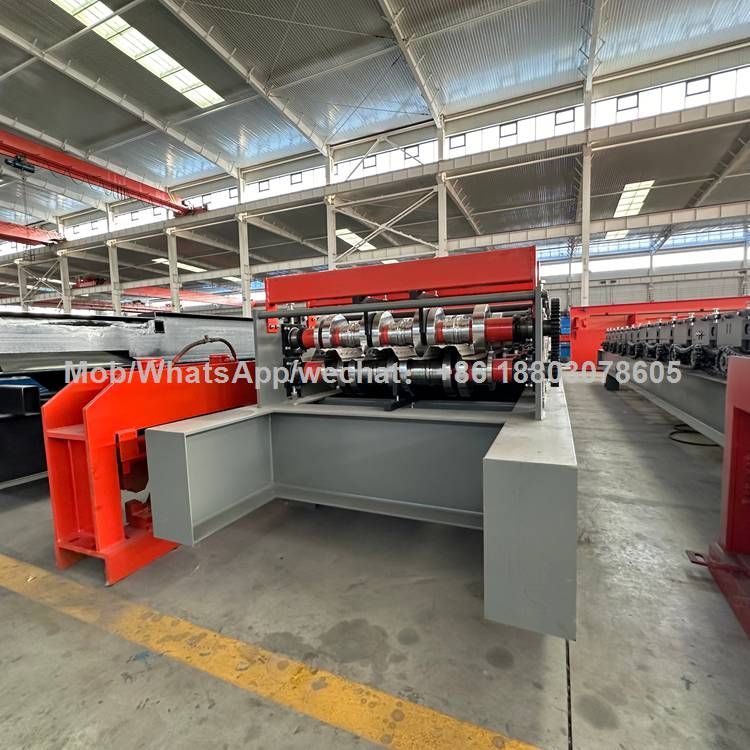

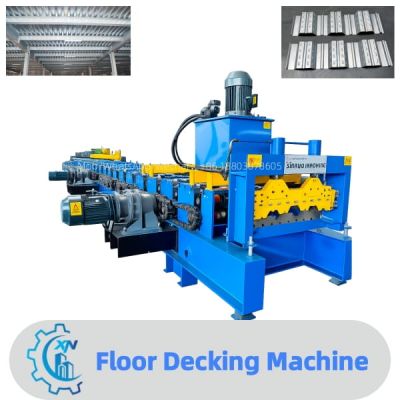

deck floor roll forming machine 750-1000mm

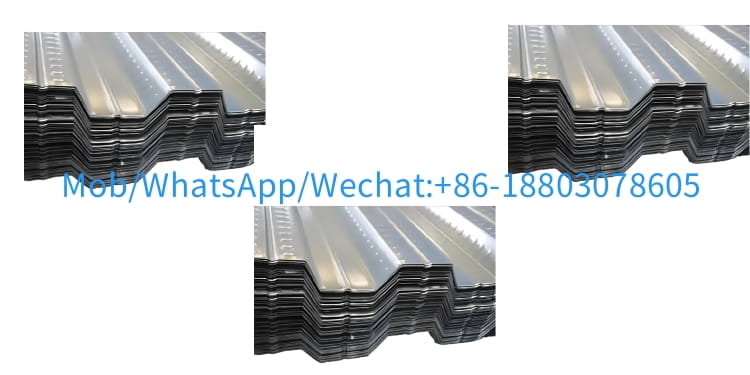

The advantage of floor deck:

1: It can meet the requirements of rapid construction of the main steel structure, provide a firm working platform in a short time, and adopt multiple floors to lay corrugated steel plates and pour concrete slabs in layers.

2: During the use stage, the floor decking is used as the tensile reinforcement of the concrete floor slab, which also improves the rigidity of the floor slab and saves the amount of steel bars and concrete.

3: The embossing on the surface of the corrugated plate creates the maximum bonding force between the floor decking and the concrete, so that the two form a whole, and with stiffening ribs, the floor decking system has high bearing capacity.

Applicable Material: Galvanized steel, Galvalume, Cold-rolled steel

Material Thickness : 0.8 – 1.5 mm (customizable)

Material Width : Based on profile design, commonly 1250mm or 1000mm

Profile Height : 50–75 mm (depending on deck type)

Forming Stations : 22–30 stations (depends on complexity)

Main Motor Power : 15 – 30 kW (according to configuration)

Hydraulic System Power : 5.5 kW

Forming Speed : 10 – 15 m/min (excluding cutting)

Cutting System : Hydraulic cutting, front or rear cut available

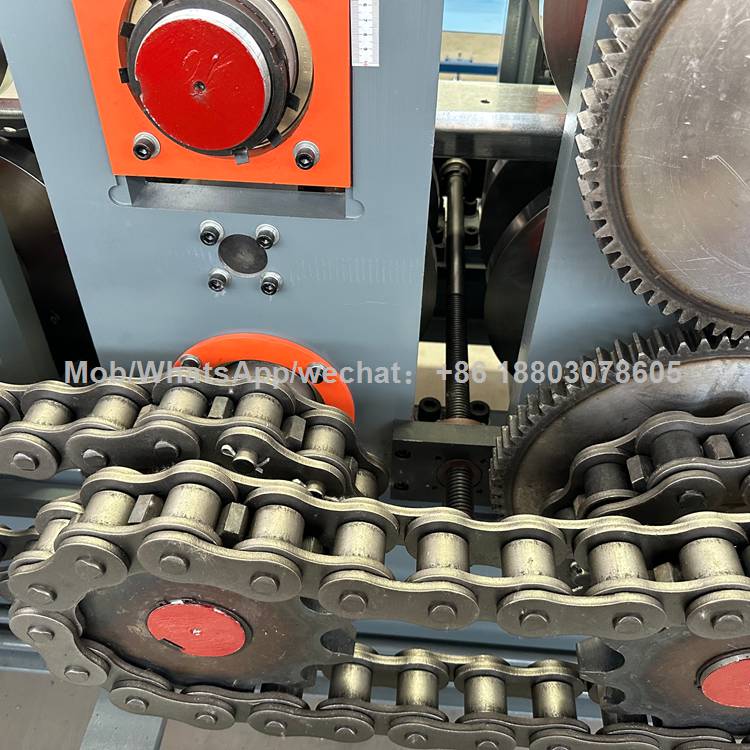

Transmission : Gearbox or chain drive

Control System : PLC automatic control (Brands optional: Mitsubishi, Delta, Siemens, etc.)

Operation Mode : Touch screen + push buttons

Voltage : 380V, 50Hz, 3 Phase (customizable)
