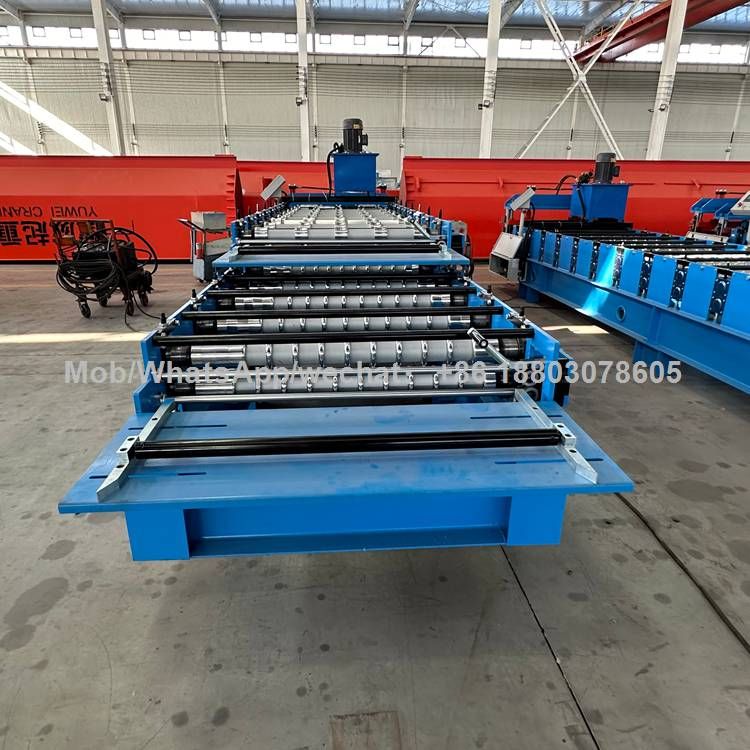

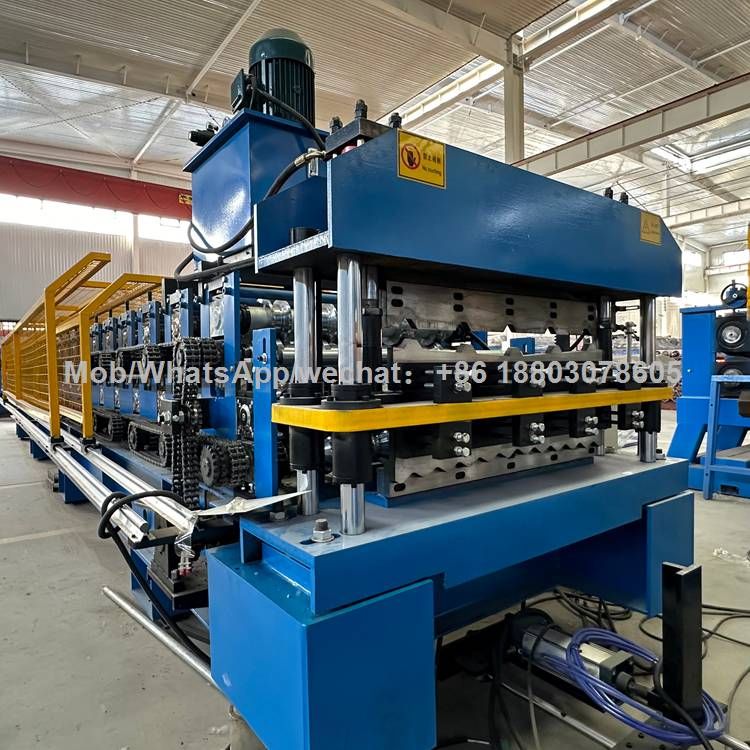

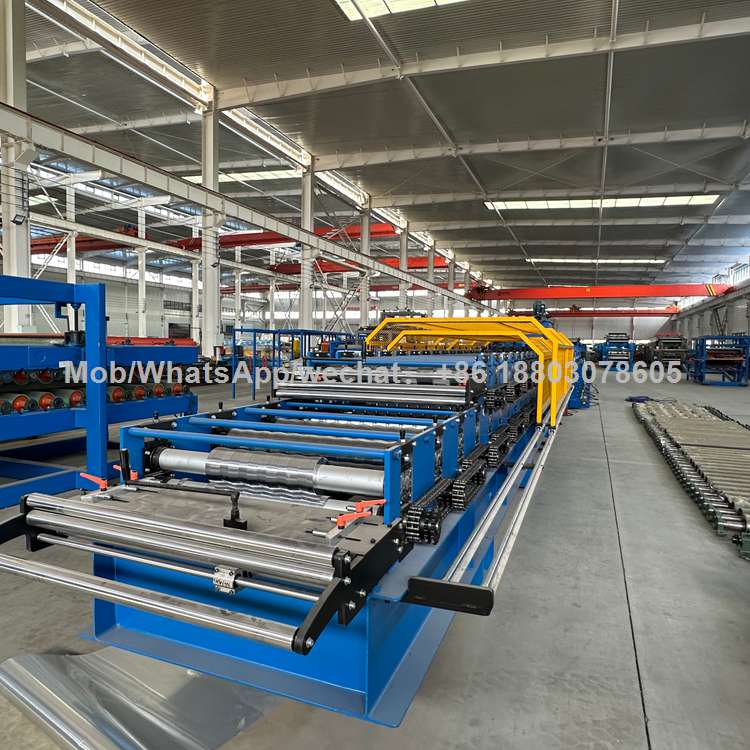

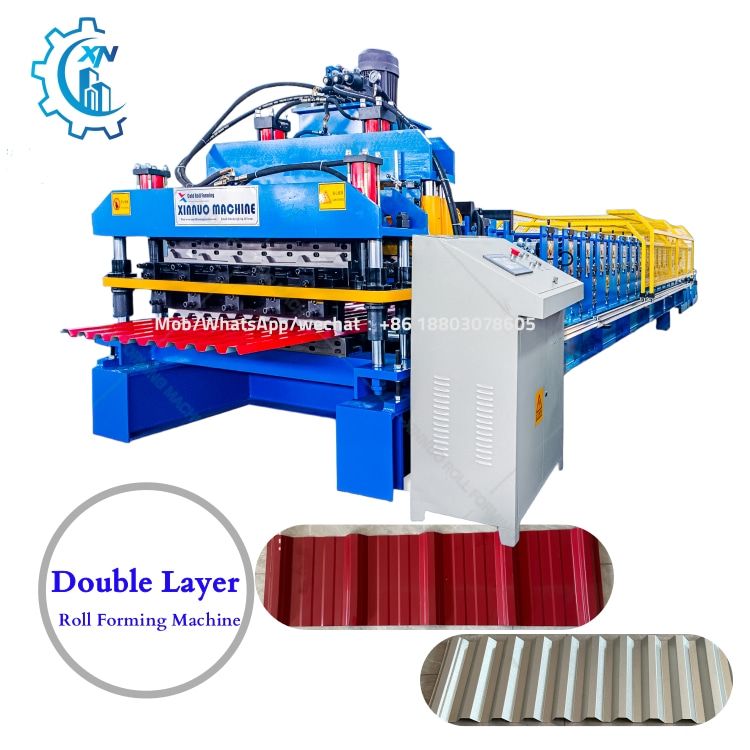

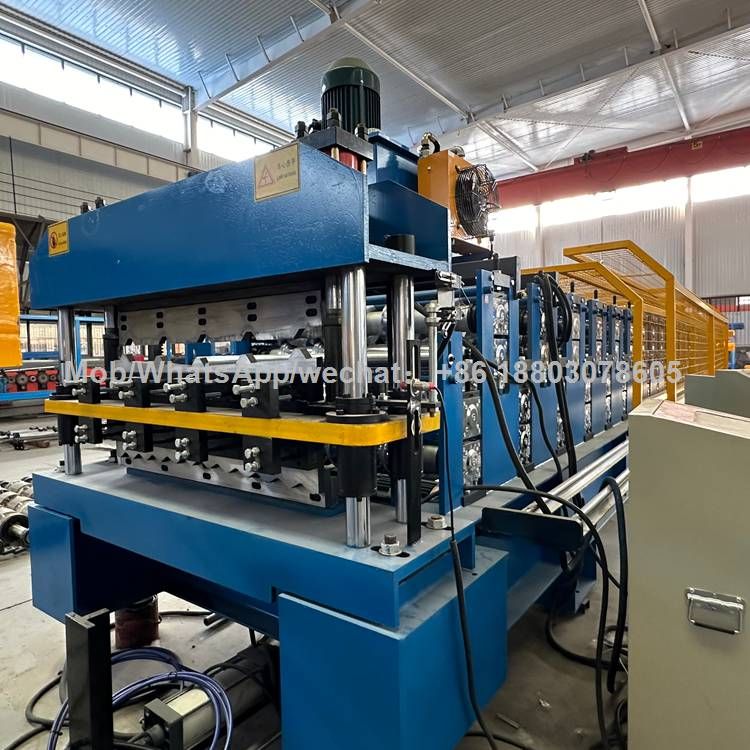

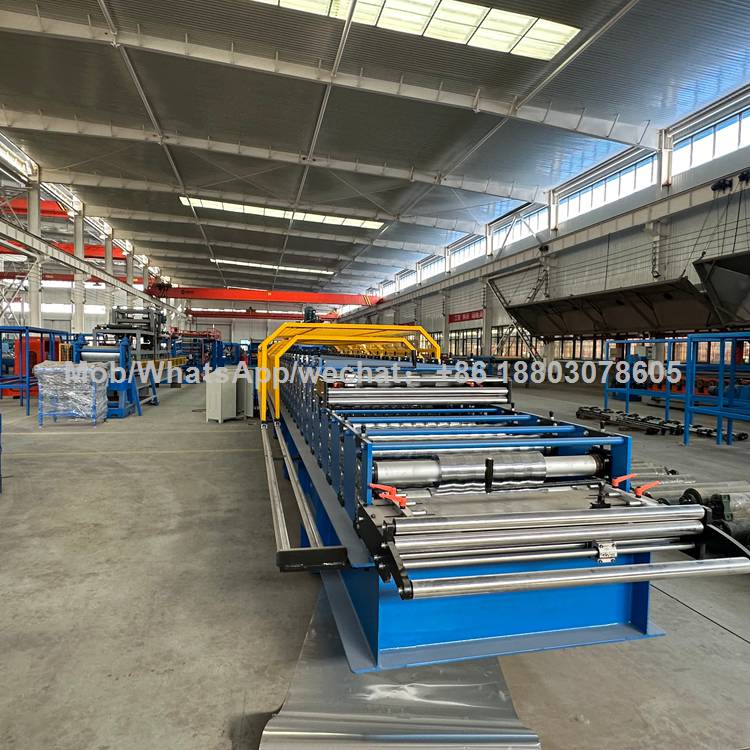

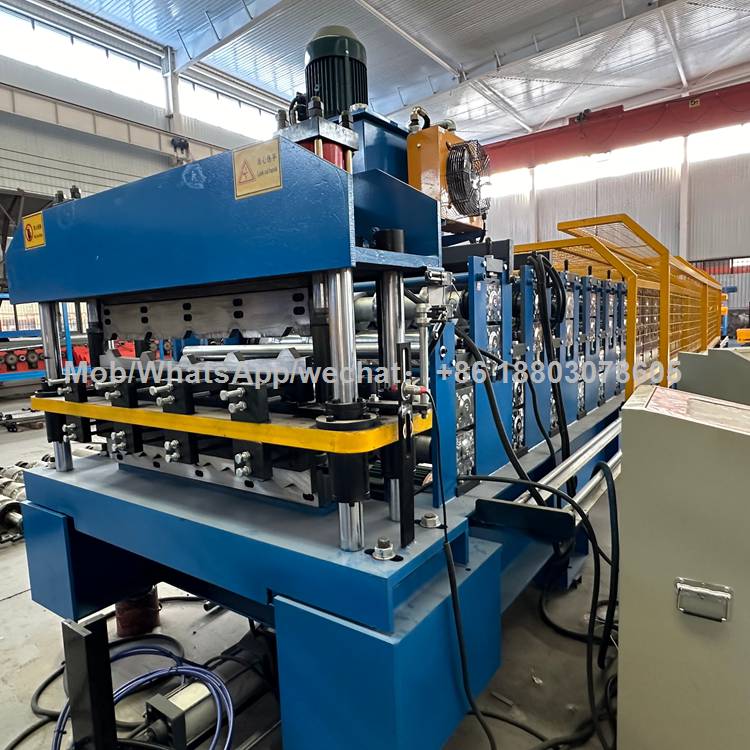

This is a multifunctional roof panel roll forming machine that integrates the production of trapezoidal roofing sheets and arched corrugated panels. It is widely used in steel structure buildings, house roofs, and canopy construction.
The machine adopts a chain transmission system for stable and smooth operation, with simple maintenance. The hydraulic cutting system ensures fast and precise cutting. A fully enclosed safety guard is equipped for safe operation. The middle-plate structure and reinforced frame provide reliable performance in continuous production.
It is ideal for customers who require flexible shape switching and optimized space usage.
Panel Type:Trapezoidal + Corrugated
Drive Type: Chain Drive
Forming Stations:16–22 stations (customized)
Forming Speed:8–15 m/min
Material Thickness:0.3 – 0.8 mm
Coil Width:914 / 1000 / 1219 mm(customizable)
Cutting Type: Hydraulic Cutting
Control System:PLC Automatic (Remote Optional)
Machine Structure:Middle Plate + Heavy Frame
Safety Guard:Full Enclosed Cover (customized)
Main Motor Power:5.5–7.5kW
Hydraulic Station Power :4.0 kW
Power Supply:380V / 50Hz / 3Ph(Customizable)
