High Precision: Ensures accurate gutter dimensions and smooth edges.
Efficient Operation: Stable high-speed performance saves time and labor.
Vehicle-Compatible: Can be integrated with mobile systems for on-site use.
Durable & Reliable: Long-lasting performance for workshop installation.
Multi-Material Support: Works with galvanized steel, color steel, and other materials.
High Precision: Ensures accurate gutter dimensions and smooth edges.
Efficient Operation: Stable high-speed performance saves time and labor.
Vehicle-Compatible: Can be integrated with mobile systems for on-site use.
Durable & Reliable: Long-lasting performance for workshop installation.
Multi-Material Support: Works with galvanized steel, color steel, and other materials.

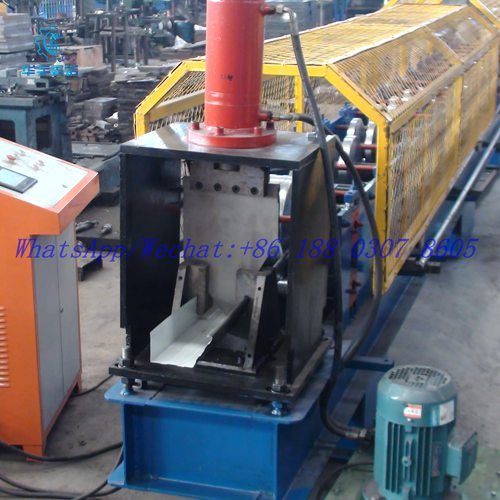

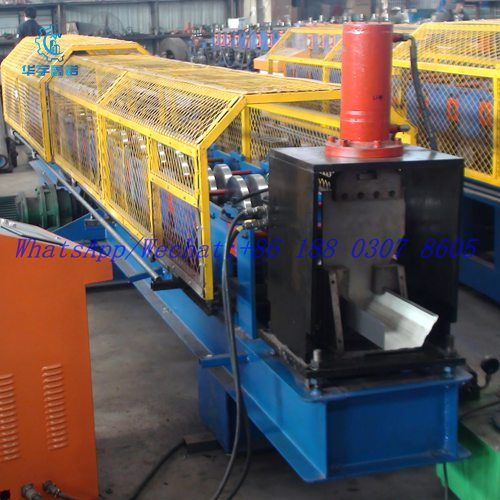

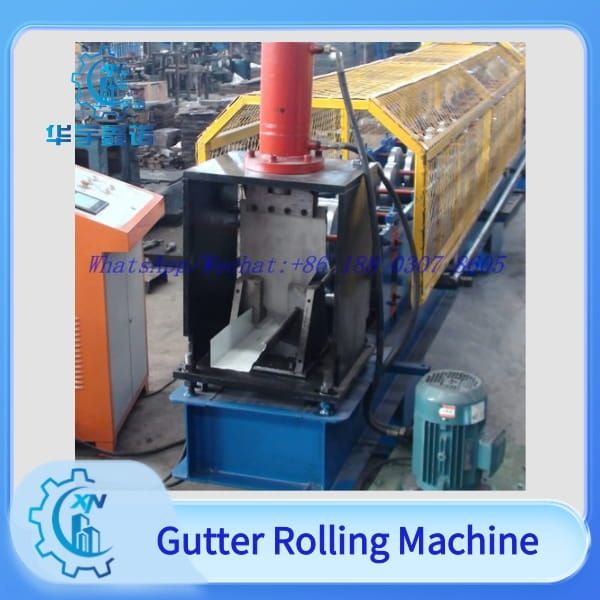

Our workshop-fixed gutter rolling machine provides stable, high-precision production of seamless gutters for in-house manufacturing. Designed for permanent placement in workshops, it guarantees consistent quality and durability. The machine is also compatible with vehicle-mounted gutter systems, allowing flexible on-site fabrication and transport. This makes it easy to produce and deliver gutters directly to installation sites. With this equipment, your production efficiency improves while maintaining accurate dimensions, smooth edges, and long-lasting performance, suitable for both stationary workshops and mobile applications.
| Rain Gutter Making Machine Configuration | |
| Section | Specification Details |
| Feeding Section | • Manual or Hydraulic Decoiler for smooth coil feeding. |
| • Material Width: 300–600 mm (customizable). | |
| • Max Coil Weight: 3–5 tons. | |
| • Material: Galvanized steel, aluminum, or pre-painted steel. | |
| Roll Forming System | • Heavy-duty welded steel frame, stress-relieved for stability. |
| • Rollers Material: GCr15 / Cr12MoV, heat-treated & chrome-plated. | |
| • Forming Stations: 10–18 (depending on gutter profile). | |
| • Transmission: Chain or gearbox drive. | |
| • Main Motor Power: 3–7.5 kW with frequency inverter. | |
| Cutting System | • Hydraulic or flying saw cutting for high precision. |
| • Blade Material: Cr12MoV, heat-treated. | |
| • Cutting Accuracy: ±2 mm. | |
| Hydraulic System | • Pump Motor Power: 3 kW (customizable). |
| • Oil Type: 46# anti-wear hydraulic oil. | |
| • Tank Capacity: 40–60 L. | |
| • Equipped with reliable international brand components. | |
| Control System | • PLC automatic control system. |
| • Touch screen + button panel operation. | |
| • Brands: Delta / Siemens / Schneider (optional). | |
| • Functions: Auto counting, length setting, alarm, emergency stop. | |
| Output Table | • Length: 3–6 m (customizable). |
| • Steel roller support structure for smooth discharge. | |
