1.High automation: fully automatic operation, labor saving.
2.Accurate forming: beautiful plate type, stable size.
3.Customized Production: All machine components can be customized according to the customer's budget, allowing for flexible configuration without compromising quality.
Mob/WhatsApp/WeChat:+86 188 0307 8605
Email:sara@xinnuomachine.com
Durability
The IBR panels produced by our ibr roll forming machine are known for their strength and durability, and are able to withstand severe weather such as wind, rain and hail. They are suitable for the local climate in South Africa, and their solid structure provides strong protection for the buildings below them.
| Specification | Technical Details |
|---|---|
| Applicable Material | Color steel, Galvanized steel, Galvalume |
| Feeding Coil Width | 1000 mm / 1220 mm / 1250 mm |
| Profile Type | Trapezoidal (custom profile optional) |
| Effective Width | 760 mm / 820 mm / 914 mm |
| Material Thickness | 0.3 mm – 0.7 mm |
| Production Speed | 12 – 18 m/min |

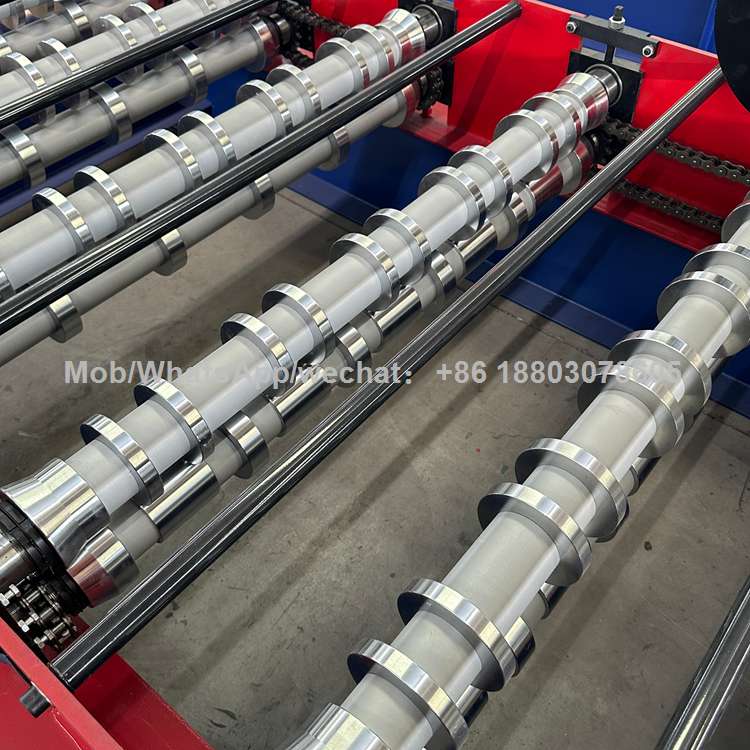

| Roller Material | High-grade 45# steel, chrome plated |
| Forming Stations | 16–22 rollers |
| Main Power | 7.5 kW (can be customized) |

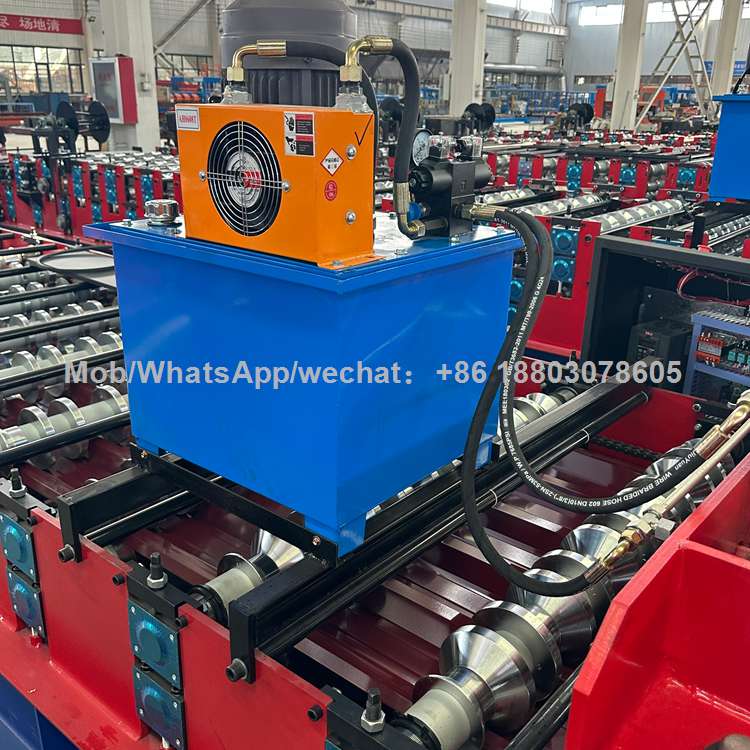

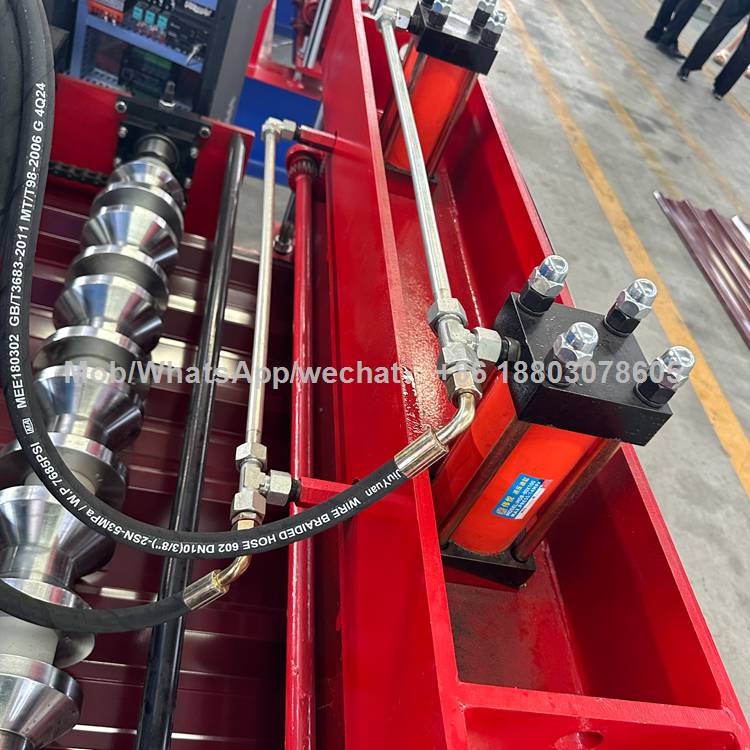

| Cutting System | Hydraulic cutting with post-cutting system |
| Blade Material | Cr12Mov with heat treatment |
| Control Mode | Automatic PLC (Panasonic/Delta/Mitsubishi) |
| Transmission Mode | Gearbox or chain-driven |
| Voltage | 380V / 50Hz / 3 Phase (adjustable) |
| Machine Dimension | Approx. 8.0 m × 1.5 m × 1.6 m |
| Total Weight | About 6–7 tons |

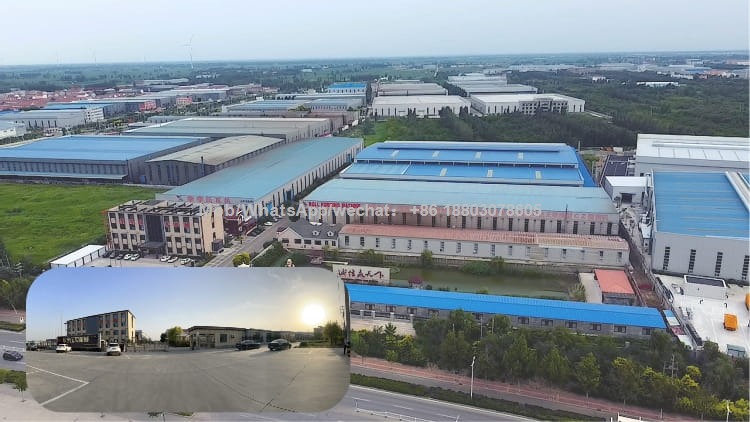

As a world-leading manufacturer of tile pressing equipment, Sino-Tile Pressing Machine has been deeply involved in the industry for more than 30 years, and its products cover purlin forming machines, roof and wall panel forming machines, sandwich panel forming machines, ibr roll forming machine,etc. The company has won the trust of the international market with its strong R&D capabilities and high-quality service system. Its equipment has been exported to more than 150 countries and regions, and user satisfaction continues to rise.
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
