IBR Roof Sheet Making Machine - IBR 686 Roof Sheeting Line

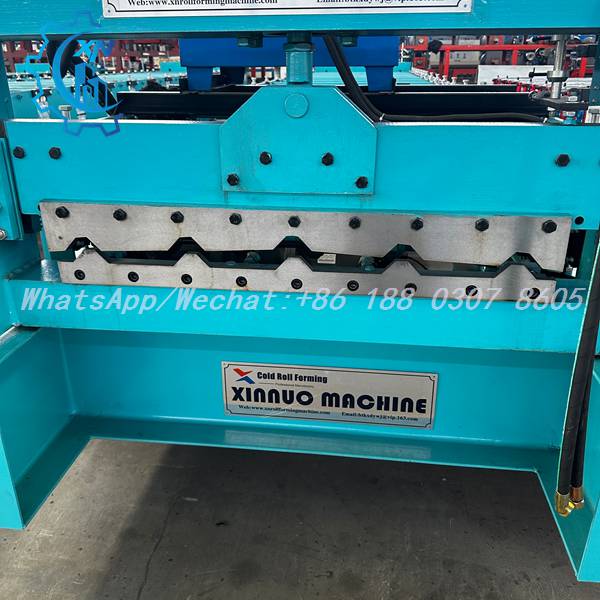

Front view of the hydraulic shear of the IBR roof sheet making machine: blade edge with trapezoidal ribs and flat pans matching the 686mm IBR profile, driven by the top cylinder - precise shearing of roof sheets.

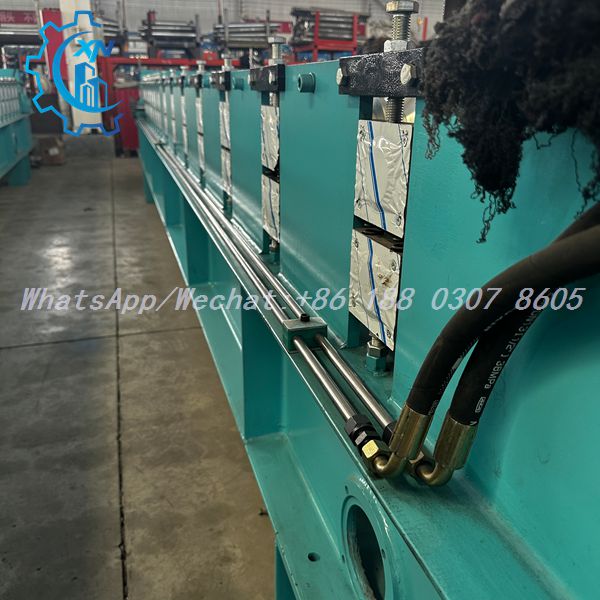

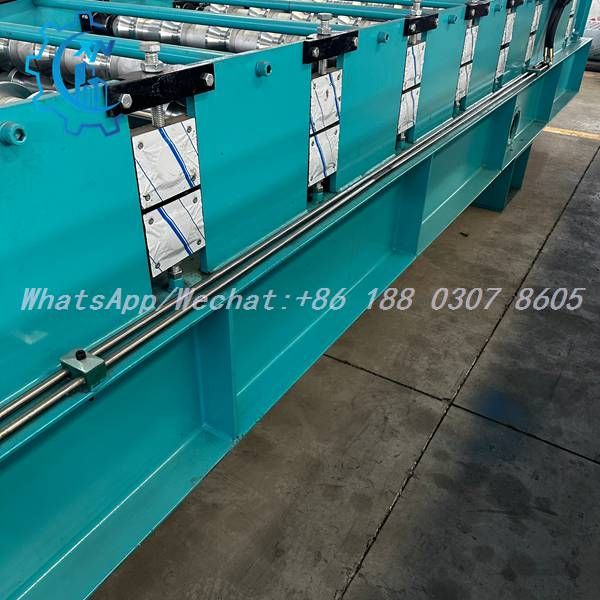

Low-angle view down the full IBR roof sheet making machine: teal forming stands with adjustment bolts and parallel chrome hydraulic pipes feeding the cutting unit - complete line length.

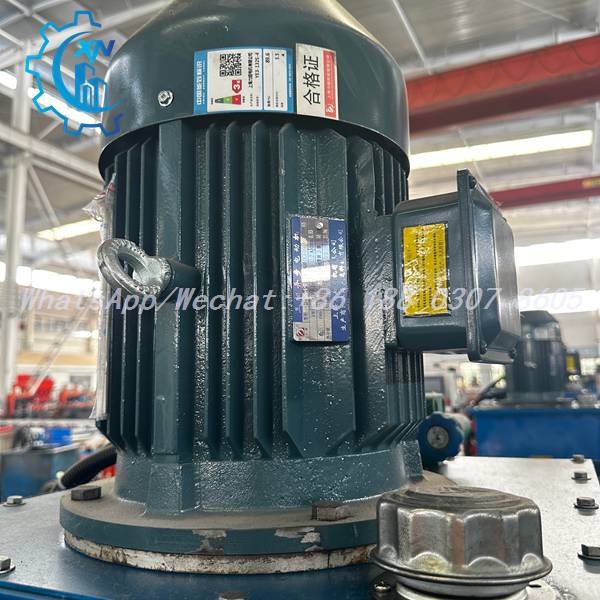

Close-up of the drive unit of the IBR roof sheet making machine: high-efficiency motor with cooling fins on the hydraulic reservoir, knurled filler cap and pressure gauge - reliable hydraulic power.

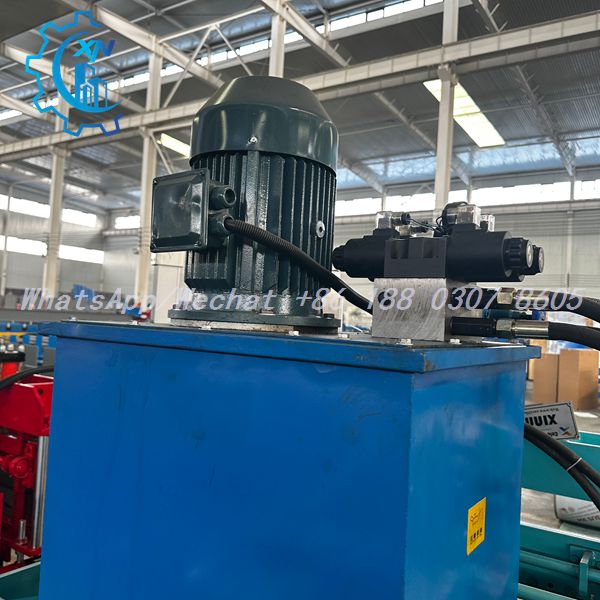

Close-up of the hydraulic pump station of the IBR roof sheet making machine: blue reservoir with motor and fan cover, manifold with solenoid valves and reinforced hoses - stable power for cutting.

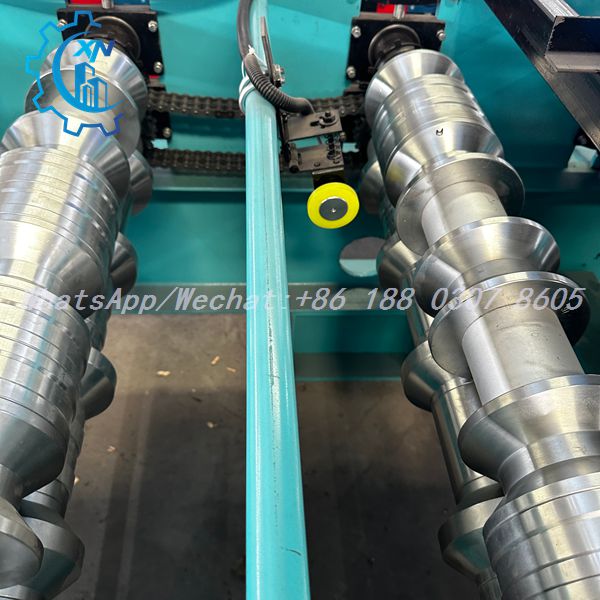

Top-down view inside the IBR roof sheet making machine: chrome step-profiled rollers forming the IBR rib shape, synchronized by double chain drives on the teal frame - precision forming tooling.

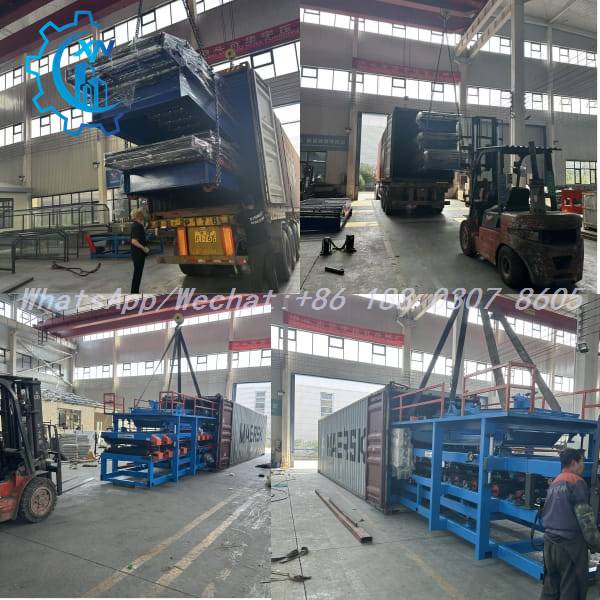

Documentary view of the double-layer IBR roof sheet making machine being loaded into 40ft containers with gantry cranes and flatbed truck - factory-to-port export capability.

IBR Roof Sheet Making Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of IBR roof sheet making machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, IBR roof sheet making machines for IBR 686 roof sheeting production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support. Our IBR machines have been supplied across Southern Africa, from South Africa to Zimbabwe and Zambia.

Q1: What is an IBR roof sheet making machine?

A: It is a production line that forms steel coils into IBR (Inverted Box Rib) roof sheeting with 686mm coverage - the standard roofing profile for South Africa. The machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Why is IBR 686 the most used roof sheeting in South Africa?

A: IBR 686 offers excellent spanning capability, material efficiency and proven performance in South African conditions, including high wind and hail exposure; it is the most widely used roof sheeting profile in the country.

Q3: Which materials can the machine process?

A: The machine processes Chromadek, Zincalume and PPGI coated coils, as well as galvanized steel, with thickness ranges depending on the machine configuration.

Q4: What is the price of an IBR roof sheet making machine?

A: The price depends on configuration, profile size and line setup. Send us your profile drawing and output target, and we will provide a factory-direct IBR roof sheet making machine price within 24 hours.

Q5: Is the machine compatible with South African power supply?

A: Yes. The machine is available with 380V/50Hz electrical configuration, standard for South African factories, and can be adapted to local requirements.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every IBR roof sheet making machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
