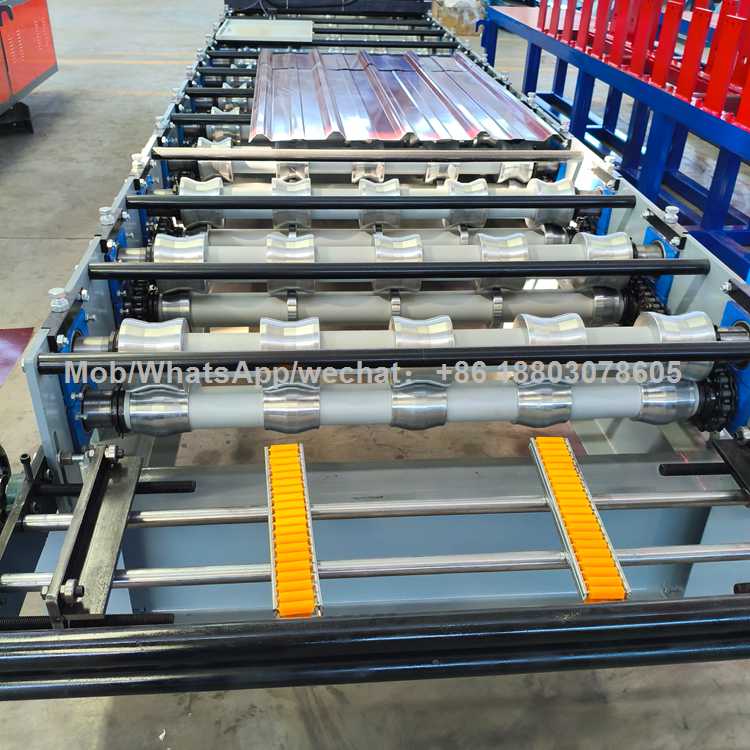

1. Enhanced Rib Structure Forming Technology
This IBR roof sheeting machine for sale produces roofing sheets with optimized rib geometry, improving both visual appeal and structural strength for long-lasting performance.
2. Surface Protection Forming System
The forming rollers are engineered to minimize friction and prevent coating damage, ensuring clean, scratch-free roofing sheets throughout production.
3. Fast Material Switching Capability
Integrated manual shear at the feeding section allows quick material change without interrupting workflow, increasing production flexibility and efficiency.
This IBR roof sheeting machine for sale produces roofing sheets with reinforced ribs, enhancing both structural strength and aesthetic appearance for modern construction needs.

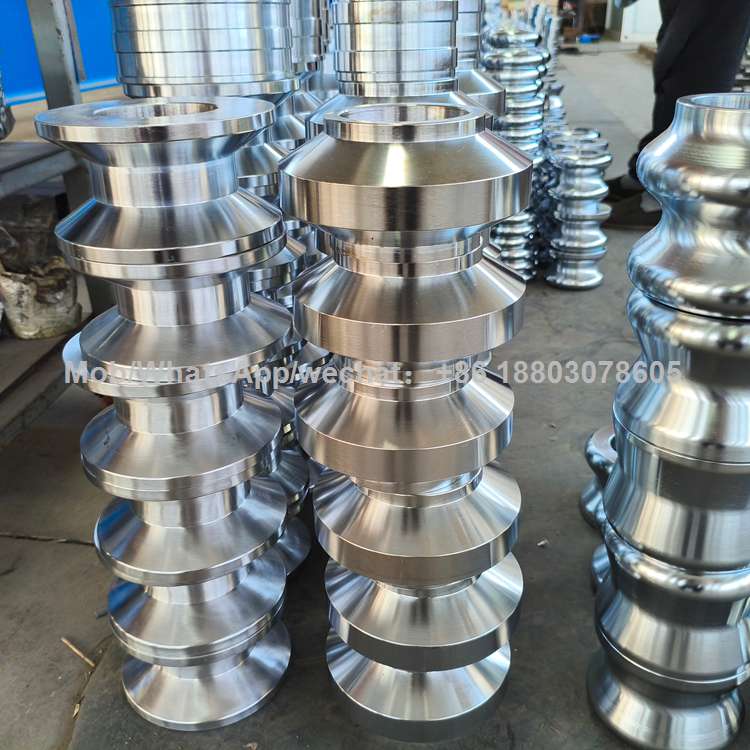

The heat-treated rollers ensure high hardness and durability, allowing this IBR roof sheeting machine for sale to maintain precision while protecting the coating surface of materials.
The built-in manual shear enables fast and convenient material switching, making this IBR roof sheeting machine for sale highly efficient for multi-order production.
| No. | Item | Specification |
|---|---|---|
| 1 | Decoiler | Manual / Hydraulic, 5T–10T capacity, inner diameter 450–550 mm |
| 2 | Feeding & Leveling | Width 1000–1250 mm, 4–7 leveling rollers |
| 3 | Roller Stations | 16–22 stations |
| 4 | Roller Material | 45# steel or quenched 45# steel |
| 5 | Shaft Material | 45# steel |
| 6 | Shaft Diameter | 70–80 mm |
| 7 | Machine Frame | 300H–400H steel structure |
| 8 | Drive System | Chain drive or gearbox drive |
| 9 | Cutting System | Hydraulic cutting (stop-to-cut / flying cut optional), Cr12 / Cr12Mov blade |
| 10 | Cutting Tolerance | ±1–2 mm |
| 11 | Control System | PLC (Delta / Siemens), touch screen, auto counting & length setting |
| 12 | Hydraulic Station Power | 3–5.5 kW |
| 13 | Main Motor Power | 5.5–11 kW |
| 14 | Forming Speed | 8–15 m/min (customizable) |
| 15 | Run-out Table | Non-powered or auto stacker, length 3–6 m |
With over 30 years of manufacturing experience, every IBR roof sheeting machine for sale is developed using extensive production data, ensuring continuous improvement and reliable performance.
XINNUO Roll Forming Machine
XINNUO Roll Forming Machine is a professional manufacturer dedicated to delivering high-performance IBR roof sheeting machine for sale solutions for global roofing industries. With over 30 years of experience, we understand that choosing the right IBR roof sheeting machine for sale is essential for long-term production success.
Each IBR roof sheeting machine for sale is designed based on extensive production data and continuous technical improvements. Our engineering team ensures that every IBR roof sheeting machine for sale provides stable performance, precise forming, and durability under demanding working conditions.
We have supplied IBR roof sheeting machine for sale equipment to customers worldwide, supporting both manufacturers and distributors in expanding their roofing business. Whether for direct production or resale, our IBR roof sheeting machine for sale offers reliable output and long service life.
At XINNUO, we focus on delivering not just an IBR roof sheeting machine for sale, but a complete solution that helps customers achieve sustainable growth and higher returns.
Q1: What makes this IBR roof sheeting machine different from others?
This IBR roof sheeting machine for sale features reinforced rib forming and precision rollers, ensuring stronger sheets and better surface quality.
Q2: Can the machine handle different roofing designs?
Yes, the IBR roof sheeting machine for sale can be customized to match specific profile requirements and local market demand.
Q3: Is it easy to change materials during production?
Absolutely. The integrated manual shear allows quick material switching without stopping the entire production line.
Q4: How durable is the machine for long-term use?
Built with heat-treated rollers and a reinforced structure, this IBR roof sheeting machine for sale is designed for continuous industrial operation.
Q5: Is this machine suitable for African markets?
Yes, many customers choose this IBR roof sheeting machine for sale for its stable performance in high-temperature and demanding environments.
