1.Progressive Radius Adjustment System
The roof curving machine allows gradual radius control during production, enabling smooth curve transitions without panel distortion or surface stress.
2.Profile Memory & Repeat Accuracy
Designed for project-based production, the machine ensures repeatable curving results for identical roof panels, improving installation consistency and reducing on-site adjustment.
3.Compact Structure with High Output Stability
Optimized frame design delivers stable curving performance while minimizing floor space, ideal for workshops handling multiple roofing lines.
WhatsApp/Wechat:+86 188 03078605
Email:sara@xinnuomachine.com

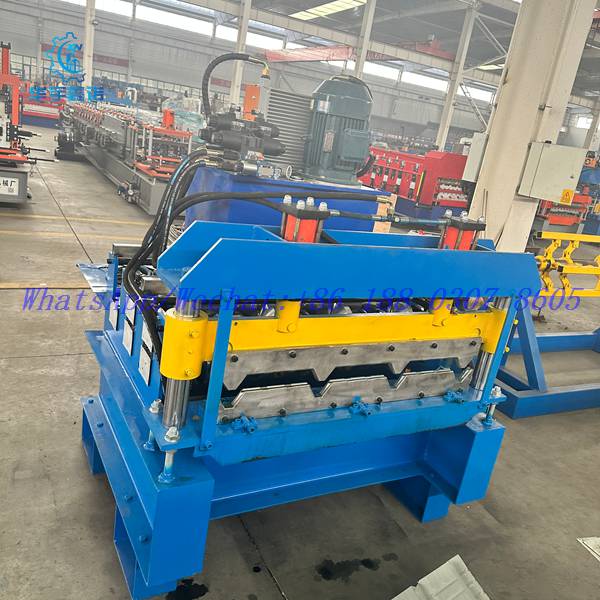

This roof panel curving machine is specifically customized for the panel profile produced by a 4-rib trapezoidal roof roll forming machine. It can also be engineered according to the exact profile of your existing roll forming machine, enabling the roof panel curving machine to accommodate different panel designs and meet diverse project requirements.

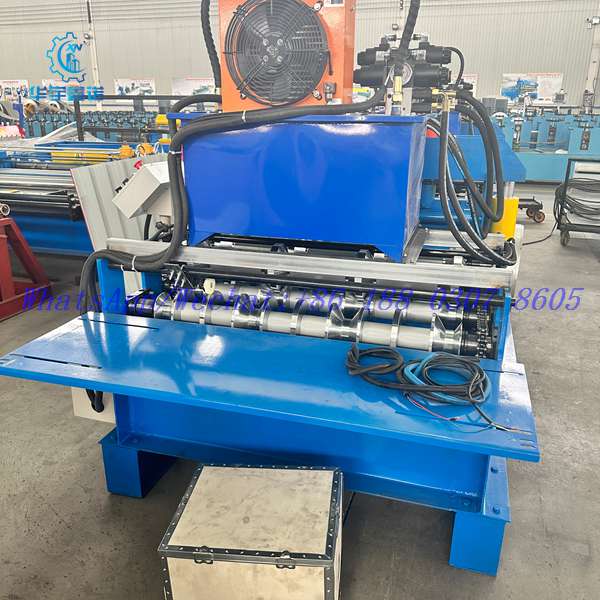

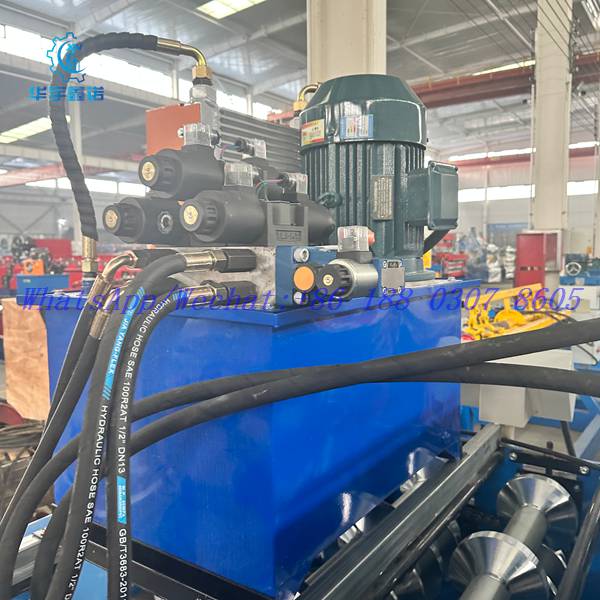

We have equipped the hydraulic power station of the roof panel curving machine with an integrated cooling fan system. Whether operating in tropical regions or during hot summer conditions, this additional cooling support reduces heat buildup, minimizes downtime caused by overheating, and improves overall production efficiency.
|
No. |
Type |
Plan B （Servo Motor Type） |
|
1 |
Thickness of raw material |
0.3-0.8mm，or as your request |
|
2 |
Row number |
3 roller stations |
|
3 |
Roller material |
45#Steel with quenching |
|
4 |
Under frame |
350H steel |
|
5 |
Shaft diameter |
70mm |
|
6 |
Structure |
14mm Steel Plate |
|
7 |
Drive Main motor power |
3KW servo motor drive |
|
8 |
Curving section motor power |
3KW |
|
9 |
Electrical brand |
International well-known brand |
XINNUO Roll Forming Machine is an established manufacturer with over 30 years of production experience, operating large-scale facilities dedicated to metal forming equipment. We develop and manufacture roof curving machine systems alongside various roll forming solutions, supporting customized configurations, export-oriented standards, and stable delivery for international roofing and construction markets.
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
