Roof Panel Machine - Trapezoidal Roof Panel Roll Former

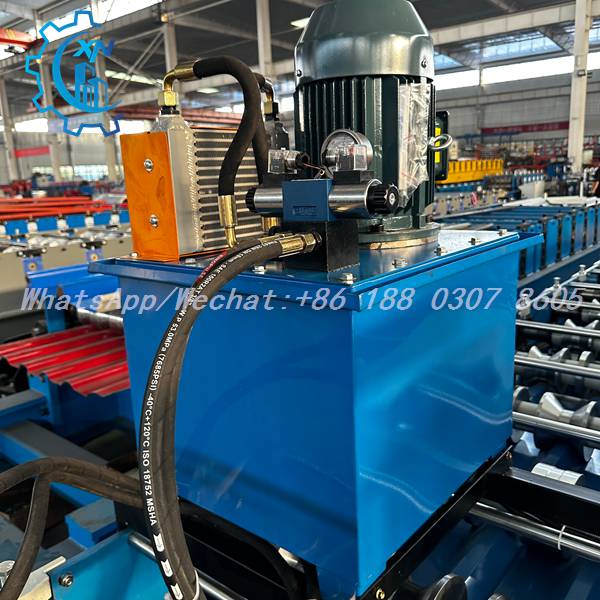

Close-up of the hydraulic power unit of the roof panel machine: a bright blue reservoir with a dark green vertical motor, pump assembly, pressure gauge and an orange-framed oil cooler feeds thick black hoses printed with pressure ratings up to 53.0MPa, while finished red trapezoidal panels stacked on the left show the profiles the line produces. The heavy-duty hydraulics guarantee consistent cutting force.

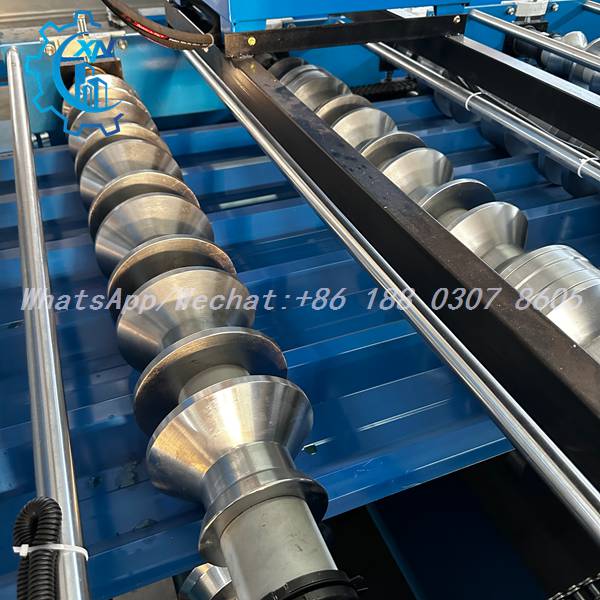

High-angle close-up of the forming section of the roof panel machine in action: a blue corrugated sheet with deep trapezoidal V-shaped ribs passes directly beneath the polished conical forming rollers, while heavy drive chains on the right and silver guide rods running parallel keep the profile forming smoothly. The sharp roller geometry pressing the sheet is captured mid-process, showing exactly how the rib shape is built.

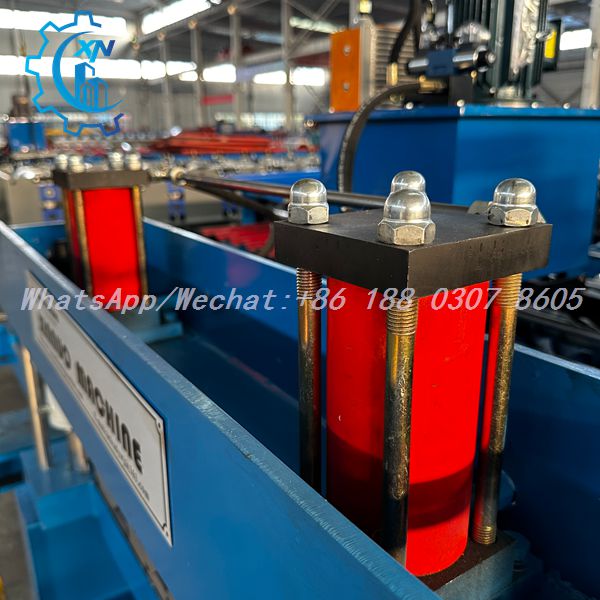

Low-angle close-up of the cutting station of the roof panel machine: a pair of large red vertical hydraulic cylinders capped with black plates and polished dome nuts drives the punching unit, with the blue reservoir, motor and pump assembly in the upper background. Stacks of red finished sheets in the distance show the line output, and the white MACHINE nameplate on the frame marks the factory-built unit.

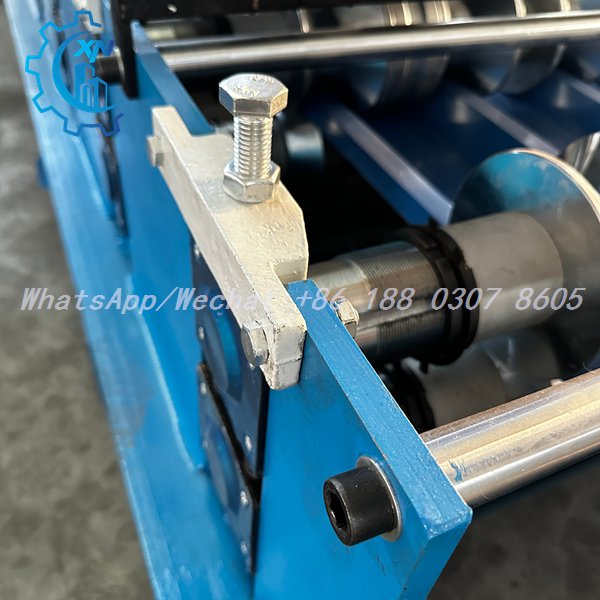

Extreme close-up of the fine adjustment point on the roof panel machine: a white metal bracket on the blue frame top carries a large silver hex-head bolt that fine-tunes roller pressure and position, while black bearing collars hold the silver shafts inside the blue side plates. This single adjustment detail is what keeps the forming tolerance tight across the whole roller set.

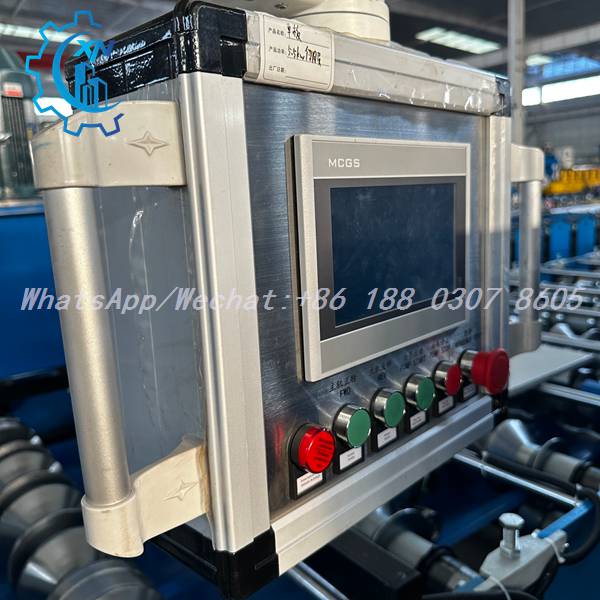

Close-up of the operator control station of the roof panel machine: a brushed-metal control box still wrapped in protective film carries an MCGS touchscreen and a row of physical buttons with a green start key and a large red mushroom-head emergency stop, while the deep blue machine body with silver conical and cylindrical rollers sits behind. The clean interface puts every forming and cutting command within one reach.

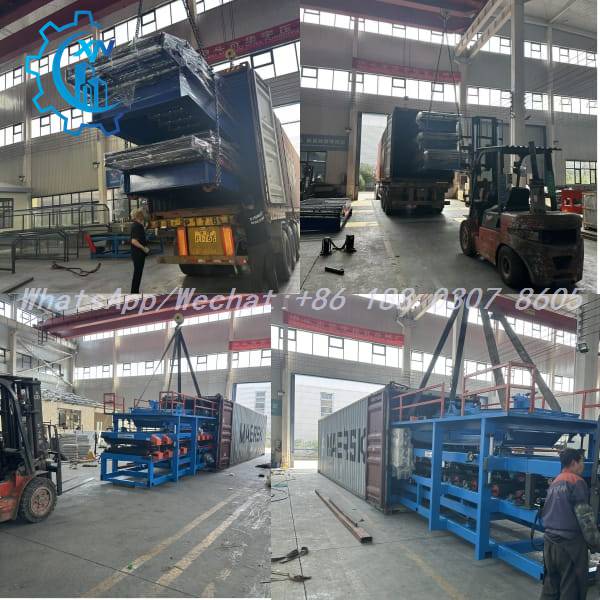

Loading scene of the roof panel machine: the double-layer blue frame with two tiers of forming rollers, orange safety parts and an end hydraulic cutting shear is guided into a MAERSK container, while bundles of finished corrugated panels wrapped in protective plastic are already loaded at the top. The gray control enclosure and side drive chains complete the ready-to-ship line.

Roof Panel Machine - Built by XINNUO Since 1995

XINNUO has manufactured cold roll forming equipment since 1995, and roof panel machines sit at the heart of our export business. Backed by hundreds of production-proven trapezoidal and corrugated profiles from 600mm to 1200mm effective width and 3 to 12 peaks, our lines cover industrial, agricultural and residential metal roofing.

Every roof panel machine combines conical forming rollers for progressive bending, an MCGS touchscreen control station with emergency stop, and a hydraulic cutting system with twin cylinders, pressure gauge and oil cooler. Rollers are fine-adjusted with hex-head bolts and bearing collars, keeping tolerances tight across the full roller set. Machines are offered in single or double-layer configurations and are assembled, test-run and container-packed in our own workshop.

We have exported to more than 150 countries, providing installation guidance, operator training and dependable after-sales support throughout the equipment's service life.

FAQ

Q1: What is a roof panel machine?

A: It is a roll forming machine that converts steel coils into trapezoidal or corrugated roof panels, with conical forming rollers shaping the profile and a hydraulic shear cutting each panel to length.

Q2: How does the touchscreen control work?

A: The MCGS touchscreen shows line status and parameters, while physical buttons including a green start key and a red mushroom emergency stop handle start, stop and safety functions for operators.

Q3: What hydraulic system powers the cutting?

A: A power unit with reservoir, pump assembly and pressure gauge feeds twin vertical cylinders that drive the shear dies; an oil cooler and high-pressure hoses keep the system stable under continuous cutting.

Q4: Which profiles can this machine produce?

A: Common profiles include 840mm, 900mm, 1000mm and 1050mm trapezoidal panels with 3 to 12 peaks, plus corrugated profiles; roller sets are engineered for your drawings and market.

Q5: How are the forming rollers adjusted?

A: Each station carries a bracket and hex-head adjustment bolt, so roller pressure and position can be fine-tuned precisely - keeping forming tolerance tight across the whole line.

Q6: Can one machine produce two different profiles?

A: Yes. A double-layer configuration carries two roller tiers on one frame, so you can switch between two profiles without changing tooling or adding floor space.

Q7: How are the machines and panels packed for shipping?

A: Finished panel bundles are wrapped in protective plastic and loaded first, then the machine modules are crane-lifted into MAERSK containers with documented packing for safe overseas delivery.

Q8: How do I get a quotation?

A: Send your profile drawing or sample, material spec and daily output target via WhatsApp/Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
