1.Structure: Welded steel frame, thickness 14–20 mm；

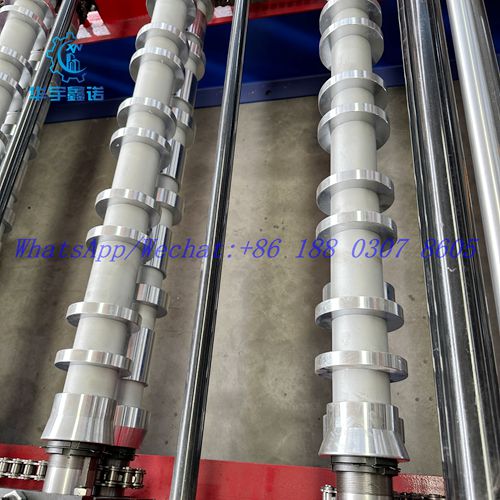

2.Roller Material: 45# steel, hard chrome plated；
3.Forming Stations: Upper layer 14–22 stations; Lower layer 12–20 stations.
4.WhatsApp/Wechat:+86 188 03078605
5.Email:sara@xinnuomachine.com

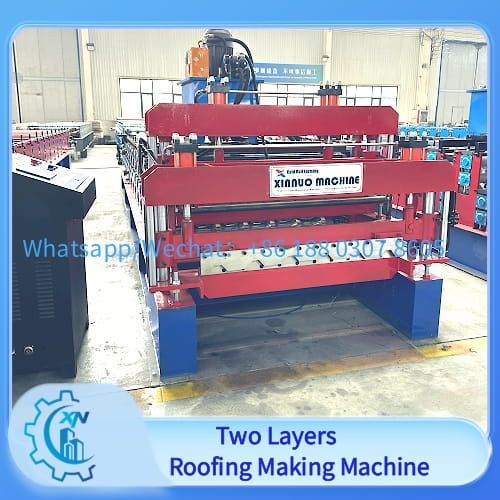

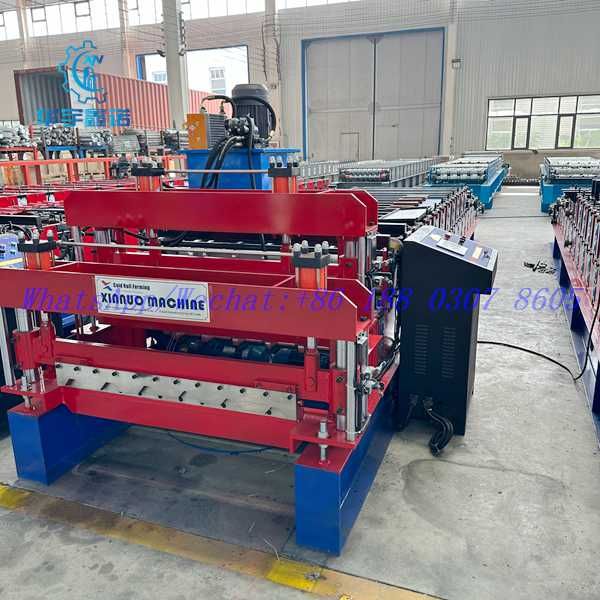

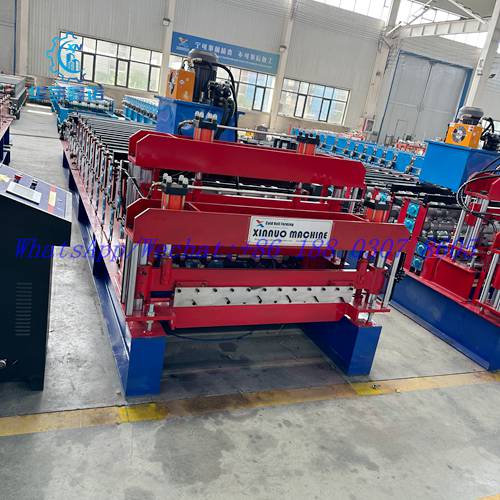

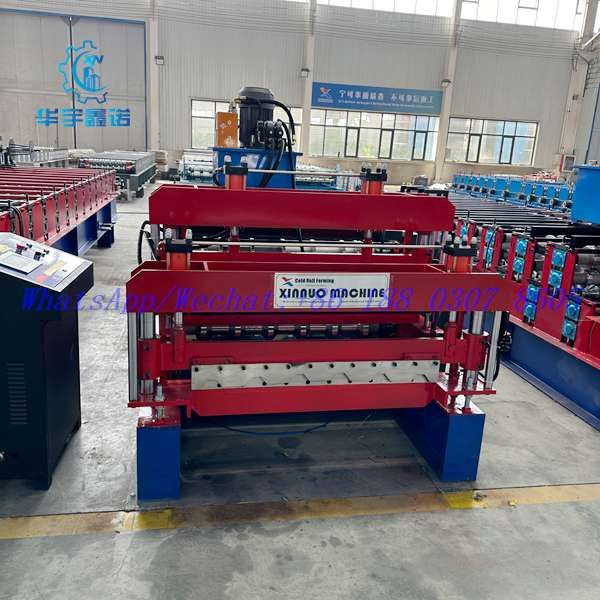

Double Layer Roll Forming Machine Introduction
The double layer roll forming machine is an innovative roofing making machine engineered to deliver two distinct roofing sheet profiles within a single integrated system. Its dual-level design enables quick profile switching without the need for roller replacement, significantly reducing downtime, floor space, and overall investment.
As a versatile roofing making machine, it supports the production of trapezoidal, corrugated, and glazed tile sheets with consistent accuracy and smooth surface quality. Built with a rigid frame and optimized transmission system, it ensures stable operation and long-term reliability. This makes it an excellent choice for manufacturers seeking a flexible, space-saving, and high-efficiency solution for diversified roofing sheet production.

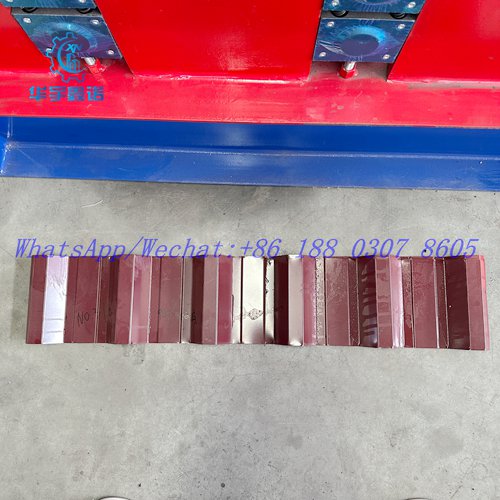

| Item | Specification / Configuration |
|---|---|
| Decoiler (Uncoiler) | Manual or Hydraulic type, 5 Tons capacity (optional 7–10T), expansion range 450–1500 mm |
| Main Roll Forming Machine | Welded steel frame (14–20 mm), shaft diameter 70–80 mm, roller material 45# steel with hard chrome plating, transmission by chain or gearbox |
| Forming Stations | Upper layer: 14–22 stations; Lower layer: 12–20 stations |
| Profiles | Upper layer: Glazed Tile / Corrugated Sheet (customized); Lower layer: Trapezoidal Sheet / Other profiles (customized) |
| Cutting System | Hydraulic cutting, blade material Cr12 quenched, cutting accuracy ±1.0 mm |
| Hydraulic Station | Power 4–7.5 kW, with high-quality pump & valve, hydraulic oil 46# anti-wear |
| Control System | PLC: Delta / Siemens / Omron (optional), HMI touch screen, auto length measurement & batch counting |
| Electrical Components | Chint / Omron / Delta (international well-known brands) |
| Output Table (Run-out Table) | Manual roller table or automatic stacker, length 3–6 m (customizable) |
| Main Motor | 7.5–15 kW depending on machine size & speed |
| Optional Accessories | Hydraulic decoiler, automatic stacking system, servo motor length control, safety guard cover |

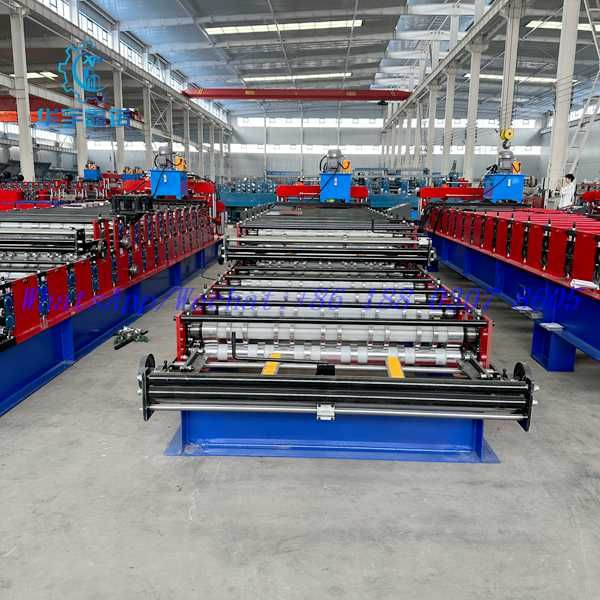

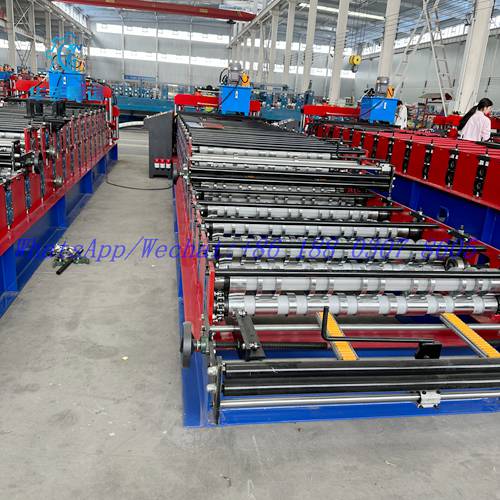

This roofing making machine adopts a fully enclosed internal chain drive design, enhancing operational safety while protecting key transmission components and ensuring stable, long-term performance.
This roofing making machine features a manual pre-cutting device at the feeding inlet, allowing operators to easily cut and replace unfinished coils, reducing material waste and improving production flexibility.

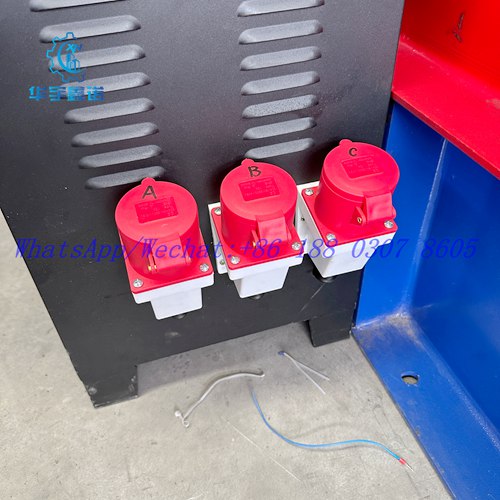

This roofing making machine is equipped with quick-connect plugs, ensuring fast installation, easy operation, and improved working efficiency.
At XINNUO Roll Forming Machine, we specialize in designing and manufacturing advanced roofing making machine solutions for global customers. With strong production capacity, modern facilities, and strict quality control, every roofing making machine we produce delivers stable performance and meets international standards.
Our in-house capabilities cover the full process, ensuring each roofing making machine is carefully managed from material handling to assembly and final testing. By continuously improving our roofing making machine technology, we are able to provide efficient and reliable equipment tailored to different project needs.
Through customized roofing making machine solutions, professional technical support, and dependable after-sales service, XINNUO Roll Forming Machine has established long-term partnerships with clients worldwide, becoming a trusted supplier in the roofing making machine industry.
