Shutter Making Machine - Rolling Shutter Slat Production Line

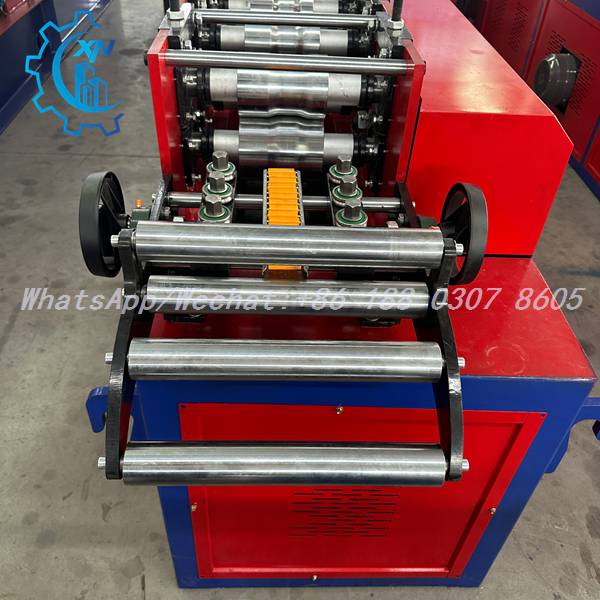

Front feed section of the shutter making machine: four feed rollers with handwheel adjustment, vertical guide rollers and an orange conveyor track feeding the strip into the forming stations.

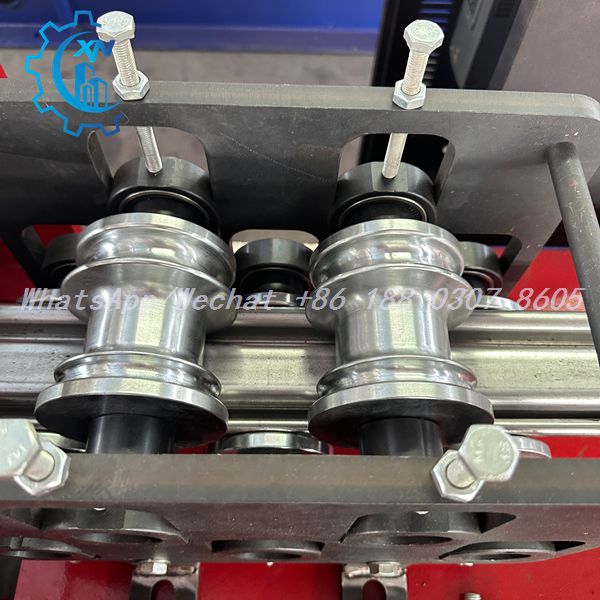

Close-up of the spool-shaped rollers of the shutter making machine guiding a galvanized square tube between clamp plates, with long hex adjustment bolts - precise straightening and guiding.

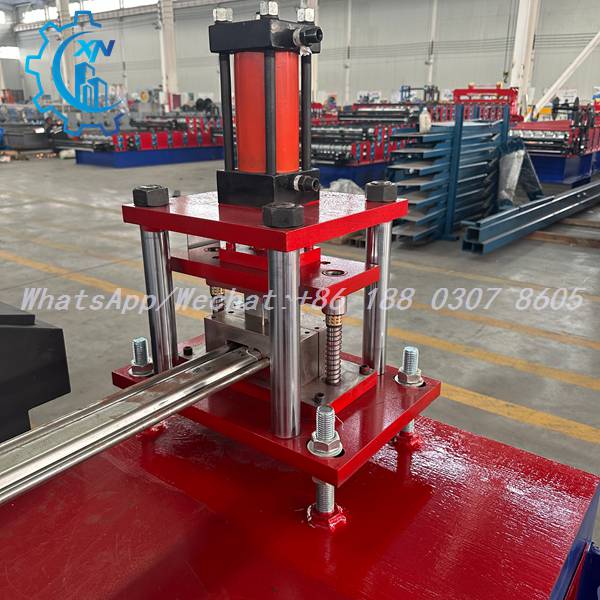

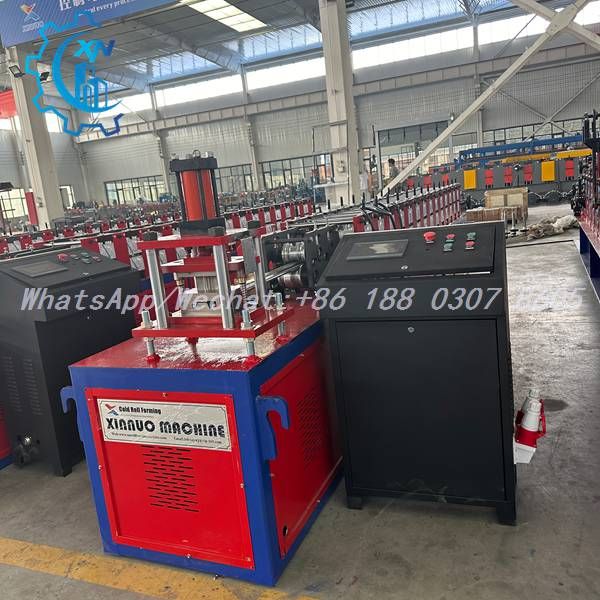

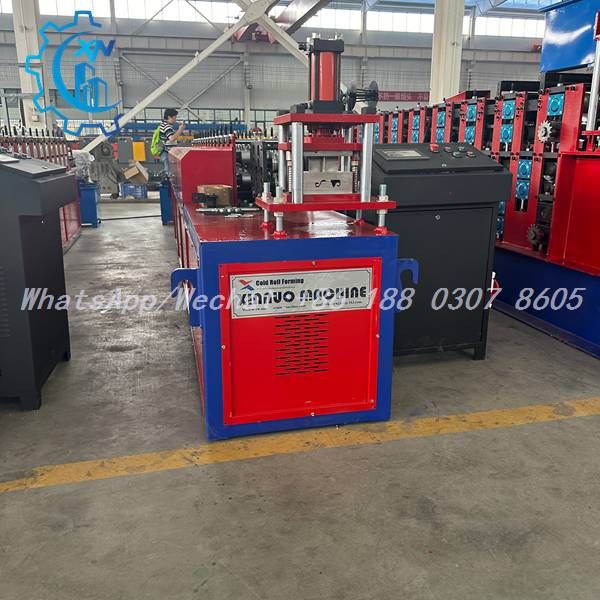

Four-pillar hydraulic press of the shutter making machine: red cylinder on a moving platen, die processing a grooved galvanized profile, with yellow safety lines on the floor - in-line pressing and shearing.

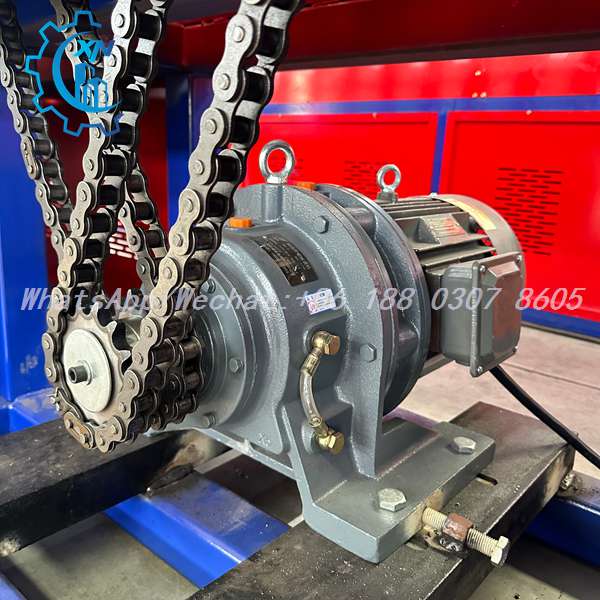

Drive unit of the shutter making machine: gearbox motor with oil sight-glass, lifting eye bolts and a double-row roller chain to the forming shafts - reliable power transmission.

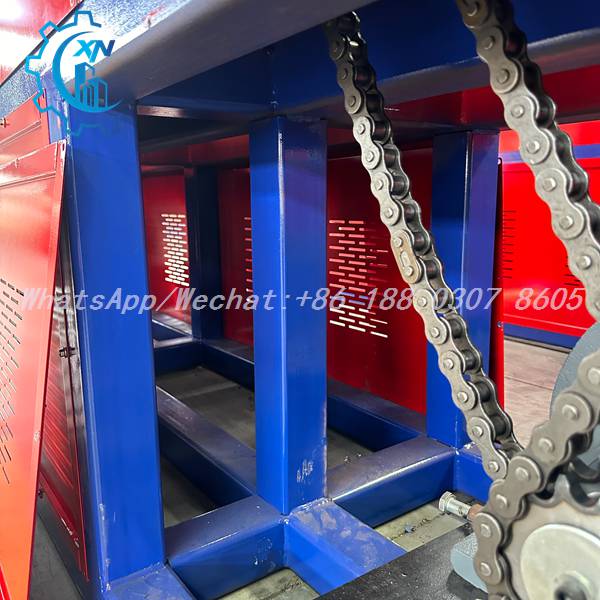

Inside view of the shutter making machine: blue frame with red louvered panels and exposed roller chains around a large sprocket - heavy-duty transmission at the core of the line.

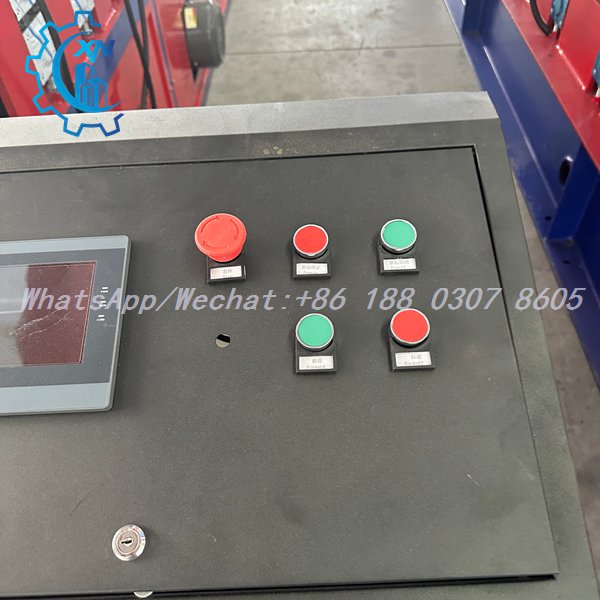

Close-up of the control panel of the shutter making machine: digital screen, bilingual power and direction buttons, and a red emergency stop with a key switch - precise operator control.

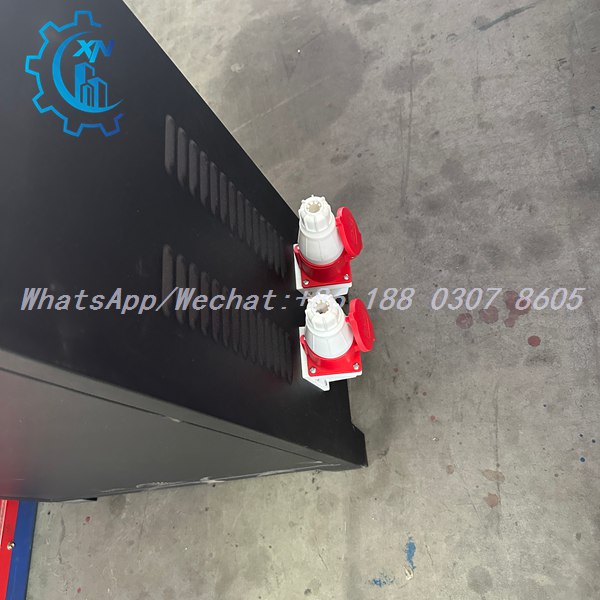

High-angle view of the power cabinet beside the shutter making machine: louvered black enclosure with two industrial sockets fitted with red protective flip covers - safe auxiliary power supply.

Shutter Making Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of shutter making machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, shutter making machines for rolling shutter slat production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a shutter making machine?

A: It is an automated production line that forms steel coils into rolling shutter slats and door profiles. The shutter making machine combines decoiling, roll forming, hydraulic pressing and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: Rolling shutter slats, door frame profiles and customized shutter profiles. Dedicated roller sets and dies allow quick changeover between different slat widths and shapes.

Q3: How is the machine controlled?

A: A PLC-based control system with a digital screen manages feeding, forming, pressing and cutting; bilingual buttons and an emergency stop give operators full and safe control.

Q4: What material thickness can it process?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every shutter making machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
