Solar Bracket Roll Forming Machine - PV Mounting Rail Production Line

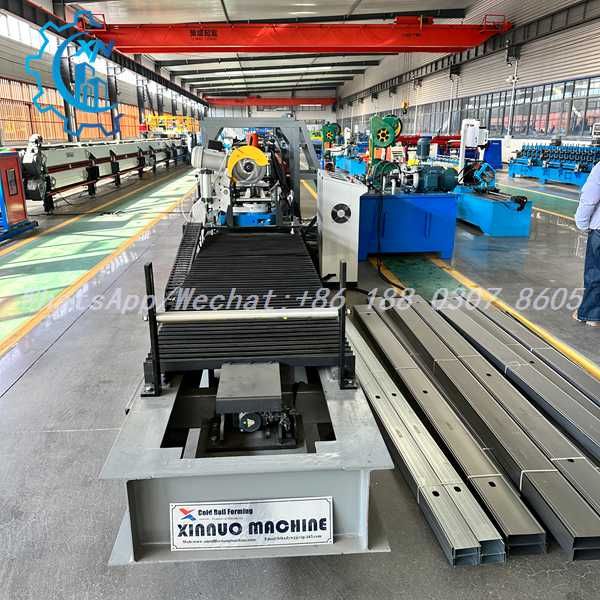

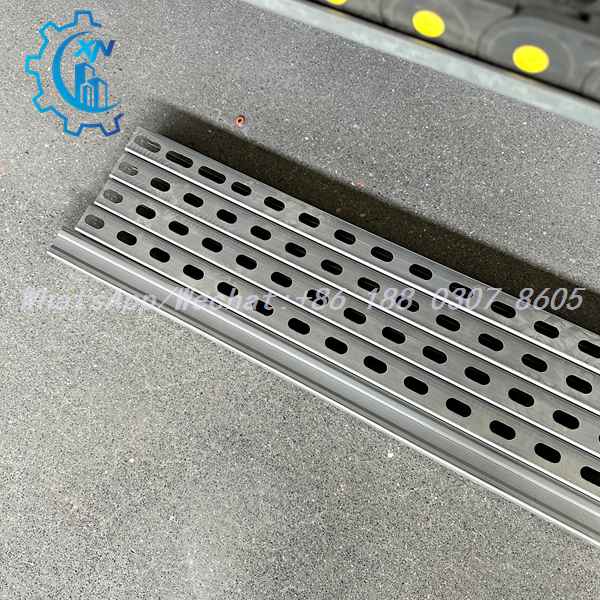

Hot-dip galvanized PV mounting rails with uniformly punched slots and consistent section tolerance - direct proof of forming accuracy and profile straightness.

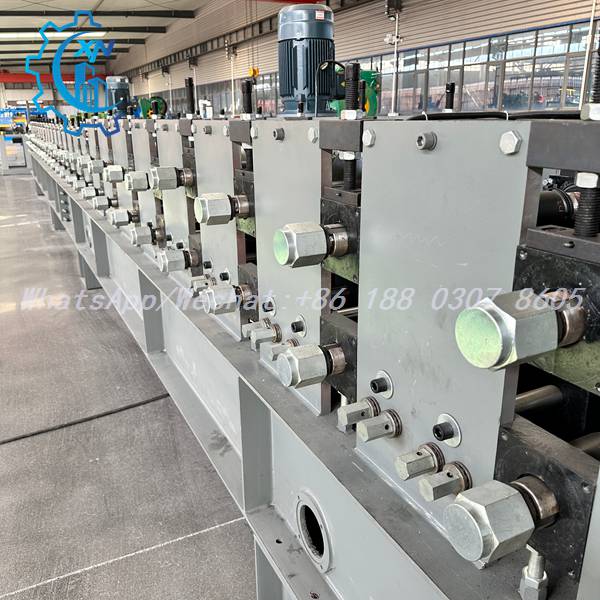

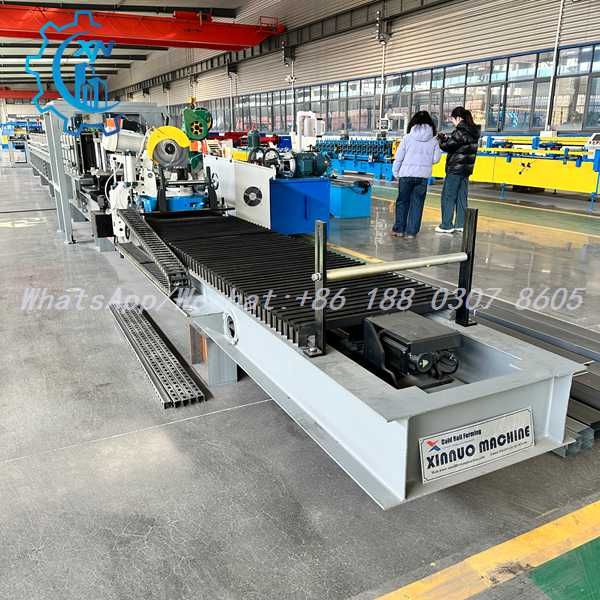

Full-line view of the solar bracket roll forming machine: 15+ forming stations on a heavy-duty H-beam base, individual drive motors and fine-adjustment threaded rods, configured as a complete PV mounting rail production line.

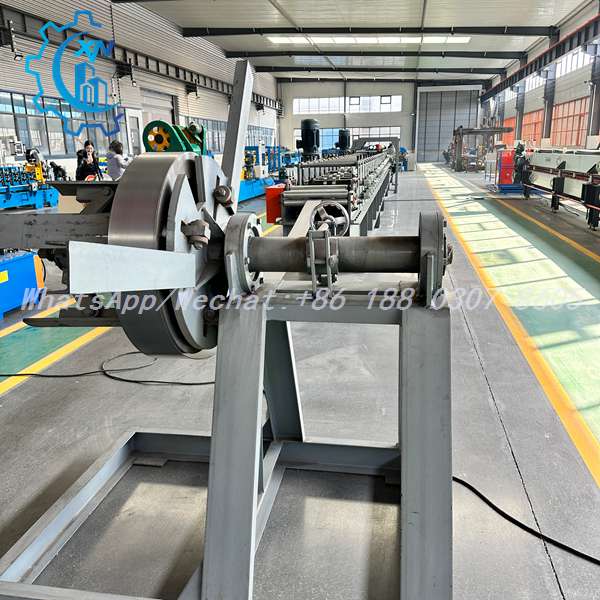

Heavy-duty decoiler with triangular frame and expanding mandrel feeding coils into the solar bracket roll forming machine, with forming stations and gear-driven motors extending along the line.

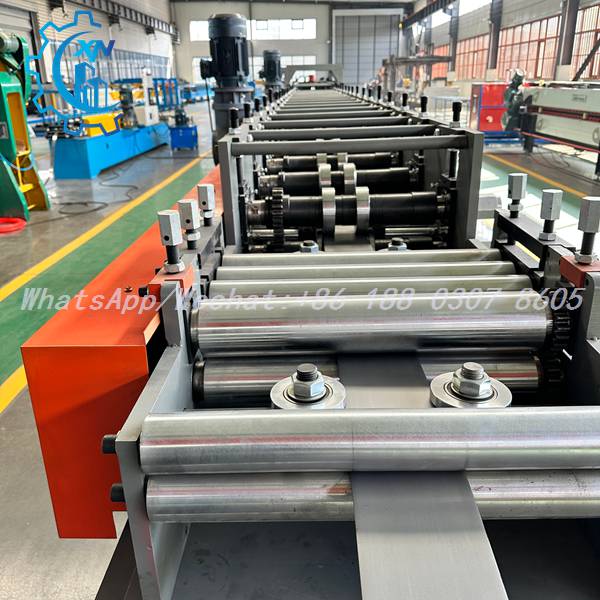

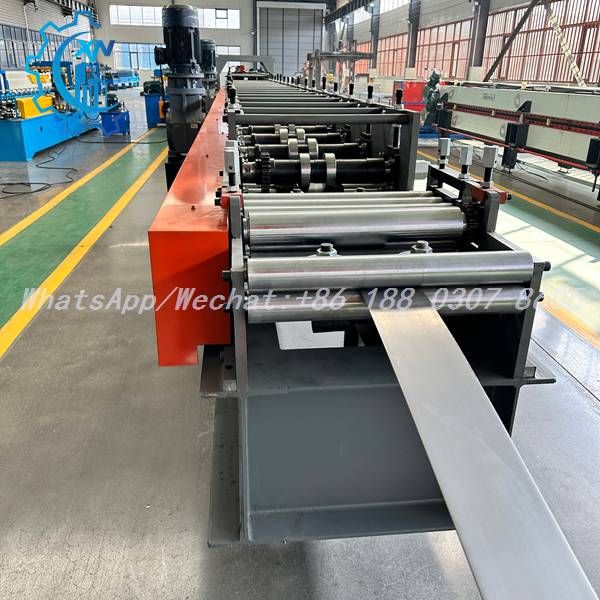

Close-up of the forming section: polished roller pairs guiding the strip, chain and sprocket drives, vertical motors and orange safety guards - built for continuous solar bracket production.

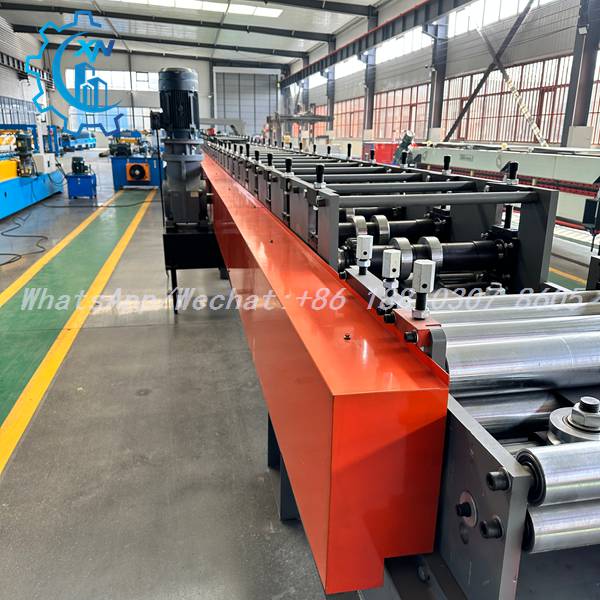

Front section of the solar bracket roll forming machine with orange side guards, silver roller stands, adjustment knobs and a vertical motor-gearbox drive, on a green-marked walkway in our factory.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a solar bracket roll forming machine?

A: A solar bracket roll forming machine is a production line that continuously forms steel coils into PV mounting brackets and rails - including C-shaped channels, Z-shaped purlins and slotted rails used in ground-mount, roof-mount and carport solar systems. It typically combines decoiling, roll forming, punching and cutting in one process.

Q2: What profiles can this machine produce?

A: PV mounting rails, C and Z bracket channels, slotted channels and customized solar bracket profiles. With dedicated roller sets and dies, the line can be adjusted to different bracket cross-sections and lengths.

Q3: Can punching and cutting be integrated into the line?

A: Yes. In-line hydraulic punching and flying saw cutting allow pre-drilled, cut-to-length brackets to leave the line in one pass - no secondary drilling or cutting required.

Q4: What material thickness can it process?

A: The applicable thickness depends on the machine configuration and profile size. Please send us your material specification (grade, thickness, width) and target profile drawing, and we will recommend the right configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be customized according to your profile drawings and production requirements.

Q6: What about installation and operator training?

A: We provide installation and commissioning guidance, operation and maintenance training (on-site or remote), and complete documentation. Our engineers also offer online technical support throughout the service life of the machine.

Q7: What is the delivery time and warranty?

A: Delivery time depends on the machine configuration and quantity. Every machine is fully tested before shipment and comes with a warranty; specific terms will be confirmed in the quotation.

Q8: How can I get a quotation?

A: Send us your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We will reply within 24 hours with a technical proposal and factory price.
