Double Layer IBR & Corrugated Iron Manufacturing Machine

1. Dual-Deck Independent Forming System
This IBR and corrugated iron manufacturing machine features two forming decks in one structure, allowing production of IBR686 and corrugated 762 sheets without changing rollers.

2. Space-Saving Production Design
Compared to separate machines, this IBR and corrugated iron manufacturing solution reduces factory space usage while maintaining full production capacity.

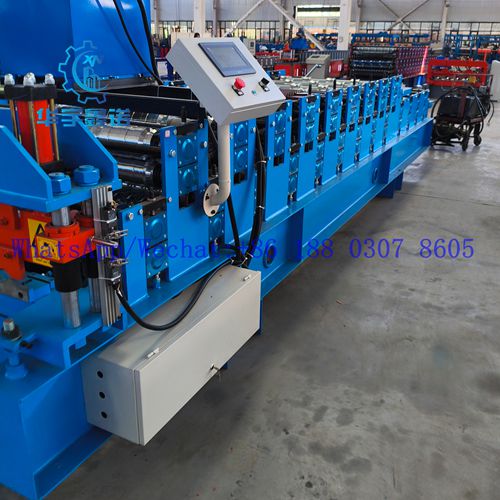

3. High-Accuracy Length Counting System
Equipped with a reliable counting system, this IBR and corrugated iron manufacturing machine ensures precise sheet length control, minimizing material waste.

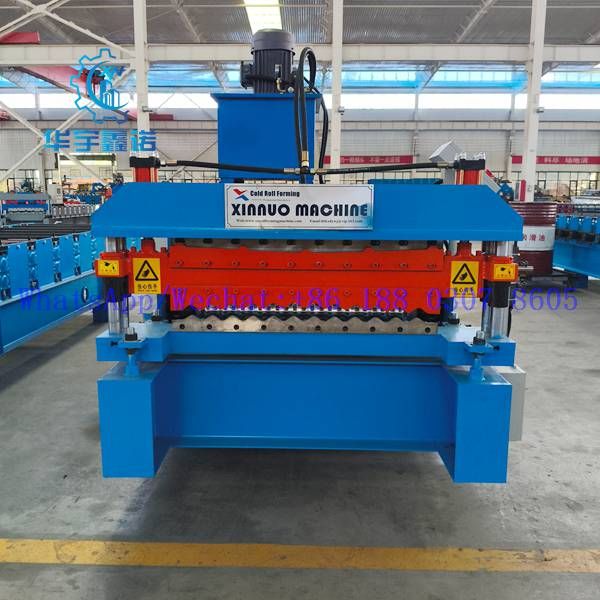

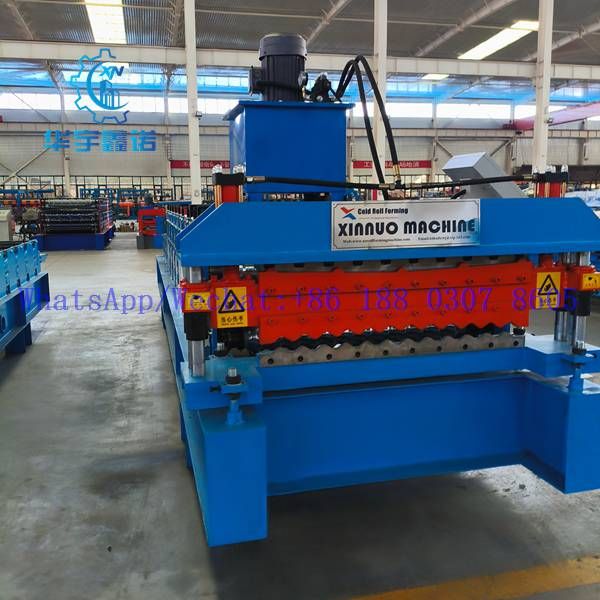

This IBR and corrugated iron manufacturing machine ensures clean and precise cutting, delivering uniform sheet lengths for consistent production output.

Item	Specification
Profiles	IBR686 & Corrugated 762
Material Thickness	0.3–0.8 mm
Forming Speed	10–20 m/min
Roller Material	45# Steel, Heat Treated
Roller Stations	16–18 Stations per layer
Cutting System	Hydraulic Cutting
Control System	PLC + Encoder Counting
Drive System	Chain Transmission
Voltage	380V / 50Hz / 3 Phase
Machine Structure	Double layer integrated frame

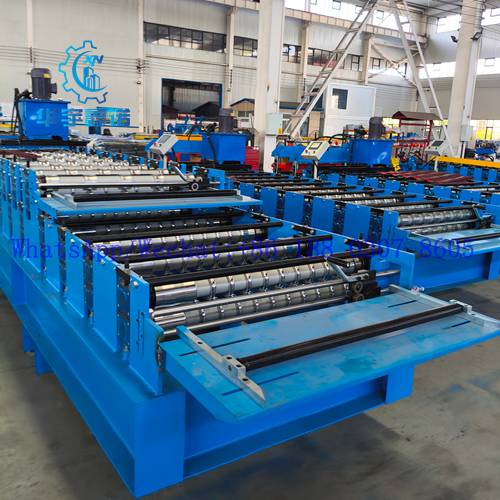

The integrated feeding system of this IBR and corrugated iron manufacturing machine allows smooth material entry for stable forming performance.

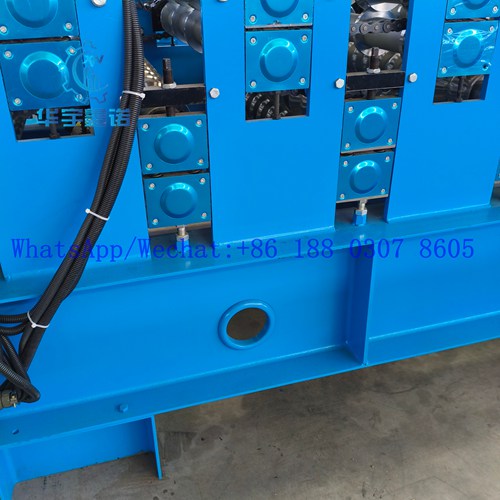

The compact double-layer structure of this IBR and corrugated iron manufacturing machine maximizes productivity while saving valuable workspace.

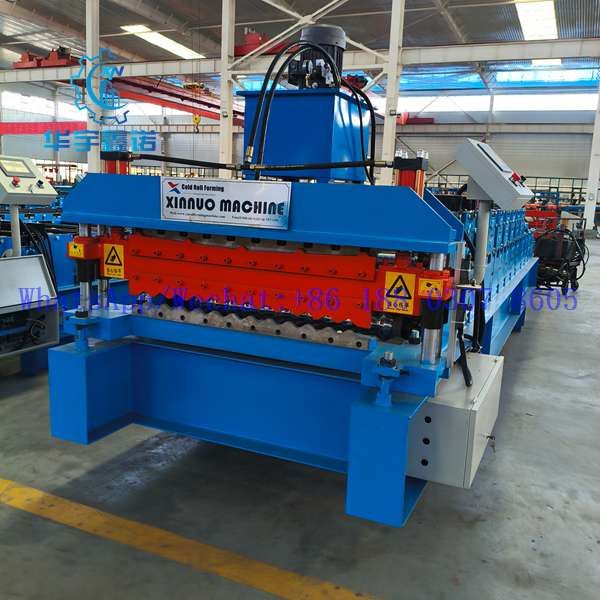

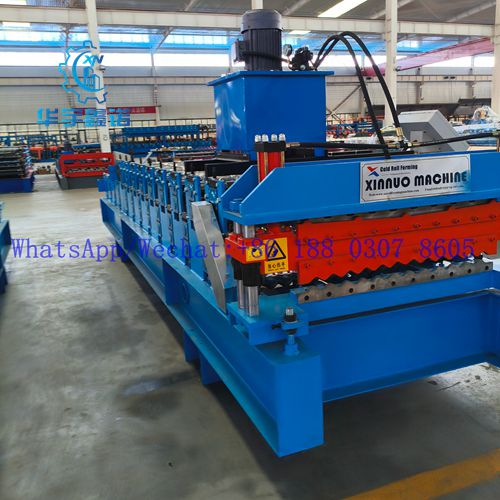

The protective cover design enhances operational safety and keeps the forming process stable in this IBR and corrugated iron manufacturing machine.

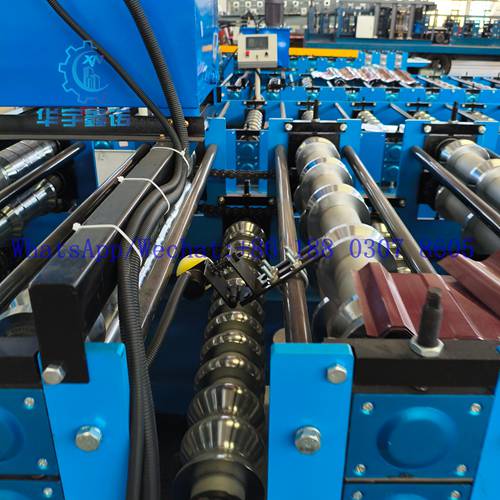

Heat-treated rollers combined with a high-precision counter ensure accurate forming and cutting in this IBR and corrugated iron manufacturing machine.

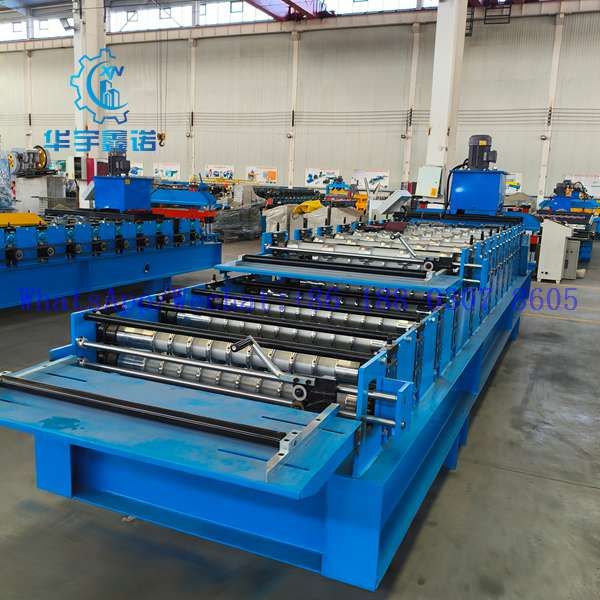

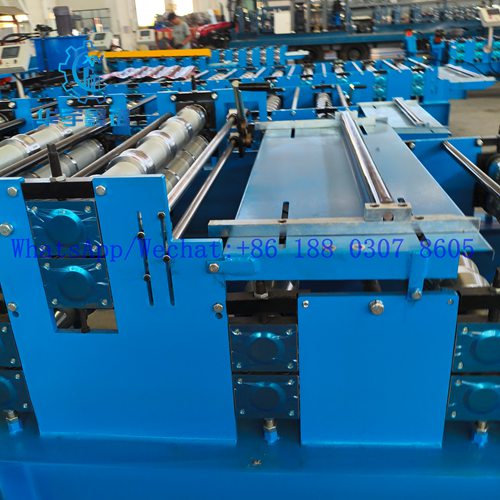

The metal feeding platform provides stable support for raw materials, improving efficiency and reliability in this IBR and corrugated iron manufacturing machine.

Introduce of XINNUO Roll Forming Machine

XINNUO Roll Forming Machine is a professional manufacturer specializing in advanced IBR and corrugated iron manufacturing solutions for roofing production. With over 30 years of experience, we understand that a reliable IBR and corrugated iron manufacturing machine is essential for efficient and profitable operations.

Each IBR and corrugated iron manufacturing machine is developed using extensive production data and continuous engineering improvements. Our team ensures that every IBR and corrugated iron manufacturing system delivers stable performance, precise forming, and long service life.

We have supplied IBR and corrugated iron manufacturing equipment to customers worldwide, supporting both manufacturers and distributors in expanding their roofing business. Our IBR and corrugated iron manufacturing machines are trusted for their flexibility, efficiency, and durability.

At XINNUO, we don’t just provide an IBR and corrugated iron manufacturing machine—we deliver a complete solution designed to maximize your production capacity and return on investment.

---

Q1: Can this machine produce both IBR and corrugated sheets?
Yes, this IBR and corrugated iron manufacturing machine is designed with a double-layer system to produce both profiles efficiently.

---

Q2: How long does it take to switch between profiles?
The switching process is simple and fast, allowing you to change production with minimal downtime.

---

Q3: Is the machine suitable for small factories?
Absolutely. This IBR and corrugated iron manufacturing machine saves space by combining two machines into one.

---

Q4: How accurate is the cutting length?
The machine uses a high-precision counting system to ensure accurate and consistent sheet length.

---

Q5: Is it reliable for long-term production?
Yes, the IBR and corrugated iron manufacturing machine is built with durable materials and a stable structure for continuous industrial use.
