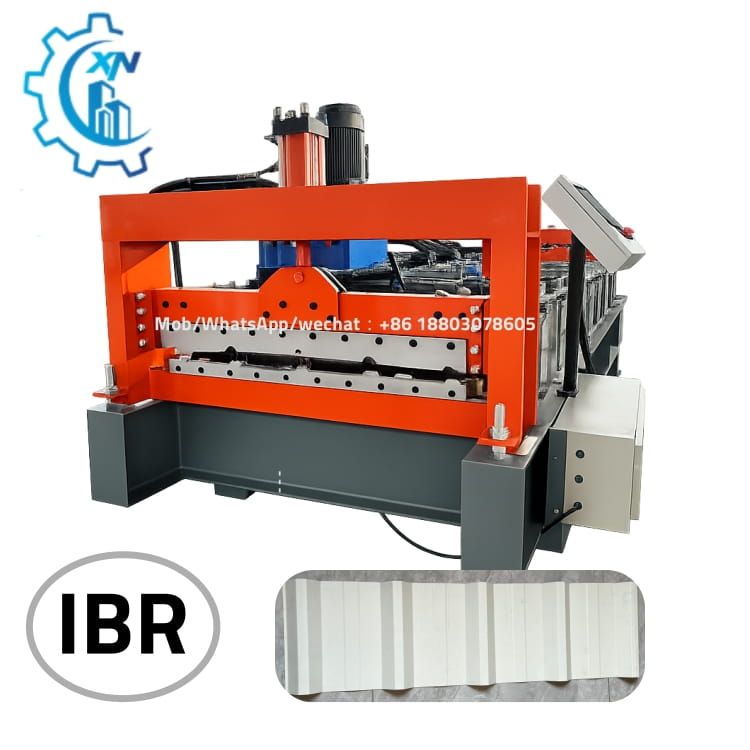

Optimized Profile for Long-Span Roofing
IBR profile features a deeper trapezoidal shape, allowing longer spans with fewer supports while maintaining roof strength and stability.
Excellent Water Drainage Performance
The wide rib spacing of IBR sheets improves rainwater flow, reducing water accumulation and leakage risk in heavy rainfall areas.
High Load Capacity with Material Efficiency
IBR roofing delivers strong load-bearing performance while using material efficiently, making it suitable for industrial and commercial buildings.

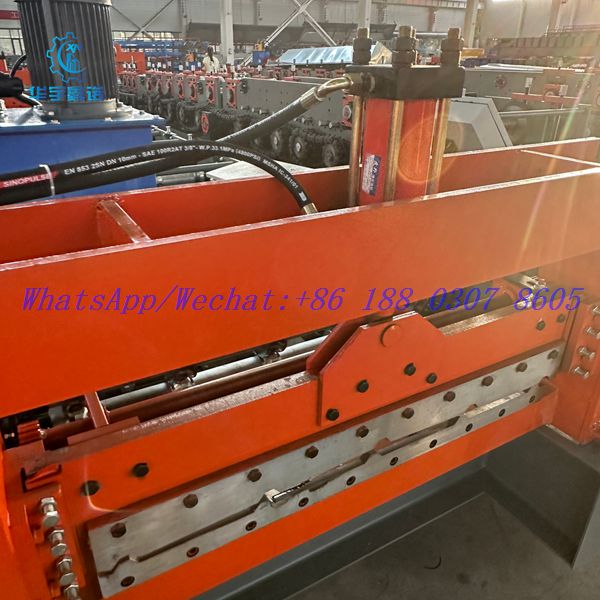

IBR making machine features Cr12MoV cutting blades, offering:
consistent cutting accuracy with reduced burrs,
extended blade lifespan under high-frequency cutting,
reliable performance for long-term industrial operation.

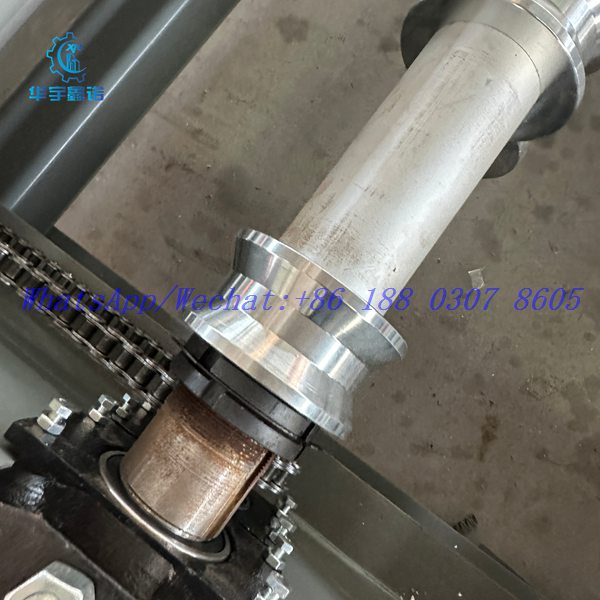

IBR making machine features Dacromet spacers, providing:
long-lasting corrosion resistance in humid and coastal environments,
stable spacing that preserves forming accuracy over time,
reduced downtime caused by rust or component seizure.

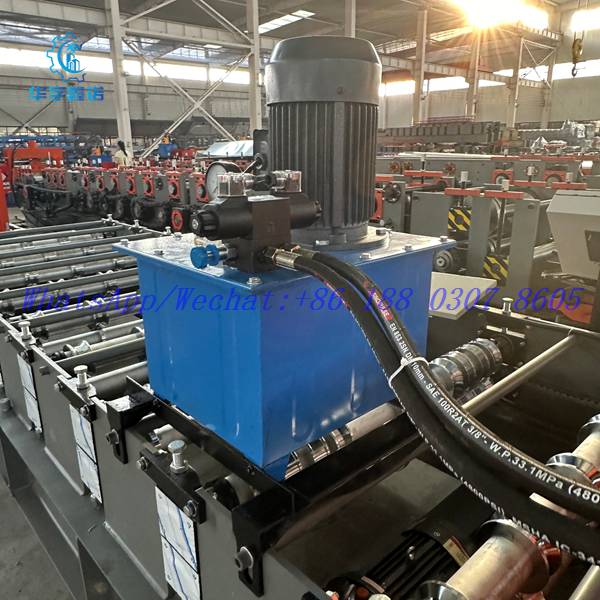

IBR making machine features international brand motors, offering:
consistent power output for smooth forming at stable speeds,
lower failure rates during extended production cycles,
improved overall machine reliability and service life.
| Item | Specification |
|---|---|
| Machine Type | IBR686 Roll Forming Machine |
| Profile | IBR 686 roofing sheet |
| Effective Width | 686 mm |
| Raw Material | GI / PPGI / Color steel |
| Material Thickness | 0.3–0.8 mm |
| Forming Stations | 18–22 stations |
| Forming Speed | 10–15 m/min |
| Roller Material | High-grade steel, precision machined |
| Shaft Diameter | 75 mm |
| Drive System | Chain drive or gearbox (optional) |
| Cutting System | Hydraulic cutting |
| Blade Material | Cr12MoV |
| Control System | PLC control with touch screen |
| Motor | International brand motor |
| Voltage | 380V / 50Hz / 3 Phase (customizable) |
IBR making machine features an industrial touch screen, delivering:
intuitive parameter adjustment with clear visual control,
reduced risk of incorrect settings during production changes,
improved consistency in daily operation and output quality.
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
