1.Applicable to a variety of materials: compatible with galvanized sheet, color steel sheet, aluminum sheet, stainless steel sheet, etc.
2.Customer customization: Support non-standard customization according to customer drawings or samples.
3.Independent intellectual property rights: independent production, design and research and development, quality source can be controlled.
Mob/WhatsApp/WeChat:+86 188 0307 8605
Email:sara@xinnuomachine.com

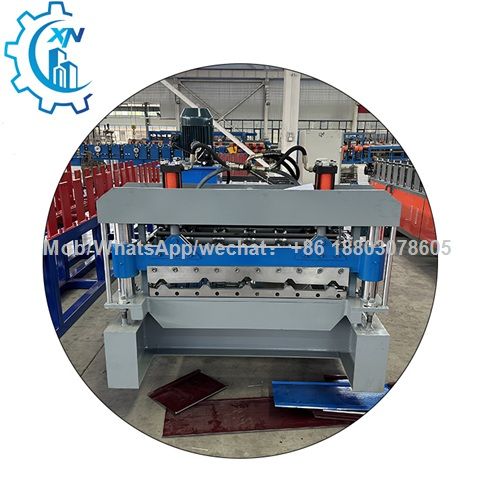

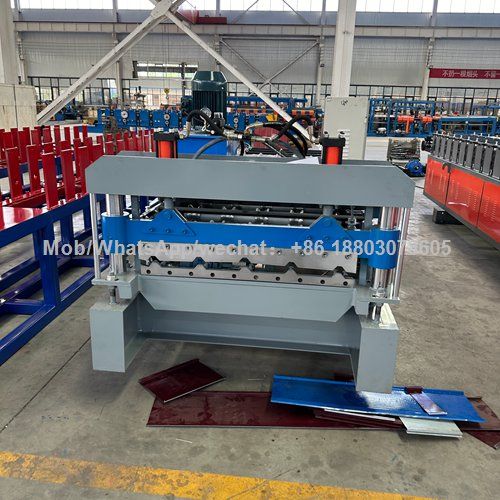

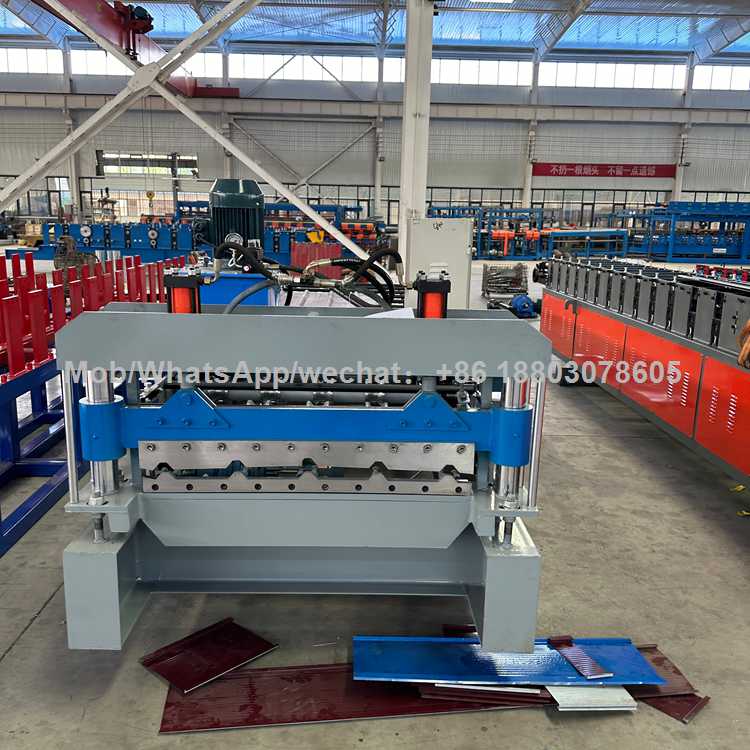

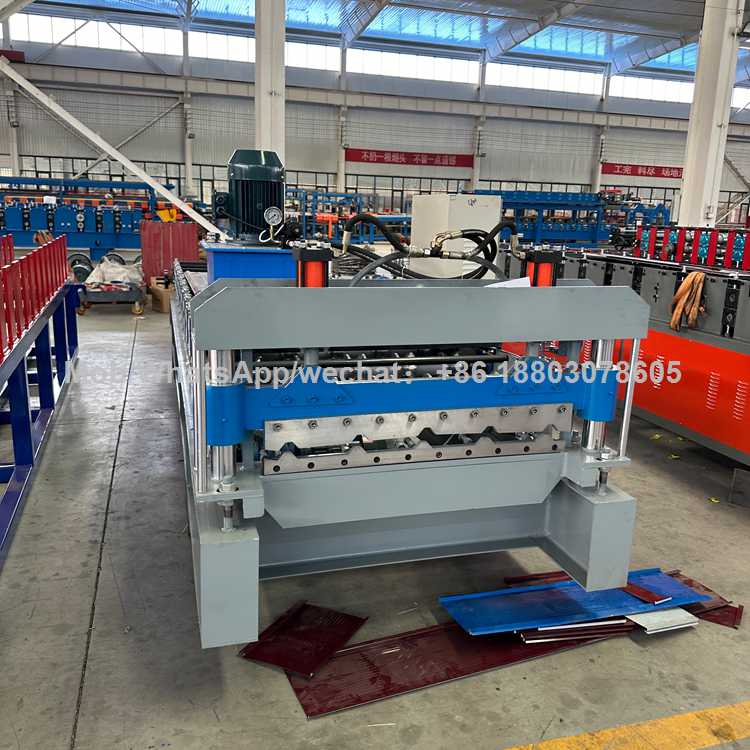

The IBR panels produced by our company's ibr roof sheet making machine have good appearance and close overlap between panels. IBR roof panels have square corrugated panels with effective coverage widths of 686mm, 762/760mm, suitable for roof and wall cladding. Its lightweight structure makes installation and handling more convenient, and it is easier to operate than other metal panels, so it is widely used in residential, commercial and industrial projects and is very popular.
| Parameter | Details |
|---|---|
| Material Type | Galvanized steel, PPGI, Aluminum |
| Material Thickness | 0.3–0.8 mm |
| Material Width | 914 mm / 1000 mm / 1220 mm (customizable) |
| Effective Cover Width | 686 mm / 840 mm / 988 mm |
| Forming Speed | 10–15 m/min (standard); up to 25 m/min optional |
| Roller Stations | 13–20 rows (depending on profile) |
| Roller Material | 45# steel with hard chrome coating |
| Shaft Diameter | 70 mm |
| Shaft Material | High-grade 45# steel |
| Main Motor Power | 5.5 kW – 7.5 kW (customizable) |
| Hydraulic Cutting Power | 4 kW |
| Cutting Blade Material | Cr12Mov, heat-treated |

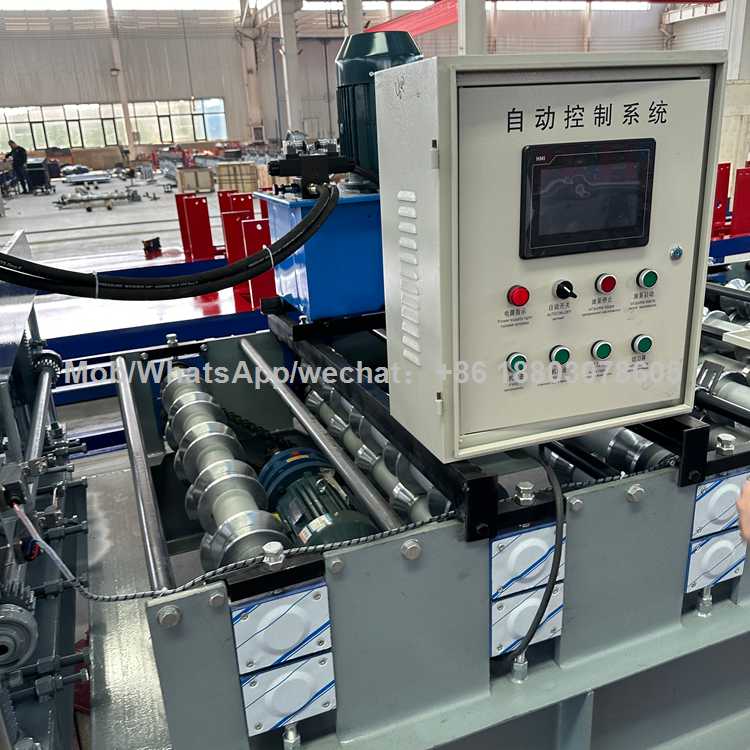

| Control System | PLC control (Delta/Siemens/Mitsubishi optional) |
| Transmission Type | Chain drive or gearbox |
| Voltage | 380V/50Hz/3Phase (customizable) |
| Machine Frame | 300–350 H-beam welded structure |
| Machine Size (L×W×H) | Approx. 7.5 m × 1.2 m × 1.5 m |
| Total Weight | 5 – 6.5 tons |

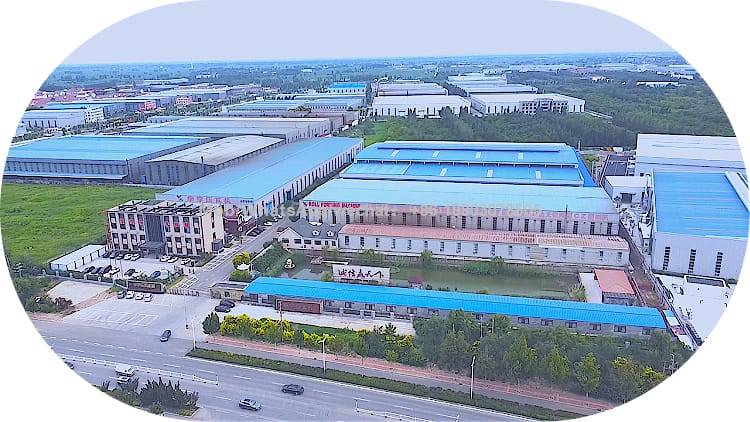

Xinnuo Roll Forming Machine has been focusing on the research and development and manufacturing of cold-rolled forming equipment for more than 30 years, and its main products include ibr roof sheet making machine,purlin forming machines, roof/wall panel forming machines, sandwich panel production lines, etc. The company has an efficient R&D team and a systematic service system, continuously promotes technological innovation, and has obtained a number of invention and utility model patents. Its products are exported to more than 150 countries around the world and are widely recognized by the market.
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
