Trapezoidal Profile Sheet Machine

1. All-Metal Hydraulic Plumbing — Engineered for Zero-Leak Longevity

Unlike the rubber-hose assemblies found on most competing profile sheet machines, every XINNUO unit ships with rigid steel hydraulic pipes throughout the entire circuit. Rubber hoses blister, crack, and weep under sustained heat and pulsation — metal lines don't. The result: consistent clamping pressure at the shear station, a sealed system that holds 25 MPa without seepage, and a hydraulic circuit that survives continuous-shift production without a single unscheduled stop. For the operator, that translates to fewer consumable replacements and predictable, low-variance sheet quality at every cut.

2.Active-Cooled Hydraulic Power Unit — Keeps Oil Below 55°C, Even in 40°C Ambient

Most profile sheet machine builders fit a bare pump-and-tank assembly and call it done. We bolt an air-blast radiator directly onto the power unit, force-cooling the hydraulic oil in closed loop. The fan-driven cooler doesn't just "help" — it caps the sump temperature at 55°C regardless of ambient heat or duty cycle. Cooler oil means stable viscosity, stable cut pressure, and dramatically slower additive depletion inside the fluid. For factories in the Middle East, Southeast Asia, or anywhere that runs double shifts in summer, this single detail is the difference between a machine that holds tolerance and one that drifts by lunchtime.

3.Twin-Cylinder Synchronized Shear — Straight Cuts That Stay Straight After 500,000 Cycles

Single-cylinder shears are cheaper to build but suffer blade skew over time — the cutting edge wears unevenly, burrs appear, and eventually the panel edge deforms. Our profile sheet machine drives the shear head through dual hydraulic cylinders mounted symmetrically on both sides, linked by a precision-ground guide-rail assembly. Load is split equally; blade parallelism is mechanically locked. The outcome is a guillotine-style cut with square edges, zero angular drift after years of service, and a blade life that typically outlasts the first replacement cycle on single-cylinder machines by a factor of two.

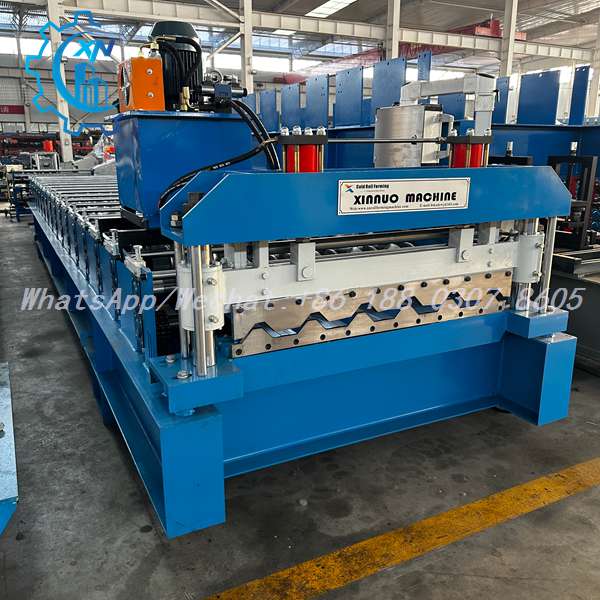

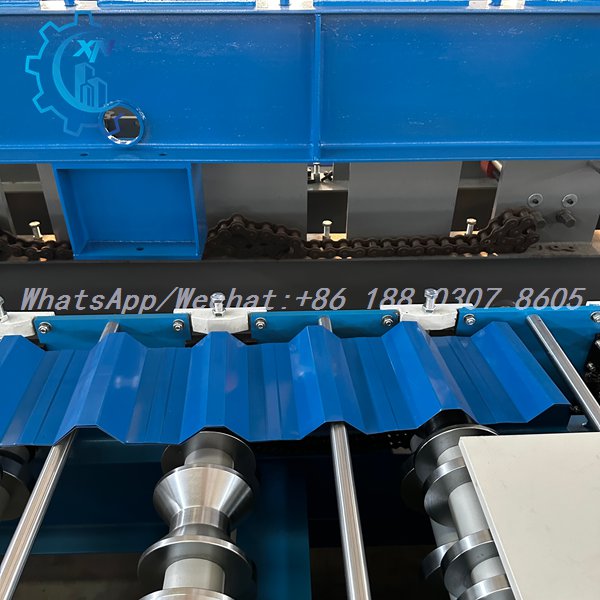

Precision-formed trapezoidal roof panels produced by the XINNUO profile sheet machine. Every rib is dimensionally consistent from the first meter to the last — a direct result of CNC-turned rollers, stress-relieved frame alignment, and fully assembled trial runs conducted before crating. The panel geometry you see here is what your production line will replicate, shift after shift.

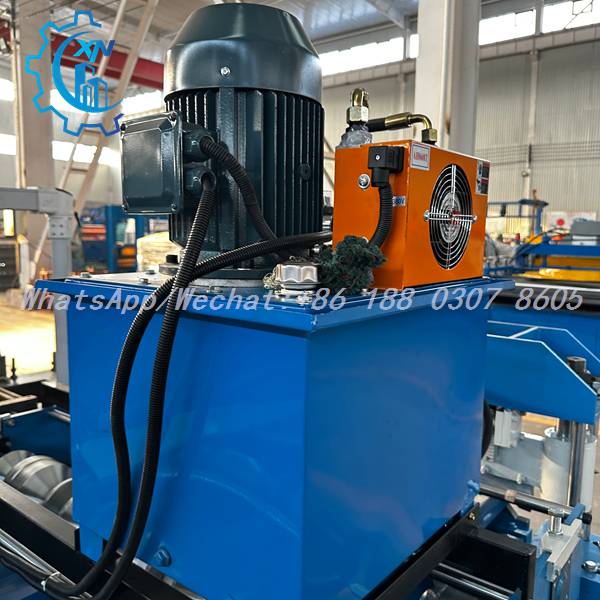

The hydraulic power unit that drives every cut on this profile sheet machine integrates an air-cooled radiator — not a passive tank relying on ambient dissipation. The forced-air fan keeps oil temperature stable below 55°C even in 40°C shop-floor conditions. Cooler oil means consistent shear pressure, slower fluid degradation, and a hydraulic system that doesn't drift out of spec by the afternoon shift.

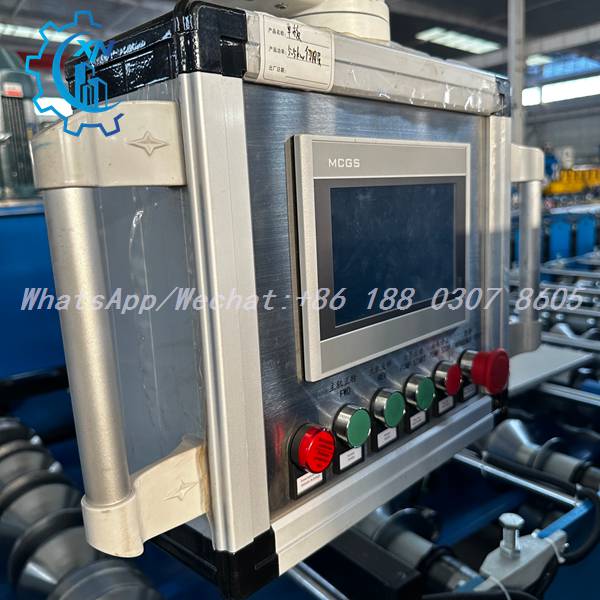

An industrial-grade touchscreen sits at the operator station of every profile sheet machine we ship. The PLC interface handles more than start/stop — it logs production counts per shift, stores profile-specific parameter presets, displays real-time line speed and motor load, and flags fault conditions with plain-language diagnostics before they become stoppages. Operators learn the system in under an hour.

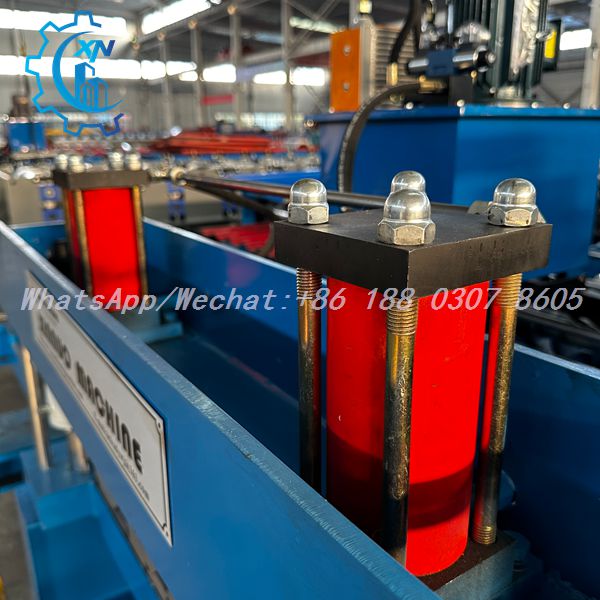

This is the cutting station that separates a budget profile sheet machine from an industrial one. Two hydraulic cylinders drive the shear blade simultaneously from both sides — not just one — so cutting force is distributed evenly across the full panel width. The result: perfectly square edges with zero burr, cut after cut, without the blade skew that eventually ruins edge quality on single-cylinder shears.

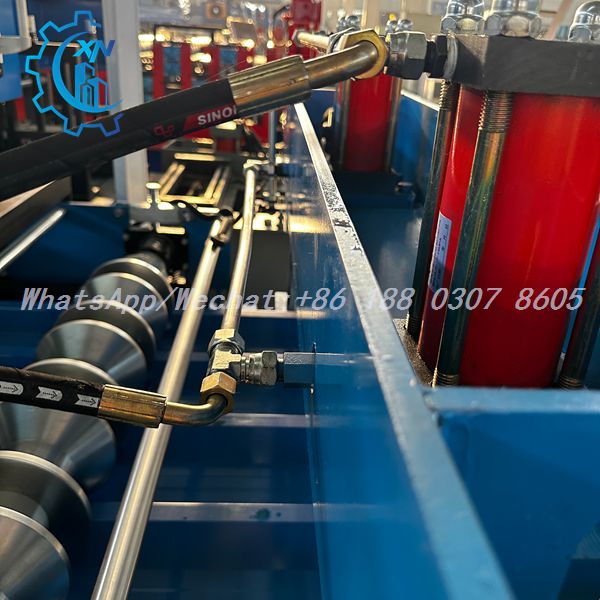

Every hydraulic circuit on this profile sheet machine is plumbed with rigid steel tubing, not rubber hose. Rubber degrades under heat and pulsation — it swells, cracks, and weeps hydraulic fluid onto the factory floor. Steel lines hold 25 MPa without seepage, resist aging, and eliminate the most common leak point on roll forming equipment. For a machine expected to run double shifts for a decade, this is not an upgrade — it's the only acceptable spec.

COMPANY INTRODUCE

Established in 1995, XINNUO Roll Forming Machine is a specialized manufacturer with over 30 years of cold roll forming engineering heritage. Our flagship product — the profile sheet machine — has been shipped to more than 150 countries. Unlike trading companies that outsource production, every profile sheet machine we build is fabricated under one roof: in-house frame welding, stress relief, CNC roller turning, full mechanical assembly, and live-coil trial runs before crating. That tight manufacturing loop is what keeps profile tolerances consistent across every profile sheet machine leaving our factory. Whether you need an 840-type warehouse panel or a high-rib 1050 industrial cladding line, our profile sheet machine platform covers the full range of effective widths, peak counts, and optional integrated arching. The all-metal hydraulic piping, twin-cylinder shear, and active-cooled power unit that come standard on every profile sheet machine are not premium upsells — they're our definition of industrial-grade baseline quality, protected by a 12-month warranty and lifetime remote support. For buyers evaluating a profile sheet machine as a multi-year capital decision, we offer free profile verification before quotation: send us your sample or drawing, and our engineering team confirms roller compatibility upfront. That is why over 40% of our annual export volume comes from repeat buyers — a profile sheet machine from XINNUO is built to earn the next order, not just close the first one.

FAQ

Q1: What thickness of steel coil can a trapezoidal profile sheet machine process?

Our standard profile sheet machine handles 0.3 mm to 0.8 mm galvanized or pre-painted steel coil right out of the crate. Need to push beyond that? No problem — we've built units that chew through 1.0 mm base material for heavy-duty industrial cladding projects. The real differentiator isn't the spec on paper though; it's whether the frame and shafts hold alignment when the thicker coil hits the first forming station. Ours do, because those 350H steel frames get stress-relieved before a single roller goes on, and the Φ80 mm shafts aren't borrowed from a lighter-gauge machine — they're sized for the job.

Q2: Can you make a profile sheet machine for my specific roof panel profile?

Absolutely — and this is precisely where most buyers get burned. A lot of factories will tell you their standard machine "should work" for your profile. We don't guess. Send us a 300 mm sample of your panel or a dimensioned cross-section drawing, and our engineering team reverse-engineers the roller flower — the forming sequence that maps out how every station progressively shapes the coil — before we even quote. That way, the profile sheet machine you receive actually produces your exact panel, down to the rib height and pitch, not something "close enough." We've matched over 360 unique trapezoidal profiles across 40 export countries, so the odds are good we've already drawn a roller set close to yours.

Q3: How fast does the machine actually run in a real production environment?

Spec sheets say 10–15 meters per minute. That's the honest number — not the no-load speed a marketing department cherry-picks for a brochure. In practice, your effective daily output depends more on your coil-change rhythm and operator experience than on top-end line speed, which is why we spec the decoiler capacity and run-out table length to match your shift pattern, not just the motor RPM. If you're running 24/7 with thin-gauge residential roofing, we can quote the high-speed variant with a 7.5 kW main drive and an extra six forming stations — that'll push you past 20 m/min without the frame walking across the floor.

Q4: What's the real difference between your profile sheet machine and a cheaper one on Alibaba?

Three things that don't show up in a price comparison table: what the hydraulic lines are made of, how the shear is driven, and whether the pump station has active cooling. On a budget machine, you'll find rubber hoses routed with zip ties, a single cylinder pushing one side of the cutting blade, and a bare hydraulic tank that cooks its oil by midday. Our profile sheet machine ships with all-metal steel plumbing, dual-cylinder synchronized shear, and an air-cooled radiator bolted to the power unit — because those three items are the root cause of about 80% of the service calls we see on competitor machines that end up in our repair queue. The upfront delta pays for itself inside the first year of uninterrupted production.

Q5: What after-sales support do you provide once the machine is installed?

A 12-month comprehensive warranty covers all mechanical and electrical components — and we mean all, not just "major structural parts" like some fine print you'll see elsewhere. Beyond the warranty period, we maintain a lifetime remote technical support line. If a roller set eventually needs replacement after years of heavy use, we can re-manufacture it from our archived CNC programs without you having to ship the machine back. We also offer on-site commissioning by a factory-trained engineer for first-time buyers; the engineer stays until your operator is producing saleable panels independently. Spare parts — chains, sprockets, blades, pump seals — ship from our Tianjin warehouse within 48 hours of confirmation.

Q6: Can the profile sheet machine produce curved or arched panels?

Yes, with the in-line arching attachment. This isn't a bolt-on afterthought — the curving unit integrates directly into the post-forming section of the machine frame, so the panel comes off the line already arched. It's a popular option for agricultural tunnel structures, warehouse roofs with a curved profile, and grain-storage buildings. The mechanism uses adjustable eccentric rollers that apply controlled curvature to the formed panel without distorting the rib geometry. If your project requires both straight and curved panels from the same machine, the arching unit can be bypassed with a mechanical override — no unbolting, no line stoppage longer than five minutes.
