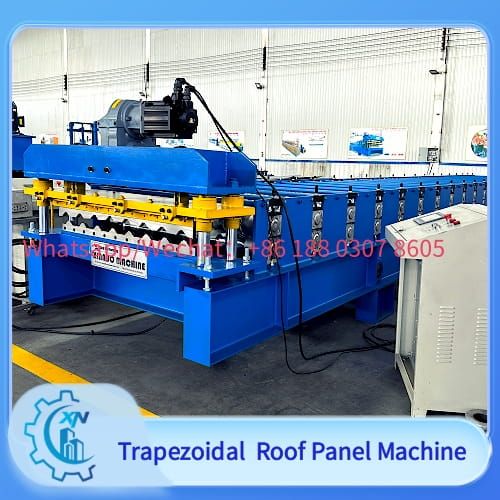

This roof panel machine is specially engineered for G550 steel, ensuring smooth forming performance without damaging the coating or affecting profile precision.

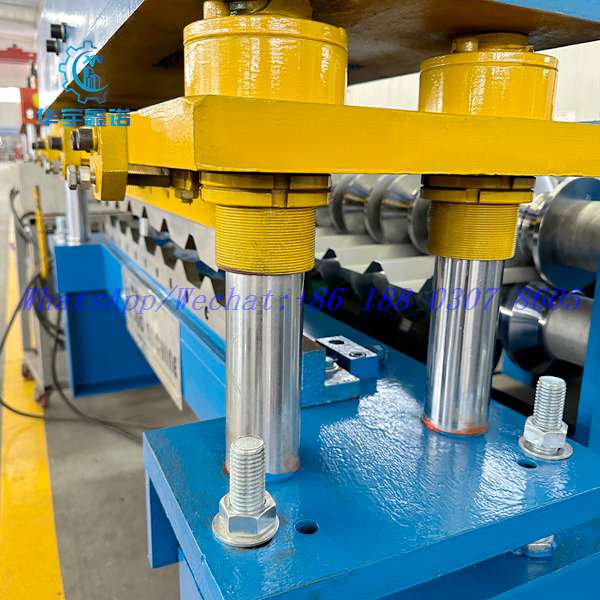

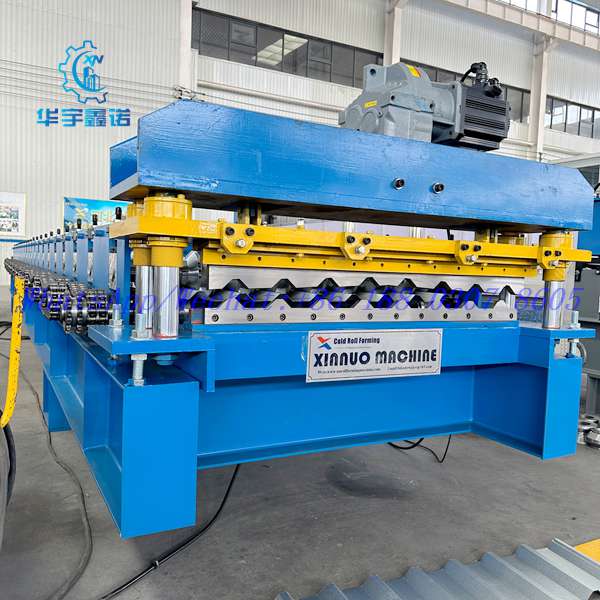

The guide pillar cutting system keeps the upper and lower blades moving vertically with perfect alignment, allowing the roof panel machine to deliver cleaner cuts and higher long-term stability.

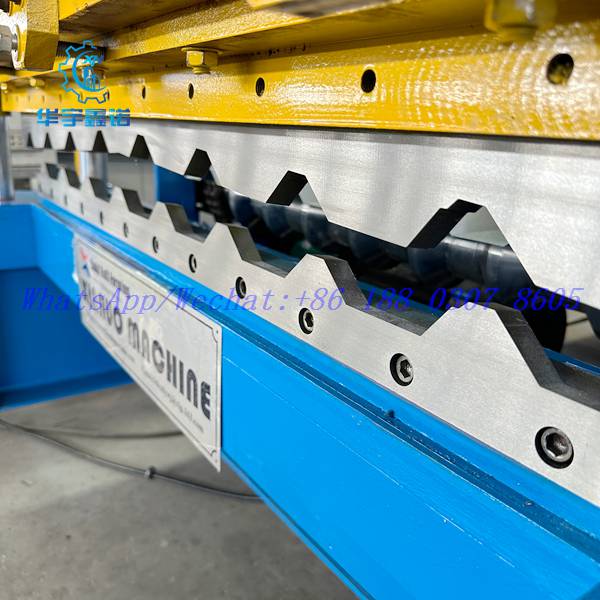

Equipped with heat-treated Cr12MoV cutting blades, this roof panel machine offers excellent hardness, wear resistance, and reduced maintenance costs during continuous production.

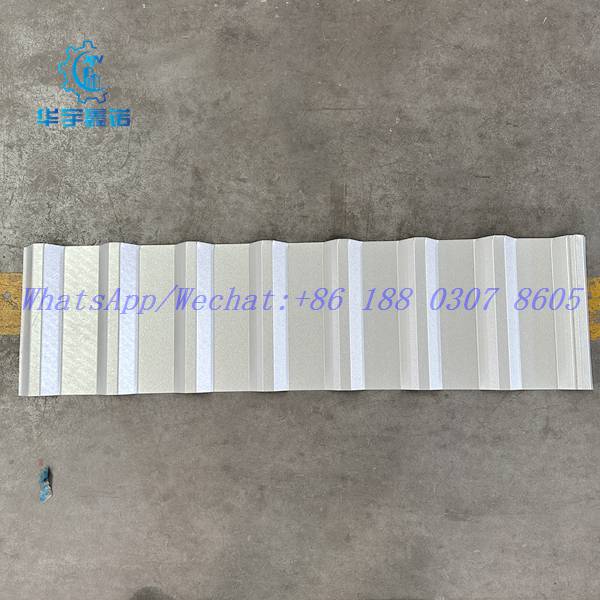

This roof panel machine produces R101 roofing sheets with perfect profile accuracy, smooth surface finish, and excellent structural strength for long-term roofing performance.

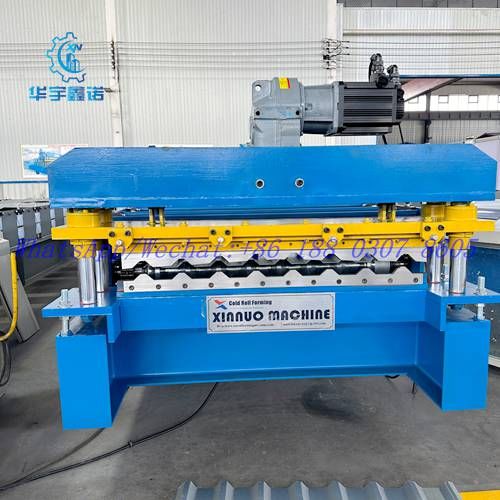

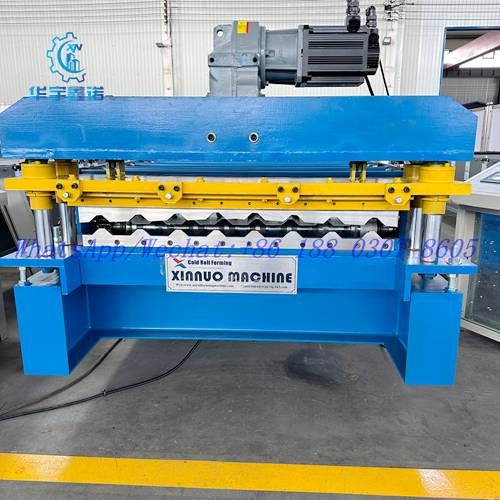

The cutting section of this roof panel machine is designed for precise length control and stable continuous production, ensuring clean finished panels every time.
| Item | Specification |
|---|---|
| Profile Type | R101 Roof Panel |
| Material Thickness | 0.3–0.8 mm |
| Suitable Material | G550 / GI / PPGI |
| Forming Speed | 10–20 m/min |
| Roller Material | GCr15, Heat Treated |
| Roller Stations | 16–20 Stations |
| Cutting System | Hydraulic Guide Pillar Cutting |
| Blade Material | Cr12MoV, Heat Treated |
| Control System | PLC Automatic Control |
| Voltage | 380V / 50Hz / 3 Phase |

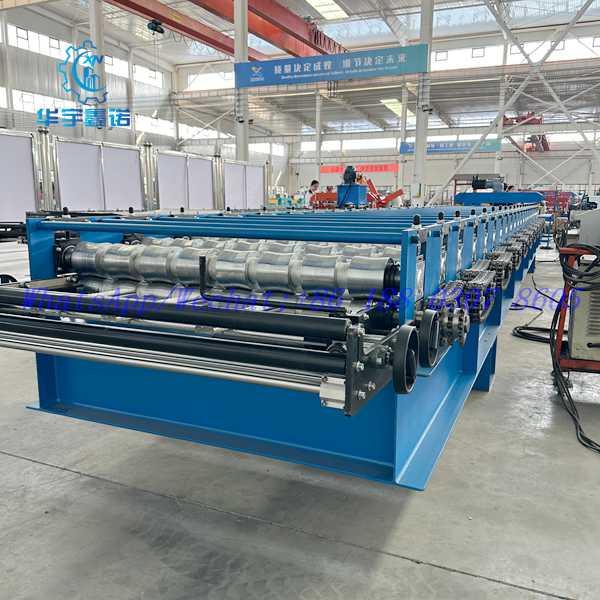

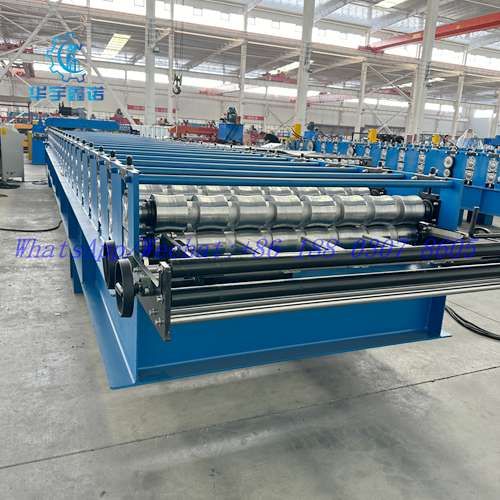

The feeding system of the roof panel machine ensures smooth material entry and stable profile forming from the first roller to the final cutting stage.
The cutting blades use premium Cr12MoV mold steel with heat treatment, giving the roof panel machine stronger hardness, better wear resistance, and longer service life.
The guide pillar cutting structure improves vertical cutting precision and machine stability, making this roof panel machine ideal for continuous mass production.

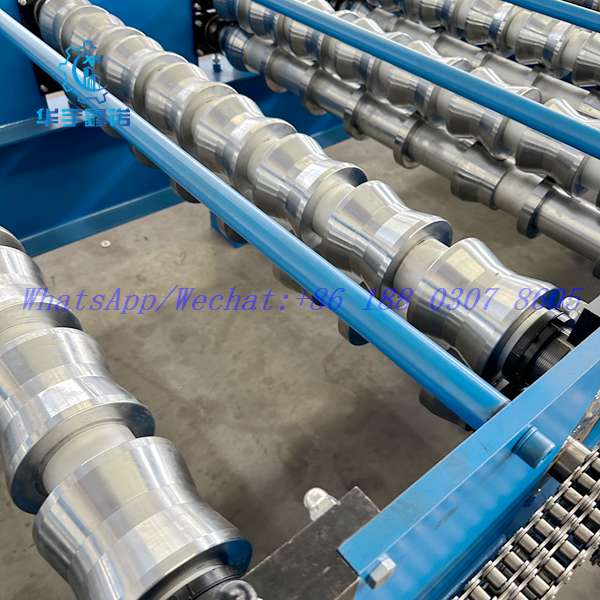

The rollers are made of heat-treated GCr15 steel, allowing the roof panel machine to handle high-strength G550 materials with stable forming accuracy and longer durability.
XINNUO Roll Forming Machine is a professional manufacturer specializing in advanced roof panel machine solutions for global roofing industries. With over 30 years of production experience, we understand that a reliable roof panel machine is essential for stable manufacturing and long-term project success.
Each roof panel machine is engineered with precision rollers, high-strength cutting systems, and durable structural design to ensure accurate forming and continuous production stability. Every roof panel machine is developed based on real production feedback and continuous technical improvement.
We have supplied roof panel machine equipment to customers across South America, Africa, the Middle East, and Southeast Asia. Our roof panel machine is trusted for its strong compatibility with high-strength materials, excellent forming precision, and long service life.
At XINNUO, we provide more than just a roof panel machine—we deliver a complete roofing production solution that helps customers improve profitability and strengthen market competitiveness.
Yes, this roof panel machine is specially designed for G550 high-strength steel and ensures stable forming without damaging the surface coating.
Guide pillar cutting provides more accurate vertical blade movement, cleaner cuts, and better machine stability for continuous production.
The blades are made of heat-treated Cr12MoV mold steel, offering excellent wear resistance and a much longer service life.
Yes, R101 is one of the most popular roofing profiles in many South American markets and is widely used for industrial and residential projects.
Absolutely. The roof panel machine can be customized based on profile drawings, material thickness, and production requirements.
