1. In-line forming of Z-lock (S-type) interlocking edges for tight, fastener-free panel joints - the hallmark of cold room and cleanroom panels.
2. Precision roller dies and extra edge-forming stations hold lock-seam tolerances across every panel length.
3. EPS, PU, rock wool or glass wool cores; line length and station layout arranged per your plant.
4. Mob/WhatsApp/Wechat: +86 188 0307 8605
5. Email: sara@xinnuomachine.com

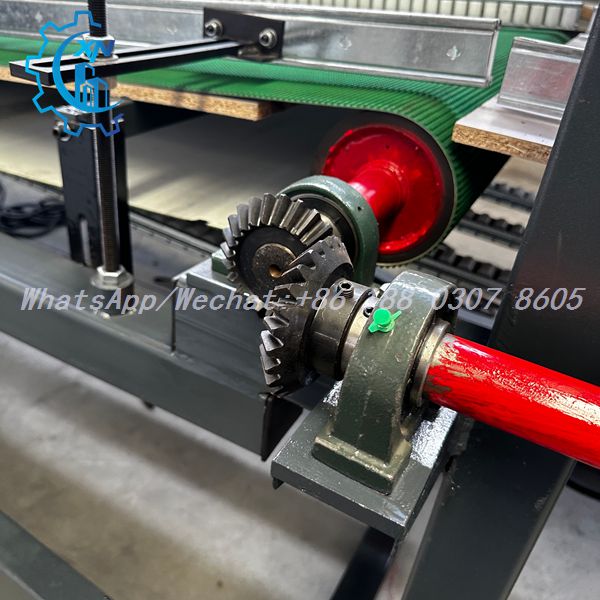

Close-up of the drive section of the Z-Lock sandwich panel making machine: interlocking steel bevel gears transfer power at 90 degrees through pillow-block bearings, while the green multi-ribbed conveyor belt carries the panel skin beneath a silver alignment rail. The threaded adjustment assembly on the left fine-tunes roller height and pressure, holding the edge-forming tolerance that Z-lock seams demand.

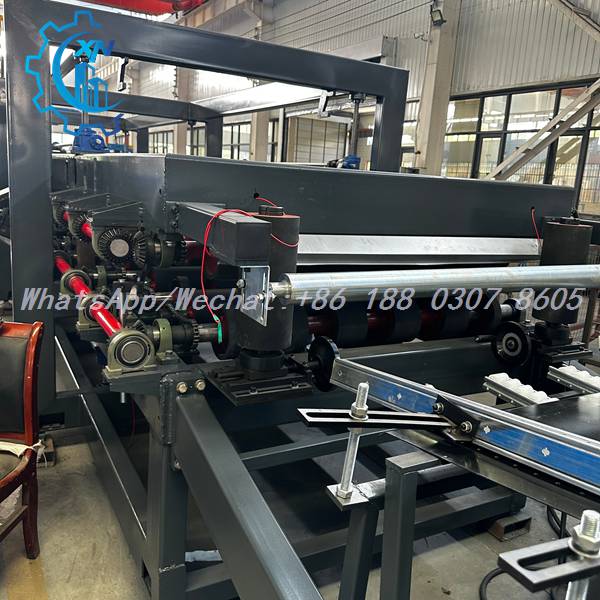

Low-angle view of the lamination section of the Z-Lock sandwich panel making machine: black rubberized pressure rollers press the top skin against the core beneath the upper plate, guided by a central silver roller and a white plastic guide-rail at the edge. Crimson side rollers and chain-driven red rollers work together here, so the three layers bond evenly and the Z-lock edges stay true before curing and cutting.

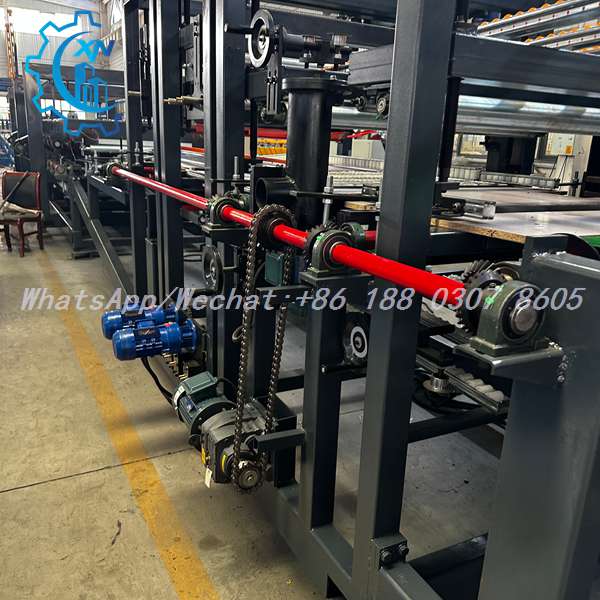

Side view of the transmission section of the Z-Lock sandwich panel making machine: a long red horizontal drive shaft supported by pillow blocks runs across the frame, powered by royal-blue motors through a large gearbox and a vertical chain-and-sprocket system. Tiered metal rollers and handwheel adjusters align and compress the materials, keeping the extra edge-locking forming stations synchronized along the line.

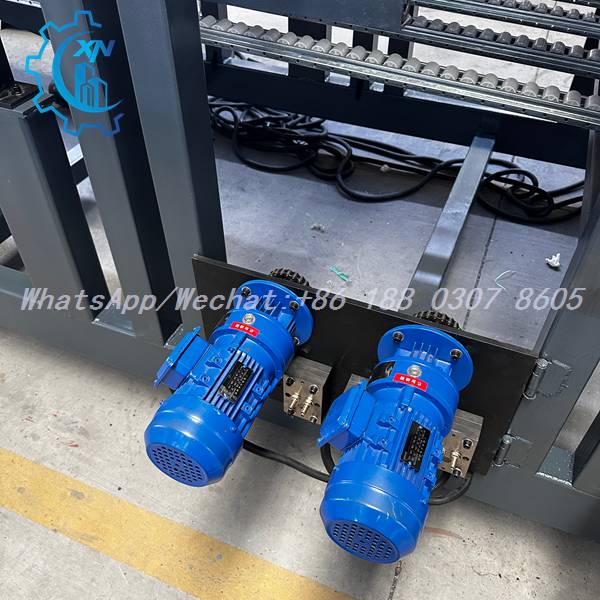

High-angle view of the outfeed drive of the Z-Lock sandwich panel making machine: twin royal-blue AC motors with cooling fins sit on a thick mounting plate, their chains and sprockets driving the roller-conveyor bed of small grey rollers behind. Technical plates identify the drive ratings, and the black cables below feed the section as finished Z-lock panels move toward the stacking station.
Z-Lock Sandwich Panel Making Machine - Built by XINNUO Since 1995
XINNUO has designed and built cold roll forming equipment since 1995, accumulating more than 30 years of hands-on engineering experience. Our factory is one of China's experienced producers of sandwich panel making machine lines, including advanced Z-lock (S-type interlock) lines dedicated to cold storage and cleanroom panels.
The Z-lock configuration adds extra edge-forming stations and precision lock-channel rollers to the standard lamination process. The full S-type line runs approximately 65 meters, forming the two steel skins, bonding the insulation core, shaping the interlocking Z-edges and cutting panels to length in one continuous flow - producing panels that lock together tightly without exposed fasteners.
Our range also covers standard lap-joint composite panel lines, single and double-layer forming machines, purlin lines, floor deck lines and custom special profiles. Every line is designed, welded, assembled and test-run in our own workshop, and we have supplied equipment to more than 150 countries with installation guidance, operator training and dependable after-sales support.
FAQ
Q1: What is a Z-Lock sandwich panel making machine?
A: It is a composite panel line that forms an S-type interlocking Z-profile on both edges of each panel as the skins and core are laminated, so adjacent panels snap together tightly without exposed fasteners.
Q2: How do Z-Lock panels join together?
A: Each panel carries a Z-shaped locking channel on one edge and a matching lip on the other; the next panel slides into place and interlocks, creating a tight, continuous seal across the wall or roof.
Q3: Where are Z-Lock panels used?
A: Cold storage rooms, cleanrooms, food processing plants, pharmaceutical facilities and cold-chain warehouses - anywhere that demands an air-tight panel joint and a smooth, easy-to-clean interior surface.
Q4: What core materials can this machine process?
A: EPS foam, polyurethane (PU), rock wool and glass wool. Rock wool is recommended for fire-rated cold rooms, PU for maximum insulation, and EPS for the most economical panels.
Q5: Are the Z-lock edges formed in-line?
A: Yes. The line carries dedicated edge-forming stations with precision lock-channel rollers, so the Z-profile is shaped during the same continuous pass as lamination - keeping seam tolerances consistent panel after panel.
Q6: How long is a full Z-Lock line?
A: The complete S-type line is roughly 65 meters, including decoilers, two forming units, the lamination and curing zone, edge-forming stations and cutting. We provide a layout drawing for your plant.
Q7: Can the same line also produce lap-joint panels?
A: Lap-joint and Z-Lock configurations use different roller sets and edge stations. Tell us your panel range, and we will recommend a single-purpose or switchable line design.
Q8: How do I get a quotation?
A: Send your panel drawing or sample, core material, width and daily output target via WhatsApp/Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
