Independent Layer Control: Each of the three layers can be adjusted separately for thickness, shape, and height, providing unmatched design flexibility.
Integrated Safety & Monitoring System: Real-time sensors detect malfunctions and automatically stop production, ensuring operator safety and reducing material waste.
Energy-Saving Drive System: Uses a combination of servo motors and optimized gear transmission to reduce energy consumption by up to 20% compared to conventional machines.
WhatsApp/Wechat:+86 188 03078605
Email:sara@xinnuomachine.com
| Component | Specification |
|---|---|
| Main Material | Galvanized Steel / Aluminum / Color Coated Steel |
| Sheet Thickness | 0.3 – 0.8 mm |
| Sheet Width | 600 – 1250 mm |

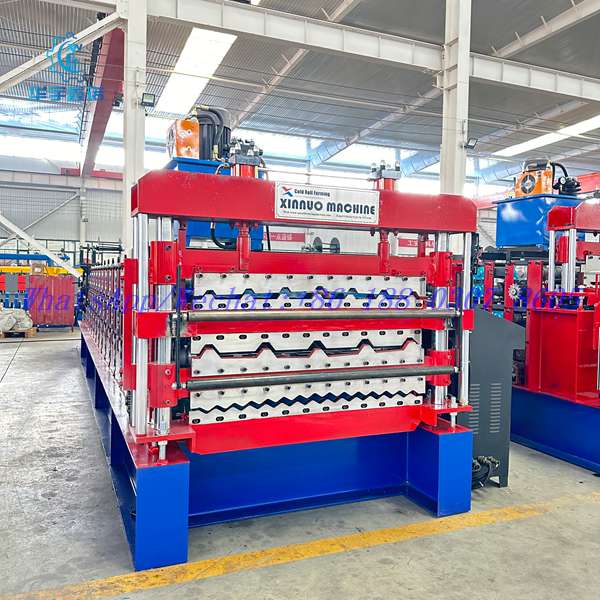

| Forming Layers | Triple layers, adjustable individually |
| Forming Speed | 8 – 18 m/min (depending on material) |
| Power Supply | 380V 50Hz / 3 Phase (customizable for region) |
| Main Motor | 11 – 15 kW (depending on sheet thickness) |
| Control System | PLC + Touch Screen Human-Machine Interface |
| Roller Material | GCr15 Steel, Hard Chrome Coated |
| Cutting Method | Hydraulic Shear / Flying Cut |
| Optional Accessories | Coil Loading Platform, Automatic Stacker, Safety Guards |

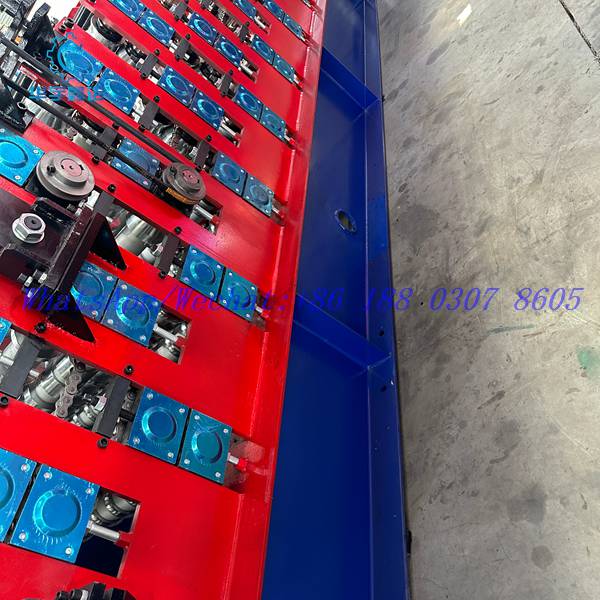

Our Triple layer roof sheet forming machine is equipped with a waste strip collection device. If the metal sheets are slightly wider during production, this feature efficiently gathers the excess material, reducing waste and keeping the production area clean, which greatly improves overall manufacturing efficiency.

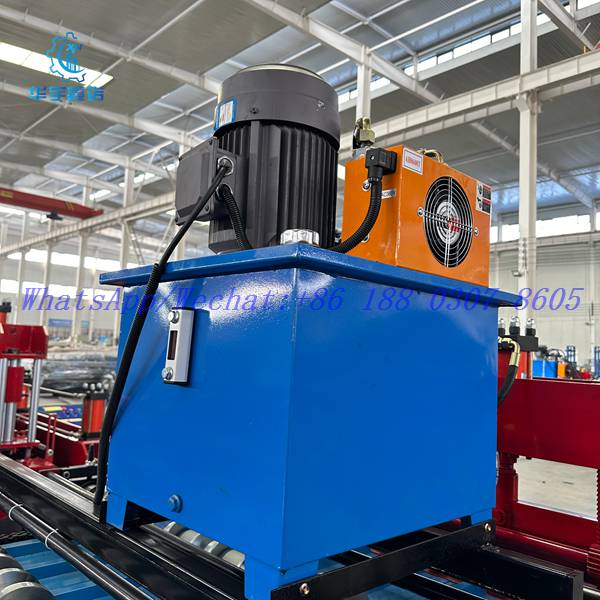

The hydraulic power station of our Triple layer roof sheet forming machine is equipped with a high-efficiency cooling fan, ensuring stable operation in tropical climates or during high-temperature periods. This design protects the system from overheating and enhances long-term machine performance.
XINNUO Roll Forming Machine is a leading manufacturer with over 30 years of experience in designing and producing high-quality metal forming equipment. We specialize in Triple Layer Roof Sheet Forming Machine, providing customers worldwide with advanced, durable, and energy-efficient solutions. Our machines are highly customizable to meet specific roofing sheet designs and thickness requirements, ensuring maximum efficiency and precise results. With professional engineering, strict quality control, and comprehensive after-sales service, XINNUO Roll Forming Machine has become a trusted partner in the global roofing industry. Every Triple Layer Roof Sheet Forming Machine we deliver is tested for stability, precision, and safety, helping clients achieve superior roofing production with minimal downtime.
