1. Three Profiles in One Machine
Produce three different trapezoidal roofing sheets with a single production line.
2. Built for Tropical Climates
Air-cooled hydraulic station ensures stable operation even in high-temperature regions.
3. Long-Life Forming System
Heat-treated rollers deliver consistent profiles and extended machine lifespan.
4. Mob / WhatsApp / WeChat: +86 188 0307 8605
5. Email: sara@xinnuomachine.com
As one of the experienced roofing sheet making machine manufacturers, XINNUO Roll Forming Machine developed this Three Layer Roll Forming Machine to help roofing sheet producers maximize productivity while reducing factory space requirements.
The machine combines three independent trapezoidal roofing sheet profiles into a single production system. Operators can switch production according to market demand without investing in multiple production lines.
Designed for commercial roofing, industrial buildings, warehouses, agricultural projects and residential roofing applications, this equipment delivers excellent profile accuracy, stable operation and long-term reliability.
Compared with conventional single-profile machines, the Three Layer Roll Forming Machine offers greater production flexibility, lower investment costs and higher equipment utilization rates.
The machine is engineered to process galvanized steel, galvalume steel, pre-painted steel and other roofing materials while maintaining precise dimensions and attractive profile appearance.

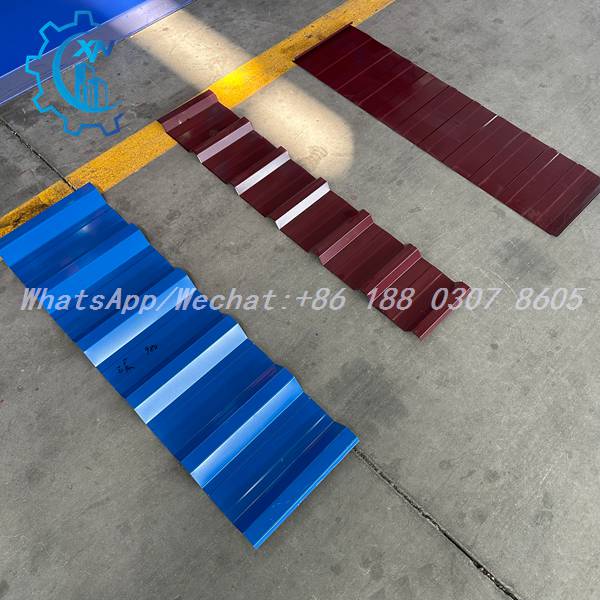

Three Layer Roll Forming Machine from leading roofing sheet making machine manufacturers successfully produces three different trapezoidal roofing sheet profiles in one production line. The finished sheets feature accurate dimensions, uniform rib formation, smooth surface quality and excellent profile consistency, providing roofing manufacturers with greater production flexibility and market coverage while reducing equipment investment costs.
Unlike conventional multi-level systems, the machine uses a balanced load distribution design that reduces stress concentration between layers, improving long-term forming consistency and lowering maintenance frequency.
Manufacturers can quickly adapt to changing regional roofing trends by producing three popular trapezoidal profiles from one machine, helping distributors respond faster to customer demand.
Three production capabilities are integrated into one footprint, allowing roofing manufacturers to increase output diversity without expanding workshop space.

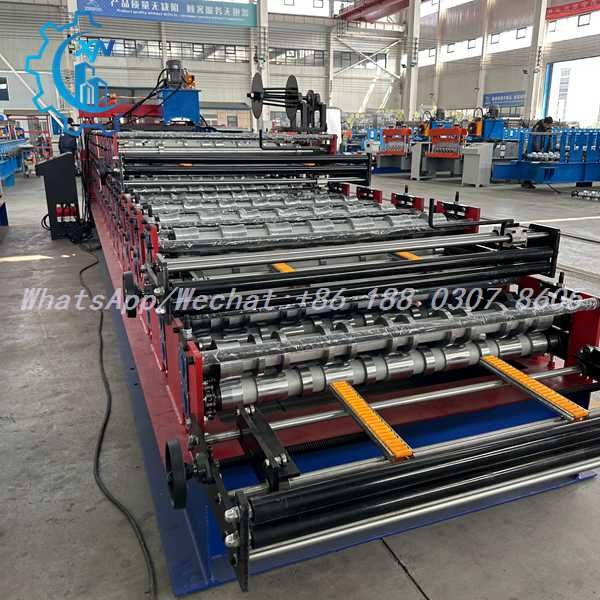

Three Layer Roll Forming Machine from professional roofing sheet making machine manufacturers is shown from the hydraulic cutting section, providing a complete view of the production line structure. The machine integrates forming, transmission, hydraulic cutting and automatic control into a compact design. Its heavy-duty frame, precision roll forming system and reinforced cutting assembly ensure stable operation, accurate sheet dimensions and reliable long-term performance for high-volume roofing sheet production.
| Item | Specification |
|---|---|
| Machine Name | Three Layer Roll Forming Machine |
| Material Thickness | 0.3-0.8 mm |
| Suitable Material | PPGI, GI, GL Steel Coil |
| Profile Type | Three Trapezoidal Roofing Profiles |
| Forming Speed | 15-25 m/min |
| Roller Material | 45# Steel with Heat Treatment |
| Shaft Material | High-Grade 45# Steel |
| Shaft Diameter | 70-90 mm |
| Main Motor Power | 5.5-11 kW |
| Hydraulic Power | 4-5.5 kW |
| Cutting Type | Hydraulic Post Cutting |
| Control System | PLC Automatic Control |
| Encoder | High Precision Encoder |
| Voltage | Customized |
| Transmission | Chain or Gearbox Drive |
| Machine Frame | Heavy-Duty Welded Structure |
| Cooling System | Air-Cooled Hydraulic Station |
| Operation | Fully Automatic |

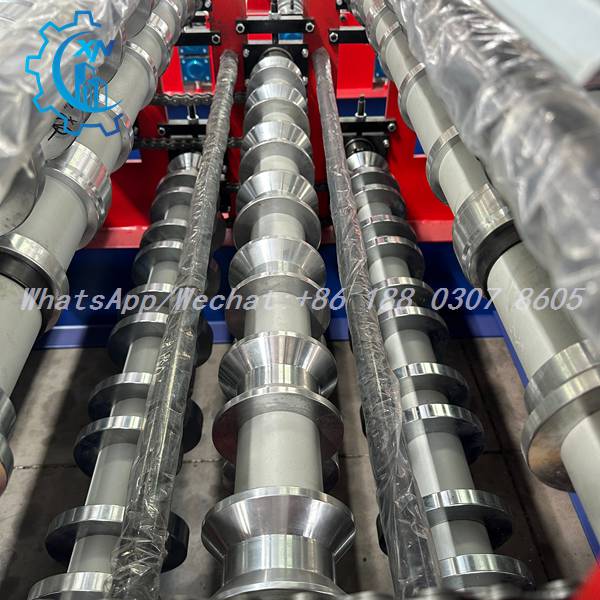

Three Layer Roll Forming Machine developed by roofing sheet making machine manufacturers uses heat-treated 45# steel rollers to achieve higher surface hardness, longer service life and consistent profile accuracy throughout continuous production.

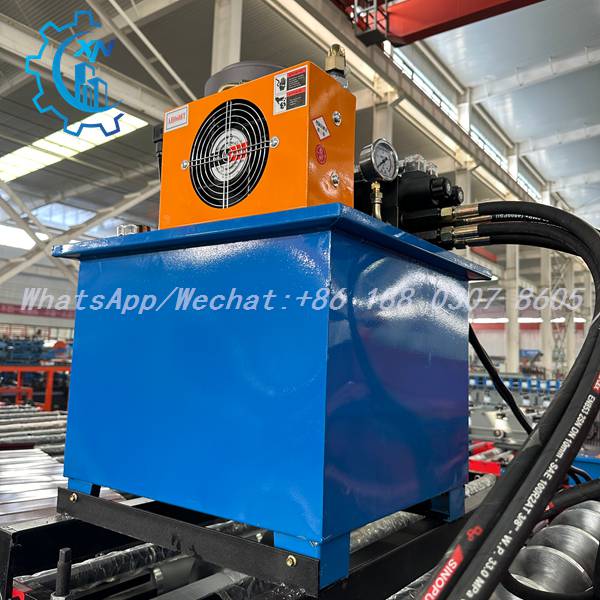

Three Layer Roll Forming Machine from roofing sheet making machine manufacturers features an air-cooled hydraulic station that maintains stable oil temperature, allowing uninterrupted production even in tropical and high-temperature environments.

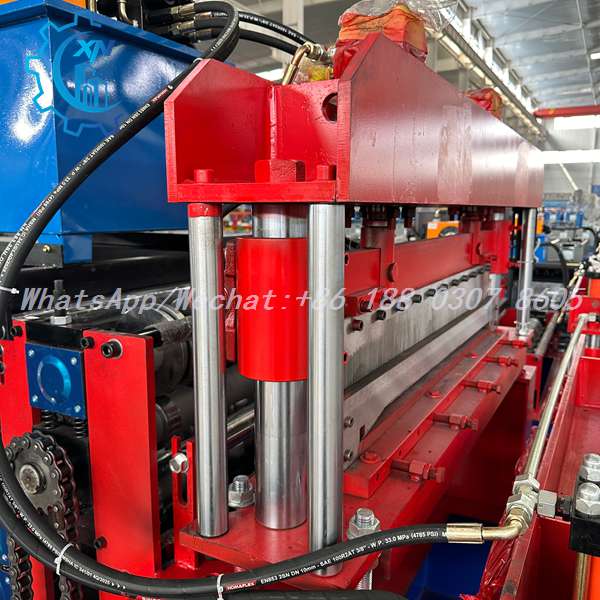

Three Layer Roll Forming Machine supplied by roofing sheet making machine manufacturers incorporates premium hydraulic connectors and reinforced assembly components, enhancing durability and reducing long-term maintenance requirements.

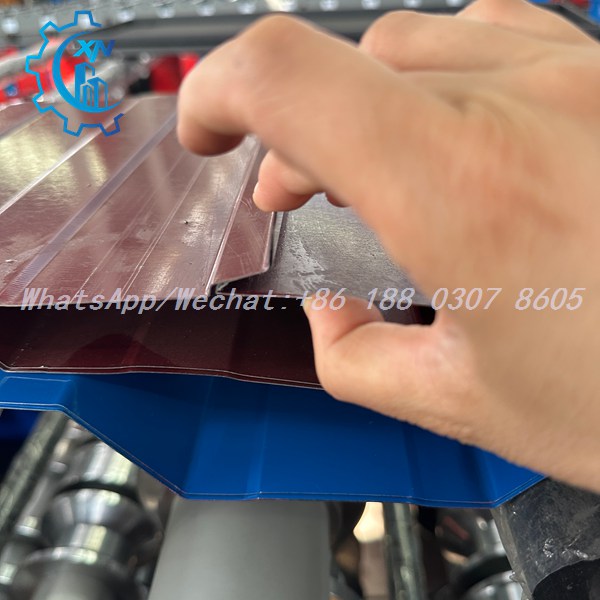

Three Layer Roll Forming Machine from professional roofing sheet making machine manufacturers delivers precise sheet overlap geometry, ensuring superior water resistance, tighter installation fit and improved roofing performance in demanding weather conditions.
XINNUO Roll Forming Machine is one of the professional roofing sheet making machine manufacturers specializing in roll forming technology for over 30 years.
As experienced roofing sheet making machine manufacturers, we provide customized roofing solutions for customers in more than 130 countries and regions. Our engineering team continuously develops innovative roll forming equipment to meet changing market demands.
Among global roofing sheet making machine manufacturers, XINNUO focuses on long-term equipment reliability, production efficiency and profile customization capabilities. Every machine is designed according to customer requirements, local market preferences and production objectives.
As trusted roofing sheet making machine manufacturers, we offer complete project support including machine design, manufacturing, testing, installation guidance and after-sales service.
Whether you are expanding production capacity or entering a new roofing market, XINNUO Roll Forming Machine delivers dependable solutions that help roofing sheet producers achieve sustainable growth.
A: One machine can produce three popular roofing profiles while saving factory space, reducing equipment investment and lowering maintenance costs.
A: The operator can switch between profiles through a simple production procedure, allowing manufacturers to respond quickly to different customer orders.
A: Yes. The air-cooled hydraulic station helps maintain stable performance even during continuous production in high-temperature environments.
A: The machine is suitable for PPGI, galvanized steel, galvalume steel and other commonly used roofing sheet materials.
A: Heat treatment increases hardness and wear resistance, helping maintain profile accuracy while extending machine service life.
A: Absolutely. XINNUO can customize profile design, voltage, control system, machine speed and special market requirements.
A: More than 30 years of manufacturing experience, exports to over 130 countries, extensive customization capability, rigorous quality control and deep understanding of global roofing markets.
A: Yes. We provide detailed installation guidance, operation training, technical documentation and responsive after-sales support.
A: Industrial buildings, warehouses, agricultural facilities, commercial projects, residential roofing manufacturers and roofing sheet distributors.
A: Send us your preferred roofing profile drawing, material thickness, coil width and production requirements. Our engineers will provide a customized solution and quotation promptly.
