1.Three different profiles (Trapezoidal、Corrugated、Glazed Tile)
2.Raw material:PPGI, Galvanized, Galvalume Steel
3.The thickness ofRaw material 0.3–0.8 mm
4.The width of Raw material:1000 mm / 1200 mm / 1250 mm (customizable)
WhatsApp/Wechat:+86 188 03078605
Email:sara@xinnuomachine.com
Save Production Space, Maximize Factory Utilization

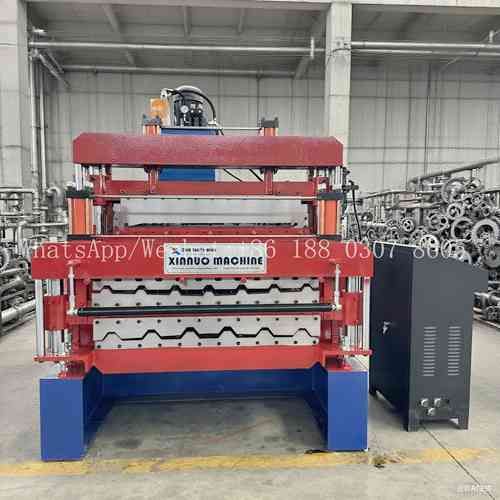

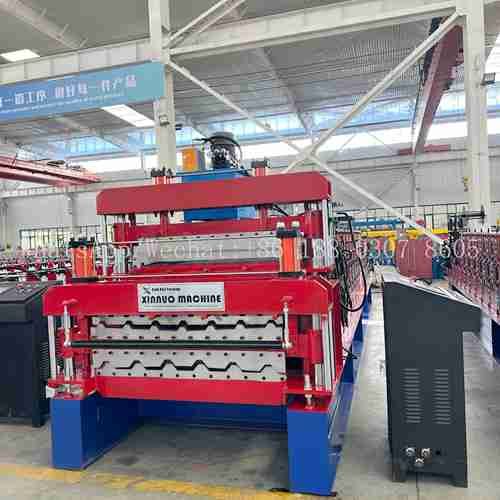

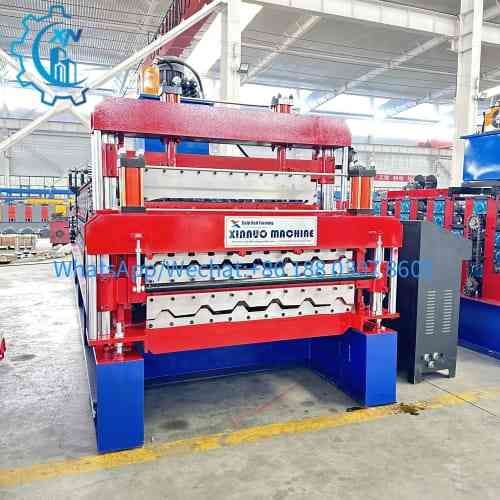

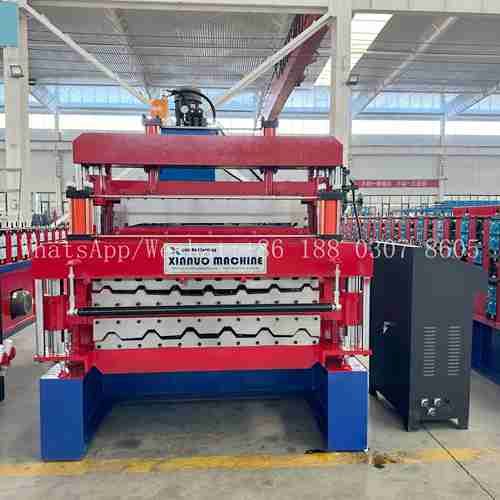

The three layer roll forming machine uses a triple-layer integrated frame design, combining the forming functions of three different profiles into one unit. This eliminates the need for multiple machines, significantly reducing the floor space required. For factories with limited space, this design frees up more room for raw material storage or other production activities, maximizing operational efficiency.
| No. | Parameter | Description |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 914-1450mm or as your requirement |
| 3 | Thickness of the plate | 0.3-0.6mm or as your requirement |
| 4 | De-coiler | Manual one, can load 5 tons raw material |

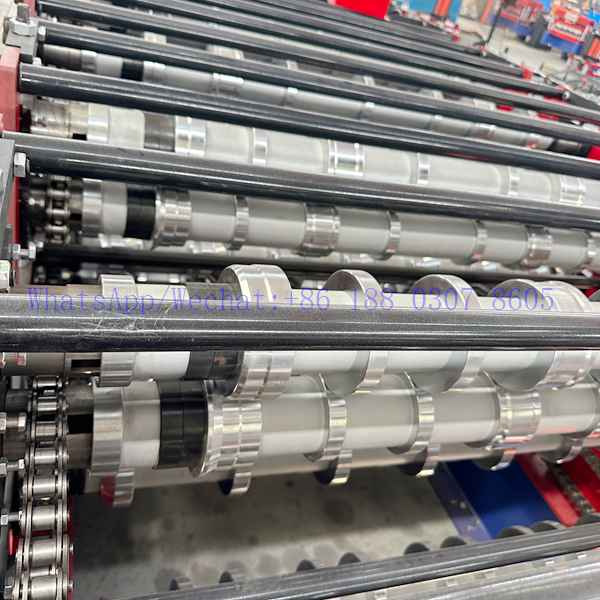

| 5 | Rollers for forming | 14-15 |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 5.5kw |
| 9 | Material of the cutting blade | Cr12 mov |

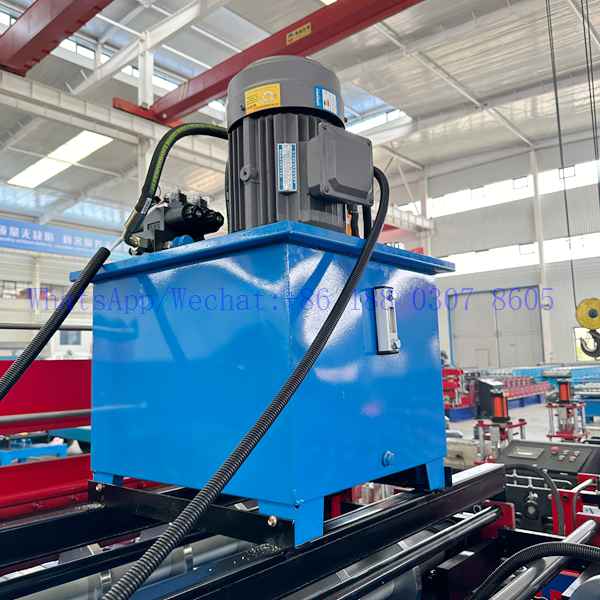

| 10 | Hydraulic cutting power | 4kw |
| 11 | Processing precision | Within 1.00mm |
| 12 | Control system | Delta PLC control |
| 13 | Side panel of machine | 16mm |
| 14 | Main structure of the machine | 350 H steel |
| 15 | Weight | About 5T |
| 16 | Dimensions | 8.5*1.6*1.6m |
| 17 | Voltage | 380V 50Hz 3phases(changeable as needs) |
| 18 | Certificate | CE/ISO |
| 19 | Custom | According to customer's requirements |
We are a cold roll forming machine manufacturer with over 30 years of experience, specializing in the design and production of roofing sheet, wall panel, purlin, and light steel keel forming machines. Equipped with advanced CNC machining centers, assembly workshops, and testing platforms, we ensure the precision and stability of every machine to meet the diverse needs of customers worldwide. Our products are exported to more than 150 countries and regions, earning long-term trust and cooperation from clients through excellent quality and comprehensive after-sales service.
We provide profile customization, installation training, lifetime technical support, and fast spare parts supply to ensure worry-free operation for our clients.
