High Precision: Produces gutters with accurate dimensions and smooth edges.
Vehicle-Compatible: Easily integrates with mobile systems for on-site use.
Durable & Reliable: Built for long-term workshop installation.
Multi-Material Support: Suitable for galvanized steel, color steel, and other metals.

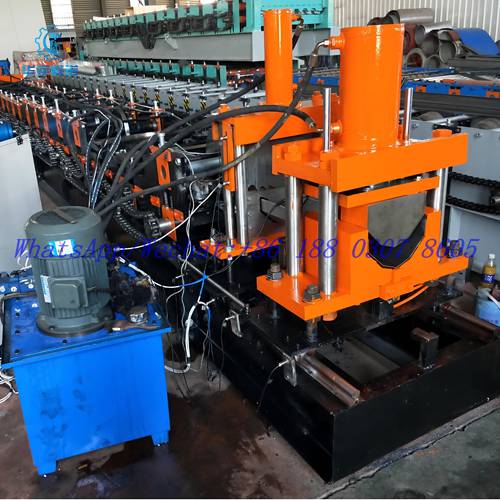

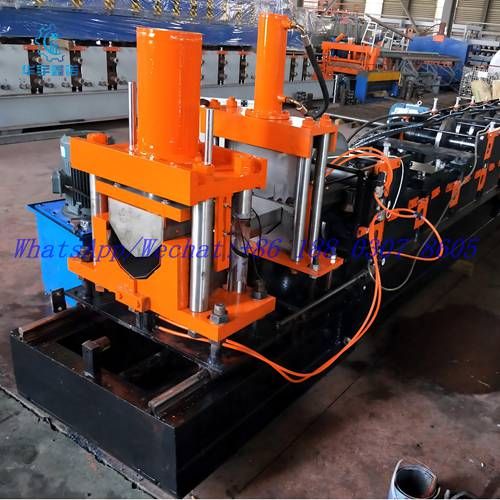

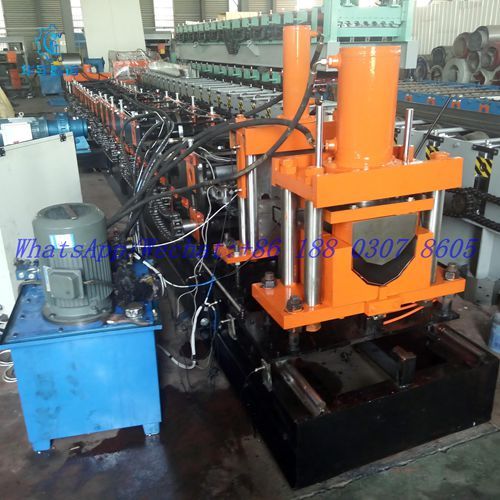

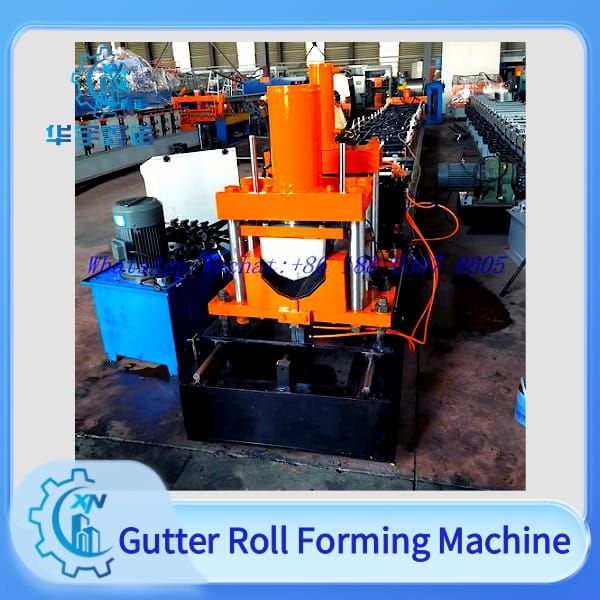

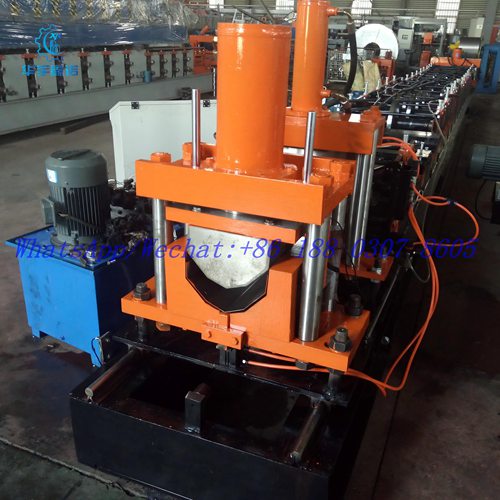

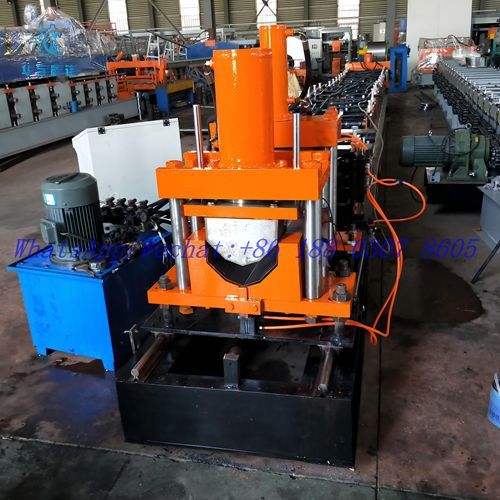

Our workshop-fixed gutter roll forming machine is designed for stable, high-precision production of seamless gutters. Ideal for permanent installation in workshops, it ensures consistent quality and long-lasting performance. The machine is also compatible with vehicle-mounted gutter systems, providing flexibility for on-site gutter fabrication and transportation. This combination of stationary stability and mobile adaptability makes it perfect for producing smooth, accurately sized gutters efficiently, whether in a workshop or directly at the installation site.
| Rain Gutter Making Machine Configuration | |
| Section | Specification Details |
| Feeding Section | • Manual or Hydraulic Decoiler for smooth coil feeding. |
| • Material Width: 300–600 mm (customizable). | |
| • Max Coil Weight: 3–5 tons. | |
| • Material: Galvanized steel, aluminum, or pre-painted steel. | |
| Roll Forming System | • Heavy-duty welded steel frame, stress-relieved for stability. |
| • Rollers Material: GCr15 / Cr12MoV, heat-treated & chrome-plated. | |
| • Forming Stations: 10–18 (depending on gutter profile). | |
| • Transmission: Chain or gearbox drive. | |
| • Main Motor Power: 3–7.5 kW with frequency inverter. | |
| Cutting System | • Hydraulic or flying saw cutting for high precision. |
| • Blade Material: Cr12MoV, heat-treated. | |
| • Cutting Accuracy: ±2 mm. | |
| Hydraulic System | • Pump Motor Power: 3 kW (customizable). |
| • Oil Type: 46# anti-wear hydraulic oil. | |
| • Tank Capacity: 40–60 L. | |
| • Equipped with reliable international brand components. | |
| Control System | • PLC automatic control system. |
| • Touch screen + button panel operation. | |
| • Brands: Delta / Siemens / Schneider (optional). | |
| • Functions: Auto counting, length setting, alarm, emergency stop. | |
| Output Table | • Length: 3–6 m (customizable). |
| • Steel roller support structure for smooth discharge. | |
