Panel Type:Trapezoidal + Corrugated/as your requirements
Drive Type: Chain Drive
Forming Stations:16–22stations (customized)
Forming Speed:8–15 m/min
Material Thickness:0.3–0.8 mm
WhatsApp/Wechat:+86 188 03078605
Email:sara@xinnuomachine.com
Space-saving:

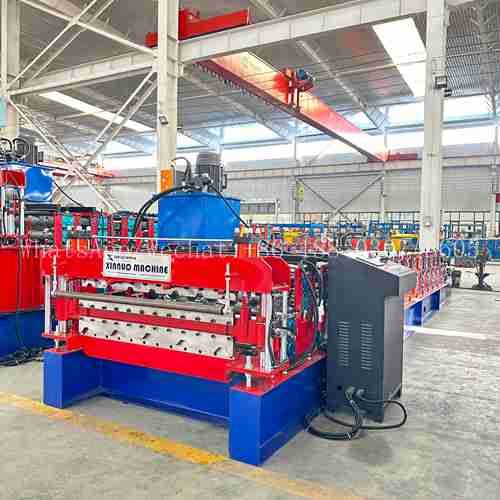

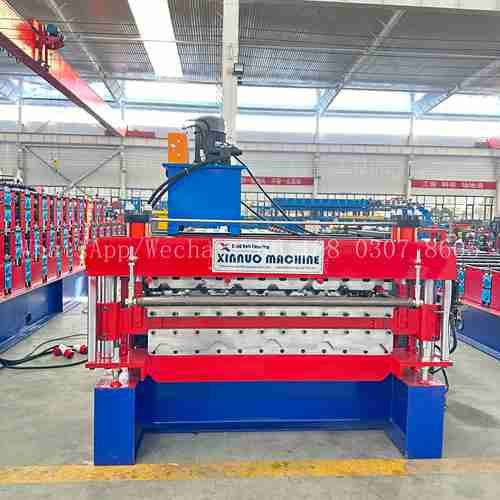

One machine has two molds, upper and lower, allowing it to produce two different tile shapes within a limited space. This makes it ideal for customers with limited factory space.
Efficient Production Switching:
Switching tile shapes requires only a reversing switch to select the upper or lower layer, eliminating the need to change molds. This reduces changeover time and improves overall production capacity.
| No. | Parameter | Description |
|---|---|---|
| 1 | Forming speed | 10-20m/min |
| 2 | Thickness of raw material | 0.3-0.7mm |
| 3 | Row number | 18+18 |
| 4 | Roller material | Gcr15 |
| 5 | Under frame | 400mm H Steel |
| 6 | Shaft diameter | 80mm |
| 7 | Transfer method | 1.0 inch chain drive |
| 8 | Structure | 18mm Steel Plate |
| 9 | Main motor power | 7.5KW |
| 10 | Cutter motor power | 4 KW |
| 11 | Cutter type | hydraulic cutting |
| 12 | Material of the cutting blade | Cr12 mov |
| 13 | Electrical brand | DELTA、OMRON |
| 14 | Certificate | CE/ISO |
| 15 | Custom | According to customer's requirements |
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
