Light Gauge Steel Roll Forming Machine - Stud and Track Production Line

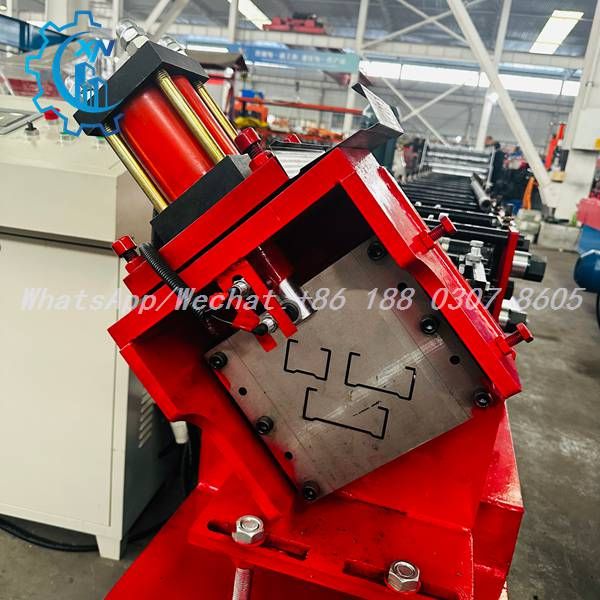

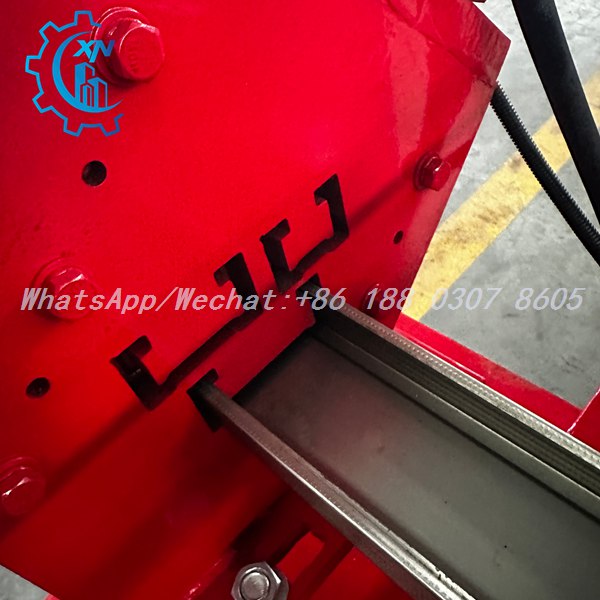

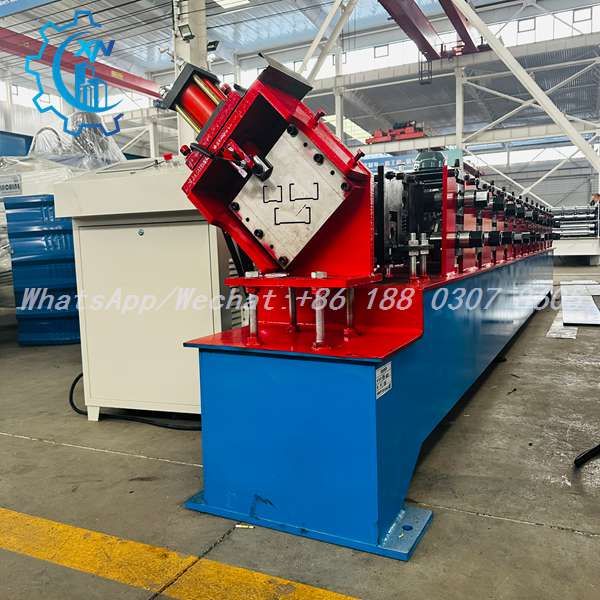

Close-up of the punching die of the light gauge steel roll forming machine: two identical C-profile openings with notched corners in the red plate, one fed with a galvanized stud - showing the exact die-to-profile fit.

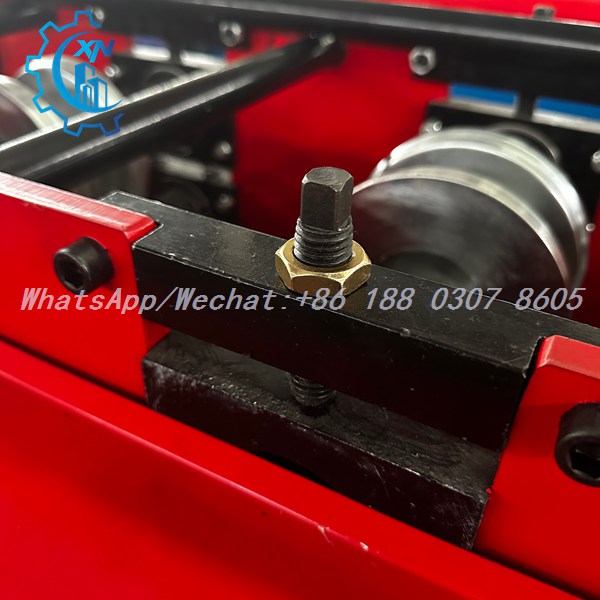

Close-up of the roller adjustment mechanism of the light gauge steel roll forming machine: vertical adjustment bolt with locking nut on the black bar, beside contoured grooved rollers - enabling precise roll gap tuning.

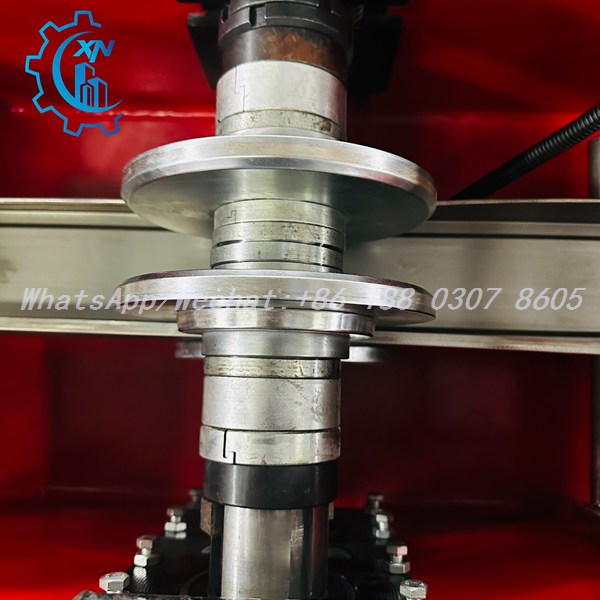

Close-up of the roller stack of the light gauge steel roll forming machine: large-diameter beveled roller discs and split spacers keyed on a vertical shaft in the red housing - the core tooling for profile forming.

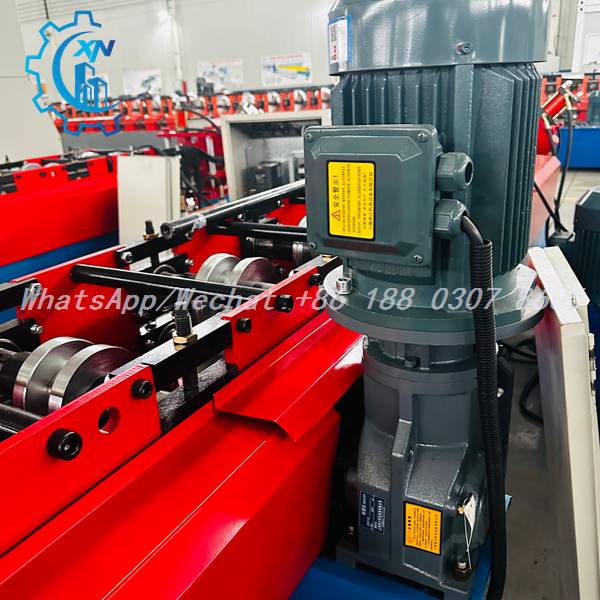

Drive section of the light gauge steel roll forming machine with vertical motor and gearbox, silver rollers on black shafts and threaded adjustment rods on the red frame - powering the stud and track forming line.

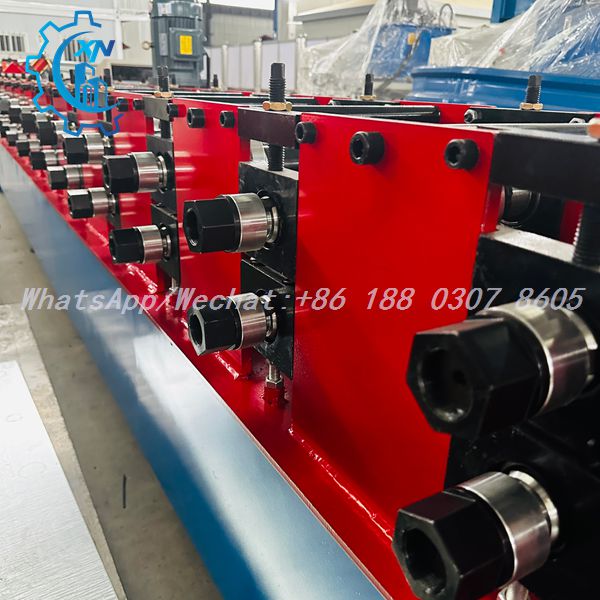

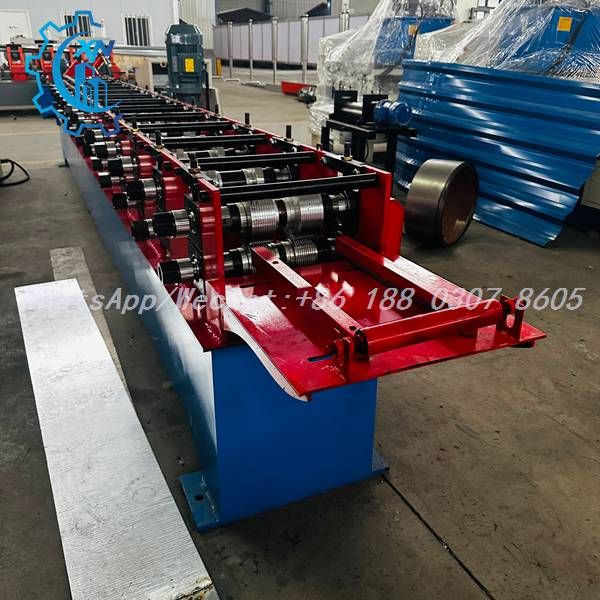

Side view of the light gauge steel roll forming machine: repeated red forming stations with upper and lower shafts, hexagonal nuts and adjustment screws on a blue base - showing machine length and station count.

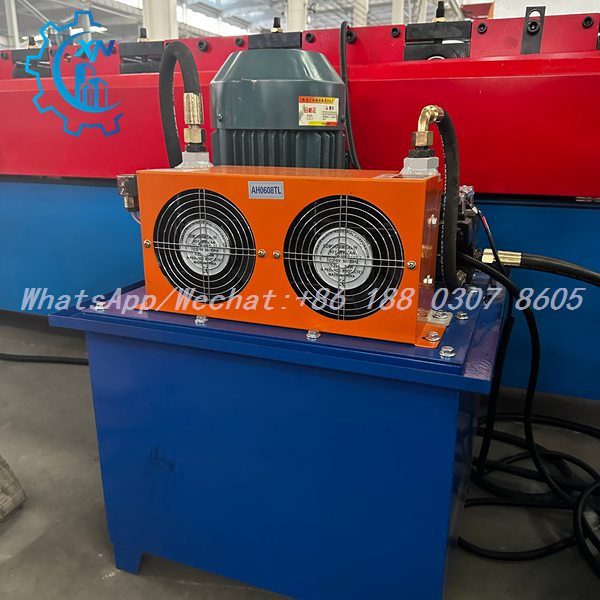

Heavy-duty hydraulic power unit with blue oil tank, air-cooled radiator with dual axial fans and vertical motor, supplying stable punching power for the light gauge steel roll forming machine.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, light gauge steel and light steel framing lines, metal stud and track lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a light gauge steel roll forming machine?

A: It is a production line that roll-forms galvanized steel coils into C-shaped studs and U-shaped tracks used in light steel framing construction. Decoiling, roll forming, hydraulic punching and cutting are combined in one continuous process, so framing members come off the line ready to assemble.

Q2: What profiles can it produce?

A: C studs, U tracks and customized light gauge steel framing profiles. Different stud heights, flange widths and lip dimensions are achievable by changing roller sets and dies.

Q3: Can punching and cutting be integrated into the line?

A: Yes. Hydraulic punching and cutting are integrated in-line, delivering pre-punched, cut-to-length studs and tracks in one pass - secondary processing is eliminated.

Q4: What material thickness can it process?

A: It depends on the machine configuration and profile size. Please send us your material specification (grade, thickness, width) and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings and production targets.

Q6: What about installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation. Our engineers offer online technical support for the machine's full service life.

Q7: What is the delivery time and warranty?

A: Delivery time depends on configuration and quantity. Machines are fully tested before shipment and covered by warranty; specific terms are confirmed in the quotation.
