Stud and Track Machine - C Stud and U Track Line

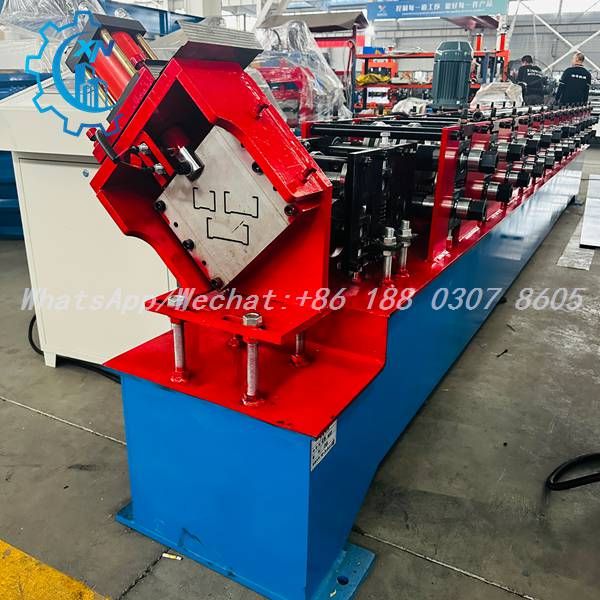

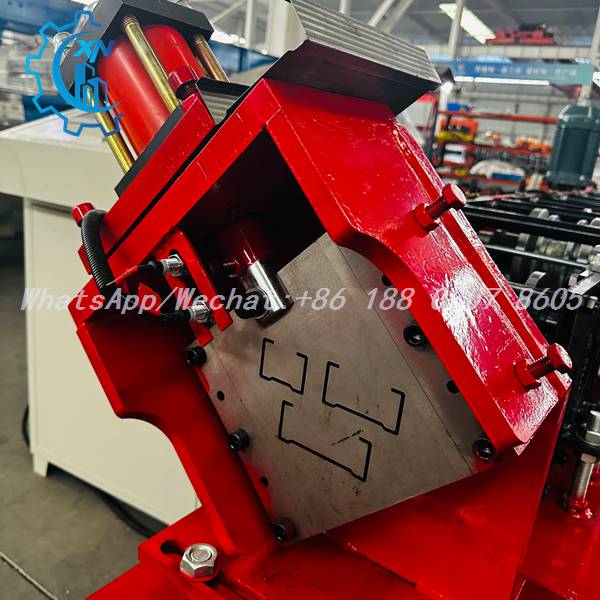

Hydraulic punching die assembly of the stud and track machine: brushed steel die plate with C-profile and Sigma-profile outlines, hydraulic cylinder and sensors on the red frame - enabling in-line stud and track punching.

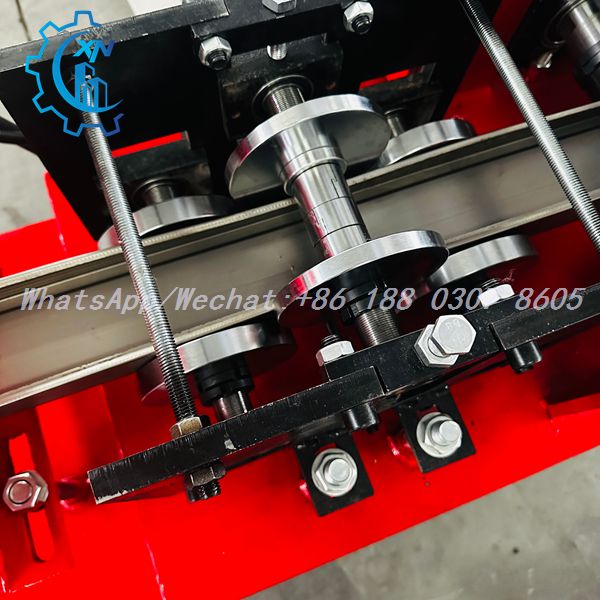

Close-up of the forming process: a grey C-channel guided by flange rollers and side rollers on the stud and track machine, with vertical threaded rods for roll adjustment.

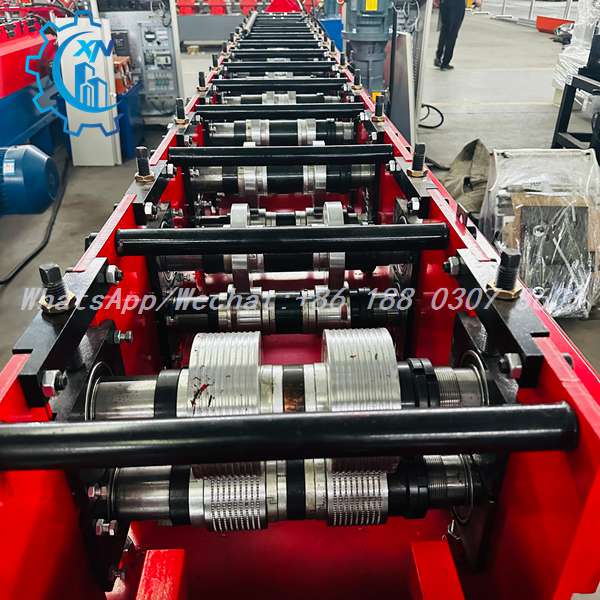

Side view of the stud and track machine: red twin-rail frame, multiple forming stations with grooved rollers on steel shafts, black side plates and cross braces, with a blue motor and control cabinet - showing machine length and station count.

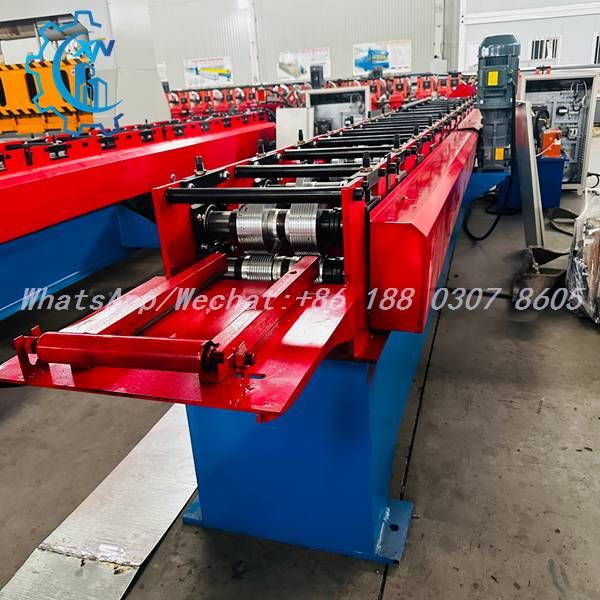

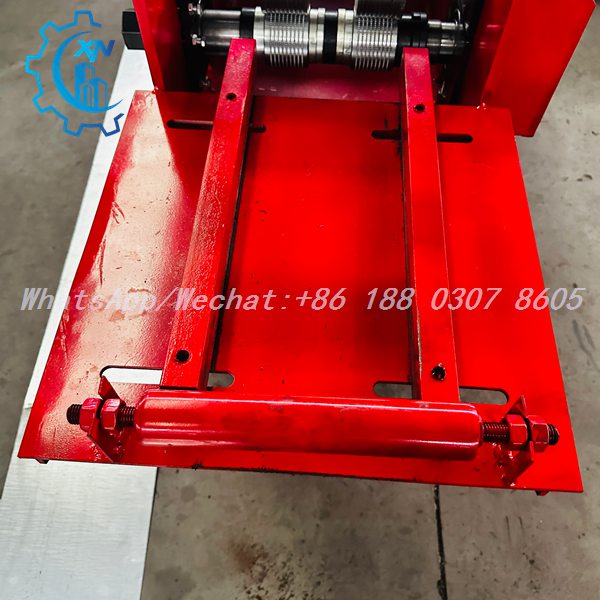

Feeding platform of the stud and track machine: toothed feed rollers guiding the strip onto the entry table, with red guide bars and a base plate with oblong adjustment slots - ensuring stable, aligned material infeed.

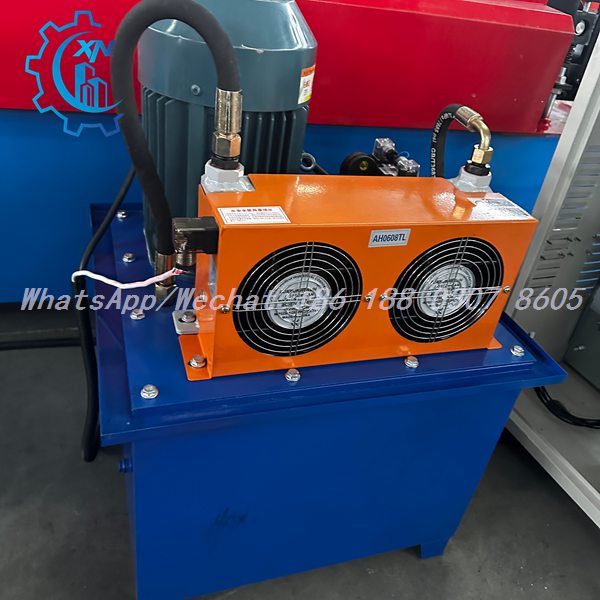

Heavy-duty hydraulic power unit with blue oil tank, dual-fan cooling module and vertical motor, supplying stable punching power for the stud and track machine.

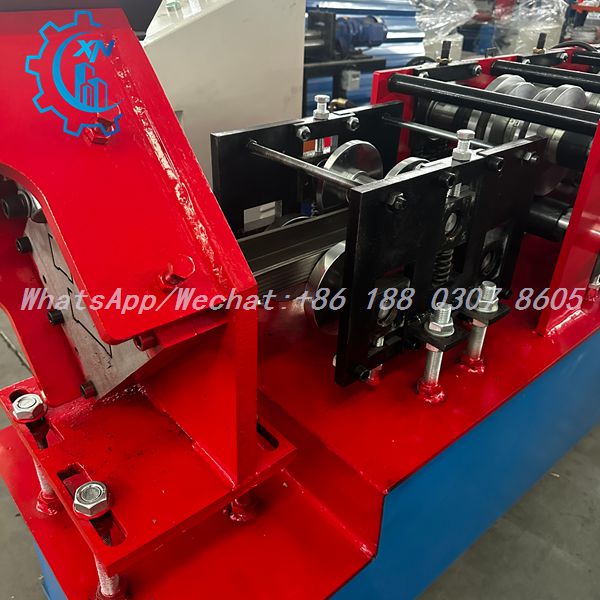

In-process view of the stud and track machine: a metal strip passing through contoured rollers on black stands, with vertical adjustment bolts and springs, toward the red end-forming housing on a blue base.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, stud and track machines for C stud and U track production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a stud and track machine?

A: It is a production line that forms galvanized steel coils into C-shaped studs and U-shaped tracks for light steel framing and drywall construction. The stud and track machine integrates decoiling, roll forming, hydraulic punching and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: C studs, U tracks and customized light gauge steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.

Q3: Does the line support punching and cutting in one pass?

A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length studs and tracks in one pass - secondary processing is eliminated.

Q4: Which steel grades and thicknesses are suitable?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration for your stud and track machine.

Q5: Is customization available for my project?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every stud and track machine is fully tested before shipment and covered by warranty; terms confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
