1. Precision roll forming of C studs and U tracks, with accurate profile dimensions and consistent cross-sections for light gauge steel frame construction.
2. Complete in-line production - decoiling, roll forming, hydraulic punching and cutting in one continuous pass, ready-to-assemble framing members off the line.
3. Fully customizable - roller sets and punching dies engineered for your framing drawings, including stud height, flange and lip dimensions.
4. Mob/WhatsApp/Wechat: +86 188 0307 8605
5. Email: sara@xinnuomachine.com

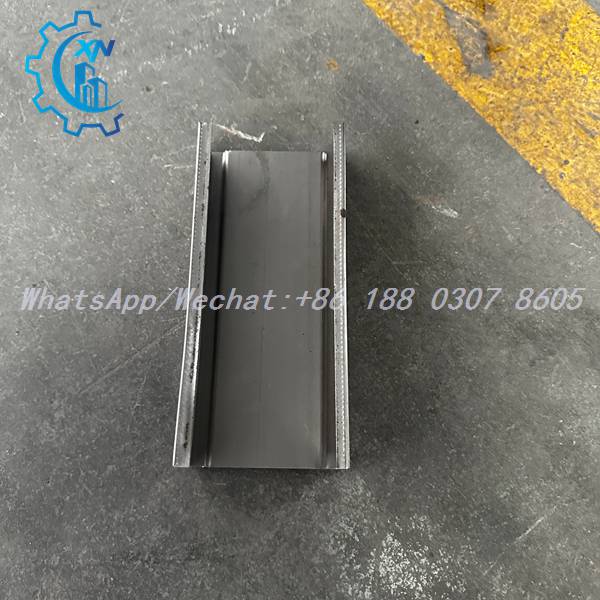

Finished U-shaped track profile produced by the LGSF machine: galvanized steel channel with a flat back and two short flanges, showing clean profile geometry from the forming line.

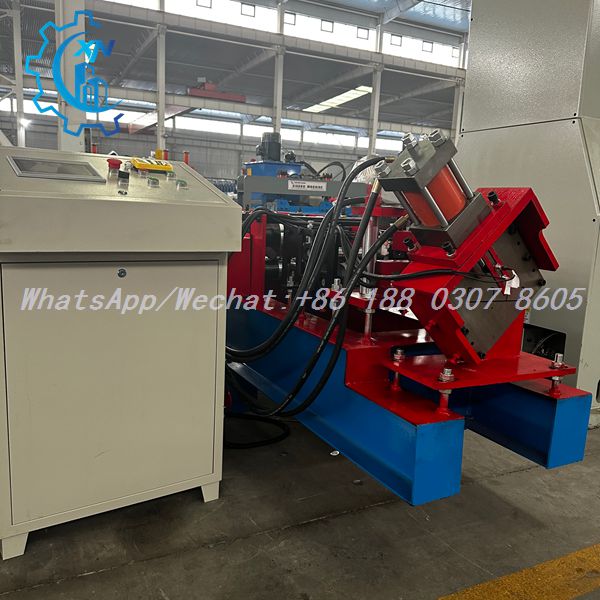

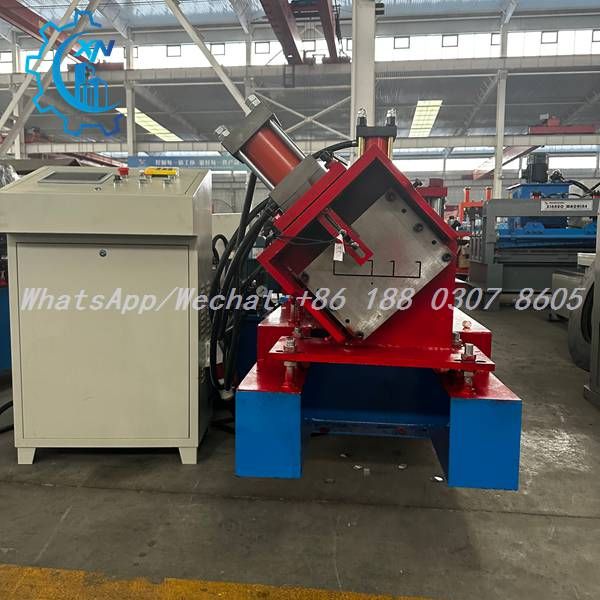

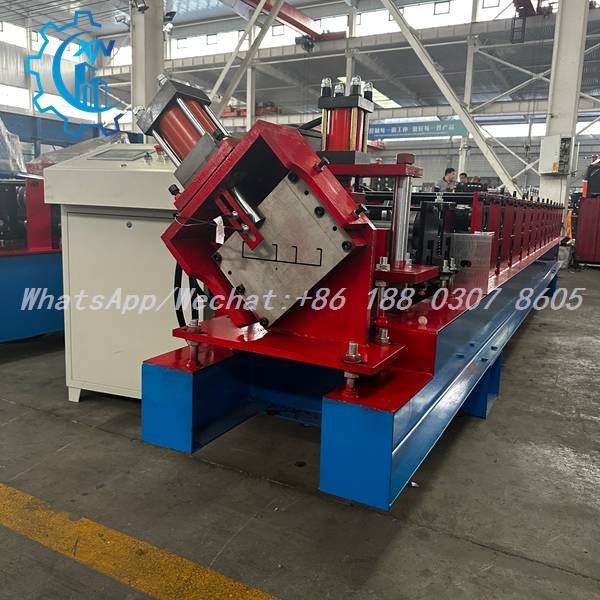

Full view of the LGSF machine: control cabinet with digital screen and emergency stop, blue base beams and a 45-degree hydraulic cutting unit with orange cylinder - a complete light gauge steel frame production unit.

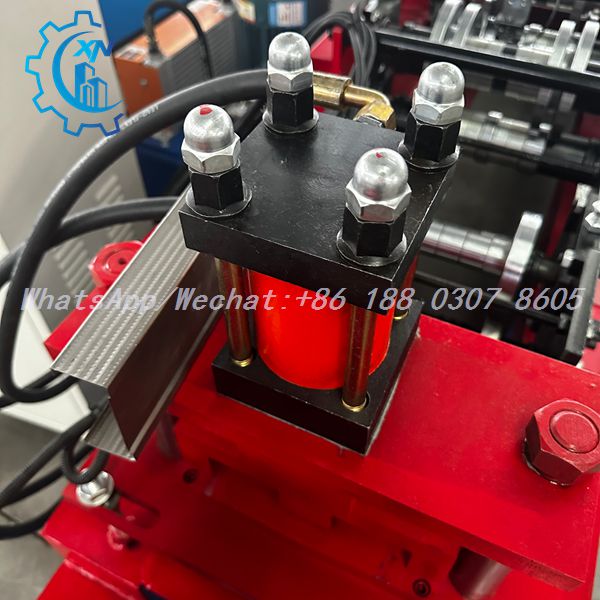

Close-up of the hydraulic punching unit of the LGSF machine: red cylinder between black plates with four brass support rods, mounted on a heavy red base beside a galvanized C-channel - in-line punching for framing profiles.

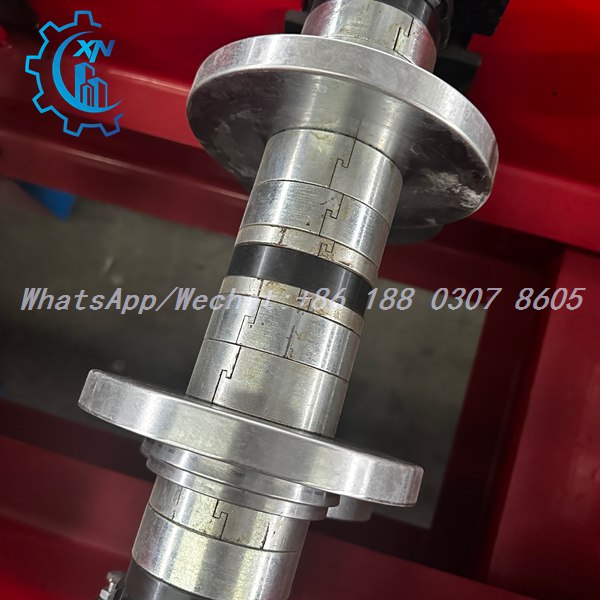

Close-up of the roller shaft assembly of the LGSF machine: machined rings with interlocking seams, two flat flanges and a spacer ring on the red frame - precision tooling for profile forming.

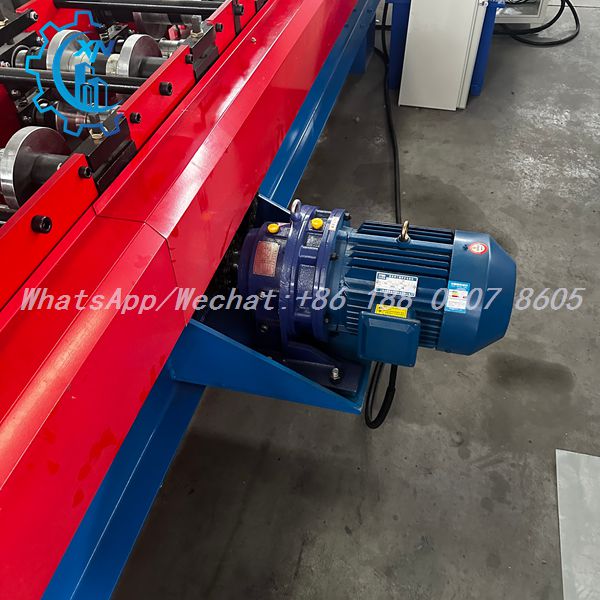

Drive section of the LGSF machine: blue motor with cooling fins and chain mounted on the side bracket, red upper frame with roller rows and blue base beams - powering the light gauge steel frame forming line.

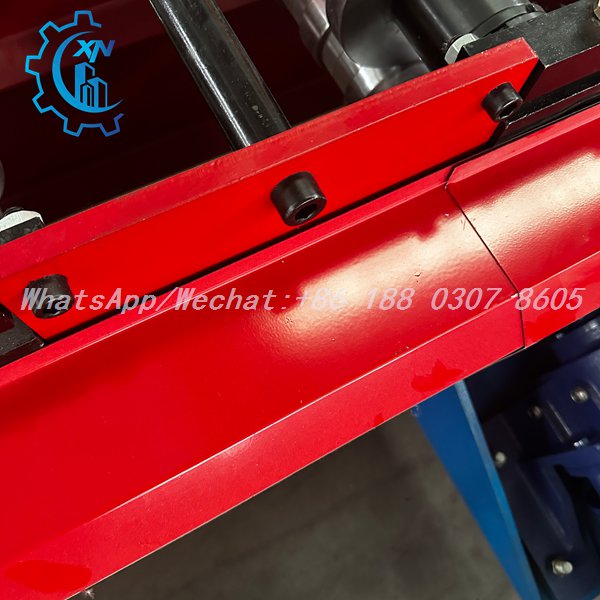

Close-up of the red guard plate secured by socket-head bolts on the LGSF machine, with black rollers behind it and the blue frame below - protective guarding for the forming section.
XINNUO Roll Forming Machine - Your Trusted Partner Since 1995
XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.
Our product range covers single-layer roof and wall panel machines, LGSF (light gauge steel frame) machines for C stud and U track production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.
Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.
Q1: What is an LGSF machine?
A: An LGSF (light gauge steel frame) machine produces C-shaped studs and U-shaped tracks from galvanized steel coils for light gauge steel frame construction. It combines decoiling, roll forming, hydraulic punching and cutting in one continuous process.
Q2: Which profiles can be made on this line?
A: C studs, U tracks and customized light gauge steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.
Q3: Does the line support punching and cutting in one pass?
A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length framing members in one pass - secondary processing is eliminated.
Q4: Which steel grades and thicknesses are suitable?
A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.
Q5: Is customization available for my project?
A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.
Q6: Do you provide installation and operator training?
A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.
Q7: How long is the delivery time?
A: Delivery time depends on configuration and quantity. Every LGSF machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.
Q8: How do I request a quote?
A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
