Stud Roll Forming Machine - Metal Stud Framing Production Line

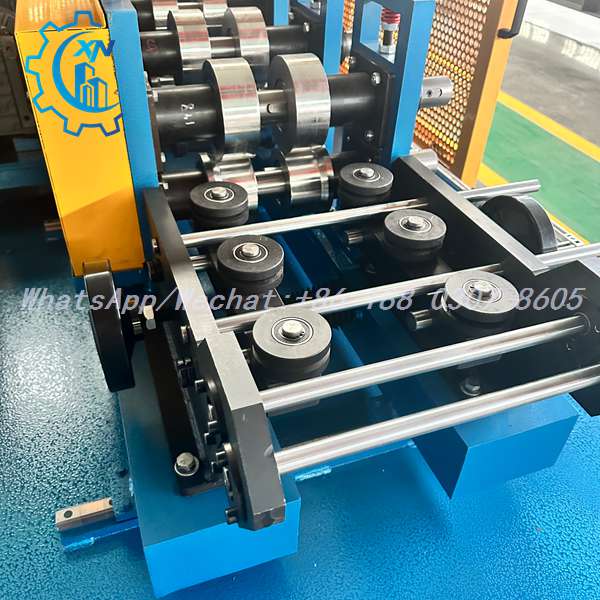

Close-up of the forming roller section: polished steel rollers, guide rollers and horizontal guide rods on a blue frame with honeycomb safety guarding - precision tooling for C stud channel forming.

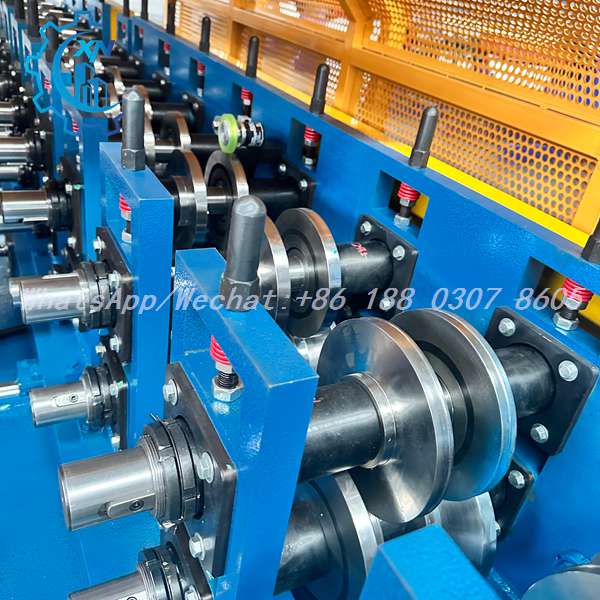

Multiple forming stations with precision rollers, square bearing blocks and spring-loaded pressure adjustment bolts on each stand, ensuring consistent strip forming along the entire line.

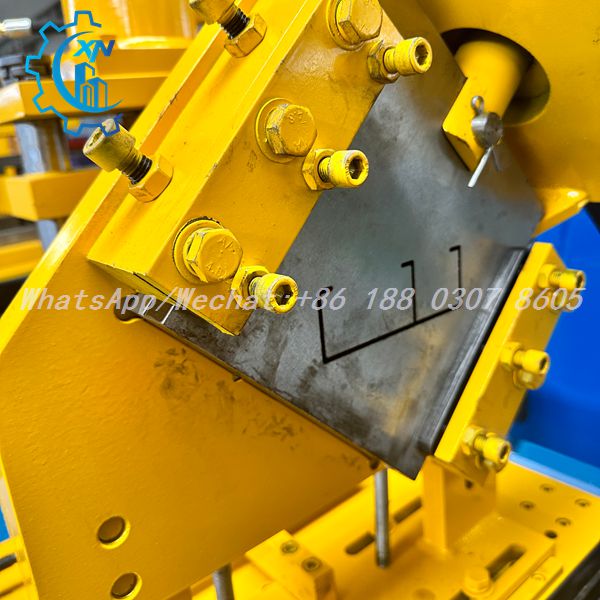

Punching and cutting die station with a grey tooling plate, slotted base and adjustment rods on a yellow frame - enabling in-line stud punching and cut-to-length processing.

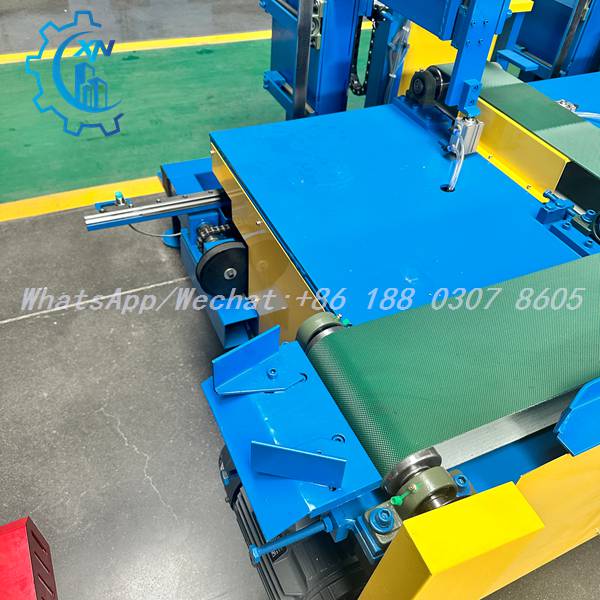

Conveyor and collection section with a green belt, linear guide rails, pneumatic cylinder and motor drive, delivering finished studs smoothly off the line.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a stud roll forming machine?

A: A stud roll forming machine produces C-shaped metal studs and tracks used in light steel framing and drywall construction. It continuously forms galvanized steel coils into stud profiles, typically combining decoiling, roll forming, punching and cutting in one line.

Q2: What profiles can this machine produce?

A: C stud channels, U-shaped tracks and customized light gauge steel framing profiles. With dedicated roller sets, the line can be adjusted for different stud heights, flange widths and lip dimensions.

Q3: Can punching and cutting be integrated into the line?

A: Yes. In-line hydraulic punching and flying saw cutting produce pre-punched, cut-to-length studs in one pass - no secondary processing required.

Q4: What material thickness can it process?

A: The applicable thickness depends on the machine configuration and profile size. Please send us your material specification (grade, thickness, width) and target profile drawing, and we will recommend the right configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be customized according to your profile drawings and production requirements.

Q6: What about installation and operator training?

A: We provide installation and commissioning guidance, operation and maintenance training (on-site or remote), and complete documentation. Our engineers also offer online technical support throughout the service life of the machine.

Q7: What is the delivery time and warranty?

A: Delivery time depends on the machine configuration and quantity. Every machine is fully tested before shipment and comes with a warranty; specific terms will be confirmed in the quotation.

Q8: How can I get a quotation?

A: Send us your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We will reply within 24 hours with a technical proposal and factory price.
