Light Steel Frame Machine - Light Gauge Steel Framing Production Line

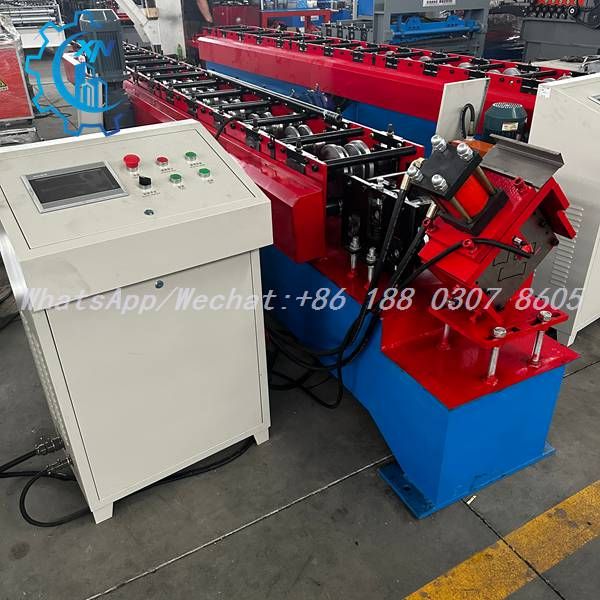

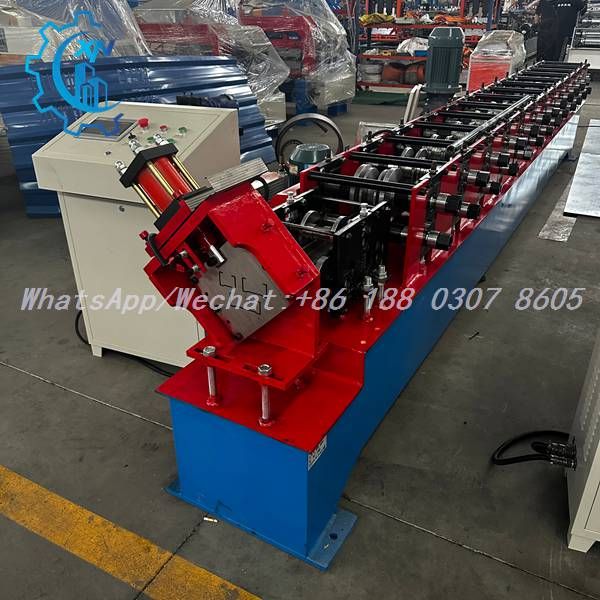

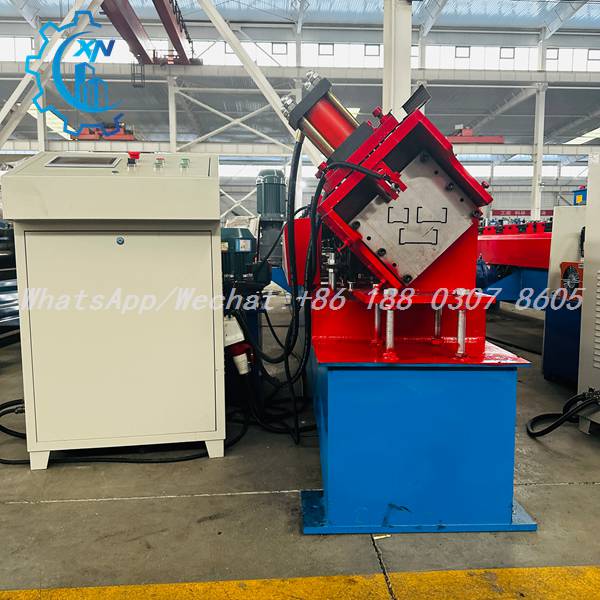

Full view of the light steel frame machine: HMI control cabinet, blue base, red upper frame and a 45-degree hydraulic cutting head with profile die plate - a complete C/U stud and track production unit.

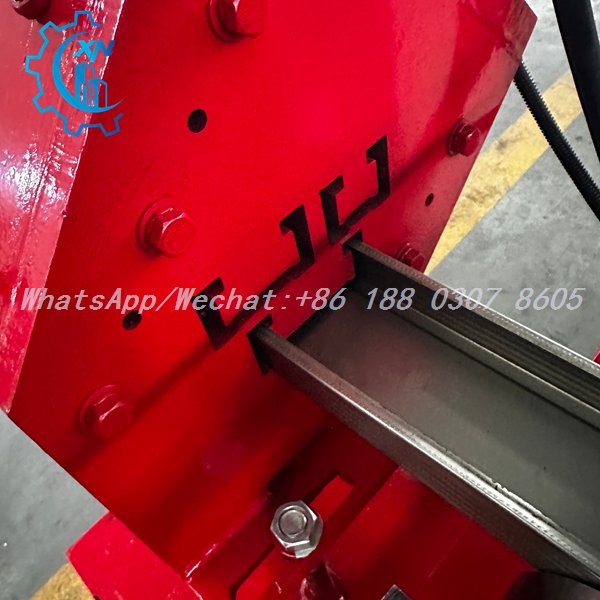

Close-up of the cutting die: a precision-machined C-profile opening in the heavy red steel plate, with a galvanized stud inserted - showing the exact fit between die and profile.

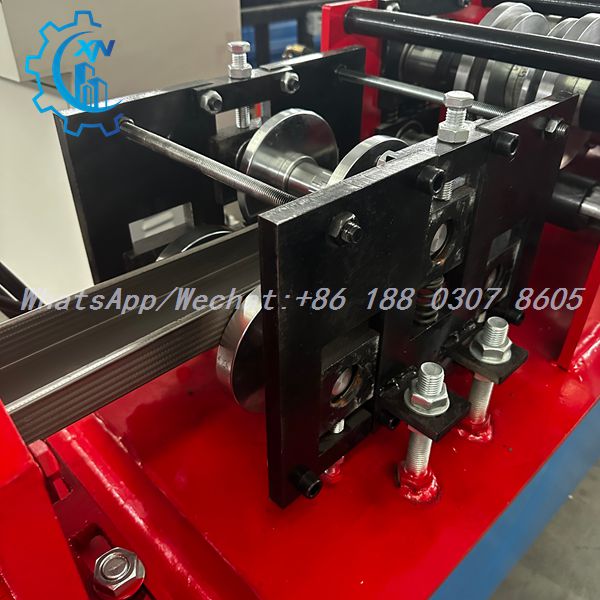

In-process view: a galvanized C/U profile passing through polished forming rollers, with vertical adjustment bolts and tension springs on the black stands - showing continuous forming in action.

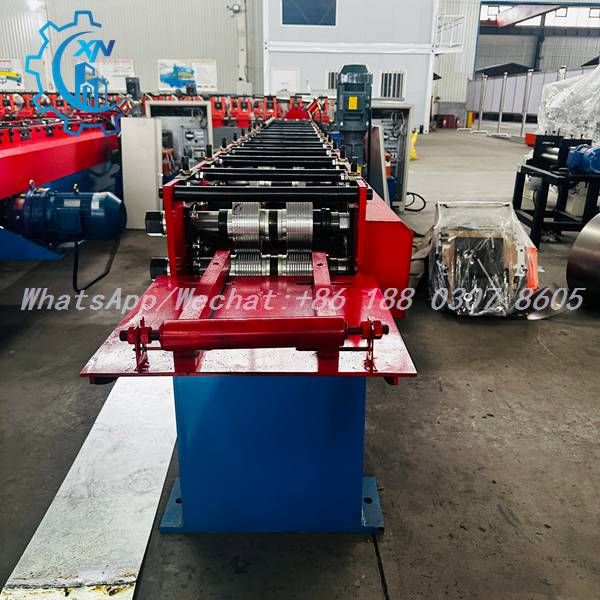

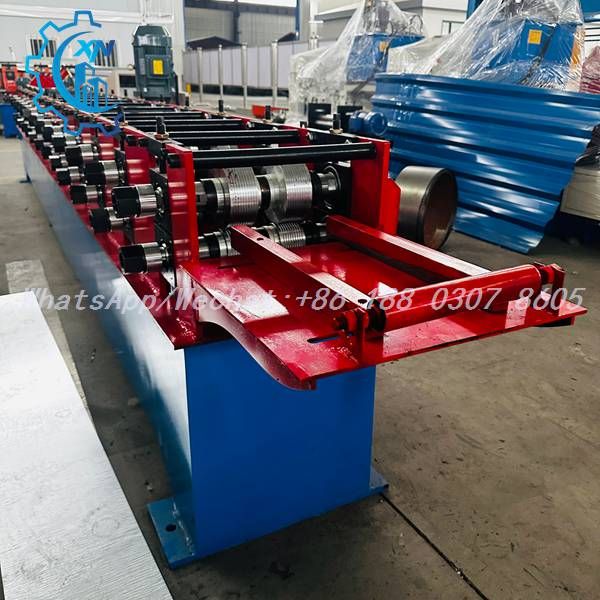

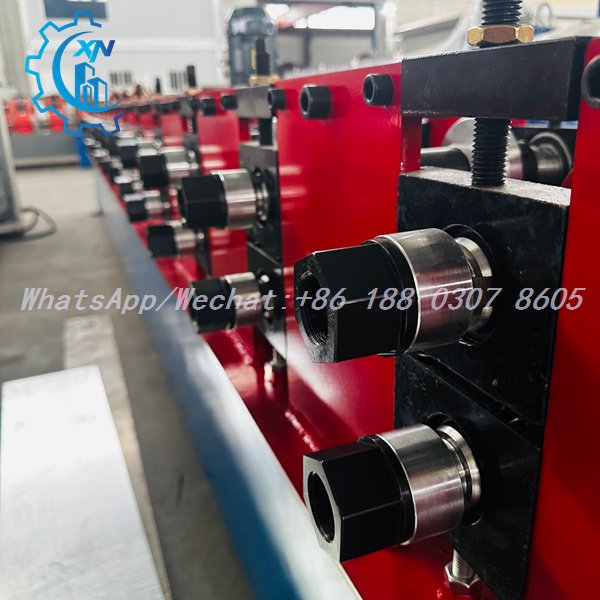

Side view of the light steel frame machine: repeated red forming stands with square bearing blocks, chrome shafts and vertical adjustment rods on a blue base - showing machine length and station count.

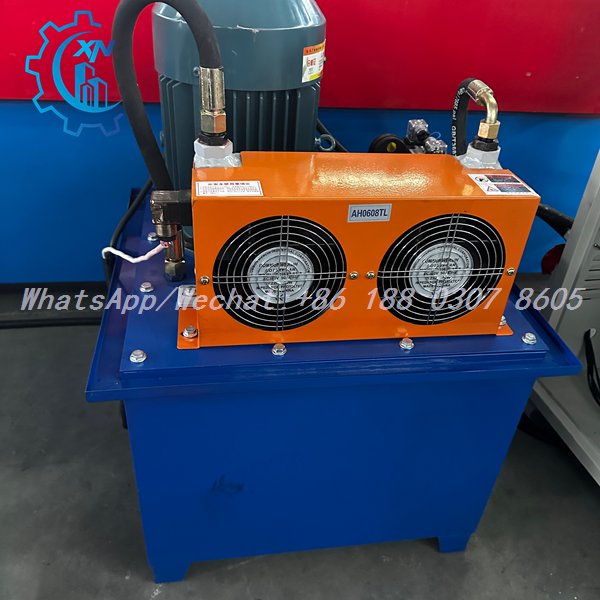

Heavy-duty hydraulic power unit with blue oil tank, dual-fan cooling module and vertical motor, supplying stable punching power for the light steel frame machine.

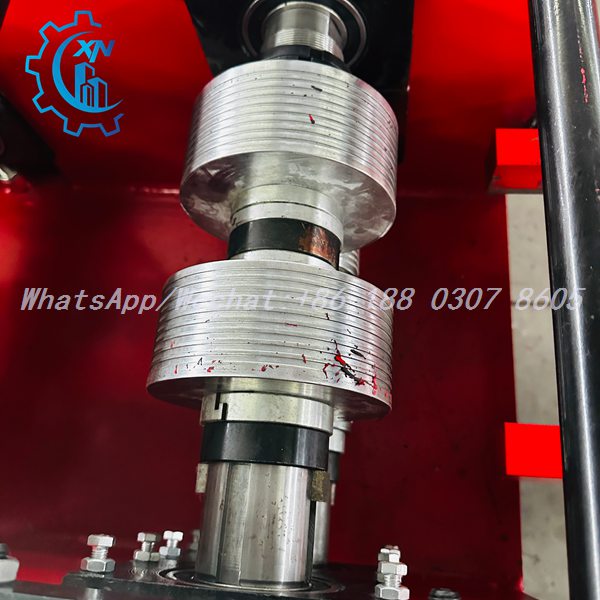

Close-up of the roller assembly: large grooved rollers locked on a steel shaft with collars and spacers on the red frame - key tooling for stud and track forming.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, light steel frame and light gauge steel framing lines, metal stud and track lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a light steel frame machine?

A: A light steel frame machine produces C-shaped studs and U-shaped tracks from galvanized steel coils for light gauge steel framing construction. It combines decoiling, roll forming, hydraulic punching and cutting in one line, delivering ready-to-assemble framing members.

Q2: What profiles can this machine produce?

A: C studs, U tracks and customized light gauge steel framing profiles. With dedicated roller sets and dies, the line can be adjusted for different stud heights, flange widths and lip dimensions.

Q3: Can punching and cutting be integrated into the line?

A: Yes. In-line hydraulic punching and cutting produce pre-punched, cut-to-length studs and tracks in one pass - no secondary processing required.

Q4: What material thickness can it process?

A: The applicable thickness depends on the machine configuration and profile size. Please send us your material specification (grade, thickness, width) and target profile drawing, and we will recommend the right configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be customized according to your profile drawings and production requirements.

Q6: What about installation and operator training?

A: We provide installation and commissioning guidance, operation and maintenance training (on-site or remote), and complete documentation. Our engineers also offer online technical support throughout the service life of the machine.

Q7: What is the delivery time and warranty?

A: Delivery time depends on the machine configuration and quantity. Every machine is fully tested before shipment and comes with a warranty; specific terms will be confirmed in the quotation.

Q8: How can I get a quotation?

A: Send us your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We will reply within 24 hours with a technical proposal and factory price.
