Steel Frame Machine for Sale - C Stud and U Track Production Line

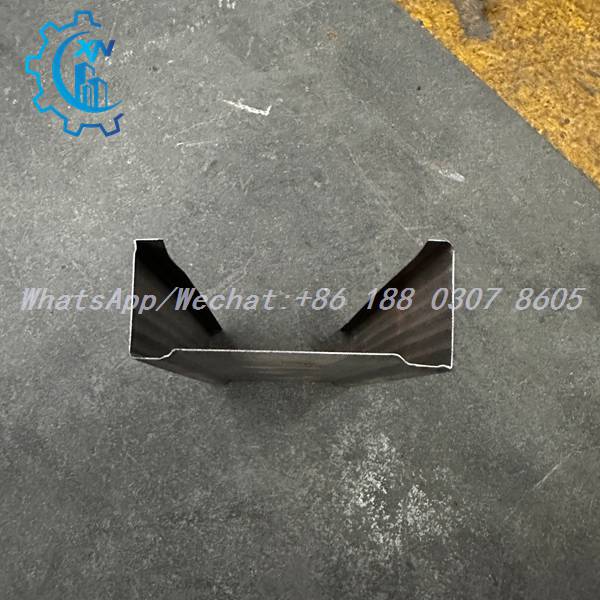

Finished C-lipped channel produced by the steel frame machine: flat web, two flanges and inward lips with roll-formed surface marks - showing clean profile geometry and forming accuracy.

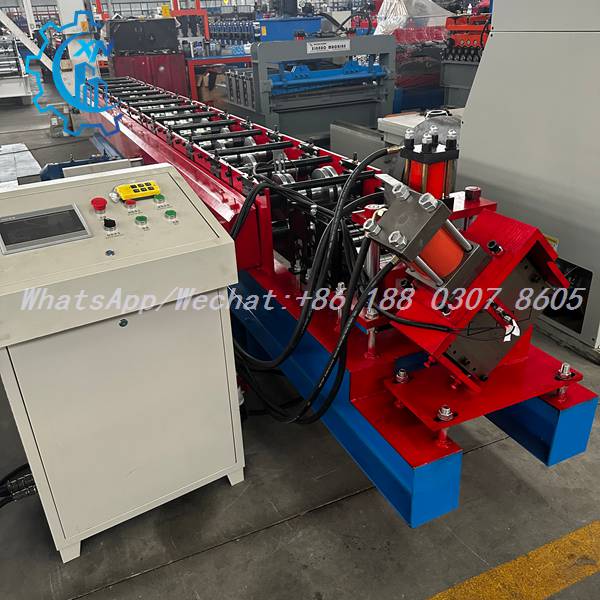

Full view of the steel frame machine: control console with display and emergency stop, long roller line on red frame, and a front cutting unit with two orange hydraulic cylinders - a complete automated production line.

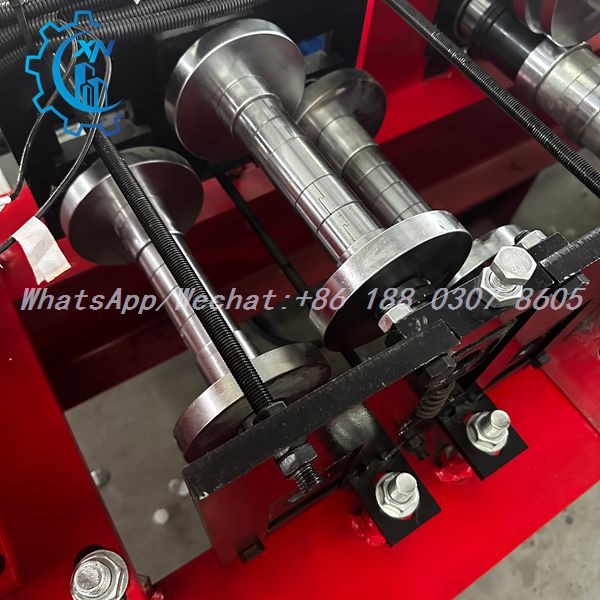

Close-up of the roller and shaft assembly of the steel frame machine: polished discs with spacers on horizontal shafts, heavy black mounting blocks and grade 8.8 hex bolts - robust tooling for profile forming.

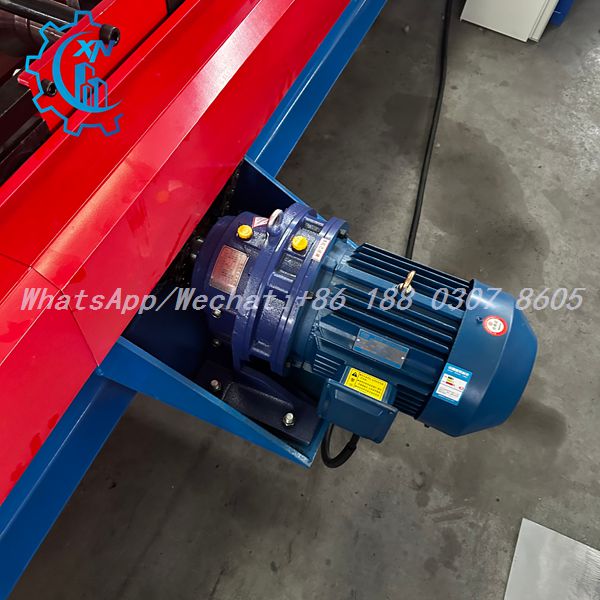

Close-up of the motor and gearbox assembly of the steel frame machine: finned blue motor with connection box and blue gearbox with lifting eye bolts, mounted on blue brackets - main drive of the forming line.

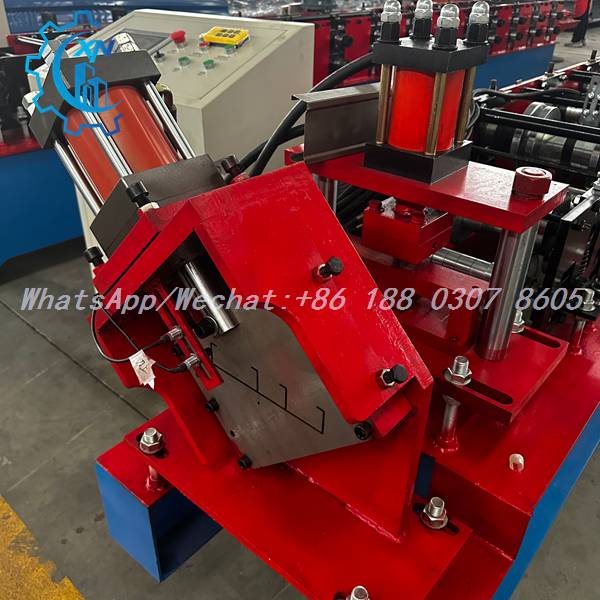

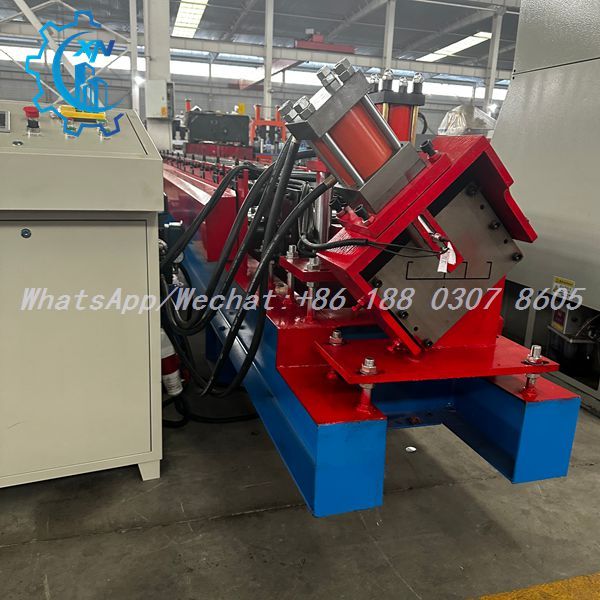

Close-up of the hydraulic cutting unit of the steel frame machine: 45-degree red cylinder, silver die plate with etched C/Z profile outlines and a vertical station with guide rods - in-line cutting of framing profiles.

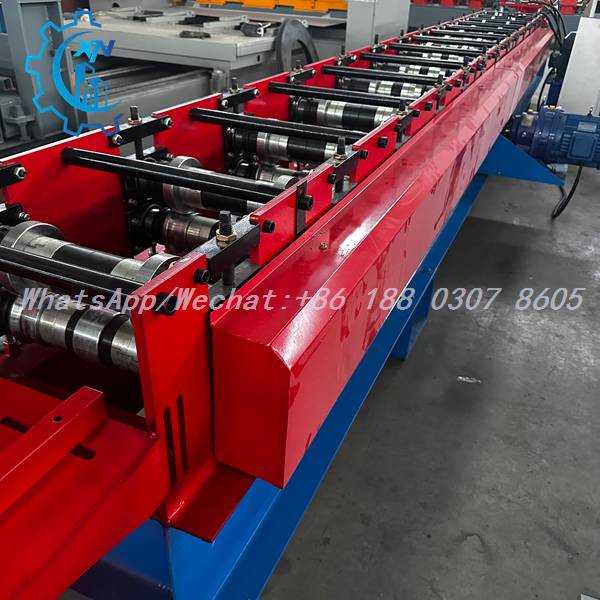

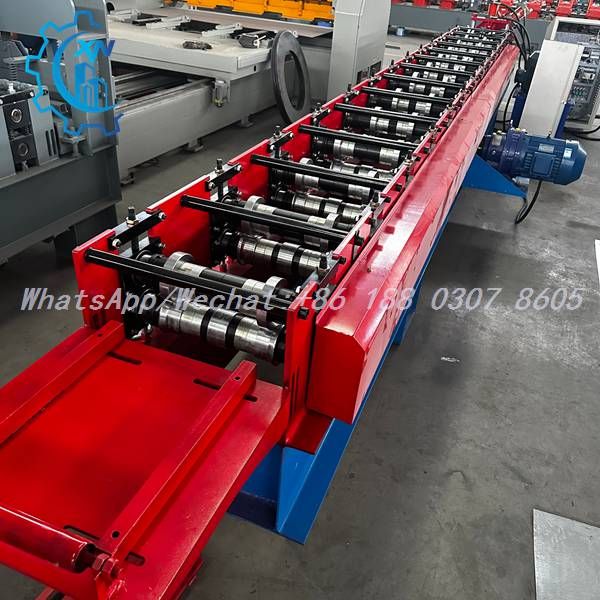

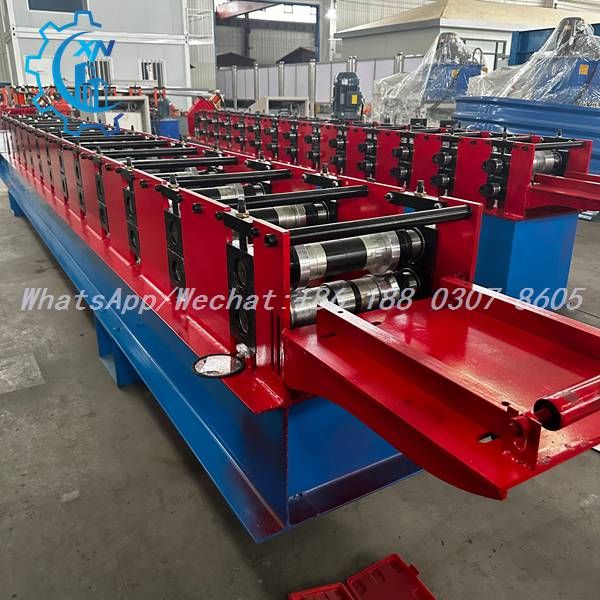

Full-line view of the steel frame machine: red side panels with slots, long red drive cover, polished roller pairs on black shafts and a blue heavy base, with the motor at the far end - a complete light steel framing production line.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, steel frame machines for C stud and U track production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a steel frame machine?

A: A steel frame machine produces C-shaped studs and U-shaped tracks from galvanized steel coils for light steel framing and light gauge steel frame construction. It combines decoiling, roll forming, hydraulic punching and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: C studs, U tracks and customized light steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.

Q3: Does the line support punching and cutting in one pass?

A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length framing members in one pass - secondary processing is eliminated.

Q4: Which steel grades and thicknesses are suitable?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Is customization available for my project?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: Is the steel frame machine for sale covered by warranty?

A: Yes. Every steel frame machine for sale is fully tested before shipment and covered by warranty; delivery time and warranty terms are confirmed in the quotation.

Q8: How do I buy a steel frame machine for sale?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours with a quotation.
