Metal Stud Roll Forming Machine - C Stud and U Track Production Line

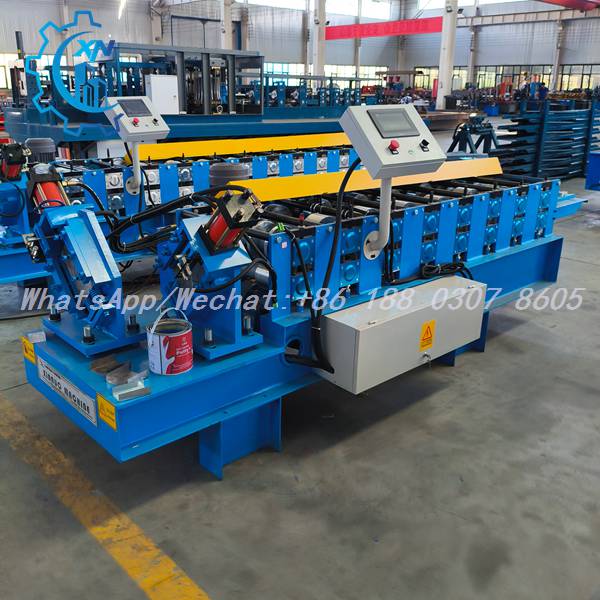

Full view of the metal stud roll forming machine: bright blue frame with yellow guard rails, multiple roller rows, two red hydraulic cylinders at the front and dual HMI control panels - a complete automated production line.

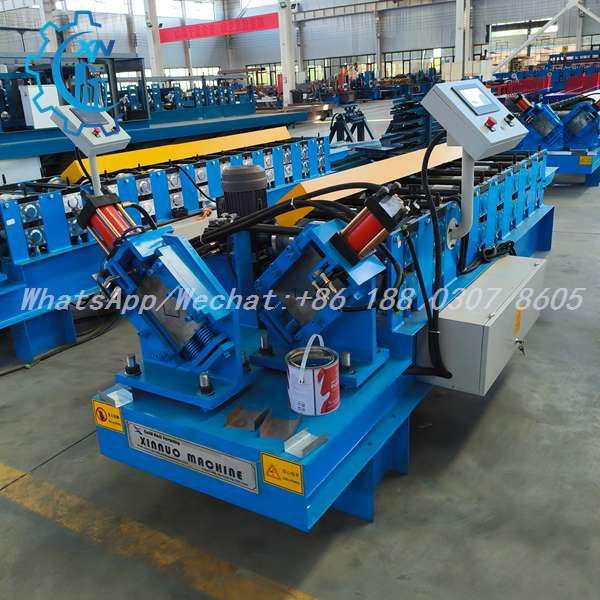

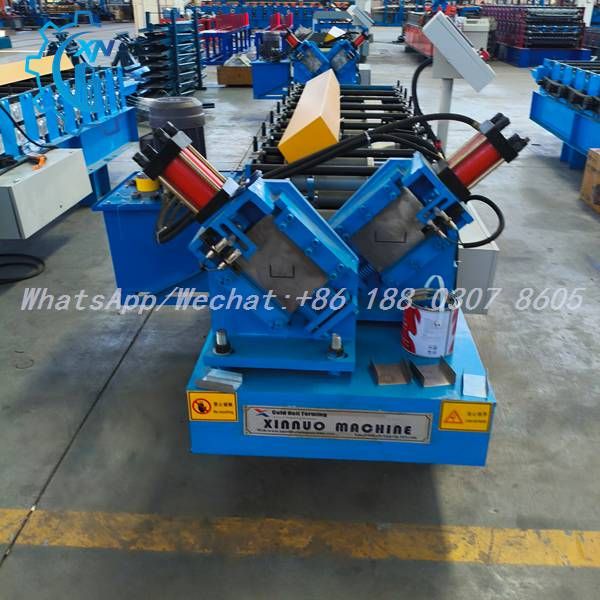

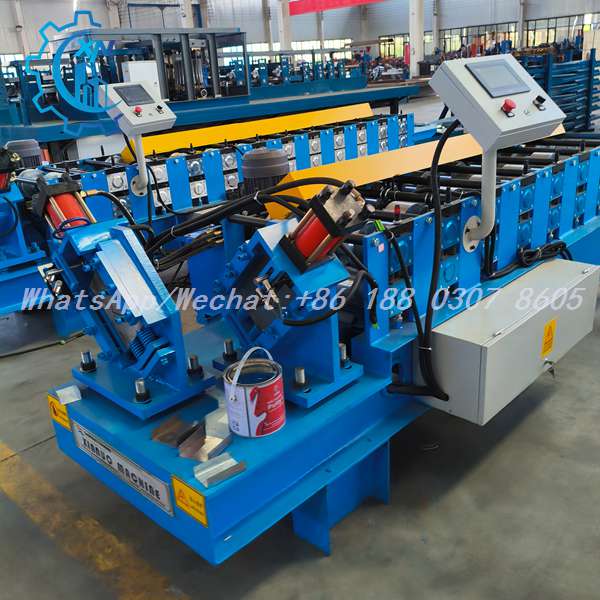

Front view of the metal stud roll forming machine: two angled hydraulic punching units with red cylinders, long roller line with orange guide plate and dual touchscreen control panels - in-line punching and forming in one unit.

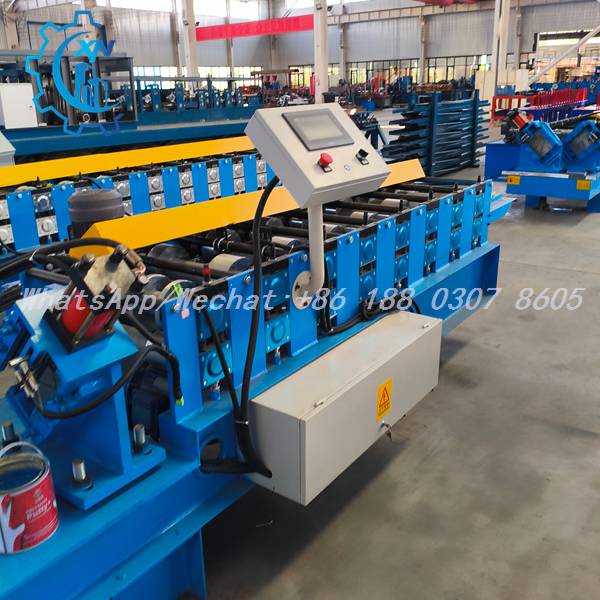

Side view of the metal stud roll forming machine: yellow top guards, roller and gear assemblies on blue frame, control console on a support arm and a locked electrical cabinet - robust construction for continuous stud production.

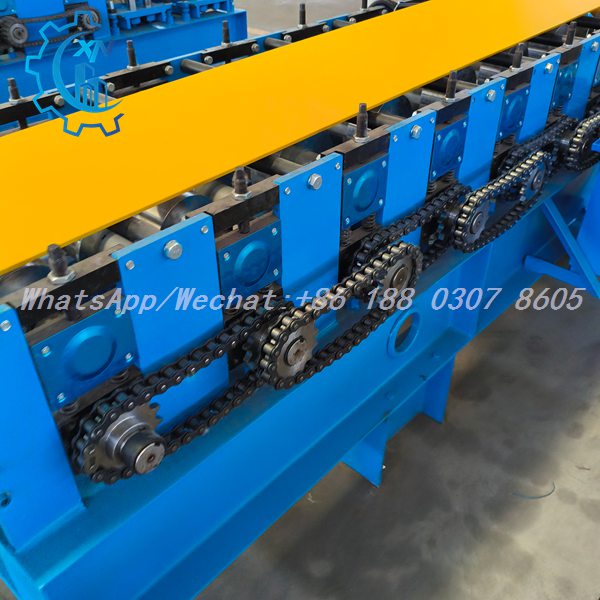

Close-up of the forming process on the metal stud roll forming machine: a yellow strip passing through rollers on blue stands, driven by black chains around silver sprockets with adjustment bolts on top - continuous forming in action.

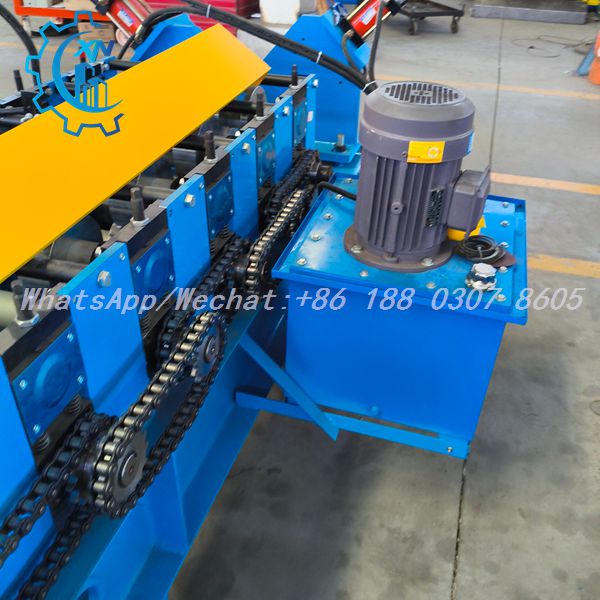

Close-up of the drive section of the metal stud roll forming machine: chain and sprocket drive on the left, vertical motor mounted on the blue hydraulic reservoir tank with filler cap - powering the forming line.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, metal stud roll forming machines for C stud and U track production, light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a metal stud roll forming machine?

A: It is a production line that forms galvanized steel coils into C-shaped metal studs and U-shaped tracks for light steel framing and drywall construction. The metal stud roll forming machine combines decoiling, roll forming, hydraulic punching and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: C studs, U tracks and customized light steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.

Q3: Can punching and cutting be integrated into the line?

A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length framing members in one pass - secondary processing is eliminated.

Q4: Which steel grades and thicknesses are suitable?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Is customization available for my project?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every metal stud roll forming machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
