Steel Frame Roll Forming Machine - C Stud and U Track Production Line

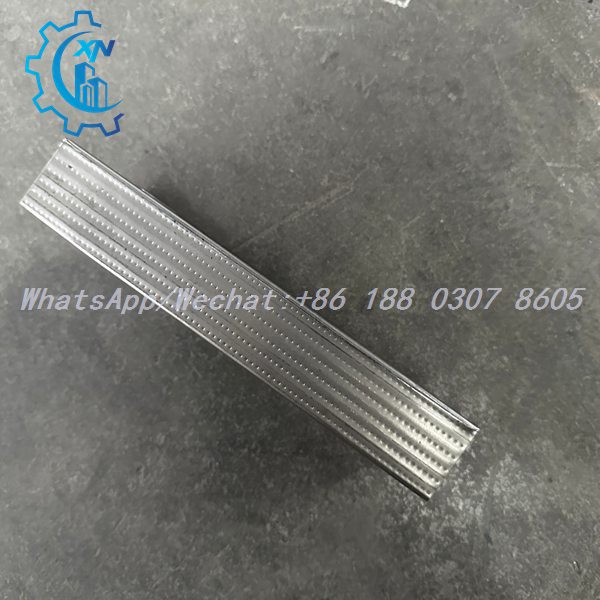

Metal profile sample produced by the steel frame roll forming machine: ribbed galvanized strip with dimpled anti-slip texture, reflecting polished surface quality - verifying profile accuracy and finish.

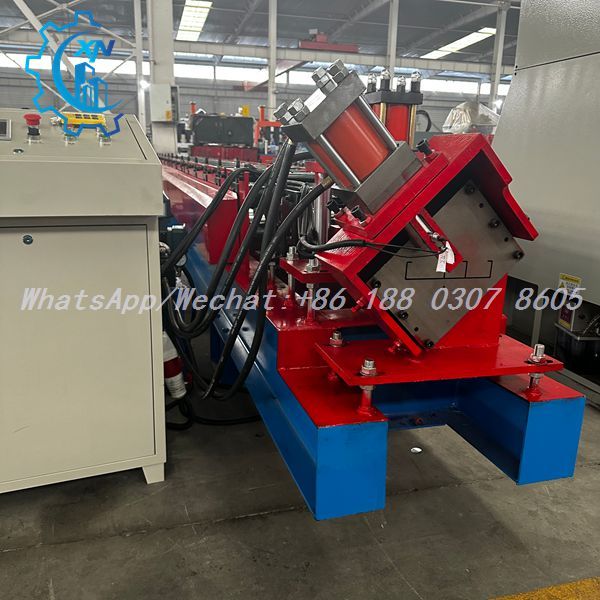

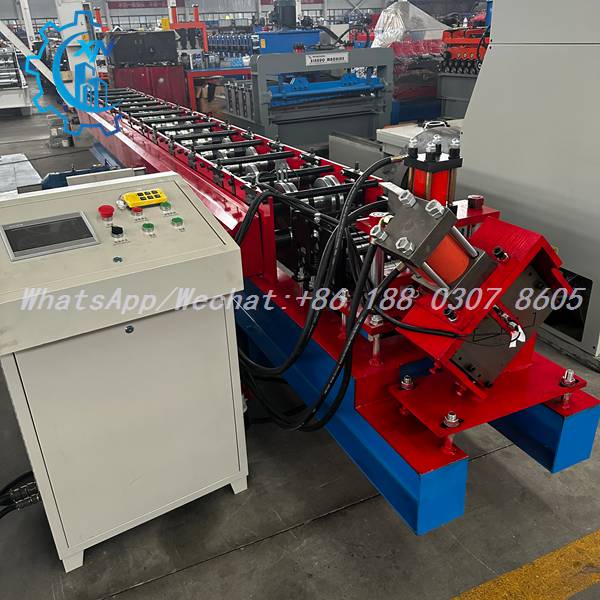

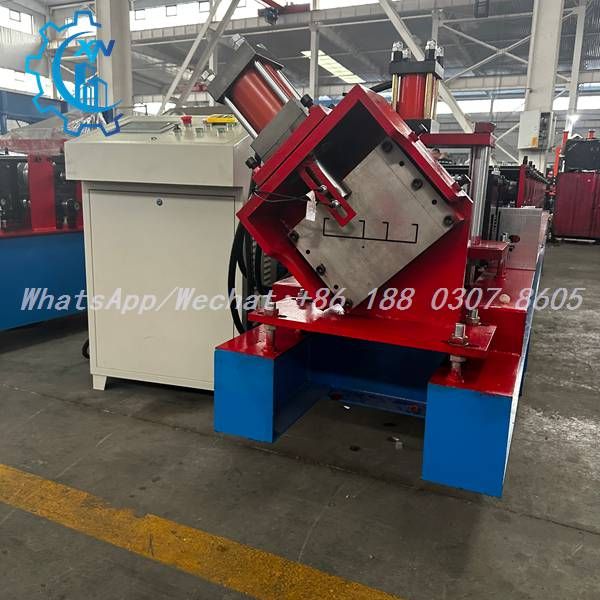

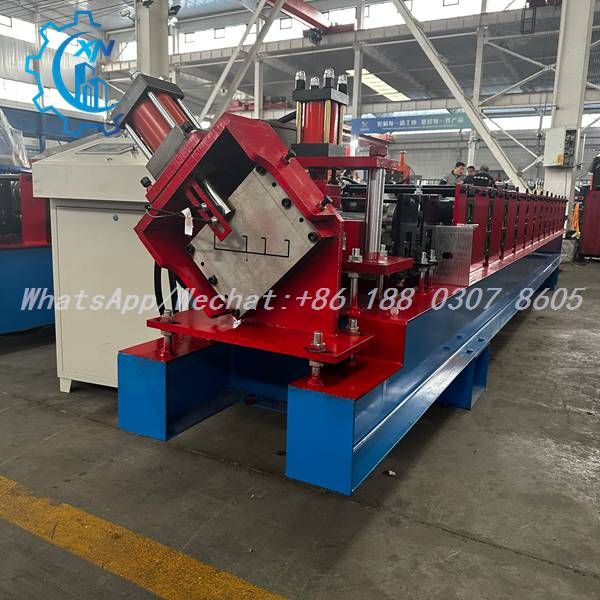

Full view of the steel frame roll forming machine: control console with display and emergency stop, forming line on blue base, and a front shearing unit with two angled orange cylinders and V-shaped die - a complete automated line.

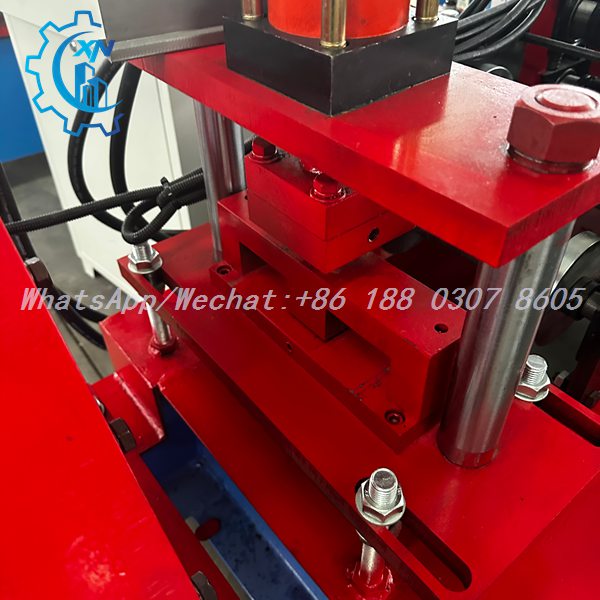

Close-up of the hydraulic punching head of the steel frame roll forming machine: cylinder on a black base with four gold bolts, sliding red block guided by two polished pillars - in-line punching for framing profiles.

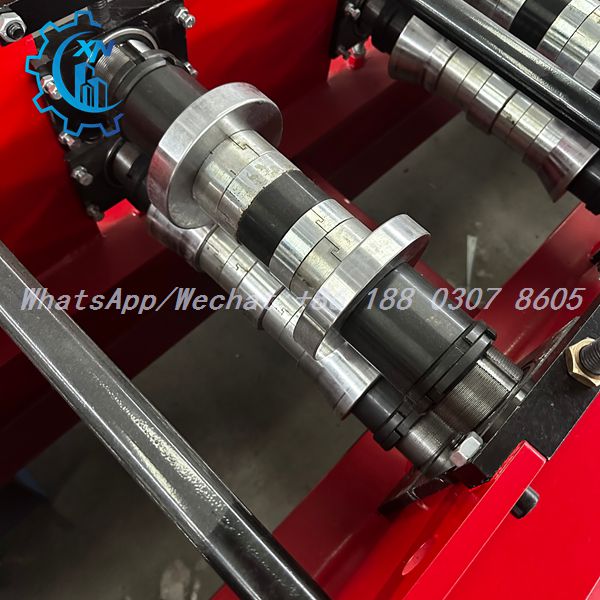

Close-up of the roller stack of the steel frame roll forming machine: flat and tapered discs on twin shafts, silver rings with interlocking dovetail joints and heavy bearing blocks - precision tooling for profile forming.

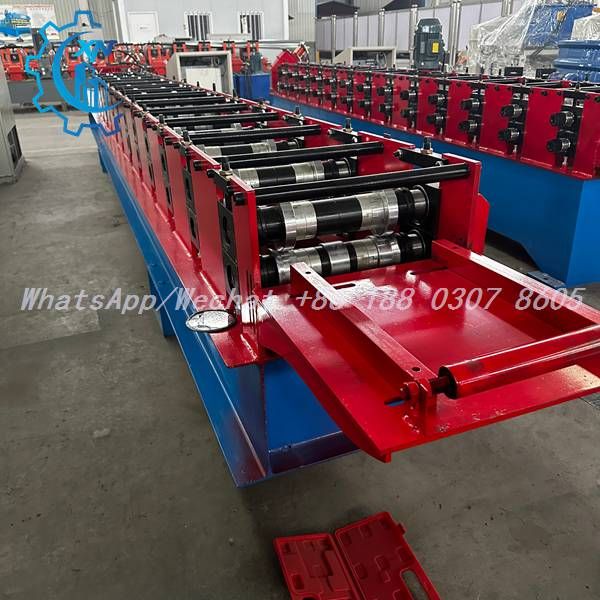

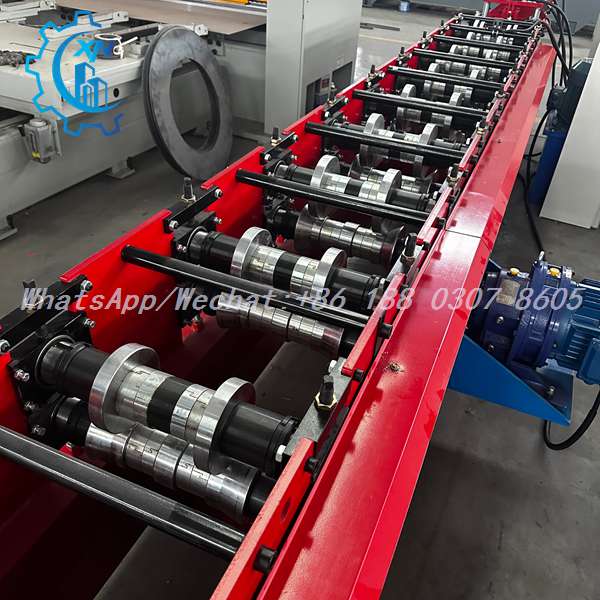

Full-line view of the steel frame roll forming machine: parallel red beams, forming stations with upper and lower shafts carrying flat, ridged and tapered rollers, heavy black brackets and a blue motor-gearbox drive - a complete light steel framing production line.

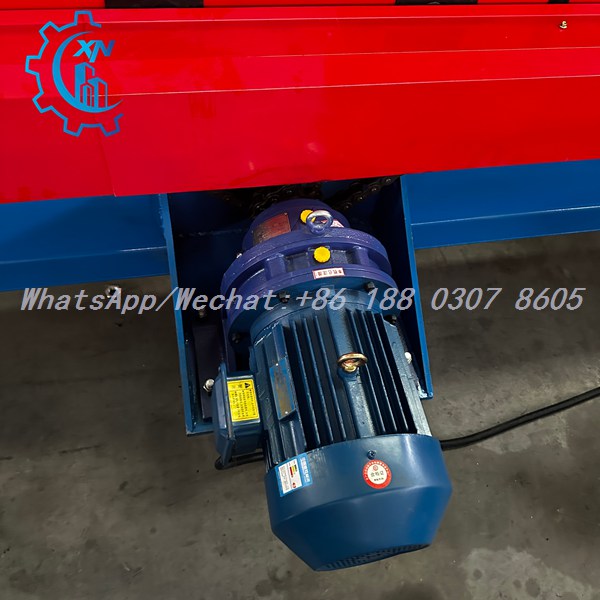

Close-up of the drive system of the steel frame roll forming machine: finned vertical motor with gearbox on a blue bracket, driving the shafts through a black chain - reliable power transmission for the forming line.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, steel frame roll forming machines for C stud and U track production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a steel frame roll forming machine?

A: It is a production line that forms galvanized steel coils into C-shaped studs and U-shaped tracks for light steel framing and light gauge steel frame construction. The steel frame roll forming machine combines decoiling, roll forming, hydraulic punching and cutting in one continuous process.

Q2: What profiles can it produce?

A: C studs, U tracks and customized light steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.

Q3: Does the line support punching and cutting in one pass?

A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length framing members in one pass - secondary processing is eliminated.

Q4: What material thickness can it process?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Is customization available for my project?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: What about installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: What is the delivery time and warranty?

A: Delivery time depends on configuration and quantity. Every steel frame roll forming machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.
