Stud Making Machine - C Stud and U Track Production Line

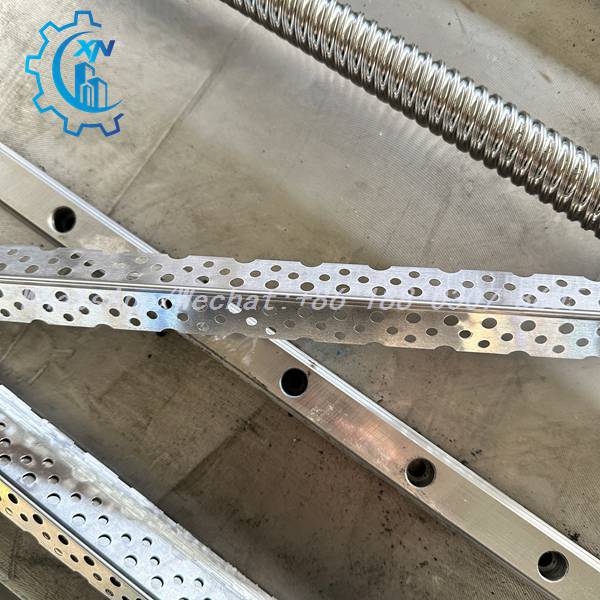

Finished perforated corner beads produced by the stud making machine: L-shaped galvanized strips with staggered round holes and scalloped edges, shown with a ball screw and linear guide rail - demonstrating profile quality and spare parts.

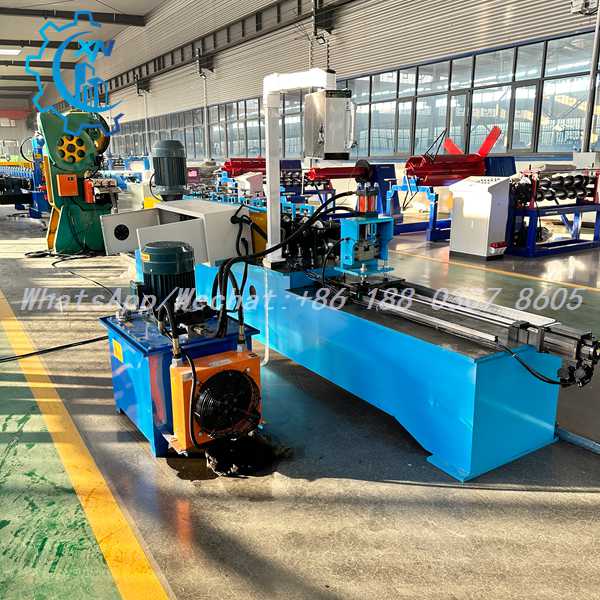

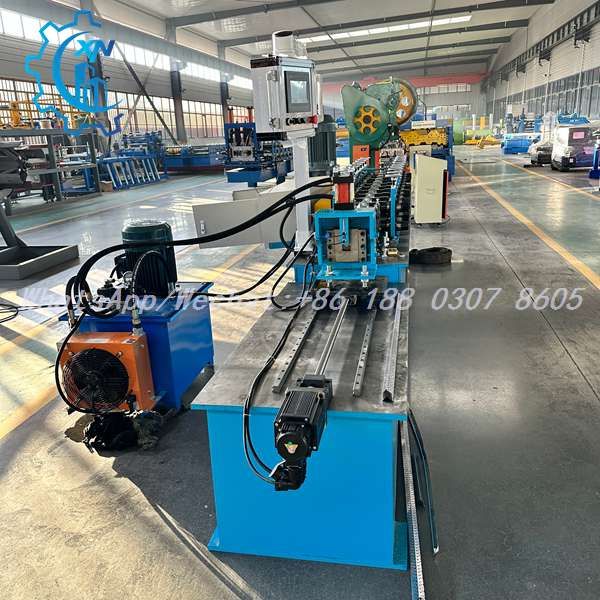

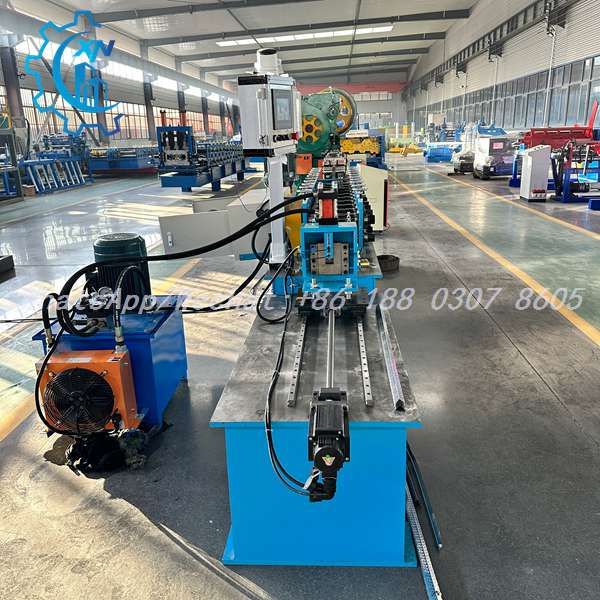

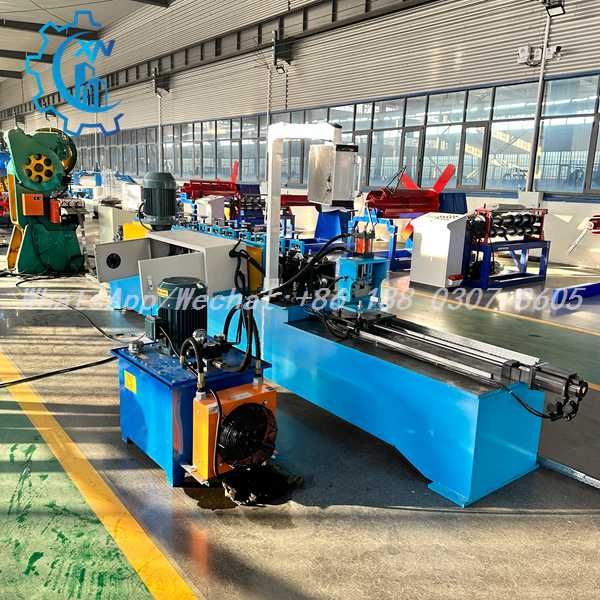

Full view of the stud making machine production line: forming stations with hydraulic cylinders, a separate hydraulic power unit with cooling fan, punching machine and decoiler - a complete automated production line.

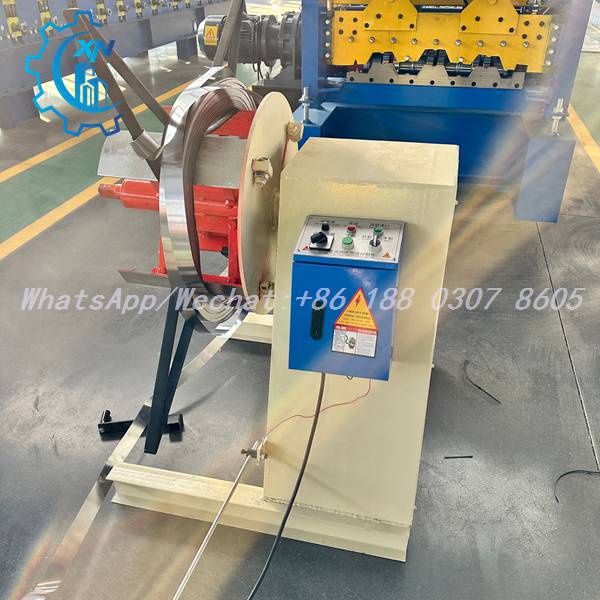

Close-up of the decoiler feeding a steel coil into the stud making machine: red reel with side plates, guide arms and a control pedestal with buttons and indicator lights - stable coil feeding for continuous production.

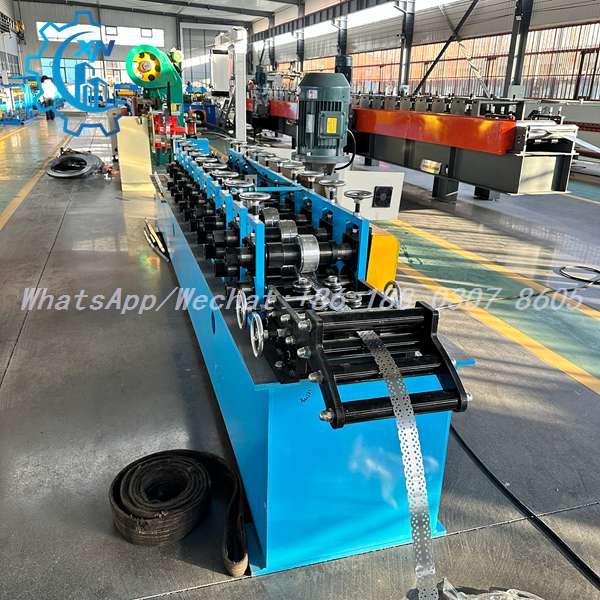

Side view of the stud making machine: 12-15 forming stations with star handwheels for roller adjustment, vertical motor and an exit ramp delivering the perforated strip - showing machine length and output.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, stud making machines for C stud and U track production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What does a stud making machine produce?

A: It produces C-shaped studs, U-shaped tracks and perforated profiles from galvanized steel coils for light steel framing and drywall construction. The stud making machine combines decoiling, roll forming, hydraulic punching and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: C studs, U tracks, corner beads and customized light gauge steel framing profiles. Stud heights, flange widths and lip dimensions are adjustable with dedicated roller sets and dies.

Q3: Does the line support punching and cutting in one pass?

A: Yes. In-line hydraulic punching and cutting deliver pre-punched, cut-to-length profiles in one pass - secondary processing is eliminated.

Q4: Which steel grades and thicknesses are suitable?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Is customization available for my project?

A: Yes. Roller sets, punching dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every stud making machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
