Ridge Cap Machine - Arc and V Capping Forming Line

Close-up of the control box of the ridge cap machine: HMI screen with toggle switches, green and red buttons and a mushroom emergency stop, beside twin blue tanks with yellow safety line - safe operation control.

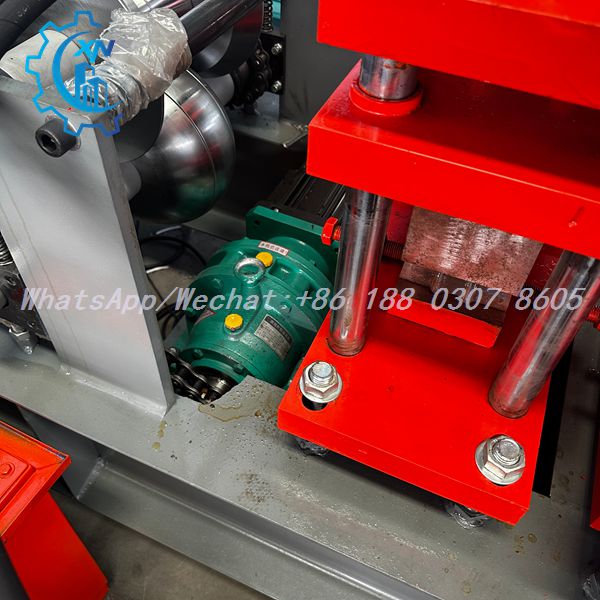

Close-up of the drive of the ridge cap machine: teal cycloidal gearbox with barcode plate and eyelet bolt driving the chain, beside a chrome-post press structure - synchronized drive and press.

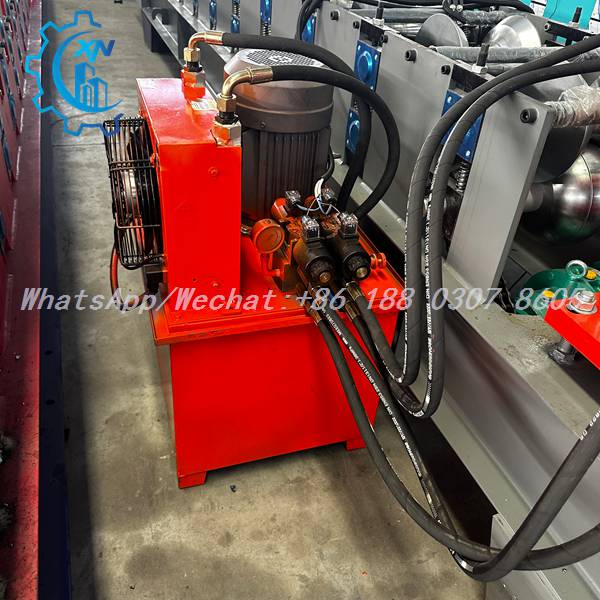

Close-up of the hydraulic power unit of the ridge cap machine: red reservoir with finned motor, caged cooling fan and manifold, with DIN-rated hoses printed 330BAR - stable cutting power.

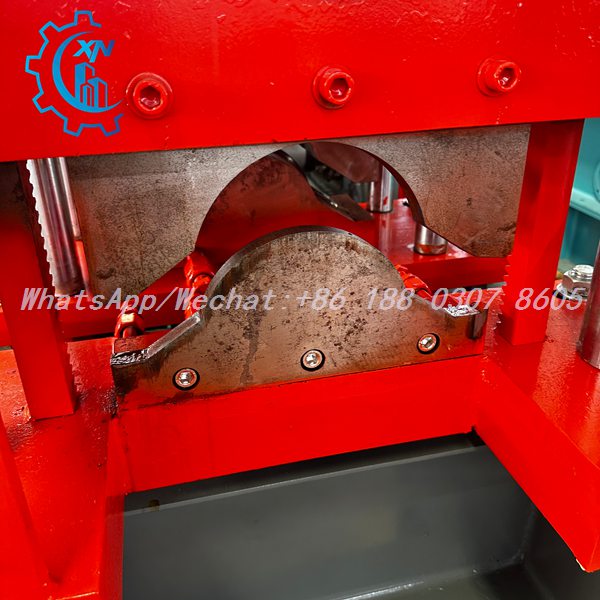

Close-up of the cutting station of the ridge cap machine: arched grey die blade with matching semicircular upper plate, silver guide rails and a recessed collection trough - arch capping shearing.

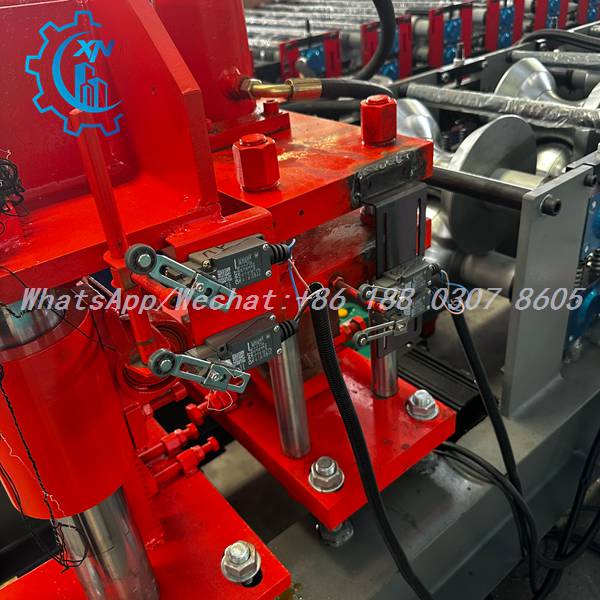

High-angle view of the control side of the ridge cap machine: three limit switches with QR-coded labels and roller arms, chrome cylinder rod and cone-shaped forming rollers on the red frame - precise stroke monitoring.

ABOUT OUR COMPANY

Ridge Cap Machine - Built by XINNUO Since 1995

XINNUO is a professional manufacturer of roll forming machines and complete metal forming production lines. Founded in 1995, our factory has accumulated more than 30 years of engineering experience, making us one of the leading Chinese producers of ridge cap machines and related equipment.

Our catalog covers single-layer roof and wall panel machines, ridge cap machines for capping and ridge profiles, capping roll forming machines, stud and track lines, purlin machines, composite panel lines, floor deck machines and custom special profiles.

Every machine is designed, welded, assembled and tested in-house, with strict control over rollers, hydraulics and electrical systems. We have delivered equipment to more than 150 countries across Europe, the Middle East, Africa, Southeast Asia and the Americas, with installation guidance, operator training and reliable after-sales service.

FAQ

Q1: What products does this ridge cap machine produce?

A: The ridge cap machine roll-forms steel coils into arc and V-shaped ridge cappings used on metal roofs, plus customized capping profiles per your drawings.

Q2: Can it form both arc and V-shaped cappings?

A: Yes. Swapping the forming rollers and dies lets the same ridge cap machine switch between arc and V profiles, covering different roof ridge angles and widths.

Q3: What power supply does it require?

A: The machine is available with 380V/50Hz or 220V/60Hz configurations to match your local grid; please confirm your voltage when requesting a quote.

Q4: How accurate is the cutting length?

A: The hydraulic shear is synchronized with the forming speed and monitored by limit switches, keeping cutting length accurate and repeatable.

Q5: How long does production take to set up? A: Roller and die changeovers are straightforward, and our engineers provide commissioning guidance so the ridge cap machine can start production quickly.

Q6: What after-sales support do you offer?

A: We provide installation and commissioning guidance, operator training on-site or remote, complete documentation and online technical support for the machine's full service life.

Q7: How can I compare prices from different suppliers?

A: Send us your profile drawing, material specification and daily output target; we reply within 24 hours with a factory-direct quotation so you can compare on equal terms.

Q8: How do I place an order?

A: Confirm the quotation, then we arrange production, inspection, packing and shipment; contact us via WhatsApp/Wechat +86 188 0307 8605 or email sara@xinnuomachine.com.
