Ridge Forming Machine - Roof Ridge Capping Production Line

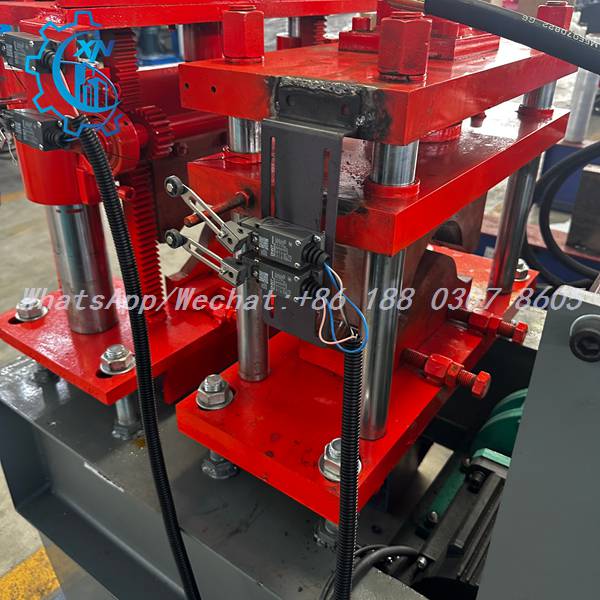

Close-up of the pressing frame of the ridge forming machine: four chrome guide pillars on a red steel frame with limit switches on the bracket and a toothed gear rack - precise vertical travel control.

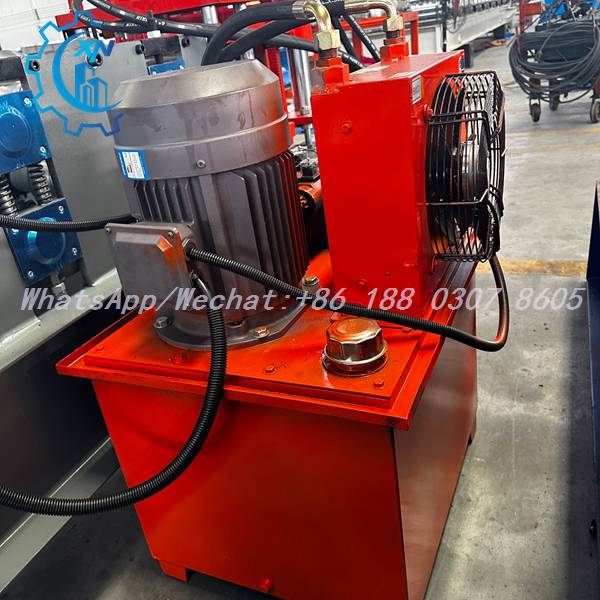

 Close-up of the hydraulic power unit of the ridge forming machine: red reservoir with filler cap, motor with cooling fins, fan cooler with wire guard and hydraulic hoses - stable power for cutting.

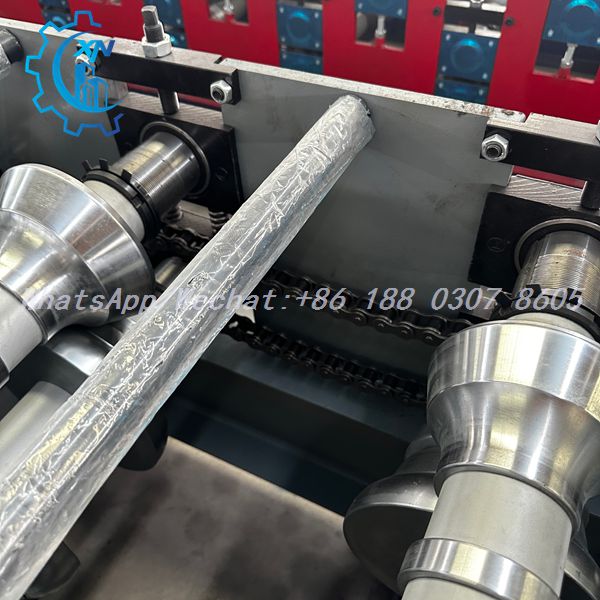

High-angle view of the forming head of the ridge forming machine: tapered and conical rollers on thick shafts with double chain drive, while a film-wrapped workpiece feeds through the mounting plate - forming and transmission.

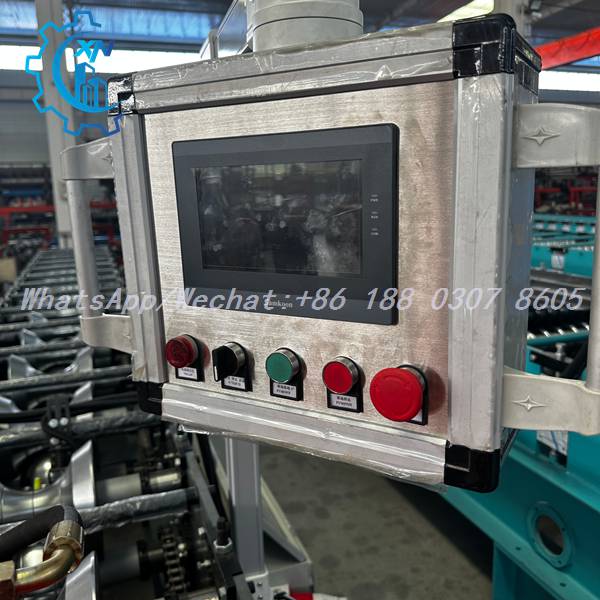

Close-up of the control panel of the ridge forming machine:  touchscreen with PWR/RUN/COM indicators and bilingual buttons including emergency stop and pump controls - operator-friendly control.

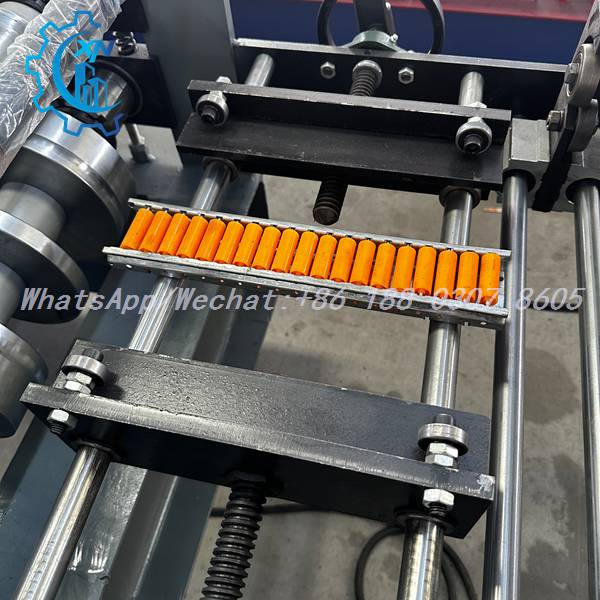

Close-up inside the roller cassette of the ridge forming machine: orange guide rollers on a horizontal track with sliding blocks driven by threaded lead screws and a hand crank - precise height adjustment of forming rollers.

Ridge Forming Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of ridge forming machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, ridge forming machines for roof ridge capping production, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

FAQ

Q1: What is a ridge forming machine?

A: It is a production line that forms steel coils into ridge caps and hip cappings for metal roofs. The ridge forming machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: V-shape ridge caps, arch ridge caps and customized roof ridge capping profiles. Dedicated roller sets and dies allow different ridge angles and widths.

Q3: How is the forming pressure adjusted?

A: Roller height is adjusted via hand-crank and screw assemblies at each station, allowing fine tuning of roller gaps for consistent ridge profile dimensions.

Q4: What material thickness can it process?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, cutting dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every ridge forming machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
