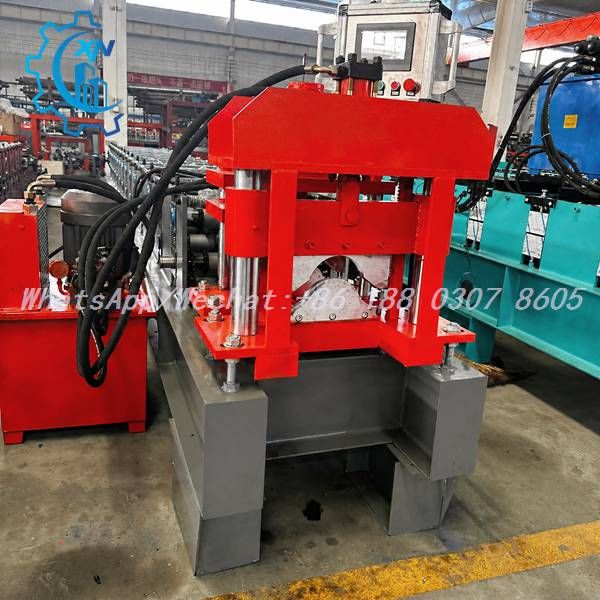

Ridge Cap Machine - Roof Ridge Capping Production Line

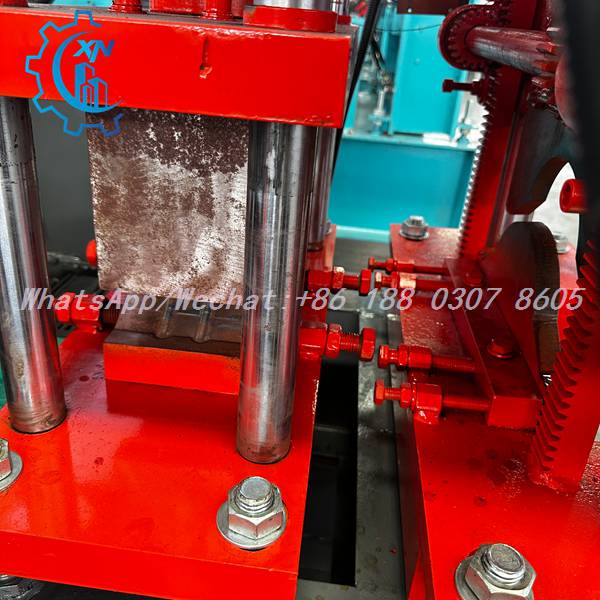

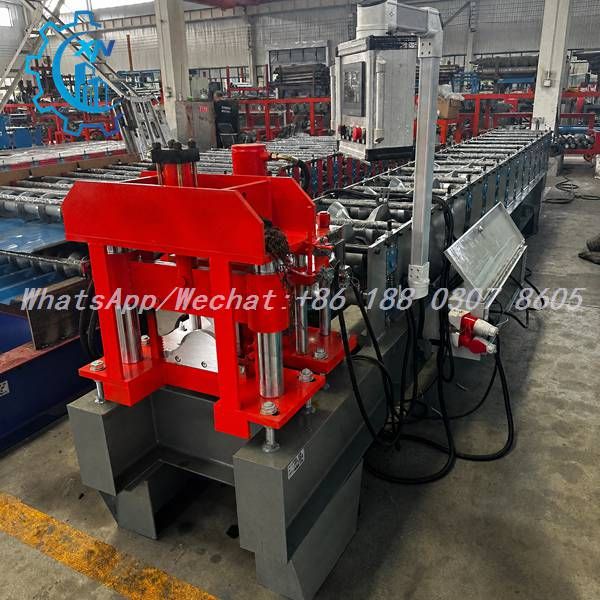

High-angle view of the press frame of the ridge cap machine: chrome guide pillars on red plates, forming die with grooved surface and a gear-rack drive on the side - vertical travel control for die forming.

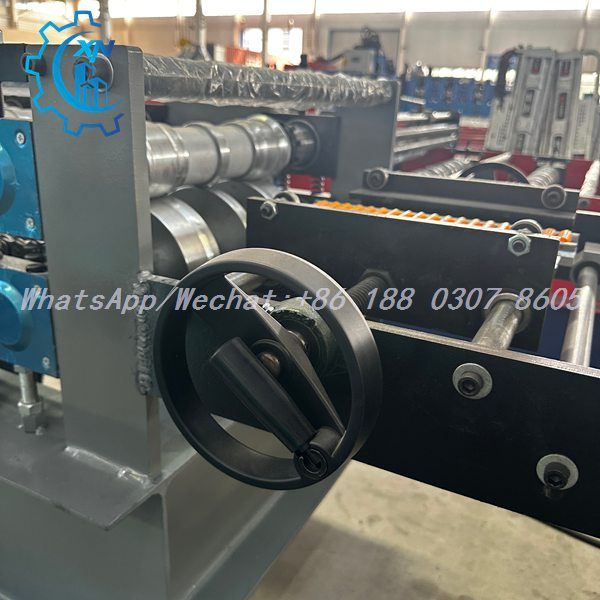

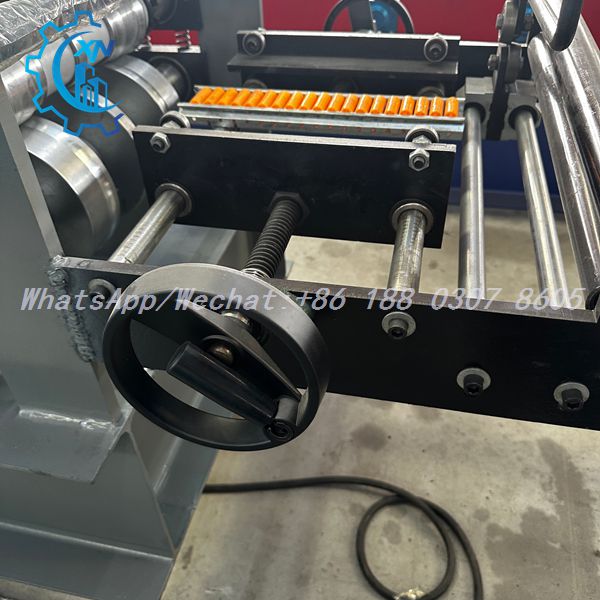

Close-up of the adjustment section of the ridge cap machine: black three-spoke handwheel driving a lead screw, orange roller track on top and film-wrapped steel rollers - width tuning and feeding.

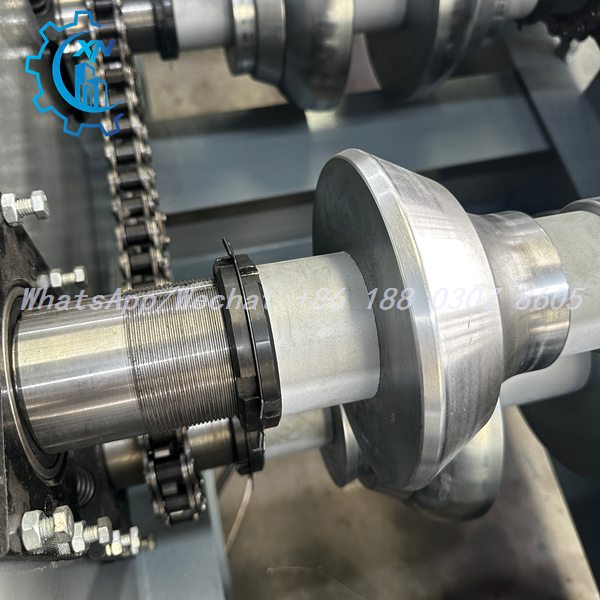

Inside view of the roller stack of the ridge cap machine: bell-shaped forming rollers with threaded locknut and spacer on the shaft, synchronized by vertical chains on twin shafts - arc profile forming.

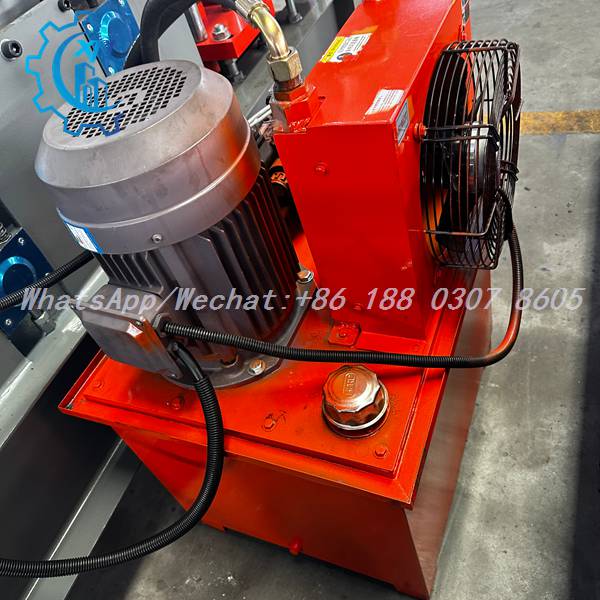

Close-up of the hydraulic power unit of the ridge cap machine: finned motor on a red reservoir with circular filler cap and fan-cooled radiator, with yellow safety line on the floor - stable power supply.

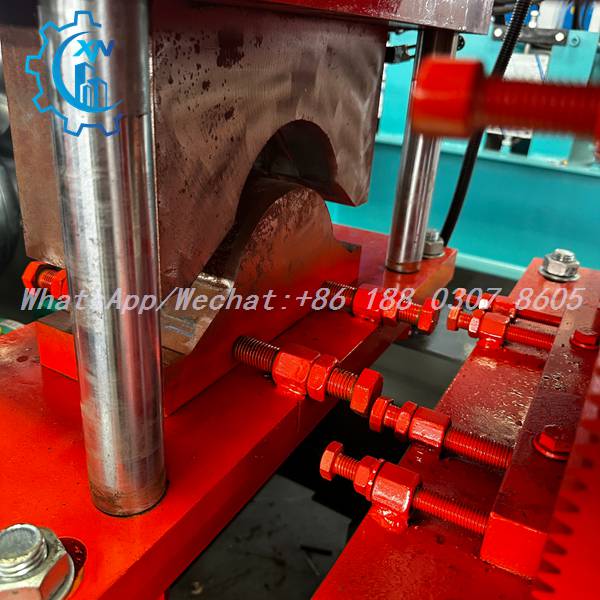

Close-up of the forming station of the ridge cap machine: unpainted die pair with semicircular concave and convex curves guided by silver posts, with stacked tensioning nuts - arc ridge cap shaping.

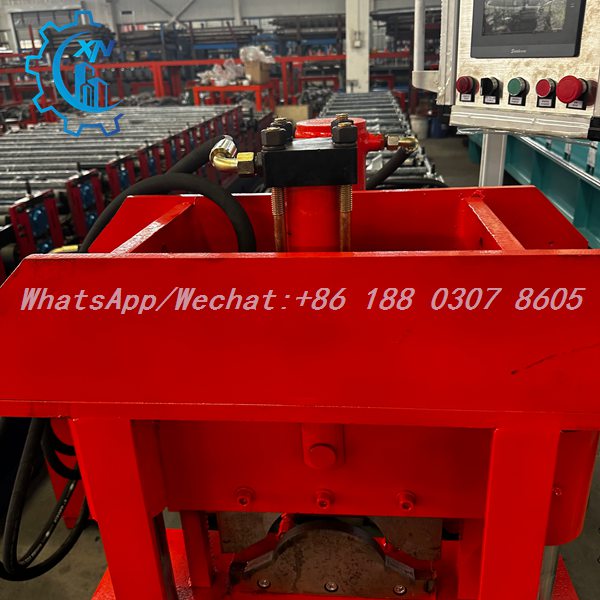

Close-up of the press station of the ridge cap machine: red hydraulic cylinder with manifold and brass fittings driving a curved die, beside a control box with monitor and emergency stop - precise capping cutting.

Ridge Cap Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of ridge cap machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, ridge cap machines for roof ridge capping production, capping roll forming machines, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

FAQ

Q1: What is a ridge cap machine?

A: It is a production line that forms steel coils into ridge caps and cappings for metal roofs. The ridge cap machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: V-shape ridge caps, arc ridge caps and customized capping profiles. Dedicated dies and roller sets allow different angles and widths.

Q3: How is the die driven?

A: The forming and cutting dies are driven by hydraulic cylinders guided on chrome posts, with gear-rack or chain transmission for synchronized travel - precise and repeatable strokes.

Q4: What material thickness can it process?

A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Forming dies, roller sets, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every ridge cap machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.
