Capping Roll Forming Machine - Roof Capping Production Line

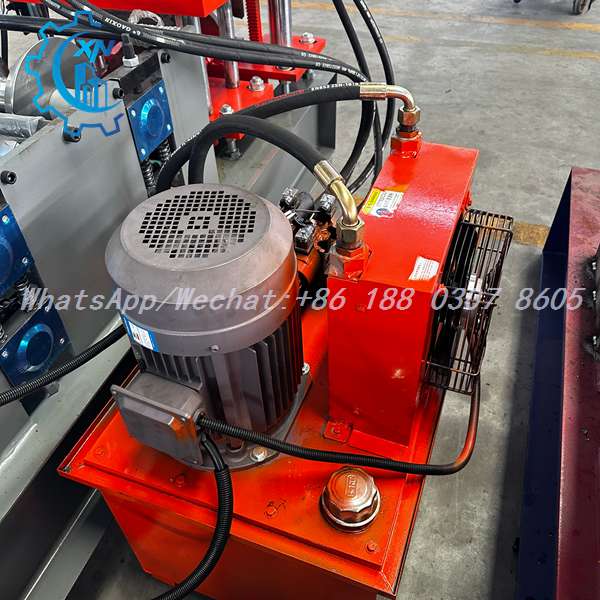

Close-up of the hydraulic power unit of the capping roll forming machine: red welded reservoir with OIL filler cap, finned motor and fan-cooled radiator with wire guard - stable power for cutting.

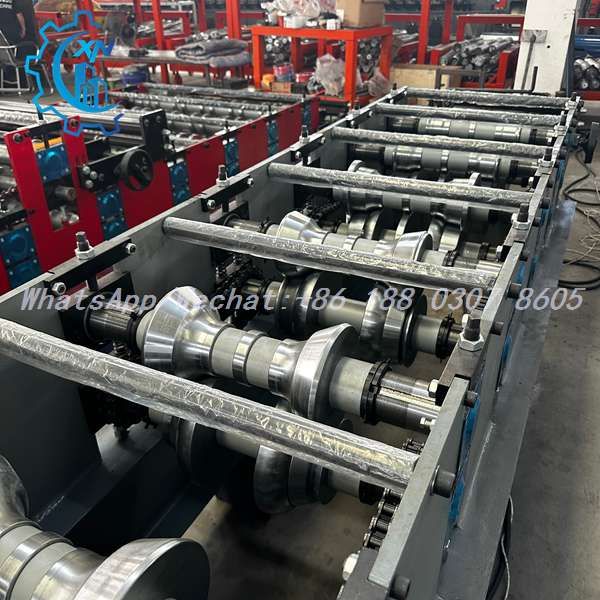

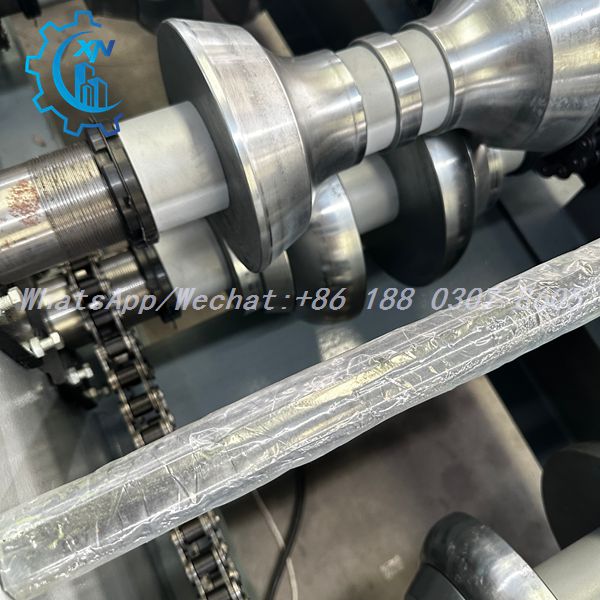

 Inside view of the forming station of the capping roll forming machine: polished contoured rollers on twin shafts with spacers and locking collars, lubricated chain drive and a film-wrapped finished profile - forming output in action.

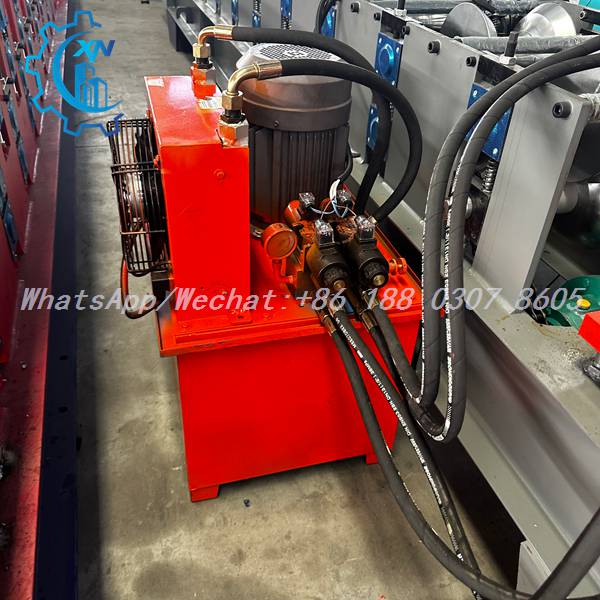

Close-up of the hydraulic unit of the capping roll forming machine: bright orange reservoir, motor with cooling fins, manifold with two solenoid valves and pressure gauge, DIN-rated hoses - reliable hydraulic control.

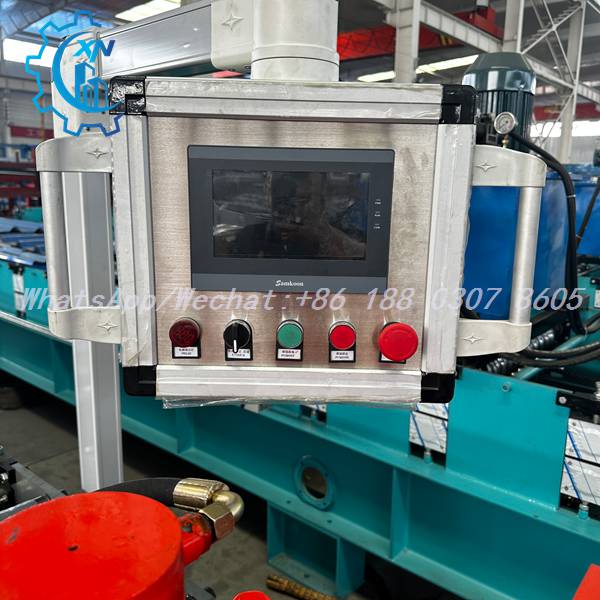

Close-up of the control panel of the capping roll forming machine: Samkoon touchscreen with fault indicator, green and red buttons and a mushroom emergency stop, with a red hydraulic cylinder below - safe operator control.

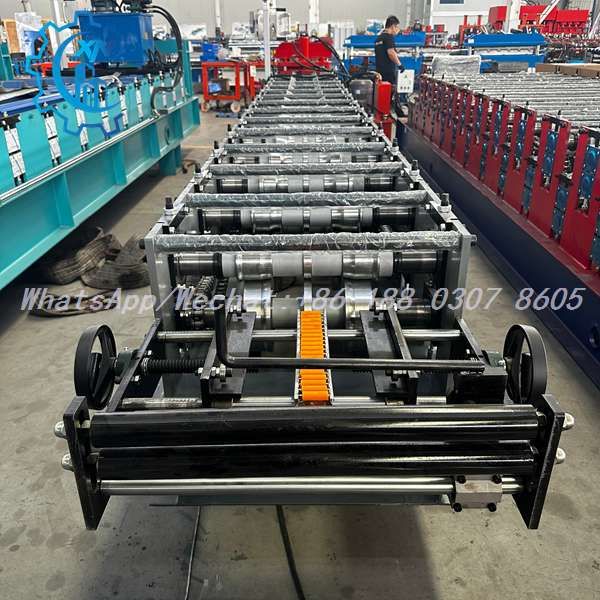

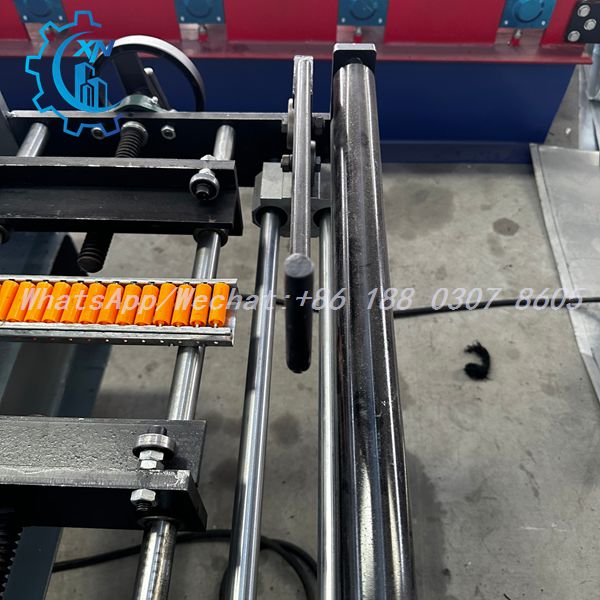

High-angle view of the roller section of the capping roll forming machine: orange rollers on a perforated track, reflective guide cylinders and a large handwheel for manual adjustment, under the red-and-blue casing - feeding and tuning the line.

Capping Roll Forming Machine - XINNUO, Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of capping roll forming machines, roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, capping roll forming machines for roof capping production, ridge forming machines, metal stud and light steel framing lines, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

FAQ

Q1: What is a capping roll forming machine?

A: It is a production line that forms steel coils into roof capping and ridge capping profiles for metal roofing. The capping roll forming machine combines decoiling, roll forming and hydraulic cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: Roof capping, ridge capping, edge capping and customized profiles. Dedicated roller sets and dies allow different angles, widths and edge shapes.

Q3: How is the line controlled?

A: A Samkoon HMI touchscreen with fault indicator, start/stop buttons and emergency stop gives operators full control of feeding, forming and cutting.

Q4: What material thickness can it process? A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, cutting dies, forming speed, cutting length and overall line layout can all be engineered around your profile drawings.

Q6: Do you provide installation and operator training? A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: How long is the delivery time?

A: Delivery time depends on configuration and quantity. Every capping roll forming machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How do I request a quote?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
