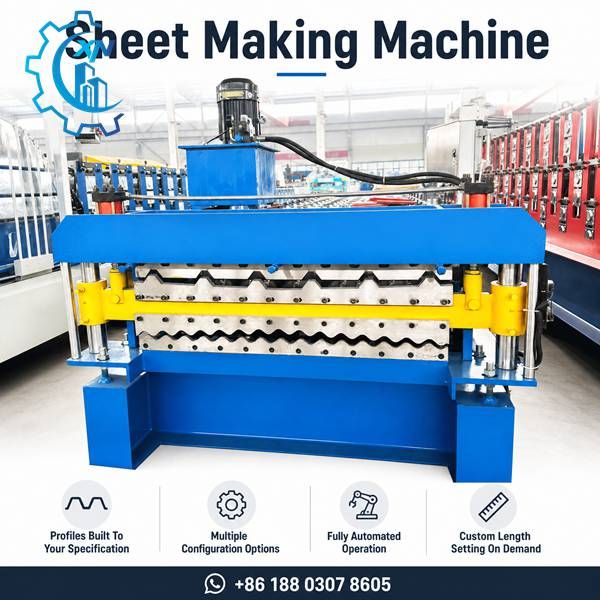

Sheet Making Machine - Metal Roof Sheet Production Line

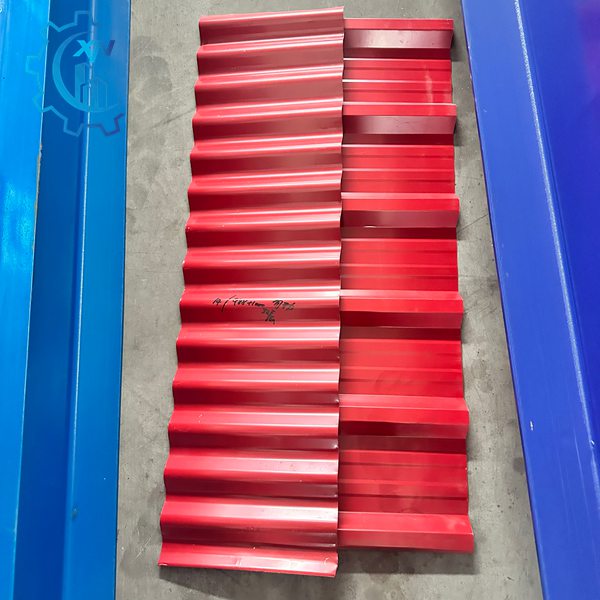

Finished red corrugated sheets produced by the sheet making machine: a sinusoidal wave sheet and a trapezoidal box-profile sheet side by side - showing profile accuracy and color-coated surface quality.

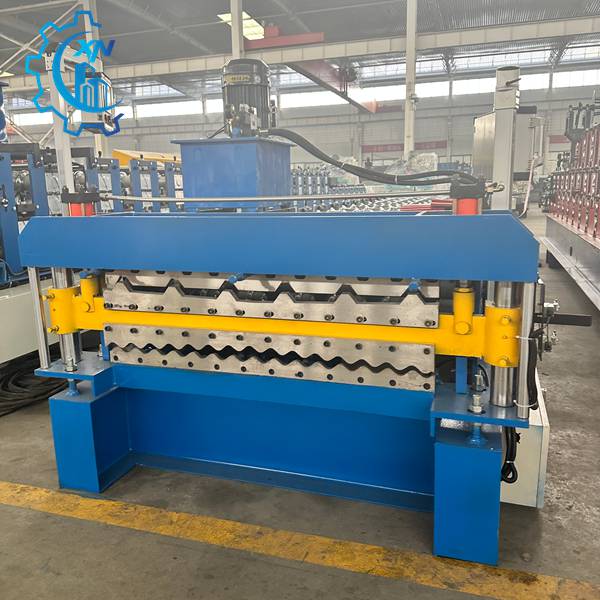

Close-up of the pressing unit of the sheet making machine: upper trapezoidal die and lower sinusoidal die on a yellow beam, driven by orange hydraulic cylinders with a reservoir and motor on top - precise cutting of corrugated sheets.

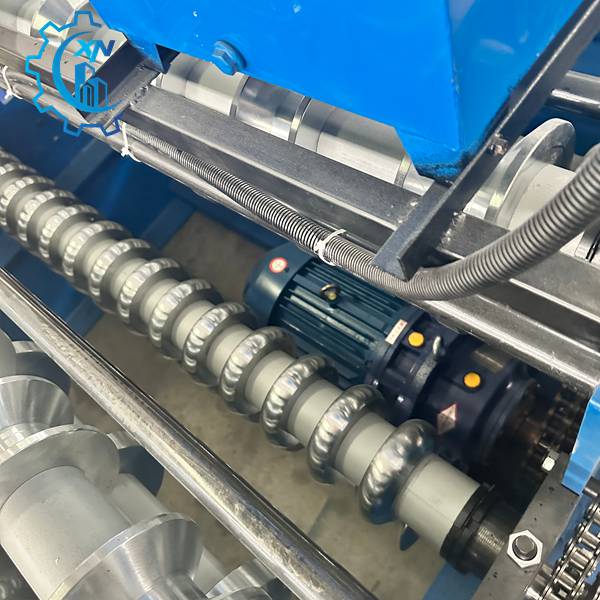

Close-up of the internal structure of the sheet making machine: toroidal ridged rollers on the central shaft, flange rollers, blue motor with gearbox and chain-sprocket drive - robust transmission for continuous sheet forming.

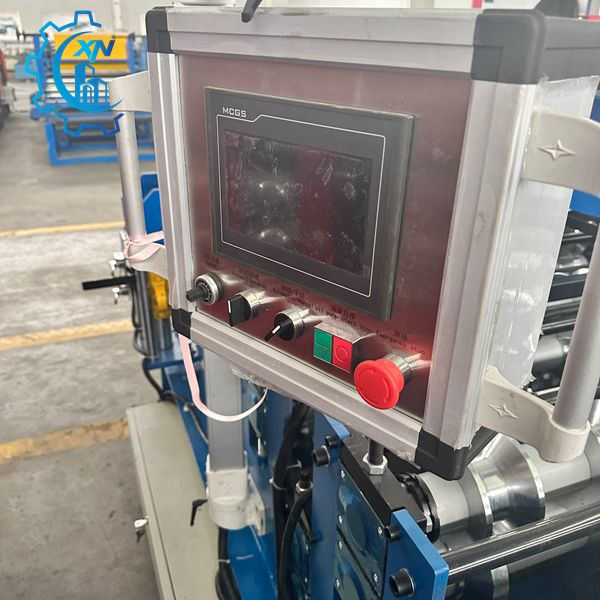

Close-up of the HMI control panel of the sheet making machine: MCGS touchscreen, Auto/Man and oil pump selector switches, stop buttons and a large emergency stop button on the silver control box - precise operation control for the forming line.

XINNUO Roll Forming Machine - Your Trusted Partner Since 1995

XINNUO is a professional manufacturer specializing in the research, development, design, production and global supply of roll forming machines and complete metal forming production lines. Established in 1995, we have more than 30 years of manufacturing experience and have grown into one of China's leading roll forming machine manufacturers.

Our product range covers single-layer roof and wall panel machines, sheet making machines for metal roof sheet production, solar bracket and PV mounting rail lines, unistrut / slotted channel lines, C/Z/U purlin machines, composite panel lines, floor deck machines, arch forming equipment and fully customized special-profile lines.

Every machine is engineered, welded, assembled and tested in our own factory, with precise control over forming rollers, hydraulic systems and electrical components. We have served customers in over 150 countries and regions across Europe, the Middle East, Africa, Southeast Asia, North America and South America, providing installation guidance, operator training and reliable after-sales support.

Q1: What is a sheet making machine?

A: It is a production line that forms steel coils into metal roof sheets and corrugated profiles, including sinusoidal wave sheets and trapezoidal sheets. The sheet making machine combines decoiling, roll forming, hydraulic pressing and cutting in one continuous process.

Q2: Which profiles can be made on this line?

A: Sinusoidal corrugated sheets, trapezoidal box-profile sheets and customized metal roof sheet profiles. Dedicated roller sets and dies allow quick changeover between different sheet types.

Q3: Can punching and cutting be integrated?

A: Yes. Hydraulic pressing and cutting are integrated in-line, delivering cut-to-length sheets in one pass - no secondary processing.

Q4: What material thickness can it process? A: It depends on the machine configuration and profile size. Send us your material specification and profile drawing, and we will recommend the suitable configuration.

Q5: Can the machine be customized?

A: Yes. Roller sets, pressing dies, forming speed, cutting length and overall line layout can all be engineered around your sheet drawings.

Q6: What about installation and training?

A: We provide installation and commissioning guidance, operator and maintenance training on-site or remotely, plus complete documentation and online technical support.

Q7: What is the delivery time and warranty?

A: Delivery time depends on configuration and quantity. Every sheet making machine is fully tested before shipment and covered by warranty; terms are confirmed in the quotation.

Q8: How can I get a quotation?

A: Share your profile drawing or sample, material specification and daily output target via WhatsApp / Wechat +86 188 0307 8605 or email sara@xinnuomachine.com. We reply within 24 hours.
