1.High forming accuracy designed specifically for IBR 686 profiles, ensuring consistent shape and excellent flatness.
2.Strong and durable structure with reinforced machine frame and high-strength rollers for long-term continuous work.
3.Advanced automation with PLC control system for automatic length setting and counting, easy to operate.
4.WhatsApp/Wechat:+86 188 03078605
5.Email:sara@xinnuomachine.com

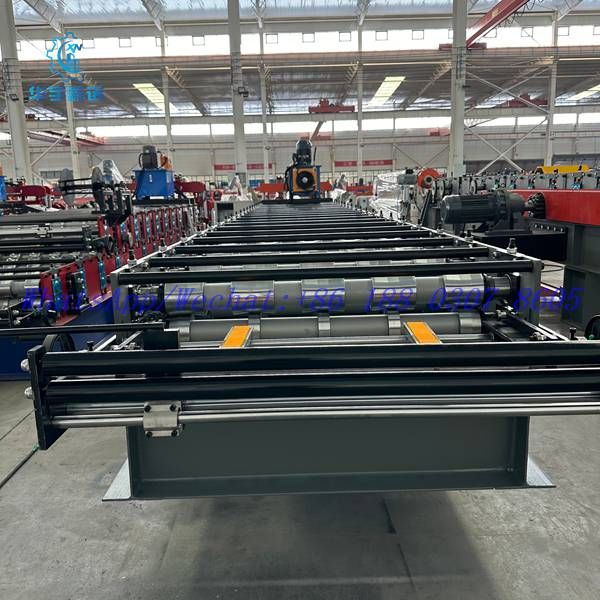

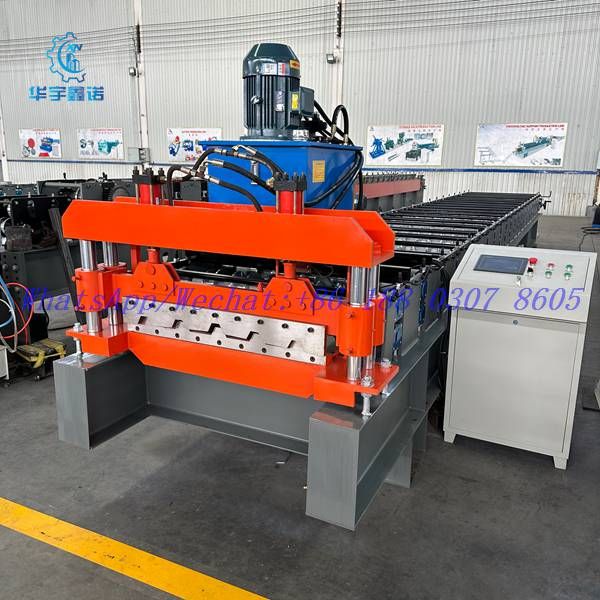

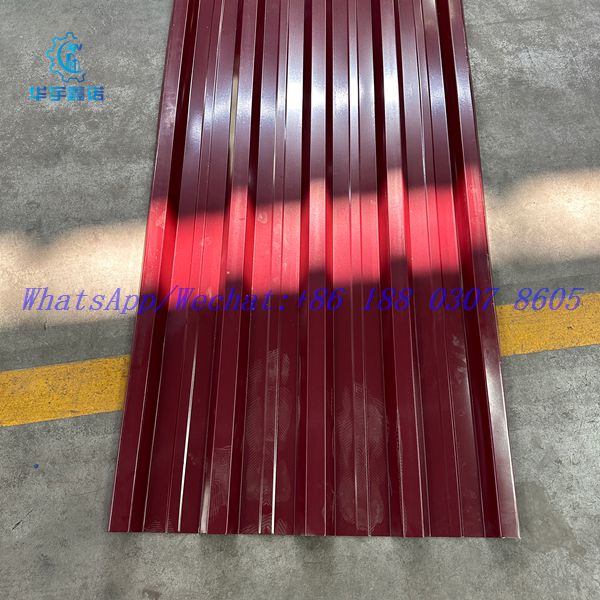

IBR roof sheet making machine producing finished roofing sheets with a uniform wave structure and smooth surface finish. The added small ribs not only improve the aesthetic appearance but also significantly enhance durability and load-bearing performance.
| Item | Specification |
|---|---|
| Material Type | GI / PPGI / Aluminum |
| Thickness Range | 0.3 – 0.8 mm |
| Coil Width | 1000 / 1200 / 1250 mm |
| Forming Stations | 16 – 18 stations |
| Roller Material | 45# Steel, Chrome Coated |
| Shaft Diameter | 70 mm |
| Cutting Type | Hydraulic Post Cutting |
| Blade Material | Cr12Mov, Heat Treated |
| Drive System | Chain Drive |
| Main Motor Power | 5.5 kW |
| Hydraulic Power | 4 kW |
| Control System | PLC (Delta / Siemens Optional) |
| Speed | 8–15 m/min |
| Voltage | 220V / 380V / 415V |

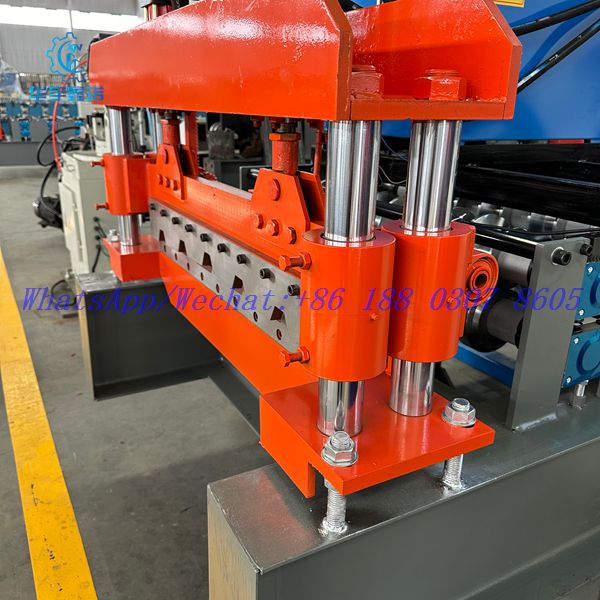

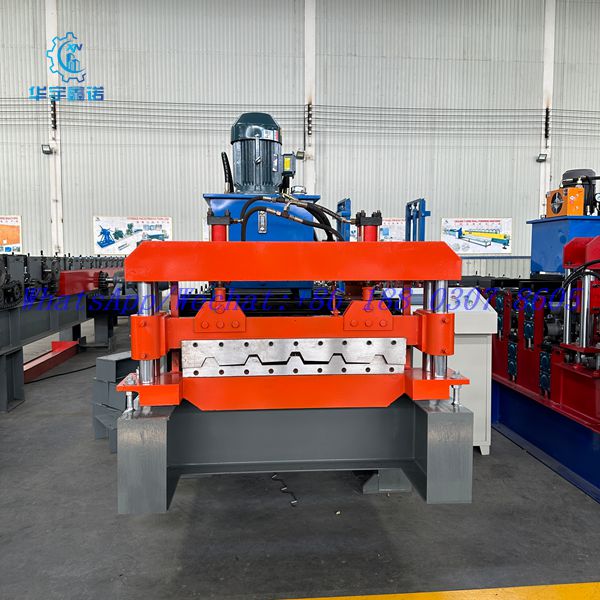

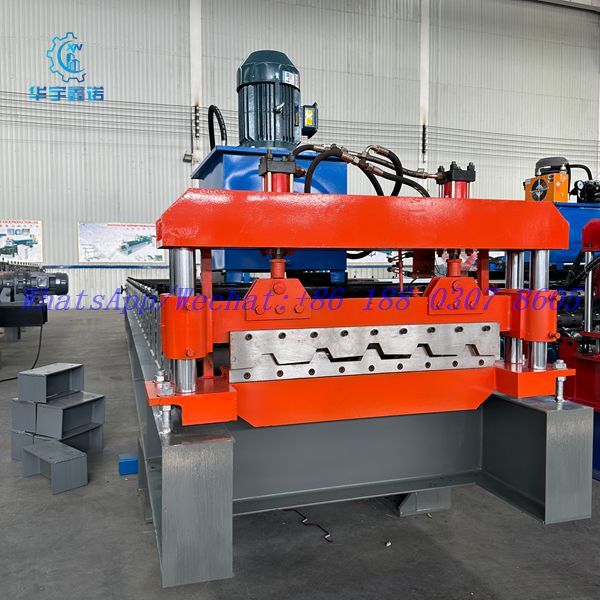

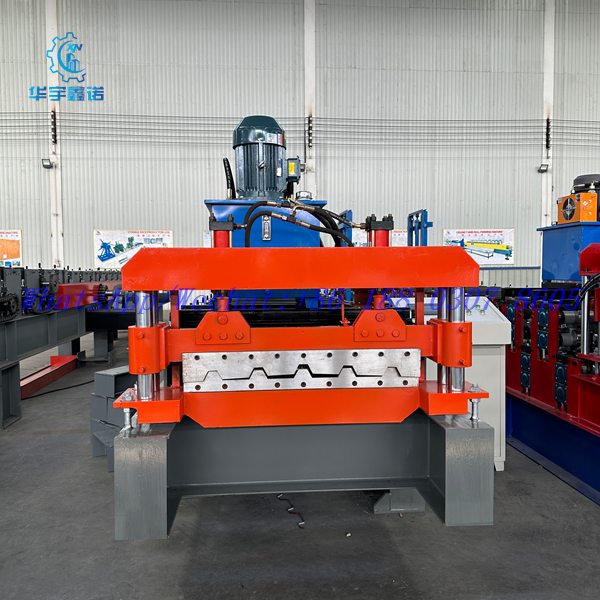

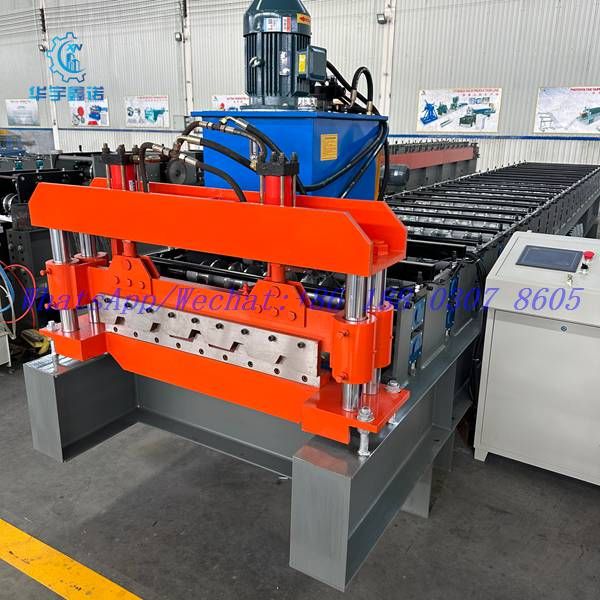

Precision hydraulic cutting device of the IBR roof sheet making machine delivering accurate sheet length and smooth edges.

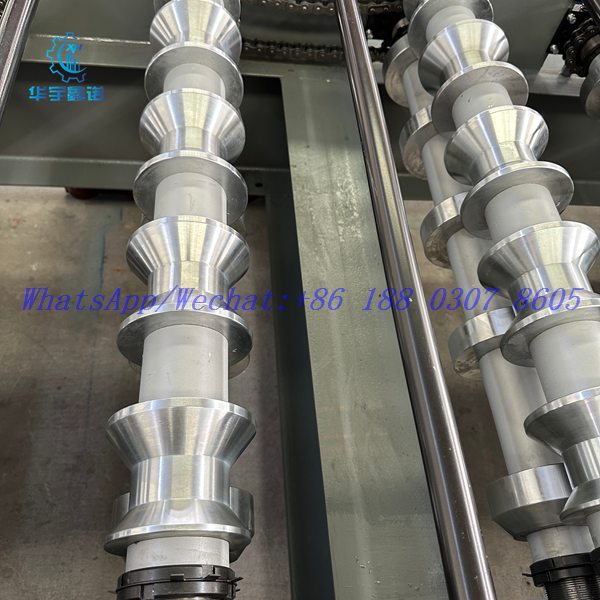

Durable forming rollers of the IBR roof sheet making machine ensuring consistent profile shaping and long service life.

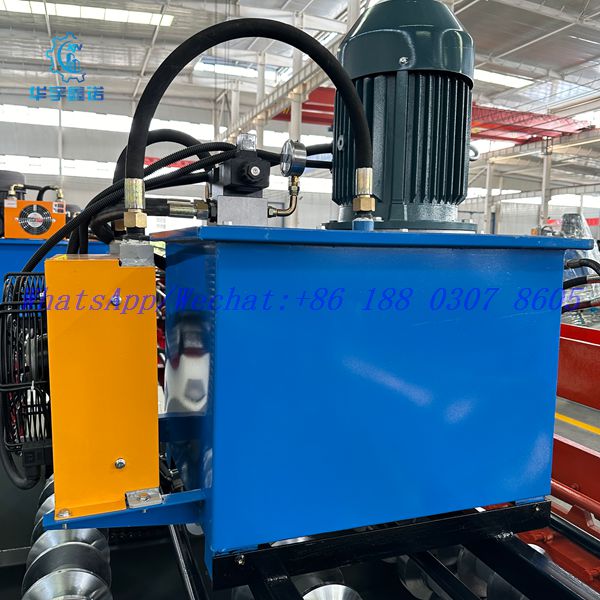

Cooling fan equipped hydraulic system of the IBR roof sheet making machine designed for continuous industrial operation.
APPLICATION
The IBR 686 roofing sheet produced by the IBR roof sheet making machine is widely used in:
It is especially suitable for large-span roofing due to its high strength, efficient drainage design, and easy installation.
COMPANY INTRODUCTION
XINNUO Roll Forming Machine is a professional manufacturer specializing in the design and production of IBR roof sheet making machine solutions for global customers.
With over 20 years of export experience, XINNUO Roll Forming Machine provides advanced IBR roof sheet making machine systems that combine durability, precision, and efficiency. Each IBR roof sheet making machine is engineered to meet strict international standards, ensuring stable operation and long service life.
Our factory integrates modern manufacturing technology and strict quality control to deliver reliable IBR roof sheet making machine equipment. We support customization, fast delivery, and technical assistance, helping clients maximize production efficiency.
Choosing XINNUO Roll Forming Machine means choosing a trusted partner for high-performance IBR roof sheet making machine solutions worldwide.
XINNUO ROLL FORMING MACHINE CO., LTD is a professional manufacturer specializing in high-quality ibr making machine and advanced ibr machine solutions. With years of industry experience, we provide reliable, efficient, and customized roll forming equipment to meet global roofing production needs, ensuring stable performance, precision forming, and long-term durability for our customers worldwide.
